You can deploy Redis applications on persistent memory-optimized instances to reduce memory costs per GiB. To ensure runtime performance, you must modify your Redis applications. To minimize your modification costs, Alibaba Cloud provides re6p instance types exclusively for Redis applications. You can run several commands to deploy Redis applications on re6p instances. In this topic, Alibaba Cloud Linux 2 and CentOS are used to demonstrate how to deploy Redis applications on re6p instances.

Background information

The procedures described in this topic apply only to the following instance types:
  • ecs.re6p-redis.large
  • ecs.re6p-redis.xlarge
  • ecs.re6p-redis.2xlarge
  • ecs.re6p-redis.13xlarge
Note ecs.re6p-redis.<nx>large indicates instance types that are provided exclusively for Redis applications and support only persistent memory used as memory.
If you deploy Redis applications in other operating systems, make sure that one of the following image versions is used:
  • Alibaba Cloud Linux 2
  • CentOS 7.6 or later
  • Ubuntu 18.10 or later
  • SUSE Linux 12 SP4 or later

Deploy a Redis application on an re6p instance that runs Alibaba Cloud Linux 2

Alibaba Cloud Linux 2 is tuned for Redis applications. Redis applications deployed on Alibaba Cloud Linux 2 outperform those deployed on community-supported Linux operating systems in overall performance by more than 20%.

Alibaba Cloud Linux 2 has the built-in YUM repositories of Redis 6.0.5 and Redis 3.2.12. You can run the yum install command to deploy Redis 6.0.5 and Redis 3.2.12. You can also manually deploy Redis applications of other versions. For more information, see Deploy a Redis application on an re6p instance that runs CentOS.

In this example, the following configurations are used:
  • Instance type: ecs.re6p-redis.2xlarge
  • Image: Alibaba Cloud Linux 2.1903 LTS 64-bit
  1. Purchase a persistent memory-optimized instance.
    For more information, see Create an instance by using the wizard. Take note of the following configurations:
    • Instance Type: Set Architecture to x86-Architecture, set Category to Memory Optimized, and then select the ecs.re6p-redis.2xlarge instance type.
    • Image: Select Alibaba Cloud Linux 2.1903 LTS 64-bit.
  2. Log on to the instance.
    For more information, see Overview.
  3. Install the Alibaba Cloud experimentals repository.
    yum install -y alinux-release-experimentals
  4. Deploy a Redis application.
    • Run the following command to deploy Redis 6.0.5:
      yum install -y redis-6.0.5
    • Run the following command to deploy Redis 3.2.12:
      yum install -y redis-3.2.12
  5. Configure network interface controller (NIC) multi-queue.
    NIC multi-queue helps improve the performance of Redis applications.
    1. Download the ecs_mq automatic configuration script package.
      wget https://ecs-image-tools.oss-cn-hangzhou.aliyuncs.com/ecs_mq/ecs_mq_latest.tgz
    2. Decompress the script package.
      tar -xzf ecs_mq_latest.tgz
    3. Change the working path.
      cd ecs_mq/
    4. Run the script.
      The command formats vary based on image versions. For example, for Alibaba Cloud Linux 2.1903 images, run bash install.sh aliyun 2.
      bash install.sh <Operating system name> <Major version number of the operating system>
    5. Start NIC multi-queue.
      systemctl start ecs_mq
  6. Check the available amounts of regular memory and persistent memory.
    1. Install numactl.
      yum install -y numactl
    2. Check the available amounts of regular memory and persistent memory.
      numactl -H

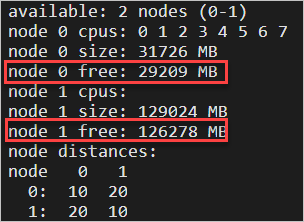

      Note node 0 free indicates the amount of regular memory that can be allocated to applications. node 1 free indicates the amount of persistent memory that can be allocated to applications.
      available-mem
  7. Start the Redis application.
    1. Set an environment variable.
      export MEMKIND_DAX_KMEM_NODES=1
    2. Start Redis and configure the default amounts of regular memory and persistent memory allocated to Redis.
      Note If unoptimized applications such as NGINX are assigned memory addresses of persistent memory, performance problems may arise. To prevent the problems, we recommend that you allocate all persistent memory to Redis applications when you start Redis applications.
      Sample commands:
      • Run the following command to set the port number to 6379 and the allocated amount of memory to 36 GiB (including 4 GiB of regular memory and 32 GiB of persistent memory):
        redis-server /etc/redis.conf --port 6379 --memory-alloc-policy ratio --dram-pmem-ratio 1 8 --maxmemory 36G
      • Run the following command to set the port number to 6379 and the allocated amount of memory to 34 GiB (including 2 GiB of regular memory and 32 GiB of persistent memory):
        redis-server /etc/redis.conf --port 6379 --memory-alloc-policy ratio --dram-pmem-ratio 1 16 --maxmemory 34G
      • Run the following command to set the port number to 6379 and the allocated amount of memory to 32 GiB (including 0 GiB of regular memory and 32 GiB of persistent memory):
        redis-server /etc/redis.conf --port 6379 --memory-alloc-policy only-pmem --maxmemory 32G

Deploy a Redis application on an re6p instance that runs CentOS

In this example, the following configurations are used:
  • Instance type: ecs.re6p-redis.2xlarge
  • Image: CentOS 7.6
    Note Make sure that CentOS 7.6 or later is used.
  • Redis: Redis 4.0.14
  • memkind: memkind 1.10.1
Note If you download resources from https://github.com/, make sure that the resources are downloaded before you proceed to the following procedure.
  1. Purchase a persistent memory-optimized instance.
    For more information, see Create an instance by using the wizard. Take note of the following configurations:
    • Instance Type: Set Architecture to x86-Architecture, set Category to Memory Optimized, and then select the ecs.re6p-redis.2xlarge instance type.
    • Image: Select CentOS 7.6 64-bit.
  2. Log on to the instance.
    For more information, see Overview.
  3. Prepare the compiling environment.
    1. Set an environment variable.
      export MEMKIND_DAX_KMEM_NODES=1
    2. Download the dependency.
      yum -y install numactl-devel.x86_64
    3. Download the toolkit.
      yum -y groupinstall 'Development Tools'
      Note The toolkit includes the GNU Compiler Collection (GCC) compiler.
  4. Prepare the Redis 4.0.14 installation package.
    1. Download the installation package.
      wget https://github.com/redis-io/redis/archive/4.0.14.tar.gz
    2. Decompress the package.
      tar xzvf 4.0.14.tar.gz
  5. Download and install the patch that enables the Redis application to use persistent memory.
    1. Download the patch.
      wget https://github.com/redis/redis/compare/4.0.14...memKeyDB:4.0.14-devel.diff -O redis_4.0.14_eca56e845aa19d2e79e7c70207e860f8385541f9.patch
      Note For information about how to download patches for more Redis versions, see Download patches that enable Redis applications to use persistent memory.
    2. Switch to the directory where Redis 4.0.14 is installed.
      cd redis-4.0.14
    3. Install the patch.
      git apply --ignore-whitespace ../redis_4.0.14_eca56e845aa19d2e79e7c70207e860f8385541f9.patch
  6. Prepare the memkind installation package.
    memkind is a memory management tool used to allocate and manage persistent memory.
    1. Download the memkind installation package.
      wget https://github.com/memkind/memkind/archive/v1.10.1-rc2.tar.gz
    2. Decompress the memkind installation package.
      tar xzvf v1.10.1-rc2.tar.gz
    3. Move the memkind installation package to the ./deps/memkind/ path.
      mv memkind-1.10.1-rc2/* ./deps/memkind/
  7. Run the ldd --version command to view the version of glibc and determine whether to adjust Makefile.
    Note If the version of glibc is earlier than 2.17, perform the following operations to adjust Makefile. If the version of glibc is 2.17 or later, skip the following operations and compile Redis 4.0.14.
    1. Switch to the ./deps/memkind/ path.
      cd ./deps/memkind/
    2. Download the patch.
      wget https://github.com/memKeyDB/memKeyDB/wiki/files/0001-Use-secure_getenv-when-possible.patch
    3. Install the patch.
      git apply --ignore-whitespace 0001-Use-secure_getenv-when-possible.patch
    4. Go back to the redis-4.0.14 directory.
      cd /root/redis-4.0.14
  8. Compile and install Redis 4.0.14 in the redis-4.0.14 directory.
    1. Compile Redis 4.0.14.
      make clean;make distclean;make MALLOC=memkind -j 4
    2. Install Redis 4.0.14.
      make install
  9. Configure NIC multi-queue.
    NIC multi-queue helps improve the performance of Redis applications.
    1. Download the ecs_mq automatic configuration script package.
      wget https://ecs-image-tools.oss-cn-hangzhou.aliyuncs.com/ecs_mq/ecs_mq_latest.tgz
    2. Decompress the script package.
      tar -xzf ecs_mq_latest.tgz
    3. Change the working path.
      cd ecs_mq/
    4. Run the script.
      The command formats vary based on image versions. For example, for CentOS 7.6 images, run bash install.sh centos 7.
      bash install.sh <Operating system name> <Major version number of the operating system>
    5. Start NIC multi-queue.
      systemctl start ecs_mq
    6. Go back to the redis-4.0.14 directory.
      cd /root/redis-4.0.14
  10. Check the available amounts of regular memory and persistent memory.
    1. Install numactl.
      yum install -y numactl
    2. Check the available amounts of regular memory and persistent memory.
      numactl -H

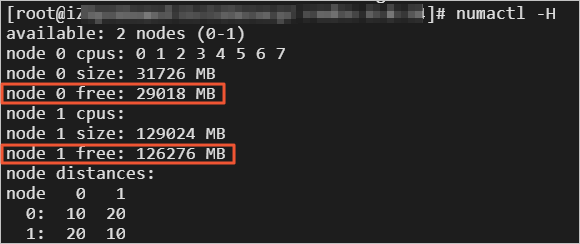

      Note node 0 free indicates the amount of regular memory that can be allocated to applications. node 1 free indicates the amount of persistent memory that can be allocated to applications.
      available-mem
  11. Start Redis and configure the default amounts of regular memory and persistent memory allocated to Redis.
    Note If unoptimized applications such as NGINX are assigned memory addresses of persistent memory, performance problems may arise. To prevent the problems, we recommend that you allocate all persistent memory to Redis applications when you start Redis applications.
    Sample commands:
    • Run the following command to set the port number to 6379 and the allocated amount of memory to 36 GiB (including 4 GiB of regular memory and 32 GiB of persistent memory):
      redis-server redis.conf --port 6379 --memory-alloc-policy ratio --dram-pmem-ratio 1 8 --maxmemory 36G
    • Run the following command to set the port number to 6379 and the allocated amount of memory to 34 GiB (including 2 GiB of regular memory and 32 GiB of persistent memory):
      redis-server redis.conf --port 6379 --memory-alloc-policy ratio --dram-pmem-ratio 1 16 --maxmemory 34G
    • Run the following command to set the port number to 6379 and the allocated amount of memory to 32 GiB (including 0 GiB of regular memory and 32 GiB of persistent memory):
      redis-server redis.conf --port 6379 --memory-alloc-policy only-pmem --maxmemory 32G

Download patches that enable Redis applications to use persistent memory

In the sample command, replace the download URL and the version number that corresponds to the file name. For example, run the following command to download a patch suitable for Redis 6.0.5:
wget https://github.com/redis/redis/compare/6.0.5...memKeyDB:6.0.5-devel.diff -O redis_6.0.5_eca56e845aa19d2e79e7c70207e860f8385541f9.patch
