Migrate existing Kubernetes applications to Elastic Container Instance

Last Updated: Apr 21, 2021

This topic describes how to use Elastic Container Instance by using serverless Kubernetes (ASK) or by combining Kubernetes clusters with virtual nodes. This topic can help you understand the adaptations and transformations required to migrate applications to Elastic Container Instance.

Preparations

  1. Understand the basic principles of connecting Kubernetes to Elastic Container Instance. For more information, see Connect Kubernetes to Elastic Container Instance.

  2. Based on how you use Elastic Container Instance, create an ASK cluster or deploy a virtual node in an existing Kubernetes cluster.

Management tools

You can use the following methods to manage Kubernetes and the running status of elastic container instances:

  • Elastic Container Instance console

    You can check the running status of elastic container instances in the Elastic Container Instance console. Perform the following steps:

    1. Log on to the Elastic Container Instance console.

    2. In the top navigation bar, select a region.

    3. On the Container Group page, view the created elastic container instances in the selected region.

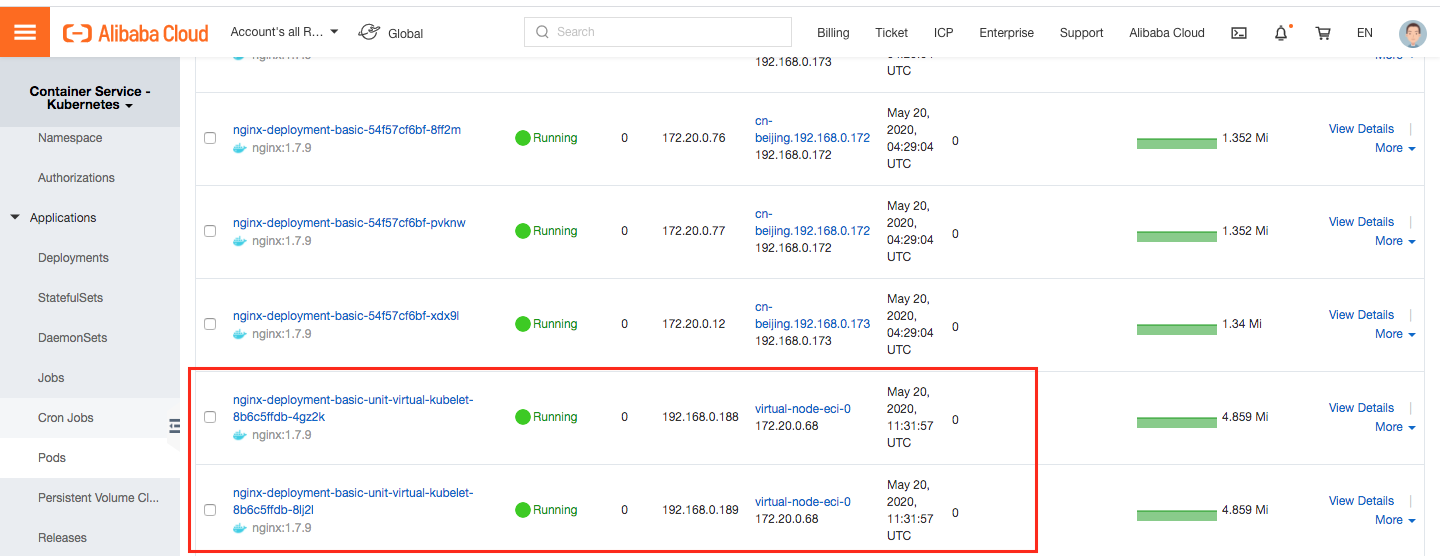

  • Container Service for Kubernetes (ACK) console

    You can manage ASK or ACK clusters and view the running status of elastic container instances in the ACK console. To view the running status of elastic container instances, perform the following steps:

    1. Log on to the ACK console.

    2. In the left-side navigation pane, click Clusters.

    3. In the cluster list, find the cluster that you want to view and click the cluster ID to go the details page.

    4. In the left-side navigation pane, choose Workloads > Pods.

    5. On the Pods page, select a namespace from the drop-down list. Then, you can view elastic container instances of the namespace.

  • Alibaba Cloud Shell

    You can manage Kubernetes clusters by using Cloud Shell provided by Alibaba Cloud. For more information, see Use kubectl on Cloud Shell to manage ACK clusters.

  • kubectl client

    You can use the kubectl client to connect to a remote Kubernetes cluster from your computer. For more information, see Use kubectl to connect to an ACK cluster.

Limits

Elastic Container Instance does not support some Kubernetes features such as hostPaths and DaemonSets due to security limits of Alibaba Cloud public cloud and limits imposed by virtual nodes. The following table describes the unsupported features.

Unsupported feature

Description

Recommended alternative

hostPath

Allows you to mount files from on-premises hosts to containers.

Use an emptyDir volume or Apsara File Storage NAS (NAS).

hostNetwork

Allows you to map a host port to a container.

Create a Service of the LoadBalancer type.

DaemonSet

Allows you to deploy a static pod on the host of a container.

Deploy multiple images in a pod by using sidecar containers.

Privileged permissions

Allows you to grant privileged permissions to a container.

Use a security context to grant permissions to a pod.

Service of the NodePort type

Allows you to map a host port to a container.

Create a Service of the LoadBalancer type.

Notes

  • ASK clusters share an image repository with Kubernetes clusters. To simplify image pulling, you can upload your container images to the image repository in advance. We recommend that you use the VPC-type image address such as registry-vpc.xxx.

  • ASK clusters and the combination of Kubernetes clusters and virtual nodes support common controllers such as Deployments, ReplicaSets, Jobs, CronJobs, and StatefulSets. Applications of these types can run directly in ASK and Kubernetes clusters.

  • ASK clusters and the combination of Kubernetes clusters and virtual nodes use PrivateZone to conduct service discovery. We recommend that you enable PrivateZone when you create a cluster.

  • ASK clusters and the combination of Kubernetes clusters and virtual nodes support loading balancing, which indicates that the type of Service is LoadBalancer. For more information, see Configure SLB instances.

    YAML example:

    apiVersion: v1
    kind: Service
    metadata:
      labels:
        app: nginx
      name: nginx
      namespace: default
    spec:
      externalTrafficPolicy: Cluster
      ports:
      - port: 80
        protocol: TCP
        targetPort: 80
      selector:
        app: nginx
      sessionAffinity: None
      type: LoadBalancer
