Container Service for Kubernetes:Deploy a Spark application

Last Updated:Sep 04, 2023

This topic describes how to use ACK Serverless and Elastic Container Instance to deploy a Spark application.

Background information

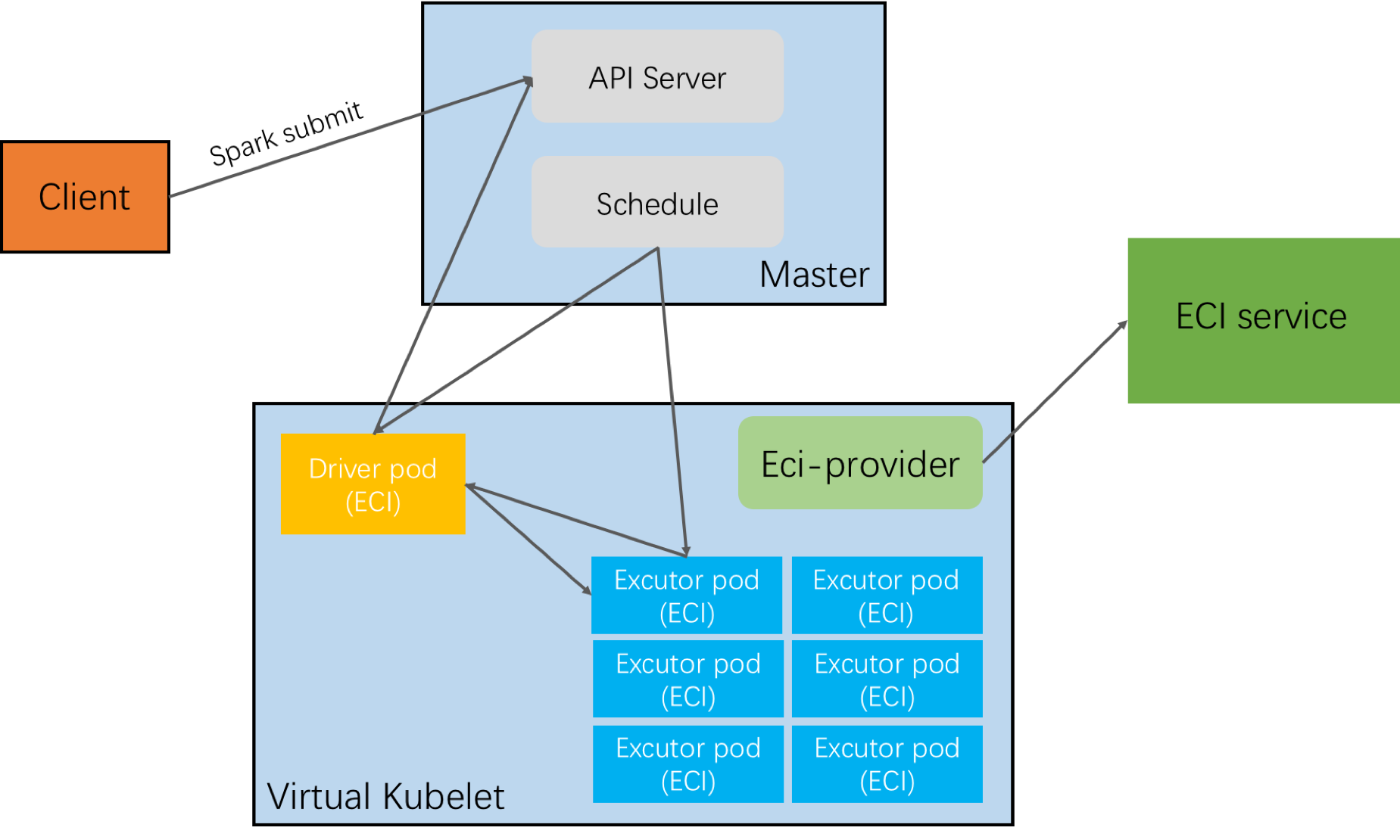

Apache Spark is an open source program that is widely used to analyze workloads in scenarios such as big data computing and machine learning. You can use Kubernetes to run and manage resources on Apache Spark 2.3.0 and later.

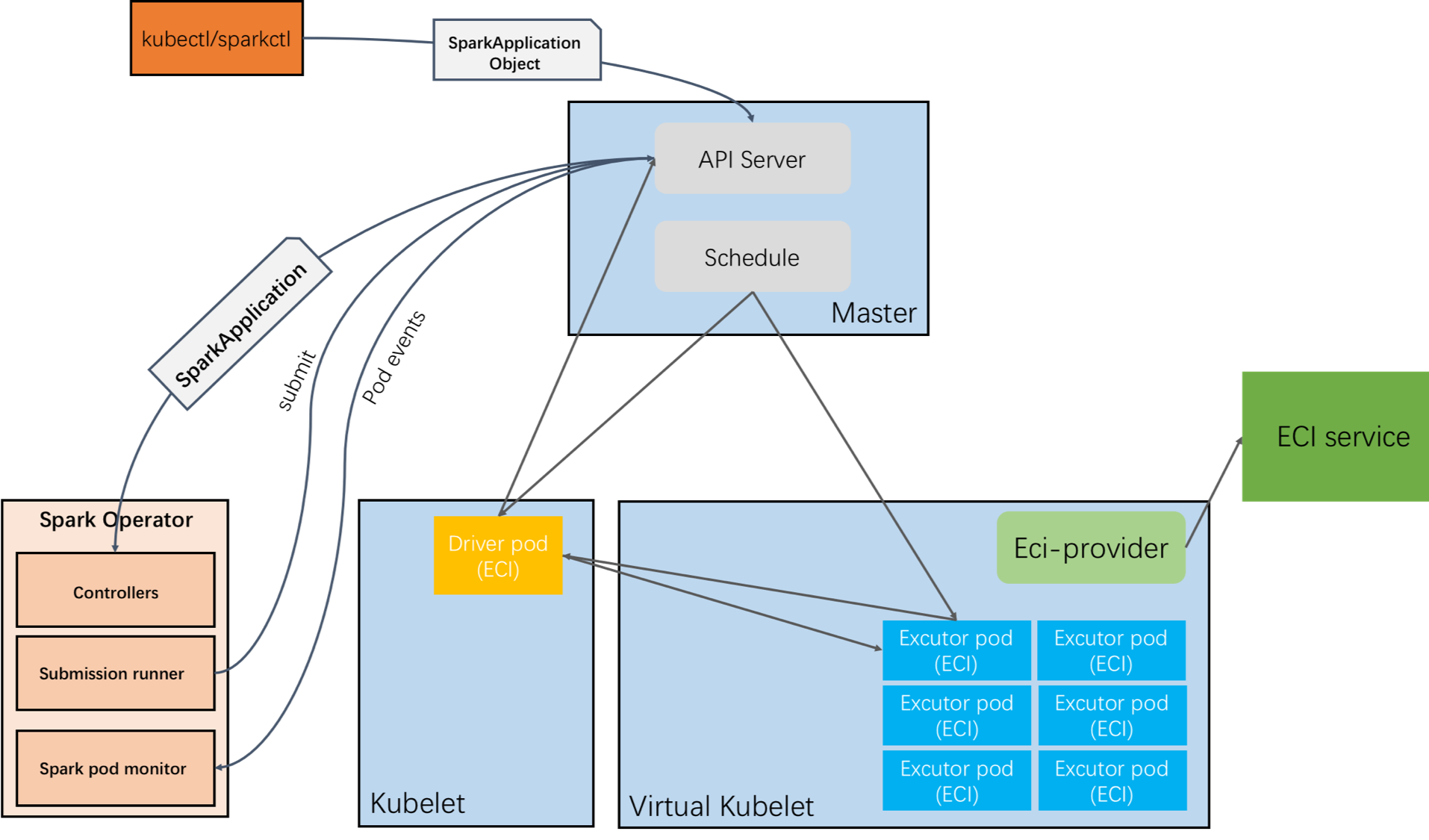

Kubernetes Operator for Apache Spark is designed to run Spark jobs in Kubernetes clusters. It allows you to submit Spark tasks that are defined in custom resource definitions (CRDs) to Kubernetes clusters. Kubernetes Operator for Apache Spark provides the following benefits:

  • Compared with open source Apache Spark, Kubernetes Operator for Apache Spark provides more features.

  • Kubernetes Operator for Apache Spark can be integrated with the storage, monitoring, and logging components of Kubernetes.

  • Kubernetes Operator for Apache Spark supports advanced Kubernetes features such as disaster recovery and auto scaling. In addition, Kubernetes Operator for Apache Spark can optimize resource scheduling.

Preparations

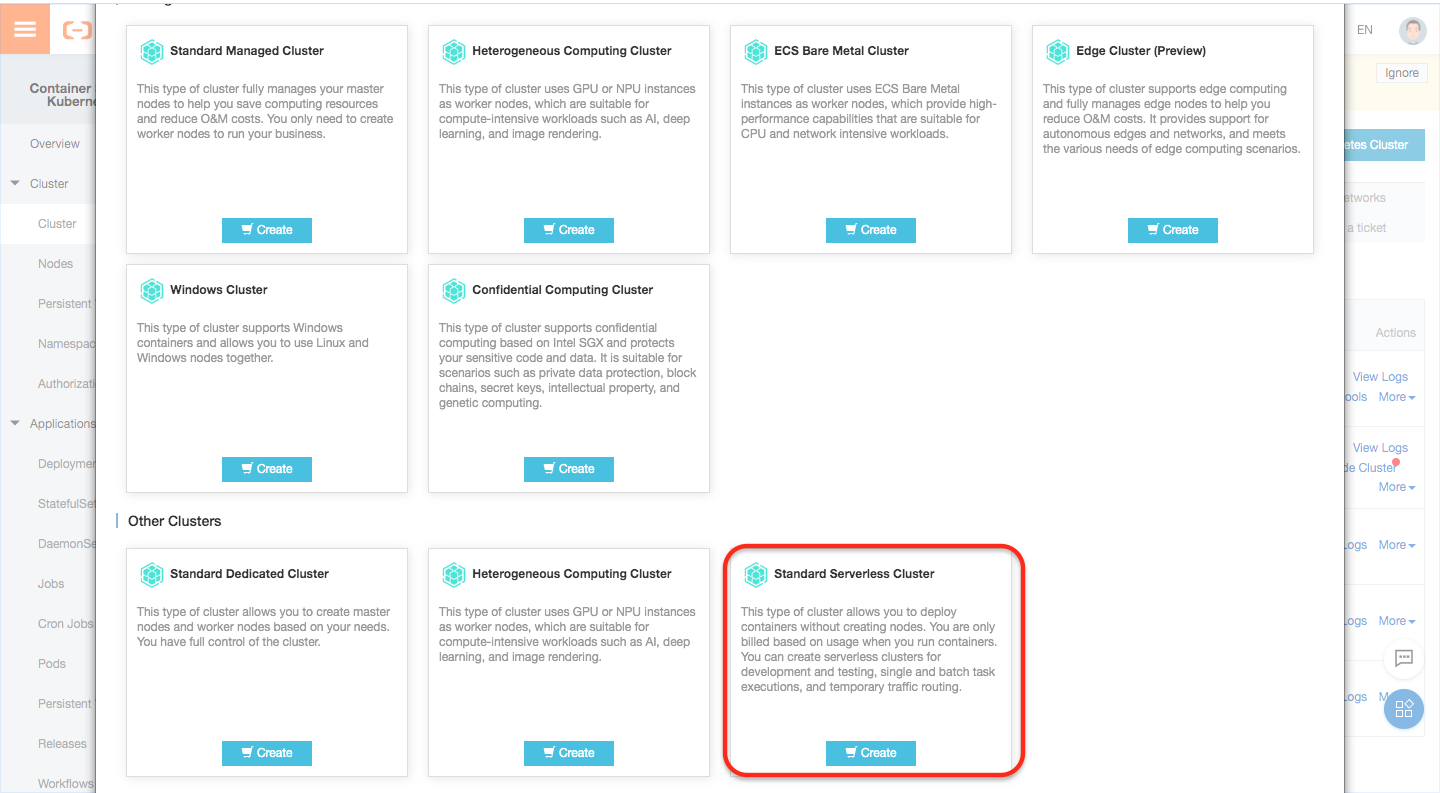

  1. Create an ACK Serverless cluster.

    Create an ACK Serverless cluster in the Container Service for Kubernetes (ACK) console. For more information, see Create an ACK Serverless cluster.

    Note

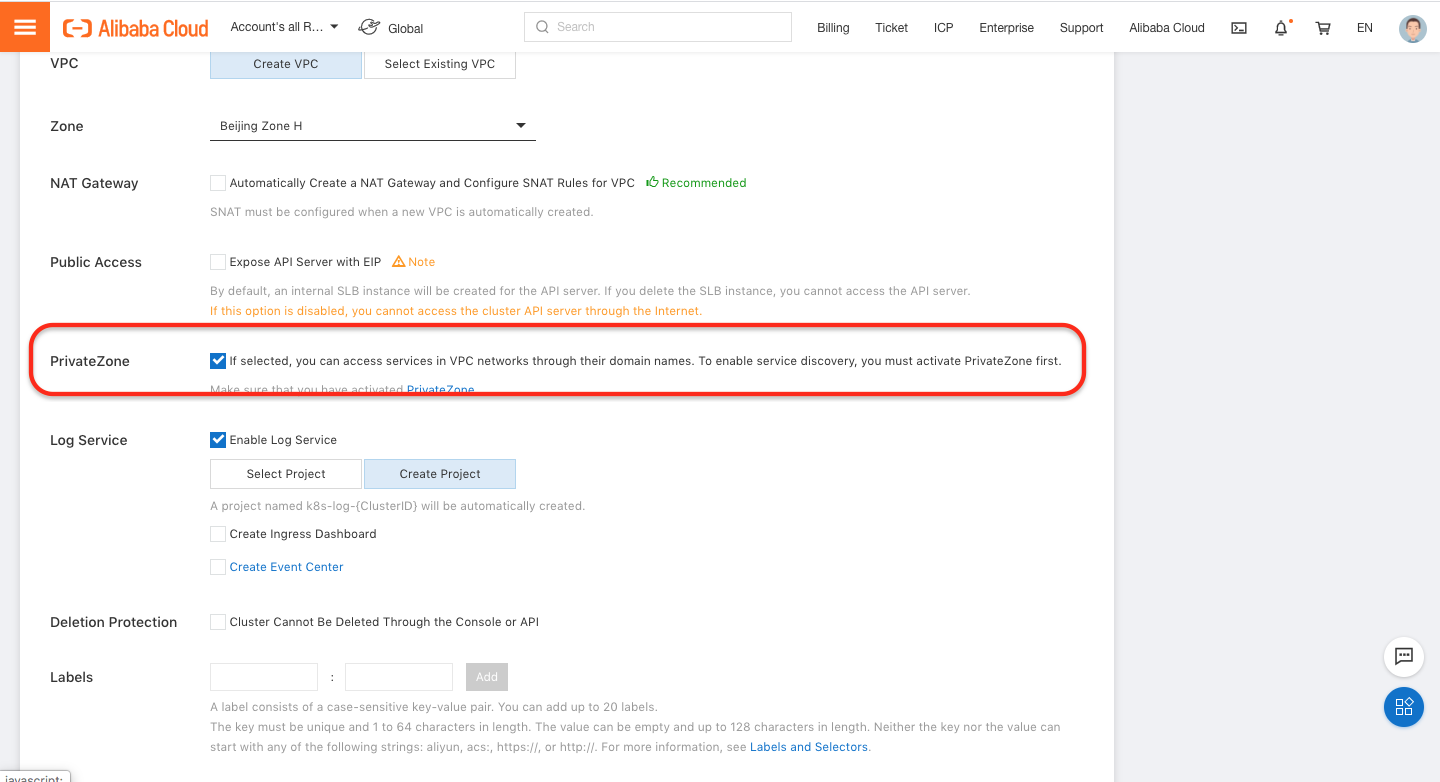

    If you want to pull an image from the Internet or if your training jobs need to access the Internet, you must configure a NAT gateway.

    To manage and access the ACK Serverless cluster by using kubectl, perform the following operations:

  2. Create an OSS bucket.

    You must create an Object Storage Service (OSS) bucket to store data, including the test data, test results, and logs. For more information, see Create buckets.

Install Kubernetes Operator for Apache Spark

  1. Install Kubernetes Operator for Apache Spark.

    1. In the left-side navigation pane of the ACK console, choose Marketplace > Marketplace.

    2. On the App Catalog tab, find and click ack-spark-operator.

    3. Click Deploy and configure the parameters in the panel.

      On the Parameters wizard page, set the sparkJobNamespace parameter to the namespace where you want to deploy the Spark job. The default value is default. An empty string indicates that the Spark job monitors all namespaces.

  2. Create a ServiceAccount, Role, and RoleBinding.

    A Spark job requires a ServiceAccount to acquire the permissions to create pods. Therefore, you must create a ServiceAccount, Role, and RoleBinding. The following YAML example shows how to create a ServiceAccount, Role, and RoleBinding. Replace the namespaces with the actual values.

    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: spark
      namespace: default
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: Role
    metadata:
      namespace: default
      name: spark-role
    rules:
    - apiGroups: [""]
      resources: ["pods"]
      verbs: ["*"]
    - apiGroups: [""]
      resources: ["services"]
      verbs: ["*"]
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: RoleBinding
    metadata:
      name: spark-role-binding
      namespace: default
    subjects:
    - kind: ServiceAccount
      name: spark
      namespace: default
    roleRef:
      kind: Role
      name: spark-role
      apiGroup: rbac.authorization.k8s.io

Build an image of the Spark job

You need to compile the Java Archive (JAR) package of the Spark job and use Dockerfile to package the image.

The following example shows how to configure Dockerfile when a Spark base image of ACK is used.

FROM registry.aliyuncs.com/acs/spark:ack-2.4.5-latest
RUN mkdir -p /opt/spark/jars
# If you want to read data from OSS or sink events to OSS, add the following JAR packages to the image.
ADD https://repo1.maven.org/maven2/com/aliyun/odps/hadoop-fs-oss/3.3.8-public/hadoop-fs-oss-3.3.8-public.jar $SPARK_HOME/jars
ADD https://repo1.maven.org/maven2/com/aliyun/oss/aliyun-sdk-oss/3.8.1/aliyun-sdk-oss-3.8.1.jar $SPARK_HOME/jars
ADD https://repo1.maven.org/maven2/org/aspectj/aspectjweaver/1.9.5/aspectjweaver-1.9.5.jar $SPARK_HOME/jars
ADD https://repo1.maven.org/maven2/org/jdom/jdom/1.1.3/jdom-1.1.3.jar $SPARK_HOME/jars
COPY SparkExampleScala-assembly-0.1.jar /opt/spark/jars

We recommend that you use a Spark base image provided by Alibaba Cloud. Alibaba Cloud provides the Spark 2.4.5 base image, which is optimized for resource scheduling and auto scaling in Kubernetes clusters. This base image accelerates resource scheduling and application startups. You can enable the scheduling optimization feature by setting the enableAlibabaCloudFeatureGates variable in the Helm chart to true. If you want to start up the application faster, you can set enableWebhook to false. spark-3

Build ImageCache

It may be time-consuming to pull a large Spark image. You can use ImageCache to accelerate image pulling. For more information, see Manage ImageCache and Use ImageCache to accelerate the creation of pods.

Create a Spark job template and submit the job

Create a YAML file for a Spark job and deploy the Spark job.

  1. Create a file named spark-pi.yaml file.

    The following code provides a sample template of a typical Spark job. For more information, see spark-on-k8s-operator.

    apiVersion: "sparkoperator.k8s.io/v1beta2"
    kind: SparkApplication
    metadata:
      name: spark-pi
      namespace: default
    spec:
      type: Scala
      mode: cluster
      image: "registry.aliyuncs.com/acs/spark:ack-2.4.5-latest"
      imagePullPolicy: Always
      mainClass: org.apache.spark.examples.SparkPi
      mainApplicationFile: "local:///opt/spark/examples/jars/spark-examples_2.11-2.4.5.jar"
      sparkVersion: "2.4.5"
      restartPolicy:
        type: Never
      driver:
        cores: 2
        coreLimit: "2"
        memory: "3g"
        memoryOverhead: "1g"
        labels:
          version: 2.4.5
        serviceAccount: spark
        annotations:
          k8s.aliyun.com/eci-kube-proxy-enabled: 'true'
          k8s.aliyun.com/eci-image-cache: "true"
        tolerations:
        - key: "virtual-kubelet.io/provider"
          operator: "Exists"
      executor:
        cores: 2
        instances: 1
        memory: "3g"
        memoryOverhead: "1g"
        labels:
          version: 2.4.5
        annotations:
          k8s.aliyun.com/eci-kube-proxy-enabled: 'true'
          k8s.aliyun.com/eci-image-cache: "true"
        tolerations:
        - key: "virtual-kubelet.io/provider"
          operator: "Exists"
  2. Deploy a Spark job.

    kubectl apply -f spark-pi.yaml

Configure log collection

If you want to collect the stdout logs of a Spark job, you can configure environment variables in the envVars field of the Spark driver and Spark executor. Then, logs are automatically collected. For more information, see Customize log collection for an elastic container instance.

envVars:
   aliyun_logs_test-stdout_project: test-k8s-spark
   aliyun_logs_test-stdout_machinegroup: k8s-group-app-spark
   aliyun_logs_test-stdout: stdout

Before you submit a Spark job, you can configure the environment variables of the Spark driver and Spark executor as shown in the preceding code to implement automatic log collection. spark-1

Configure a history server

A Spark history server allows you to review Spark jobs. You can set the SparkConf field in the CRD of the Spark application to allow the application to sink events to OSS. Then, you can use the history server to retrieve the data from OSS. The following code shows an example:

sparkConf:
   "spark.eventLog.enabled": "true"
   "spark.eventLog.dir": "oss://bigdatastore/spark-events"
   "spark.hadoop.fs.oss.impl": "org.apache.hadoop.fs.aliyun.oss.AliyunOSSFileSystem"
   # oss bucket endpoint such as oss-cn-beijing.aliyuncs.com
   "spark.hadoop.fs.oss.endpoint": "oss-cn-beijing.aliyuncs.com"
   "spark.hadoop.fs.oss.accessKeySecret": ""
   "spark.hadoop.fs.oss.accessKeyId": ""

Alibaba Cloud provides a Helm chart for you to deploy Spark history servers. To deploy a Spark history server, log on to the ACK console, choose Marketplace > Marketplace in the left-side navigation pane. On the App Catalog tab, search for and deploy ack-spark-history-server. When you deploy the Spark history server, you must specify the OSS information in the Parameters section. The following code shows an example:

oss:
  enableOSS: true
  # Please input your accessKeyId
  alibabaCloudAccessKeyId: ""
  # Please input your accessKeySecret
  alibabaCloudAccessKeySecret: ""
  # oss bucket endpoint such as oss-cn-beijing.aliyuncs.com
  alibabaCloudOSSEndpoint: "oss-cn-beijing.aliyuncs.com"
  # oss file path such as oss://bucket-name/path
  eventsDir: "oss://bigdatastore/spark-events"

After you deploy the Spark history server, you can view its external endpoint on the Services page. You can access the external endpoint of the Spark history server to view historical Spark jobs. pic3

View the result of the Spark job

  1. Query the status of the pods.

    kubectl get pods

    Expected output:

    NAME                            READY      STATUS     RESTARTS   AGE
    spark-pi-1547981232122-driver   1/1       Running    0          12s
    spark-pi-1547981232122-exec-1   1/1       Running    0          3s
  2. Query the real-time Spark user interface.

    kubectl port-forward spark-pi-1547981232122-driver 4040:4040
  3. Query the status of the Spark application.

    kubectl describe sparkapplication spark-pi

    Expected output:

    Name:         spark-pi
    Namespace:    default
    Labels:       <none>
    Annotations:  kubectl.kubernetes.io/last-applied-configuration:
                    {"apiVersion":"sparkoperator.k8s.io/v1alpha1","kind":"SparkApplication","metadata":{"annotations":{},"name":"spark-pi","namespace":"default...
    API Version:  sparkoperator.k8s.io/v1alpha1
    Kind:         SparkApplication
    Metadata:
      Creation Timestamp:  2019-01-20T10:47:08Z
      Generation:          1
      Resource Version:    4923532
      Self Link:           /apis/sparkoperator.k8s.io/v1alpha1/namespaces/default/sparkapplications/spark-pi
      UID:                 bbe7445c-1ca0-11e9-9ad4-062fd7c19a7b
    Spec:
      Deps:
      Driver:
        Core Limit:  200m
        Cores:       0.1
        Labels:
          Version:        2.4.0
        Memory:           512m
        Service Account:  spark
        Volume Mounts:
          Mount Path:  /tmp
          Name:        test-volume
      Executor:
        Cores:      1
        Instances:  1
        Labels:
          Version:  2.4.0
        Memory:     512m
        Volume Mounts:
          Mount Path:         /tmp
          Name:               test-volume
      Image:                  gcr.io/spark-operator/spark:v2.4.0
      Image Pull Policy:      Always
      Main Application File:  local:///opt/spark/examples/jars/spark-examples_2.11-2.4.0.jar
      Main Class:             org.apache.spark.examples.SparkPi
      Mode:                   cluster
      Restart Policy:
        Type:  Never
      Type:    Scala
      Volumes:
        Host Path:
          Path:  /tmp
          Type:  Directory
        Name:    test-volume
    Status:
      Application State:
        Error Message:
        State:          COMPLETED
      Driver Info:
        Pod Name:             spark-pi-driver
        Web UI Port:          31182
        Web UI Service Name:  spark-pi-ui-svc
      Execution Attempts:     1
      Executor State:
        Spark - Pi - 1547981232122 - Exec - 1:  COMPLETED
      Last Submission Attempt Time:             2019-01-20T10:47:14Z
      Spark Application Id:                     spark-application-1547981285779
      Submission Attempts:                      1
      Termination Time:                         2019-01-20T10:48:56Z
    Events:
      Type    Reason                     Age                 From            Message
      ----    ------                     ----                ----            -------
      Normal  SparkApplicationAdded      55m                 spark-operator  SparkApplication spark-pi was added, Enqueuing it for submission
      Normal  SparkApplicationSubmitted  55m                 spark-operator  SparkApplication spark-pi was submitted successfully
      Normal  SparkDriverPending         55m (x2 over 55m)   spark-operator  Driver spark-pi-driver is pending
      Normal  SparkExecutorPending       54m (x3 over 54m)   spark-operator  Executor spark-pi-1547981232122-exec-1 is pending
      Normal  SparkExecutorRunning       53m (x4 over 54m)   spark-operator  Executor spark-pi-1547981232122-exec-1 is running
      Normal  SparkDriverRunning         53m (x12 over 55m)  spark-operator  Driver spark-pi-driver is running
      Normal  SparkExecutorCompleted     53m (x2 over 53m)   spark-operator  Executor spark-pi-1547981232122-exec-1 completed
  4. View the result of the Spark job in the log.

    NAME                                      READY     STATUS      RESTARTS   AGE
    spark-pi-1547981232122-driver   0/1       Completed   0          1m

    If the Spark application is in the Succeed state, or the Spark driver pod is in the Completed state, the result of the Spark job is available. You can print the log and view the result of the Spark job in the log.

    kubectl logs spark-pi-1547981232122-driver
    Pi is roughly 3.152155760778804
