You can use an Operation Orchestration Service (OOS) custom template to add tags to multiple resources in the same region at a time. Then, you can manage permissions on these resources based on the tags.

Background information

You can add tags to Alibaba Cloud services that support tags. For more information about the services that support tags, see Alibaba Cloud services that support tags.

In this topic, a custom template is created in OOS to add the owner:zhangsan tag to multiple Elastic Compute Service (ECS) instances in the same region.

Note The resources to which tags will be added must reside in the same region.

Step 1: Create a RAM role and attach permission policies to it

Create a RAM role named OOSServiceRole for OOS and attach permission policies to the role.

  1. Log on to the RAM console by using an Alibaba Cloud account.
  2. Create a custom policy named OOSAutoBindTag.

    For more information, see Create a custom policy.

    Note This policy is used for ECS instances, and the permission in the policy is set to ecs:DescribeInstances. You can set the permission based on your business requirements. For example, you want to add a tag to multiple security groups. In this case, you can replace ecs:DescribeInstances with ecs:DescribeSecurityGroups.

    The following policy is created:

    {
        "Version": "1",
        "Statement": [
            {
                "Action": [
                    "ecs:DescribeInstances",
                    "ecs:TagResources"
                ],
                "Resource": "*",
                "Effect": "Allow"
            }
        ]
    }
  3. Create the OOSServiceRole RAM role.
    For more information, see Create a normal service role.
  4. Attach the custom policy OOSAutoBindTag to the RAM role.
    For more information, see Grant permissions to a RAM role.
  5. Attach the system policy AliyunOOSFullAccess to the RAM role.
    For more information, see Grant permissions to a RAM role.

Step 2: Add a tag to multiple resources at a time

  1. Log on to the OOS console.
  2. In the left-side navigation pane, click My Templates.
  3. In the top navigation bar, select a region.
  4. Create a custom template.
    1. On the My Templates page, click Create Template.
    2. In the Basic Information section, enter a name for your template, such as OOSAutoBindTag.
    3. Click the YAML tab and write code for the template. Then, click Create Template.

      The following code provides an example:

      FormatVersion: OOS-2019-06-01
      Description: Tag Resources Without The Specified Tags
      Parameters:
        tags:
          Type: Json
          Description:
            en: The tags to select ECS instances.
          AssociationProperty: Tags
        regionId:
          Type: String
          Description:
            en: The region to select ECS instances.
        OOSAssumeRole:
          Description:
            en: The RAM role to be assumed by OOS.
          Type: String
          Default: OOSServiceRole
      RamRole: OOSServiceRole
      Tasks:
        - Name: getInstancesByTags
          Action: 'ACS::ExecuteAPI'
          Description: ''
          Properties:
            Service: ECS
            API: DescribeInstances
            Parameters:
              Tags: '{{ tags }}'
              RegionId: '{{ regionId }}'
          Outputs:
            InstanceIds:
              Type: List
              ValueSelector: 'Instances.Instance[].InstanceId'
        - Name: getAllInstances
          Action: 'ACS::ExecuteAPI'
          Description: ''
          Properties:
            Service: ECS
            API: DescribeInstances
            Parameters:
              RegionId: '{{regionId}}'
          Outputs:
            InstanceIds:
              Type: List
              ValueSelector: 'Instances.Instance[].InstanceId'
        - Name: TagResources_ECS_Instances
          Action: 'ACS::ExecuteAPI'
          Description:
            en: 'tag ecs instances, which are without the specified tags.'
          Properties:
            Service: ECS
            API: TagResources
            Parameters:
              Tags: '{{ tags }}'
              RegionId: '{{regionId}}'
              ResourceType: Instance
              ResourceIds:
                - '{{ACS::TaskLoopItem}}'
          Loop:
            MaxErrors: 100%
            Concurrency: 20
            Items:
              'Fn::Difference':
                - '{{ getAllInstances.InstanceIds }}'
                - '{{ getInstancesByTags.InstanceIds }}'
      Outputs:
        InstanceIds:
          Type: List
          Value:
            'Fn::Difference':
              - '{{ getAllInstances.InstanceIds }}'
              - '{{ getInstancesByTags.InstanceIds }}'

      Parameters:

      • tags: the tags that are added to ECS instances
      • regionId: the region ID of the ECS instances to which you want to add a tag
      • OOSAssumeRole: the RAM role used by OOS

      Permissions:

      • DescribeInstances: filters resources based on tags.
      • TagResources: adds tags to specified resources.
  5. Execute the custom template.
    1. In the left-side navigation pane, click My Templates. On the My Templates page, find the OOSAutoBindTag custom template that you created, and click Create Execution in the Actions column.
    2. Keep the default settings or re-select the execution mode, and click Next: Parameters Settings.

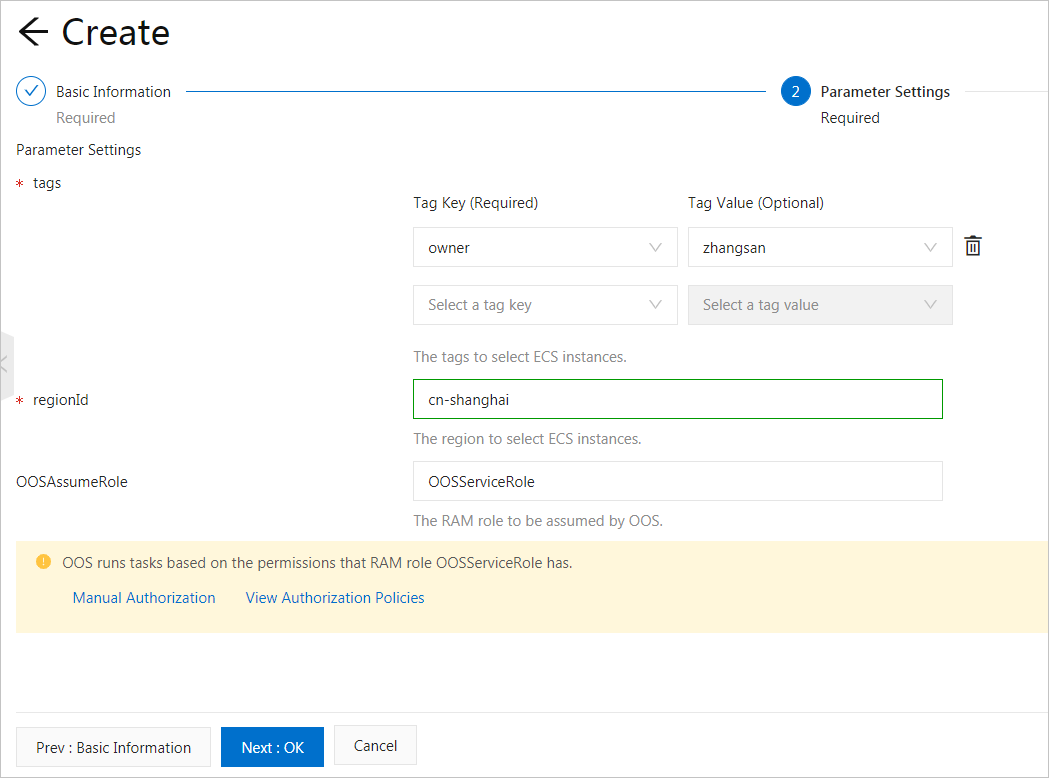

    3. In the Parameter Settings step, configure the parameters and click Next: OK.

      The following parameters are configured in this example:

      1
      • tags: Select the tag owner:zhangsan.
      • regionId: Enter the region ID of the instances, such as cn-shanghai.
      • oosAssumeRole: Use the OOSServiceRole RAM role.
    4. Click Create.
    5. On the execution details page, click the Advanced View tab.
    6. Click the Execution Result tab on the right side of the page.
    7. View the execution result.
      • If the execution succeeds, the information shown in the following figure appears.1
      • If the execution fails, you can check logs for the failure cause and make adjustments.
