You can enable the asynchronous mode and configure required parameters to improve the job throughput when you join dimension tables.

Background information

By default, the synchronous mode is used when you join dimension tables. The system queries the physical table and returns the association result each time a data record is added to the physical table. This results in low throughput and high latency. The asynchronous mode is introduced to process query requests in parallel, so that consecutive requests do not need to wait for processing.

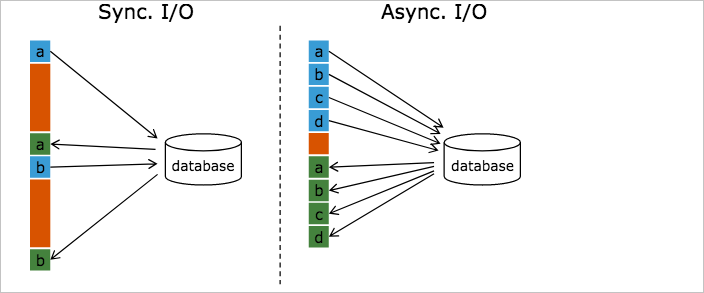

Flink SQL implements asynchronous join operations for dimension tables based on Flink Async I/O and asynchronous clients. This significantly improves job throughput. The following figure shows the comparison between the synchronous and asynchronous modes.Comparison between synchronous and asynchronous modes

Optimization method

Add async='true' to the WITH clause of the DDL statement of the dimension table. The following table describes the parameters related to the asynchronous mode.
Parameter Description Required Remarks
async Specifies whether to enable the asynchronous mode. No Default value: false.
asyncResultOrder Specifies whether to sort asynchronous results. No Valid values:
  • unordered (default value)
  • ordered
asyncTimeoutMs The timeout period of an asynchronous request, in milliseconds. No Default value: 180000.
asyncCapacity The maximum number of asynchronous requests in an asynchronous request queue. No Default value: 100.
asyncCallbackThreads The number of callback threads. No An asynchronous request is implemented by a thread. onComplete is called if an asynchronous request succeeds and onError is called if it fails. The number of times onComplete and onError are called controls the size of the thread pool. Default value: 50.
asyncConnectionQueueMaxsize The maximum number of requests that can be sent. No If the number of requests waiting for a server to process reaches the value specified by this parameter, asynchronous request calling is blocked to prevent out of memory of the client. Default value: 100.
asyncCallbackQueueMaxsize The maximum number of requests in a callback processing queue. No If the number of requests waiting for callback processing reaches the value specified by this parameter, asynchronous request calling is blocked to prevent out of memory of the client. Default value: 500.

Sample code

CREATE TABLE dim_cn_item(
    rowkey VARCHAR,
    item_id VARCHAR,
    title VARCHAR,
    cate_id VARCHAR,
    cate_name VARCHAR,
    cate_level1_id VARCHAR,
    cate_level2_id VARCHAR,
    cate_level3_id VARCHAR,
    cate_level1_name VARCHAR,
    cate_level2_name VARCHAR,
    cate_level3_name VARCHAR,
    pinlei_id VARCHAR,
    pinlei_name VARCHAR,
    bu_id VARCHAR,
    bu_name VARCHAR,
    PRIMARY KEY(rowkey)
) WITH(
    type='alihbase',
    diamondKey = 'xxxx',
    diamondGroup ='yyyy',
    cacheTTLMs='3600000',
    async='true',
    cache='LRU',
    columnFamily='cf',
    cacheSize='1000',
    tableName='yourTableName'
);
