Transit routers can connect to virtual private clouds (VPCs), virtual border routers (VBRs), IPsec-VPN connections, and Cloud Connect Network (CCN) instances. Transit routers can be used to enable communication among VPCs, inter-region networks, and on-premises networks and cloud networks. Transit routers support custom route tables and custom routes, and allow you to configure policies for communication, isolation, and traffic forwarding. This helps enterprises build flexible, reliable, and large-scale enterprise-class cloud networks.

Intra-region networking

应用场景-同地域组网

Item

Description

Scenario

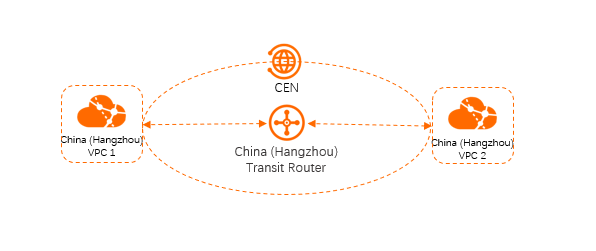

You can attach network instances in the same region to the transit router to implement intra-region communication.

Procedure

Create a transit router and attach the network instances that need to communicate with each other to the transit router.

References

Use Enterprise Edition transit routers to enable intra-region communication between on-premises and cloud networks

Inter-region networking

应用场景-跨地域组网

Item

Description

Scenario

You can attach network instances in different regions to the transit routers to implement inter-region communication.

Procedure

Create transit routers in the regions that you want to connect to each other, attach network instances to the transit routers in the regions, and then establish an inter-region connection between the transit routers.

References

Use Enterprise Edition transit routers to connect VPCs across regions and accounts

Hybrid cloud networking

应用场景-混合云组网

Item

Description

Scenario

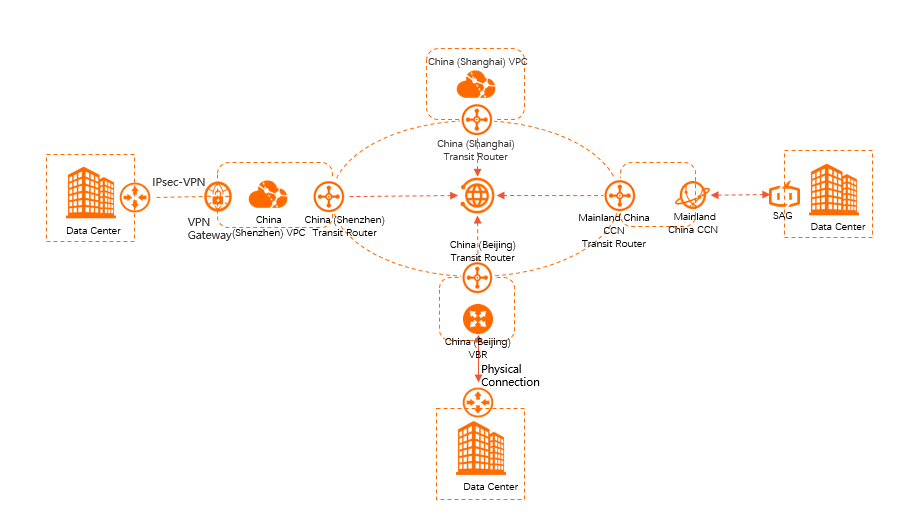

You can attach virtual private clouds (VPCs), virtual border routers (VBRs), Cloud Connect Network (CCN) instances, and IPsec-VPN connections to transit routers, and attach the VBRs, CCN instances, and IPsec-VPN connections to on-premises networks to implement communication between Alibaba Cloud and the on-premises networks, and between the on-premises networks.

Procedure

Create transit routers in the regions that you want to connect to each other, attach network instances to the transit routers in the regions, and then establish an inter-region connection between the transit routers.

References

Use Enterprise Edition transit routers to enable intra-region communication between on-premises and cloud networks

Enterprise-class networking

Transit routers support custom networking, isolation, and redirection policies. These are the basic requirements for building an enterprise-class network.

One Internet-facing VPC for all networks

应用场景-统一VPC出口

Item

Description

Scenario

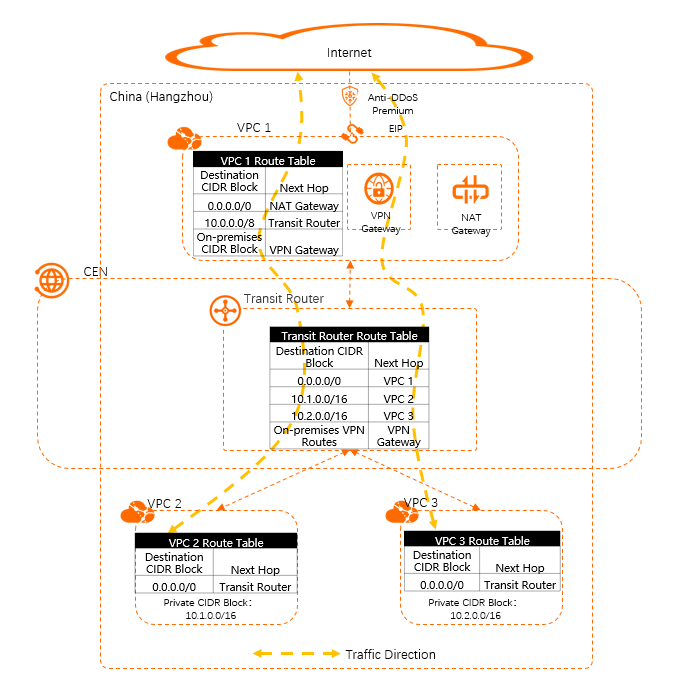

You can create custom routing policies that allow VPCs to access the Internet from the same egress. This simplifies network management and improves the security of your workloads.

Procedure

Create transit routers in the regions that you want to connect to each other, attach VPCs to the transit routers in the regions, establish an inter-region connection between the transit routers, and create custom route tables and routes to route network traffic destined for the Internet to the Internet-facing VPC.

Secure communication among VPCs

应用场景-多VPC之间流量安全互访

Item

Description

Scenario

You can create custom routing policies to isolate trusted network traffic from untrusted network traffic. Untrusted network traffic is routed to a dedicated VPC for scrubbing before being transmitted over the network. This ensures that only trusted network traffic is transmitted across your network.

Procedure

Create transit routers in the regions that you want to connect to each other. Then, attach VPCs to the transit routers in the regions, establish an inter-region connection between the transit routers, and then create custom route tables and routes to route untrusted network traffic to security services in a VPC for scrubbing.

References

Use an Enterprise Edition transit router to enable and secure network communication

Service sharing between CEN instances

应用场景-多云企业网使用共享服务

Item

Description

Scenario

A VPC can be attached to multiple transit routers. If you have multiple CEN instances that need to access services in a VPC, you can attach the VPC to the transit router of each CEN instance. These transit routers can forward requests from different CEN instances to the VPC.

Procedure

Attach the VPC to the transit router of each CEN instance, and add routes to each transit router to forward requests from different CEN instances to the VPC.
