Object Storage Service:Create HLS streams based on OSS

Last Updated:Mar 12, 2024

Object Storage Service (OSS) allows you to use Real-Time Messaging Protocol (RTMP) to ingest video and audio streams to OSS buckets and store the streams in the HTTP Live Streaming (HLS) format. OSS also provides various authentication and authorization methods to achieve fine-grained access control on audio and video data stored in buckets.

Prerequisites

A bucket is created. For more information, see Create buckets.

Basic operations

OSS allows you to use RTMP to upload H.264-encoded video streams and Advanced Audio Coding (AAC)-encoded audio streams to OSS buckets. You can obtain uploaded audio and video data by accessing the PlayURL of a LiveChannel.

  • Upload audio and video data

    1. Call the PutLiveChannel operation to create a LiveChannel.

      After the LiveChannel is created, a PublishURL and a PlayURL are returned. The PublishURL is used to ingest streams by using RTMP, and the PlayURL is used to obtain audio and video data.

    2. Use PublishURL to ingest video and audio streams.

      OSS stores uploaded audio and video data as HLS streams that include an M3U8 index object and multiple video objects in the TS format. For more information, see Stream ingest over RTMP.

  • Obtain audio and video data

    To obtain audio and video data that is uploaded by using a LiveChannel, you can access the PlayURL of the LiveChannel by using a browser to access the M3U8 index object.

    You can use Android and iOS mobile devices and some browsers on PCs, such as Microsoft Edge and Safari, to access the M3U8 index object to play video objects. If you use other browsers such as Google Chrome, you must embed JavaScript scripts such as Video.js in the browser to play video objects.

If you upload audio and video data to a public-read-write bucket, all users can read and write your data in the bucket, which may lead to data leaks and incur additional traffic fees. The default access control list (ACL) of a bucket is private, and the bucket denies all cross-origin requests. We recommend that you use one or more of the methods described in the following sections to ensure data security based on your business scenarios.

CORS

If you access an audio or video object embedded in a third-party website rather than directly access the audio and video object stored in OSS by using a browser, the audio or video object may fail to be played because cross-origin requests are denied by the bucket that stores the audio or video object. The request is denied because the web server of the third-party website and the bucket that stores the audio or video object are in different origins, which does not meet the conditions of the same-origin policy.

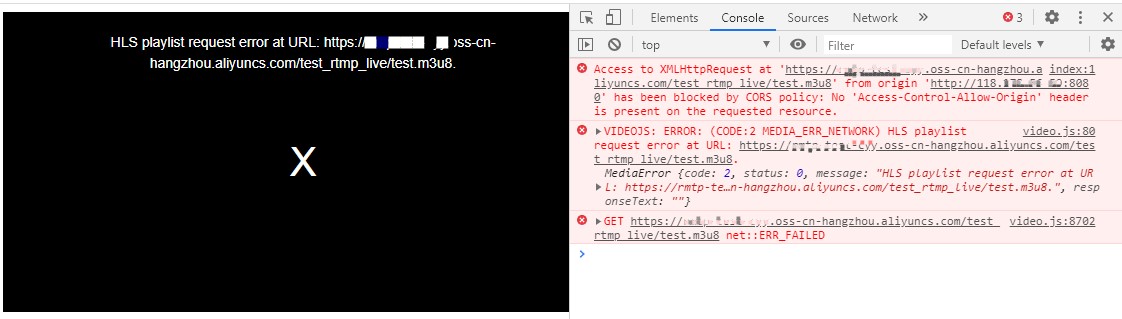

For example, the address of a web server is http://192.168.xx.xx:8080. You use a browser to access the address and then access a website in which a video object stored in an OSS bucket is embedded. In this case, the browser sends a request to OSS to access the video object stored in the bucket. However, the browser identifies that the endpoint of the bucket and the address of the web server, which is http://192.168.xx.xx:8080, are in different origins. Then, the browser sends a request to confirm whether the bucket allows cross-origin requests. By default, cross-origin resource sharing (CORS) is disabled for OSS buckets, and all cross-origin requests are denied. Therefore, the video object embedded in the website cannot be played. The following figure shows how the cross-origin request is denied.video

You can enable CORS for the bucket that stores audio or video objects to allow users to play the objects on third-party websites.

  1. Log on to the OSS console.

  2. Click Buckets. On the Buckets page, click the name of the bucket for which you want to enable CORS.

  3. Choose Content Security > Cross-Origin Resource Sharing (CORS). On the Cross-Origin Resource Sharing (CORS) page, click Create Rule.

  4. Click Create Rule.

  5. In the Create Rule dialog box, configure parameters.

    In this example, set Sources to http://192.168.xx.xx:8080. For the configurations of other parameters, see Configure CORS.

    • If the source is a specific domain name, enter the complete domain name. For example, enter www.example.com and do not shorten the domain name to example.com.

    • If the source is a complete IP address, enter the complete IP address that includes the protocol type and port number. For example, enter http://xx.xx.xx.xx:80 and do not shorten the IP address to xx.xx.xx.xx.

    A browser takes tens of seconds to a few minutes to cache the CORS configurations. To allow the CORS configurations to take effect immediately, you can clear your browser cache and then refresh the page.

Hotlink protection

CORS can prevent your audio or video resources from being embedded in third-party websites. However, CORS configurations cannot prevent your audio or video resources stored in OSS buckets from being directly accessed. In this case, you can configure hotlink protection and specify a Referer whitelist for your buckets to prevent your audio or video resources from being accessed by unauthorized users.

By default, requests in which the Referer field is empty are allowed for OSS buckets. You can use a browser to access the PlayURL of a LiveChannel to view a video object stored in a bucket. To prevent your audio or video resources from being accessed by unauthorized users, you can configure hotlink protection for the bucket to deny requests in which the Referer field is empty and add trusted domain names or IP addresses to the Referer whitelist. In this case, requests from third-party domain names or IP addresses that are not included in the Referer whitelist are denied and a 403 Forbidden error is returned.

  1. Log on to the OSS console.

  2. Click Buckets. On the Buckets page, click the name of the bucket for which you want to configure hotlink protection.

  3. Choose Content Security > Hotlink Protection.

  4. On the Hotlink Protection page, turn on Hotlink Protection.

    • In the Referer Whitelist field, enter the domain names or IP addresses. Example: *.aliyun.com.

      You can configure different Referer fields based on your business scenarios. For more information about hotlink protection, see Configure hotlink protection for a bucket.

    • Select No for Allow Empty Referer to deny requests in which the Referer field is empty.

      Note
      • If you select No for Allow Empty Referer and configure a Referer whitelist, only requests that include Referer fields specified in the whitelist can access your resources in the bucket.

      • If you select No for Allow Empty Referer and do not configure a Referer whitelist, the hotlink protection configuration does not take effect. All requests can access your resources.

  5. Click Save.

Signature mechanism for private buckets

For data security, the ACL of a bucket is private by default. Therefore, when you send a request to a private bucket to read data from or write data to the bucket, you must add a signature in the request to declare your operation permissions on OSS.

When you want to ingest streams to a private bucket, you must sign the PublishURL to upload audio or video objects to the bucket. For more information, see RTMP ingest URLs and signatures.

The following code provides an example on how to use OSS SDK for Python to obtain the signed PublishURL to ingest streams to a bucket:

import os
import oss2

access_key_id = "your_access_key_id"
access_key_secret = "your_access_key_secret"
bucket_name = "your_bucket_name"
endpoint = "your_endpoint"

# Create a bucket.
bucket = oss2.Bucket(oss2.Auth(access_key_id, access_key_secret), endpoint, bucket_name)

# Create and configure a LiveChannel.
# The index object includes three TS objects, and each of the TS object has a duration of 5 seconds. We recommend that you set the value to 5 seconds in this example. The actual duration depends on the key frame of the video object.
channel_name = "your_channel_name"
playlist_name = "your_playlist_name.m3u8"
frag_count_config = 3
frag_duration_config = 5
create_result = bucket.create_live_channel(
        channel_name,
        oss2.models.LiveChannelInfo(
            status = 'enabled',
            description = 'your description here',
            target = oss2.models.LiveChannelInfoTarget(
                playlist_name = playlist_name,
                frag_count = frag_count_config,
                frag_duration = frag_duration_config)))

# Obtain the signed URL used to ingest streams by using RTMP.
# The value of expires in the example indicates the length of time in seconds before the expiration of the stream to ingest.
# After you obtain signed_url, you can use data ingestion tools to ingest streams to OSS. OSS checks the value of expires only when a stream is connected to OSS. A stream that is connected to OSS is not suspended even if the duration of the stream exceeds the value specified by expires.
signed_rtmp_url = bucket.sign_rtmp_url(channel_name, playlist_name, expires=3600)
print(signed_rtmp_url)

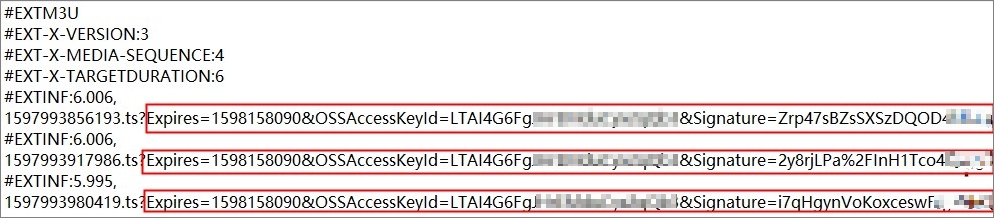

When you access an object in a private bucket by using the object URL, a signature must be added to the URL. When you access an HLS stream, a request is sent first to dynamically access the M3U8 index object, and then multiple requests are sent to download the latest TS objects based on the content of the index object. A signature must be added to the URL in each request.

video2

To simplify the signature process, OSS provides a dynamic signature method. You can add the x-oss-process=hls/sign header to the URL in the request that is sent to access the M3U8 index object. OSS signs all URLs used to play the TS objects in the returned playlist in the same way as that is specified by the header.

The following code provides an example on how to use OSS SDK for Python to dynamically add signatures to requests when you access audio or video objects:

# Obtain the signed URL used to view the stream.
your_object_name = "test_rtmp_live/test.m3u8"
style = "hls/sign"
# By default, OSS identifies the forward slashes (/) in the full path of the object as escape characters when the signed URL is generated. Therefore, you cannot directly use the signed URL.
# Set the slash_safe parameter to True so that OSS does not identify the forward slashes (/) in the full path of the object as escape characters. Then, you can directly use the generated signed URL.
signed_download_url = bucket.sign_url('GET', your_object_name, 3600, params={'x-oss-process': style}, slash_safe=True)
print(signed_download_url)
