MaxCompute Query Acceleration (MCQA) is a built-in feature of MaxCompute. MCQA uses the native MaxCompute SQL language and supports the built-in functions and permission systems of MaxCompute. This topic describes how to use the MCQA feature.

Background information

You can use one of the following methods to enable the MCQA feature:

Enable MCQA on the MaxCompute client

To enable the MCQA feature on the MaxCompute client, perform the following steps:

  1. Download the latest version of the MaxCompute client (odpscmd) on the Client page.
    Note The client version must be V0.35.1 or later.
  2. Install and configure the client. For more information, see Install and configure the MaxCompute client.
  3. Modify the odps_config.ini configuration file in the client installation directory conf, and add the following command at the end of the configuration file:
    enable_interactive_mode=true
  4. Run the MaxCompute client in the client installation directory bin. Run ./bin/odpscmd in Linux, and run ./bin/odpscmd.bat in Windows. If the following information appears, the MaxCompute client is running properly.
    Client runs properly
  5. Run a query job to verify that the MCQA feature is enabled.
    If the returned results contain the following information after you run the query job, the MCQA feature is enabled. Verify MCQA

Enable MCQA on the Ad-Hoc Query or Manually Triggered Workflow page

By default, the MCQA feature is enabled on the Ad-Hoc Query or Manually Triggered Workflow page of DataWorks. Manual operations are not required. If you want to disable the MCQA feature, submit a ticket.

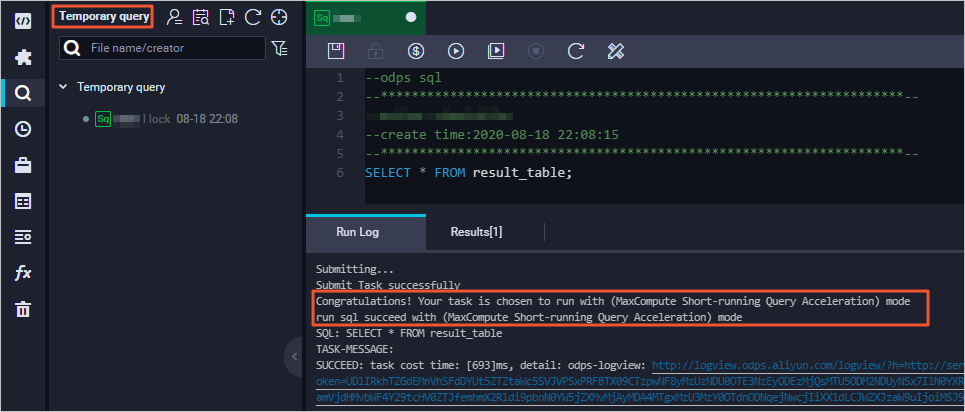

Run a query job on the Ad-Hoc Query page. If the returned results contain the following information, the MCQA feature is enabled. For more information about ad hoc queries, see Create an ad hoc query. Ad-Hoc Query

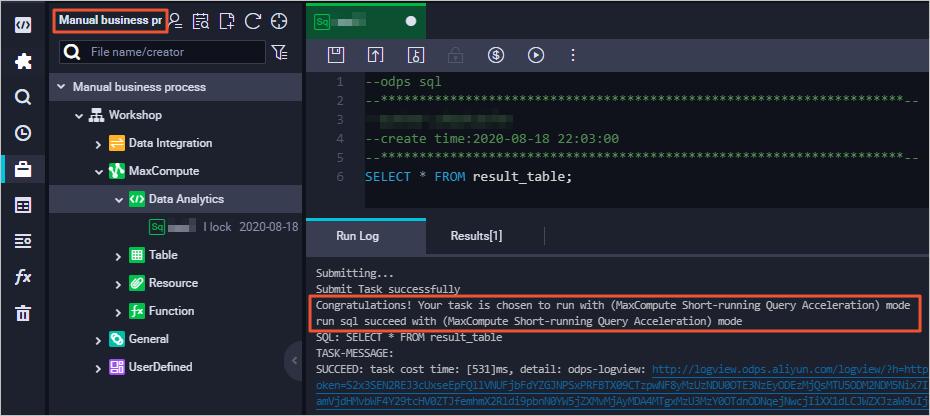

Run a query job on the Manually Triggered Workflow page. If the returned results contain the following information, the MCQA feature is enabled. For more information about the manually triggered workflow, see Manage manually triggered workflows. Manually Triggered Workflow

JDBC

You can use the MaxCompute JDBC driver in the following situations:

Enable MCQA by using the MaxCompute JDBC driver

If you use the MaxCompute JDBC driver to connect to MaxCompute, perform the following steps to enable the MCQA feature. For more information, see Usage notes of JDBC.

  1. Download the JDBC JAR file that supports the MCQA feature or download the source code that can be compiled.
  2. Add the following dependency to the pom.xml file in the Maven repository:
    <dependency>

      <groupId>com.aliyun.odps</groupId>

      <artifactId>odps-jdbc</artifactId>

      <version>3.2.8</version>

      <classifier>jar-with-dependencies</classifier>

    </dependency>
    Note The version of the MaxCompute JDBC driver must be V3.2.0 or later.
  3. Create a Java program based on the source code and configure the required information. For more information, see ODPS JDBC.
    The source code contains the following information:
    String accessId = "your_access_id";

    String accessKey = "your_access_key";

    String conn = "jdbc:odps:http://service.<regionid>.maxcompute.aliyun.com/api?project=<your_project_name>"&accessId&accessKey&charset=UTF-8&interactiveMode=true";

    Statement stmt = conn.createStatement();

    -- Replace your_access_id with the AccessKey ID and your_access_key with the AccessKey secret of your Alibaba Cloud account. Replace your_project_name with the name of the project for which the MCQA feature is enabled.

    Connection conn = DriverManager.getConnection(conn, accessId, accessKey);

    Statement stmt = conn.createStatement();

    String tableName = "testOdpsDriverTable";

    stmt.execute("drop table if exists " + tableName);

    stmt.execute("create table " + tableName + " (key int, value string)");
    To enable the MCQA feature for the MaxCompute JDBC driver, you need only to modify String conn or the code.
    • String conn: Add interactiveMode=true.
    • Code: Add interactiveMode=true.
  4. Optional:Configure the following parameters in the connection string to optimize the processing logic.
    • enableOdpsLogger: is used to display logs. If you do not configure Simple Logging Facade for Java (SLF4J), we recommend that you set this parameter to True.
    • fallbackForUnknownError: The default value is False. If this parameter is set to True, the system rolls back to the offline mode when an unknown error occurs.
    • fallbackForResourceNotEnough: The default value is False. If this parameter is set to True, the system rolls back to the offline mode when resources are insufficient.
    • fallbackForUpgrading: The default value is False. If this parameter is set to True, the system rolls back to the offline mode during an upgrade.
    • fallbackForRunningTimeout: The default value is False. If this parameter is set to True, the system rolls back to the offline mode when an operation times out.
    • fallbackForUnsupportedFeature: The default value is False. If this parameter is set to True, the system rolls back to the offline mode when the MCQA feature is not supported.
    • alwaysFallback: The default value is False. If this parameter is set to True, the system rolls back to the offline mode in the preceding scenarios. This parameter is supported only for JDBC 3.2.3 and later.
    • instanceTunnelMaxRecord: the number of rows where read results are listed. The default value is -1, which indicates that no limit is imposed on the number of rows. This parameter is supported only for JDBC 3.2.7 and later.
    • instanceTunnelMaxSize: the size of data in read results. The unit is bytes. The default value is -1, which indicates that no limit is imposed on the data size. This parameter is supported only for JDBC 3.2.7 and later.

Enable MCQA on Tableau Server by using the MaxCompute JDBC driver

Add interactiveMode=true to the URL of Tableau Server. We recommend that you also add enableOdpsLogger=true to display logs. For more information, see Configure MaxCompute JDBC on Tableau.

The following example shows how to configure a server:
http://service.cn-beijing.maxcompute.aliyun.com/api?project=****_beijing&interactiveMode=true&enableOdpsLogger=true
To enable MCQA for some tables in a MaxCompute project, add the table_list=table_name1, table_name2 property to the URL of Tableau Server. Then, use this property to specify the tables for which you want to enable MCQA. Separate table names with commas (,). If you specify an excessive number of tables, access to the URL of Tableau Server becomes time-consuming. We recommend that you specify only the required tables in the URL of Tableau Server. Sample URL:
http://service.cn-beijing.maxcompute.aliyun.com/api?project=****_beijing&interactiveMode=true&enableOdpsLogger=true&table_list=orders,customers
If a table contains a large number of partitions, we recommend that you do not use data from all the partitions as the data source. You can filter the required partitions or run custom SQL queries to obtain the required data.

Enable MCQA on SQL Workbench/J by using the MaxCompute JDBC driver

After you configure the MaxCompute JDBC driver, you can use the MCQA feature on SQL Workbench/J by modifying the JDBC URL that you specified on the profile configuration page. For more information about how to configure the profile, see Configure MaxCompute JDBC on SQL Workbench/J.

Specify the JDBC URL in the following format: jdbc:odps:<MaxCompute_endpoint>?project=<MaxCompute_project_name>&accessId=<AccessKey ID>&accessKey=<AccessKey Secret>&charset=UTF-8&interactiveMode=true. Parameter description:
  • maxcompute_endpoint: the endpoint of the region where your MaxCompute service is deployed. For more information, see Configure endpoints.
  • maxcompute_project_name: the name of your MaxCompute project.
  • AccessKey ID: the AccessKey ID that is used to access the specified project.
  • AccessKey Secret: the AccessKey secret that corresponds to the AccessKey ID.
  • charset=UTF-8: the character set encoding format.
  • interactiveMode: specifies whether to enable the MCQA feature. To enable the MCQA feature, set this parameter to true.

Enable MCQA by using MaxCompute SDK for Java

For more information about Alibaba Cloud MaxCompute SDK for Java, see Overview. You must add a specified dependency to the pom.xml file in the Maven repository. Sample dependency:
<dependency>

  <groupId>com.aliyun.odps</groupId>

  <artifactId>odps-sdk-core</artifactId>

  <version>0.35.5-public</version>

</dependency>
Note The version of MaxCompute SDK for Java must be V0.35.1 or later.
The following sample code shows how to create a Java program:
import com.aliyun.odps.Odps;
import com.aliyun.odps.OdpsException;
import com.aliyun.odps.OdpsType;
import com.aliyun.odps.account.Account;
import com.aliyun.odps.account.AliyunAccount;
import com.aliyun.odps.data.Record;
import com.aliyun.odps.data.ResultSet;
import com.aliyun.odps.sqa.*;

import java.io.IOException;
import java.util.*;

public class SQLExecutorExample {

    public static void SimpleExample() {
        // Specify the Alibaba Cloud account and project information.
        Account account = new AliyunAccount("<your_access_id>", "<your_access_key>");
        Odps odps = new Odps(account);
        odps.setDefaultProject("<your_project_name>");
        odps.setEndpoint("http://service.<regionid>.maxcompute.aliyun.com/api");

        // Prepare to build an SQLExecutor.
        SQLExecutorBuilder builder = SQLExecutorBuilder.builder();

        SQLExecutor sqlExecutor = null;
        try {
            // Run in offline mode or run in interactive mode.
            if (false) {
                // Create an SQLExecutor that runs offline SQL queries by default.
                sqlExecutor = builder.odps(odps).executeMode(ExecuteMode.OFFLINE).build();
            } else {
                // Create an SQLExecutor that runs SQL queries with MCQA enabled by default. Make sure that the system automatically rolls back to the offline query mode if an SQL query with MCQA enabled fails.
                sqlExecutor = builder.odps(odps).executeMode(ExecuteMode.INTERACTIVE).fallbackPolicy(FallbackPolicy.alwaysFallbackPolicy()).build();
            }
            // Pass special query settings if required.
            Map<String, String> queryHint = new HashMap<>();
            queryHint.put("odps.sql.mapper.split.size", "128");
            // Submit a query job. You can pass hints.
            sqlExecutor.run("select count(1) from test_table;", queryHint);

            // List the System.out.println() interfaces that can be used to query common information.
            // UUID
            System.out.println("ExecutorId:" + sqlExecutor.getId());
            // Query the Logview URL of the current query job.
            System.out.println("Logview:" + sqlExecutor.getLogView());
            // Query the instance on which the current query job is run. In interactive mode, multiple query jobs may be run on the same instance.
            System.out.println("InstanceId:" + sqlExecutor.getInstance().getId());
            // Query the progress of the current query job. You can check the progress bar in the console.
            System.out.println("QueryStageProgress:" + sqlExecutor.getProgress());
            // Query the changelogs about the execution status of the current query job, such as rollback messages.
            System.out.println("QueryExecutionLog:" + sqlExecutor.getExecutionLog());

            // Obtain the results of query jobs by calling one of the following API operations:
            if(false) {
                // Query the results of all query jobs. The API operation that you called is a synchronous operation and may occupy a thread until the query succeeds or fails.
                // Write the results of all query jobs to the memory at the same time. To avoid memory issues, we recommend that you do not perform this operation if the amount of data is large.
                List<Record> records = sqlExecutor.getResult();
                printRecords(records);
            } else {
                // Query the ResultSet iterator of the query results. The API operation that you called is a synchronous operation and may occupy a thread until the query succeeds or fails.
                // Read the results of query jobs in several batches. We recommend that you perform this operation if the amount of data is large.
                ResultSet resultSet = sqlExecutor.getResultSet();
                while (resultSet.hasNext()) {
                    printRecord(resultSet.next());
                }
            }

            // Run another query.
            sqlExecutor.run("select * from test_table;", new HashMap<>());
            if(false) {
                // Query the results of all query jobs. The API operation that you called is a synchronous operation and may occupy a thread until the query succeeds or fails.
                // Write the results of all query jobs to the memory at the same time. To avoid memory issues, we recommend that you do not perform this operation if the amount of data is large.
                List<Record> records = sqlExecutor.getResult();
                printRecords(records);
            } else {
                // Query the ResultSet iterator of the query results. The API operation that you called is a synchronous operation and may occupy a thread until the query succeeds or fails.
                // Read the results of query jobs in several batches. We recommend that you perform this operation if the amount of data is large.
                ResultSet resultSet = sqlExecutor.getResultSet();
                while (resultSet.hasNext()) {
                    printRecord(resultSet.next());
                }
            }
        } catch (OdpsException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
            if (sqlExecutor != null) {
                // Close the SQLExecutor and release related resources.
                sqlExecutor.close();
            }
        }
    }

    // SQLExecutor can be reused by pool mode
    public static void ExampleWithPool() {
        // Specify the Alibaba Cloud account and project information.
        Account account = new AliyunAccount("your_access_id", "your_access_key");
        Odps odps = new Odps(account);
        odps.setDefaultProject("your_project_name");
        odps.setEndpoint("http://service.<regionid>.maxcompute.aliyun.com/api");

        // Run query jobs by using a connection pool.
        SQLExecutorPool sqlExecutorPool = null;
        SQLExecutor sqlExecutor = null;
        try {
            // Create a connection pool. Specify the connection pool size and the default execution mode.
            SQLExecutorPoolBuilder builder = SQLExecutorPoolBuilder.builder();
            builder.odps(odps)
                    .initPoolSize(1) // init pool executor number
                    .maxPoolSize(5)  // max executors in pool
                    .executeMode(ExecuteMode.INTERACTIVE); // Run in interactive mode.

            sqlExecutorPool = builder.build();
            // Obtain an SQLExecutor from the connection pool. If no SQLExecutor can be obtained from the connection pool, you can add an SQLExecutor. Make sure that the total number of SQLExecutors does not exceed the upper limit.
            sqlExecutor = sqlExecutorPool.getExecutor();

            // Use the SQLExecutor the same way as it is used in the preceding example.
            sqlExecutor.run("select count(1) from test_table;", new HashMap<>());
            System.out.println("InstanceId:" + sqlExecutor.getId());
            System.out.println("Logview:" + sqlExecutor.getLogView());

            List<Record> records = sqlExecutor.getResult();
            printRecords(records);
        } catch (OdpsException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
            sqlExecutor.close();
        }
        sqlExecutorPool.close();
    }

    private static void printRecord(Record record) {
        for (int k = 0; k < record.getColumnCount(); k++) {

            if (k != 0) {
                System.out.print("\t");
            }

            if (record.getColumns()[k].getType().equals(OdpsType.STRING)) {
                System.out.print(record.getString(k));
            } else if (record.getColumns()[k].getType().equals(OdpsType.BIGINT)) {
                System.out.print(record.getBigint(k));
            } else {
                System.out.print(record.get(k));
            }
        }
    }

    private static void printRecords(List<Record> records) {
        for (Record record : records) {
            printRecord(record);
            System.out.println();
        }
    }

    public static void main(String args[]) {
        SimpleExample();
        ExampleWithPool();
    }
}
