This topic describes how to run a Flink DataStream job to read data from Alibaba Cloud Log Service.

Prerequisites

  • Java Development Kit (JDK) 8 is installed on your machine.
  • Maven 3.X is installed on your machine.
  • An integrated development environment (IDE) for Java or Scala is installed on your machine. We recommend that you use IntelliJ IDEA. The JDK and Maven are configured.
  • A Logstore is created in Log Service, and test data exists in the Logstore.

Background information

The Windows operating system is used in the demo.
Notice Only Blink 3.X supports this demo.

Develop a job

  1. Download and decompress the SLS_Demo-master.zip package to your machine.
  2. Open IntelliJ IDEA and choose File > Open. Select the decompressed SLS_Demo-master folder and click OK.
  3. Double-click the ConsumerSample.java file in the \SLS_Demo-master\src\main\java\com\aliyun\openservices\log\flink directory. Then, configure the parameters related to Log Service in the ConsumerSample.java file.
        private static final String SLS_ENDPOINT = "VPC endpoint";// Use the classic network endpoint or a virtual private cloud (VPC) endpoint in the production environment.
    //  private static final String SLS_ENDPOINT = "public endpoint";// Use the public endpoint in the test environment.
        private static final String ACCESS_KEY_ID = "yourAK";
        private static final String ACCESS_KEY_SECRET = "yourAS";
        private static final String SLS_PROJECT = "yourProject";
        private static final String SLS_LOGSTORE = "yourlogstore";
        // 1. Specify the start offset, which indicates the timestamp to start reading data from Log Service. The timestamp is measured in seconds. 2. To read both full and incremental data from Log Service, set the StartInMs parameter to Consts.LOG_BEGIN_CURSOR.
        // 3. To read only incremental data from Log Service, set the StartInMs parameter to Consts.LOG_END_CURSOR.
        private static final String StartInMs = Consts.LOG_END_CURSOR;
    Note You must comment out <scope>provided</scope> when you perform local debugging in your IDE.
  4. Go to the directory where the pom.xml file is saved. Then, run the following command to package the file:
    mvn clean package

    Based on the artifactId parameter that you set in the pom.xml file for your project, a JAR package named flink-log-connector-0.1.21-SNAPSHOT.jar appears in the target directory. This indicates that job development is completed.

Publish a job

For more information about how to publish a job, see Publish a job.
Note Before you publish the job, set the Parallelism parameter for the source table on the Configurations tab of the Development page. The parallelism setting of the source table cannot be greater than the number of shards in the source table. Otherwise, a JobManager error occurs when the job starts.
The following example shows the job content:
-- Required. The full name of the main class.
--blink.main.class=com.aliyun.openservices.log.flink.ConsumerSample

-- The name of the job.
blink.job.name=sls

-- The resource name of the JAR package that contains the full name of the main class. If multiple JAR packages exist, you must specify this parameter.
--blink.main.jar=flink-log-connector-0.1.21-snapshot.jar

-- The default state backend configuration. The configuration takes effect when the job code is not explicitly configured.
state.backend.type=niagara
state.backend.niagara.ttl.ms=129600000

-- The default checkpoint configuration. The configuration takes effect when the job code is not explicitly configured.
blink.checkpoint.interval.ms=180000
Note You can configure custom parameters. For more information, see Set custom parameters.

Verify the test result

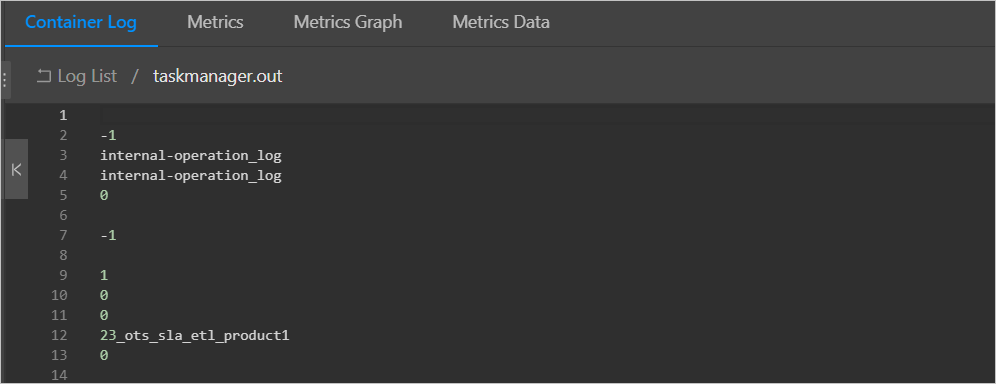

On the Container Log tab of the Job Administration page, view information in the taskmanager.out file of the sink node. In this example, the type of the sink node is print.

If the information shown in the following figure appears, Realtime Compute for Apache Flink reads the data from Log Service.Test result
