DataWorks:Create and use an EMR resource

Last Updated:Feb 26, 2024

DataWorks allows you to create E-MapReduce (EMR) JAR resources or EMR file resources in the DataWorks console. You can upload a file that contains user-defined functions (UDFs) or open source MapReduce code as an EMR resource and commit the resource. Then, you can reference the resource in EMR compute nodes. This topic describes how to create a resource by uploading a file, commit the resource, and reference the resource in EMR compute nodes.

Prerequisites

You can create an EMR resource only based on an EMR DataLake cluster or an EMR Hadoop cluster. The preparations that are required to create a resource vary based on the type of the EMR cluster. You must complete the required preparations on the EMR and DataWorks sides based on your business requirements before you perform operations in this topic. For more information, see the following topics:

Create an EMR resource

  1. Go to the DataStudio page.

    Log on to the DataWorks console. In the left-side navigation pane, choose Data Modeling and Development > DataStudio. On the page that appears, select the desired workspace from the drop-down list and click Go to DataStudio.

  2. Move the pointer over the 新建 icon and choose Create Resource > EMR > EMR JAR or EMR File.

    Alternatively, you can find the desired workflow, right-click EMR, and then choose Create Resource > EMR JAR or EMR File.

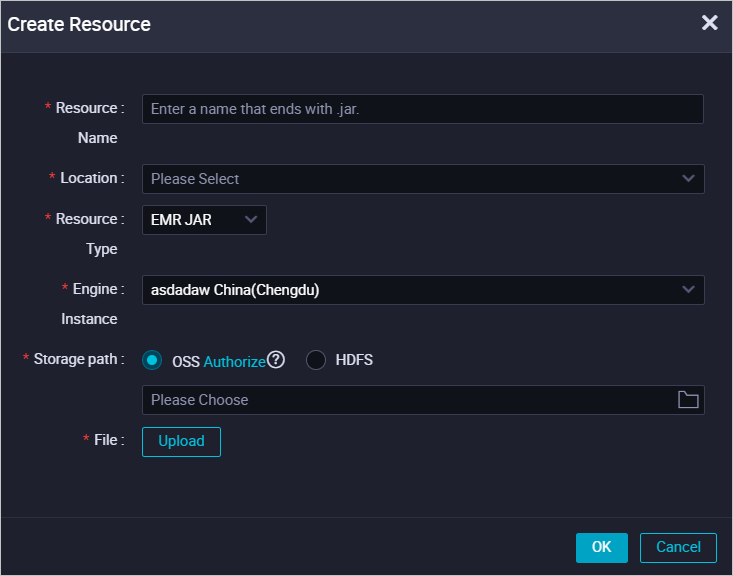

  3. In the Create Resource dialog box, configure the parameters. The following table describes the parameters.

    新建资源

    Parameter

    Description

    Engine Type

    The value of this parameter is fixed as EMR. You cannot change the value of this parameter.

    Engine Instance

    Select a desired compute engine instance from the drop-down list.

    Note

    The drop-down list displays all EMR compute engine instances that are associated with your workspace.

    Resource Type

    The resource type. Valid values: EMR File and EMR JAR.

    Path

    The workflow in which you want to create a resource.

    Storage path

    The storage path of the resource. Valid values: OSS and HDFS.

    • If you select OSS, you must click Authorize next to OSS to authorize DataWorks to access Object Storage Service (OSS). Then, select a folder.

      Note

      You must use your Alibaba Cloud account to perform authorization.

    • If you select HDFS, you must enter a storage path.

    Note

    A JAR package can be stored in the following objects:

    • Master node of the EMR cluster.

    • OSS. We recommend that you store a JAR package in OSS.

    File Source

    The source of the file that you want to upload. Valid values: Local and OSS.

    • If you select Local, click Upload in the File field to upload a file from your on-premises machine.

    • If you select OSS, select an OSS object for Select File or click Create in OSS to create an OSS object.

    Name

    The name of the EMR resource that you want to create. If you upload a JAR file as a resource, you must add the file name extension .jar to the resource name.

  4. Click Create.

  5. Click the 保存 and 提交 icons in the top toolbar to save and commit the resource to the server for task scheduling and development.

    Note

    You must select a resource group for scheduling when you commit a resource. If you use an exclusive resource group for scheduling to commit a resource, DataWorks issues the corresponding resource creation task to the desired compute engine instance and displays the log information that is generated in the task execution process. If an error occurs in the process of committing a resource, you can troubleshoot the error based on the log information. If no exclusive resource groups for scheduling are available, you can purchase and configure an exclusive resource group for scheduling. For more information, see Create and use an exclusive resource group for scheduling.

Use the resource to register functions

DataWorks allows you to use a resource to register functions in the DataWorks console. After you upload a resource that is required to register functions to the DataWorks console, you can use the resource when you register functions.注册函数

Use the resource in node code

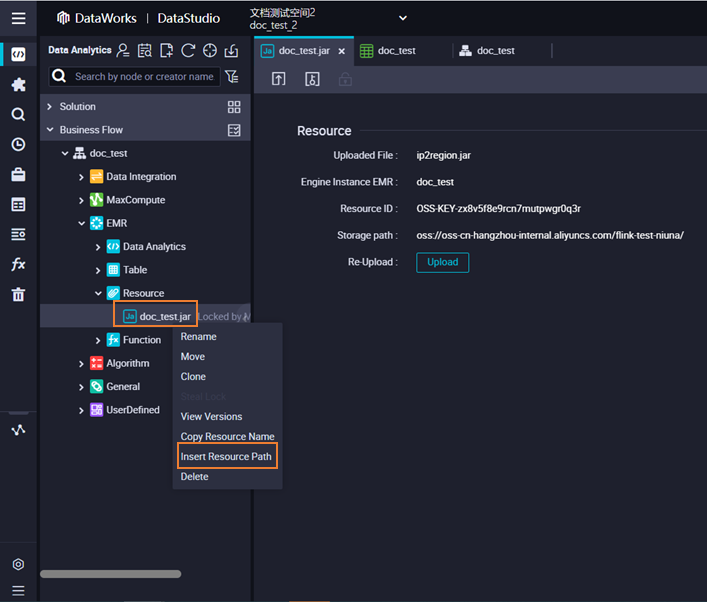

After you create an EMR JAR resource, you can perform the following operations to reference the resource in the code of a node: Find the resource that you created, right-click the resource name, and then select Insert Resource Path. The following figure shows the reference steps.节点中使用资源

Note

After a resource is referenced by a node, the code in the @resource_reference{"Resource name"} format is displayed.

For more information about how to reference a resource, see Create an EMR MR node.

Manage resource versions

Each time you commit a resource, a resource version is generated. You can right-click the resource name and select View Versions to view detailed information or download the resource of a specific version.资源版本
