This topic shows you how to use a JMS client to connect to Message Queue for RabbitMQ and implement the Publish/Subscribe (Pub/Sub) messaging model.

Background information

  • JMS Pub/Sub
    The JMS Pub/Sub messaging model has the following features:
    • Each message can have multiple consumers. After a producer sends a message to a topic, all subscribers of the topic can consume the message.JMS_pub_sub_model
    • Producers and subscribers have timing dependencies.
      • If a subscriber creates a nondurable subscription, the subscriber must subscribe to a topic before a producer sends a message to the topic. In addition, the subscriber must remain active to consume all the messages sent to the topic. If a message is sent when the subscriber is inactive, the subscriber cannot consume the message after it becomes active. For more information about the sample code, see Nondurable subscriptions.
      • If a subscriber creates a durable subscription, the subscriber must subscribe to a topic before a producer sends a message to the topic. However, the subscriber does not need to remain active to consume all the messages sent to the topic. If a message is sent when the subscriber is inactive, the subscriber can consume the message after it becomes active. For more information about the sample code, see Durable subscriptions.
  • Username and password
    When you access Message Queue for RabbitMQ from a client, Message Queue for RabbitMQ authenticates your permissions based on your username and password. Message Queue for RabbitMQ allows you to generate usernames and passwords for your client by using the following methods:
    • Dynamic username and password: Use a permission authentication class provided by Alibaba Cloud to generate dynamic usernames and passwords.
    • Static username and password (recommended): Generate static usernames and passwords in the Message Queue for RabbitMQ console. This method is the same as that of open source RabbitMQ.
    Notice When you call an SDK to send or receive messages on a client, we recommend that you use persistent connections. This way, you do not need to create connections every time you send or receive messages. Frequent creation of connections consumes a large number of network and server resources and may even trigger protection against SYN flood attacks. For more information, see Connection.

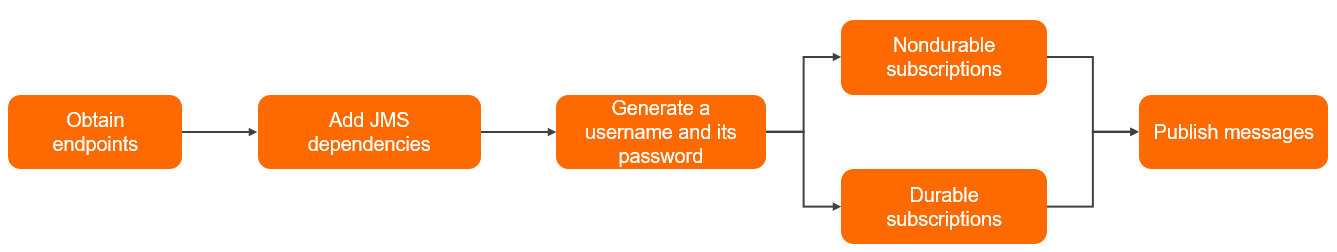

Messaging process

JMS Pub Sub

Obtain endpoints

You must obtain the endpoint of your instance in the Message Queue for RabbitMQ console. When you send or receive messages, you must configure the endpoint on the producer or consumer client. Otherwise, you cannot access the Message Queue for RabbitMQ instance.

  1. Log on to the Message Queue for RabbitMQ console.
  2. In the top navigation bar, select the region where your instance resides.
  3. In the left-side navigation pane, click Instances.
  4. On the Instances page, select your instance. In the Basic Information section, find the endpoint of the required network type and click the endpoint to copy it.
    Type Description Example
    Public endpoint You can access an instance from the Internet to read and write data. By default, pay-as-you-go instances have public endpoints. To use a public endpoint for a subscription instance, you must configure a public endpoint when you create the subscription instance. XXX.mq-amqp.cn-hangzhou-a.aliyuncs.com
    VPC endpoint You can access an instance from a VPC to read and write data. By default, both pay-as-you-go and subscription instances have VPC endpoints. XXX.mq-amqp.cn-hangzhou-a-internal.aliyuncs.com

Add JMS dependencies

Add the following dependencies to the pom.xml file:
<dependency>
    <groupId>com.rabbitmq</groupId>
    <artifactId>amqp-client</artifactId>
    <version>5.5.0</version>
</dependency>
<dependency>
    <groupId>com.alibaba.mq-amqp.jms</groupId>
    <artifactId>mq-amqp-jms-client</artifactId>
    <version>1.11.2-1.0.0</version>
    <exclusions>
        <exclusion>
            <groupId>com.rabbitmq</groupId>
            <artifactId>amqp-client</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<dependency>
    <groupId>com.alibaba.mq-amqp</groupId>
    <artifactId>mq-amqp-client</artifactId>
    <version>1.0.5</version>
</dependency>
<dependency>
    <groupId>org.apache.commons</groupId>
    <artifactId>commons-lang3</artifactId>
    <version>3.4</version>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-simple</artifactId>
    <version>1.7.25</version>
    <scope>compile</scope>
</dependency>
<dependency>
    <groupId>com.rabbitmq</groupId>
    <artifactId>amqp-client</artifactId>
    <version>5.5.0</version>
</dependency>
<dependency>
    <groupId>com.alibaba.mq-amqp.jms</groupId>
    <artifactId>mq-amqp-jms-client</artifactId>
    <version>1.11.2-1.0.0</version>
    <exclusions>
        <exclusion>
            <groupId>com.rabbitmq</groupId>
            <artifactId>amqp-client</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<dependency>
    <groupId>org.apache.commons</groupId>
    <artifactId>commons-lang3</artifactId>
    <version>3.4</version>
</dependency>
<dependency>
    <groupId>org.slf4j</groupId>
    <artifactId>slf4j-simple</artifactId>
    <version>1.7.25</version>
    <scope>compile</scope>
</dependency>

Generate a username and its password

Create the AliyunCredentialsProvider.java file that is used to generate a dynamic username and its password.

import com.alibaba.mq.amqp.utils.UserUtils;
import com.rabbitmq.client.impl.CredentialsProvider;
import org.apache.commons.lang3.StringUtils;
import java.security.InvalidKeyException;
import java.security.NoSuchAlgorithmException;
/**
 * The AliyunCredentialsProvider class that is used to generate a dynamic username and its password.
 */
public class AliyunCredentialsProvider implements CredentialsProvider {
    /**
     * Access Key ID.
     */
    private final String accessKeyId;
    /**
     * Access Key Secret.
     */
    private final String accessKeySecret;
    /**
     * security temp token. (optional)
     */
    private final String securityToken;
    /**
     * The ID of the instance. You can obtain the instance ID from the Message Queue for RabbitMQ console.
     */
    private final String instanceId;
    public AliyunCredentialsProvider(final String accessKeyId, final String accessKeySecret,
                                     final String instanceId) {
        this(accessKeyId, accessKeySecret, null, instanceId);
    }
    public AliyunCredentialsProvider(final String accessKeyId, final String accessKeySecret,
                                     final String securityToken, final String instanceId) {
        this.accessKeyId = accessKeyId;
        this.accessKeySecret = accessKeySecret;
        this.securityToken = securityToken;
        this.instanceId = instanceId;
    }
    @Override
    public String getUsername() {
        if(StringUtils.isNotEmpty(securityToken)) {
            return UserUtils.getUserName(accessKeyId, instanceId, securityToken);
        } else {
            return UserUtils.getUserName(accessKeyId, instanceId);
        }
    }

    @Override
    public String getPassword() {
        try {
            return UserUtils.getPassord(accessKeySecret);
        } catch (InvalidKeyException e) {
            //todo
        } catch (NoSuchAlgorithmException e) {
            //todo
        }
        return null;
    }
}
For information about how to create a static username and its password, see Create a static username and its password.

Nondurable subscriptions

Create, compile, and run the Subscriber.java file.
import com.rabbitmq.jms.admin.RMQConnectionFactory;
import com.rabbitmq.jms.client.AmqpConnectionFactoryPostProcessor;
import javax.jms.*;

public class Subscriber {
    public static String DESTINATION = "systemA.systemB.Price.*";

    public static RMQConnectionFactory getRMQConnectionFactory() {
        final AliyunCredentialsProvider provider = new AliyunCredentialsProvider("${AccessKeyID}", "${AccessKeySecret}","${InstanceID}");
        RMQConnectionFactory connectionFactory = new RMQConnectionFactory();
        connectionFactory.setHost("xxx.xxx.aliyuncs.com");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("${VhostName}");
        connectionFactory.setAmqpConnectionFactoryPostProcessor(new AmqpConnectionFactoryPostProcessor() {
            @Override
            public void postProcess(com.rabbitmq.client.ConnectionFactory cf) {
                cf.setCredentialsProvider(provider);
                cf.setAutomaticRecoveryEnabled(true);
                cf.setNetworkRecoveryInterval(5000);
                System.out.println(cf.getPassword());
            }
        });
        return connectionFactory;
    }

    public static void main(String[] args) throws Exception {
        RMQConnectionFactory connectionFactory = getRMQConnectionFactory();
        TopicConnection connection = connectionFactory.createTopicConnection();
        TopicSession session = connection.createTopicSession(false, Session.AUTO_ACKNOWLEDGE);
        Topic destTopic = session.createTopic(DESTINATION);
        TopicSubscriber subscriber = session.createSubscriber(destTopic);
        connection.start();
        while (true) {
            Message msg = subscriber.receive(1000);
            if (msg == null) {
                System.out.println("No new message, sleeping 5 secs");
                Thread.sleep(5 * 1000);
                continue;
            }
            if (msg instanceof TextMessage) {
                String body = ((TextMessage) msg).getText();
                System.out.println(body);
            } else {
                System.out.println("Unexpected message type: " + msg.getClass());
            }
        }
    }
}
import com.rabbitmq.jms.admin.RMQConnectionFactory;
import com.rabbitmq.jms.client.AmqpConnectionFactoryPostProcessor;
import javax.jms.*;

public class Subscriber {
    public static String DESTINATION = "systemA.systemB.Price.*";

    public static RMQConnectionFactory getRMQConnectionFactory() {
        RMQConnectionFactory connectionFactory = new RMQConnectionFactory();
        connectionFactory.setHost("xxx.xxx.aliyuncs.com");
        connectionFactory.setUsername("${Username}");
        connectionFactory.setPassword("${Password}");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("VhostName");
        connectionFactory.setAmqpConnectionFactoryPostProcessor(new AmqpConnectionFactoryPostProcessor() {
            @Override
            public void postProcess(com.rabbitmq.client.ConnectionFactory cf) {
                cf.setAutomaticRecoveryEnabled(true);
                cf.setNetworkRecoveryInterval(5000);
                System.out.println(cf.getPassword());
            }
        });
        return connectionFactory;
    }

    public static void main(String[] args) throws Exception {
        RMQConnectionFactory connectionFactory = getRMQConnectionFactory();
        TopicConnection connection = connectionFactory.createTopicConnection();
        TopicSession session = connection.createTopicSession(false, Session.AUTO_ACKNOWLEDGE);
        Topic destTopic = session.createTopic(DESTINATION);
        TopicSubscriber subscriber = session.createSubscriber(destTopic);
        connection.start();
        while (true) {
            Message msg = subscriber.receive(1000);
            if (msg == null) {
                System.out.println("No new message, sleeping 5 secs");
                Thread.sleep(5 * 1000);
                continue;
            }
            if (msg instanceof TextMessage) {
                String body = ((TextMessage) msg).getText();
                System.out.println(body);
            } else {
                System.out.println("Unexpected message type: " + msg.getClass());
            }
        }
    }
}

Durable subscriptions

Create, compile, and run the DurableSubscriber.java file.
import com.rabbitmq.jms.admin.RMQConnectionFactory;
import com.rabbitmq.jms.client.AmqpConnectionFactoryPostProcessor;
import javax.jms.*;

public class DurableSubscriber {
    public static String DESTINATION = "systemA.systemB.Price.*";
    public static String CLIENT_ID = "client_id";
    public static String SUBSCRIBER_NAME = "subscriber_name";

    public static RMQConnectionFactory getRMQConnectionFactory() {
	final AliyunCredentialsProvider provider = new AliyunCredentialsProvider("${AccessKeyID}", "${SecretKeyID}","${InstanceID}");
        RMQConnectionFactory connectionFactory = new RMQConnectionFactory();
        connectionFactory.setHost("xxx.xxx.aliyuncs.com");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("${VhostName}");
        connectionFactory.setAmqpConnectionFactoryPostProcessor(new AmqpConnectionFactoryPostProcessor() {
            @Override
            public void postProcess(com.rabbitmq.client.ConnectionFactory cf) {
                cf.setCredentialsProvider(provider);
                cf.setAutomaticRecoveryEnabled(true);
                cf.setNetworkRecoveryInterval(5000);
                System.out.println(cf.getPassword());
            }
        });
        return connectionFactory;
    }


    public static void main(String[] args) throws Exception {
        RMQConnectionFactory connectionFactory = getRMQConnectionFactory();
        TopicConnection connection = connectionFactory.createTopicConnection();
        connection.setClientID(CLIENT_ID);
        TopicSession session = connection.createTopicSession(false, Session.AUTO_ACKNOWLEDGE);
        Topic Topic = session.createTopic(DESTINATION);
        TopicSubscriber subscriber = session.createDurableSubscriber(Topic,SUBSCRIBER_NAME);
        connection.start();
        while (true) {
            Message msg = subscriber.receive(1000);
            if (msg == null) {
                System.out.println("No new message, sleeping 5 secs");
                Thread.sleep(5 * 1000);
                continue;
            }
            if (msg instanceof TextMessage) {
                String body = ((TextMessage) msg).getText();
                System.out.println(body);
            } else {
                System.out.println("Unexpected message type: " + msg.getClass());
            }
        }
    }
}
import com.rabbitmq.jms.admin.RMQConnectionFactory;
import com.rabbitmq.jms.client.AmqpConnectionFactoryPostProcessor;
import javax.jms.*;

public class DurableSubscriber {
    public static String DESTINATION = "systemA.systemB.Price.*";
    public static String CLIENT_ID = "client_id";
    public static String SUBSCRIBER_NAME = "subscriber_name";

    public static RMQConnectionFactory getRMQConnectionFactory() {
        RMQConnectionFactory connectionFactory = new RMQConnectionFactory();
        connectionFactory.setHost("xxx.xxx.aliyuncs.com");
        connectionFactory.setUsername("${Username}");
        connectionFactory.setPassword("${Password}");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("${VhostName}");
        connectionFactory.setAmqpConnectionFactoryPostProcessor(new AmqpConnectionFactoryPostProcessor() {
            @Override
            public void postProcess(com.rabbitmq.client.ConnectionFactory cf) {
                cf.setAutomaticRecoveryEnabled(true);
                cf.setNetworkRecoveryInterval(5000);
                System.out.println(cf.getPassword());
            }
        });
        return connectionFactory;
    }


    public static void main(String[] args) throws Exception {
        RMQConnectionFactory connectionFactory = getRMQConnectionFactory();
        TopicConnection connection = connectionFactory.createTopicConnection();
        connection.setClientID(CLIENT_ID);
        TopicSession session = connection.createTopicSession(false, Session.AUTO_ACKNOWLEDGE);
        Topic Topic = session.createTopic(DESTINATION);
        TopicSubscriber subscriber = session.createDurableSubscriber(Topic,SUBSCRIBER_NAME);
        connection.start();
        while (true) {
            Message msg = subscriber.receive(1000);
            if (msg == null) {
                System.out.println("No new message, sleeping 5 secs");
                Thread.sleep(5 * 1000);
                continue;
            }
            if (msg instanceof TextMessage) {
                String body = ((TextMessage) msg).getText();
                System.out.println(body);
            } else {
                System.out.println("Unexpected message type: " + msg.getClass());
            }
        }
    }
}

Publish a message

Create, compile, and run the Publisher.java file.
import com.rabbitmq.jms.admin.RMQConnectionFactory;
import com.rabbitmq.jms.client.AmqpConnectionFactoryPostProcessor;
import javax.jms.*;

public class Publisher {

    public static String DESTINATION = "systemA.systemB.Price.aaa";

    public static RMQConnectionFactory getRMQConnectionFactory() {
               final AliyunCredentialsProvider provider = new AliyunCredentialsProvider("${AccessKeyID}", "${SecretKeyID}","${InstanceID}");
        RMQConnectionFactory connectionFactory = new RMQConnectionFactory();
        connectionFactory.setHost("xxx.xxx.aliyuncs.com");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("${VhostName}");
        connectionFactory.setAmqpConnectionFactoryPostProcessor(new AmqpConnectionFactoryPostProcessor() {
            @Override
            public void postProcess(com.rabbitmq.client.ConnectionFactory cf) {
                cf.setCredentialsProvider(provider);
                cf.setAutomaticRecoveryEnabled(true);
                cf.setNetworkRecoveryInterval(5000);
                System.out.println(cf.getPassword());
            }
        });
        return connectionFactory;
    }

    public static void main(String[] args) throws JMSException {
        RMQConnectionFactory factory = getRMQConnectionFactory();
        TopicConnection connection = factory.createTopicConnection();
        TopicSession session = connection.createTopicSession(false,Session.AUTO_ACKNOWLEDGE);
        TextMessage msg = session.createTextMessage("hello topic test");
        Topic topic = session.createTopic(DESTINATION);
        TopicPublisher publisher = session.createPublisher(topic);
        publisher.send(msg);
        System.out.println("The message is sent. ");
        session.close();
        connection.close();
    }
}
import com.rabbitmq.jms.admin.RMQConnectionFactory;
import com.rabbitmq.jms.client.AmqpConnectionFactoryPostProcessor;
import javax.jms.*;

public class Publisher {

    public static String DESTINATION = "systemA.systemB.Price.aaa";

    public static RMQConnectionFactory getRMQConnectionFactory() {
        RMQConnectionFactory connectionFactory = new RMQConnectionFactory();
        connectionFactory.setHost("xxx.xxx.aliyuncs.com");
        connectionFactory.setUsername("${Username}");
        connectionFactory.setPassword("${Password}");
        connectionFactory.setPort(5672);
        connectionFactory.setVirtualHost("${VhostName}");
        connectionFactory.setAmqpConnectionFactoryPostProcessor(new AmqpConnectionFactoryPostProcessor() {
            @Override
            public void postProcess(com.rabbitmq.client.ConnectionFactory cf) {
                cf.setAutomaticRecoveryEnabled(true);
                cf.setNetworkRecoveryInterval(5000);
                System.out.println(cf.getPassword());
            }
        });
        return connectionFactory;
    }

    public static void main(String[] args) throws JMSException {
        RMQConnectionFactory factory = getRMQConnectionFactory();
        TopicConnection connection = factory.createTopicConnection();
        TopicSession session = connection.createTopicSession(false,Session.AUTO_ACKNOWLEDGE);
        TextMessage msg = session.createTextMessage("hello topic test1");
        Topic topic = session.createTopic(DESTINATION);
        TopicPublisher publisher = session.createPublisher(topic);
        publisher.send(msg);
        System.out.println("The message is sent. ");
        session.close();
        connection.close();
    }
}
