MaxCompute (previously known as ODPS) is a fast and fully managed computing platform for large-scale data warehousing. MaxCompute can process exabytes of data. This topic describes how to synchronize data from an ApsaraDB RDS MySQL instance to a MaxCompute project by using Data Transmission Service (DTS).

Prerequisites

Precautions

  • DTS uses read and write resources of the source and destination databases during initial full data synchronization. This may increase the database load. If the database performance is unfavorable, the specification is low, or the data volume is large, database services may become unavailable. For example, DTS occupies a large amount of read and write resources in the following cases: a large number of slow SQL queries are performed on the source database, the tables have no primary keys, or a deadlock occurs in the destination database. Before synchronizing data, you must evaluate the performance of the source and destination databases. We recommend that you synchronize data during off-peak hours. For example, you can synchronize data when the CPU usage of the source and destination databases is less than 30%.
  • Only table-level data can be synchronized.
  • We recommend that you do not use gh-ost or pt-online-schema-change to perform DDL operations on objects during data synchronization. Otherwise, data synchronization may fail.
  • MaxCompute does not support the PRIMARY KEY constraint. If network errors occur, DTS may synchronize duplicate data records to MaxCompute.

Supported source database types

You can use DTS to synchronize data from the following types of MySQL databases:

  • User-created database hosted on ECS
  • User-created database connected over Express Connect, VPN Gateway, or Smart Access Gateway
  • User-created database connected over a database gateway
  • ApsaraDB RDS MySQL instance that is owned by the same Alibaba Cloud account as MaxCompute or a different Alibaba Cloud account from MaxCompute
This topic uses an ApsaraDB RDS MySQL instance as an example to describe how to configure a data synchronization task. You can also follow the procedure to configure data synchronization tasks for other types of MySQL databases.
Note If your source database is a user-created MySQL database, you must prepare the environments that are required for the source database. For more information, see Preparation overview.

SQL operations that can be synchronized

  • DDL operation: ADD COLUMN
  • DML operations: INSERT, UPDATE, and DELETE

Synchronization process

  1. Initial schema synchronization
    DTS synchronizes the schemas of the required objects from the source database to MaxCompute. During initial schema synchronization, DTS adds the _base suffix to the end of the source table name. For example, if the name of the source table is customer, the name of the table in MaxCompute is customer_base.
  2. Initial full data synchronization
    DTS synchronizes the historical data of the table from the source database to the destination table in MaxCompute. For example, the customer table in the source database is synchronized to the customer_base table in MaxCompute. The data is the basis for subsequent incremental synchronization.
    Note The destination table that is suffixed with _base is known as a full baseline table.
  3. Incremental data synchronization
    DTS creates an incremental data table in MaxCompute. The name of the incremental data table is suffixed with _log, such as customer_log. Then, DTS synchronizes incremental data that is generated in the source database to the incremental data table in real time.
    Note For more information, see #section_5kn_hla_atd.

Procedure

Warning To ensure that the synchronization account is authorized, we recommend that you perform the following steps by using your Alibaba Cloud account.
  1. Purchase a data synchronization instance. For more information, see Purchase procedure.
    Note On the buy page, set Source Instance to MySQL, set Target Instance to MaxCompute, and set Synchronization Topology to One-Way Synchronization.
  2. Log on to the DTS console.
  3. In the left-side navigation pane, click Data Synchronization.
  4. At the top of the Synchronization Tasks page, select the region where the destination instance resides.
    Select a region
  5. Find the data synchronization instance and click Configure Synchronization Channel in the Actions column.
  6. Configure the source and destination instances.
    Configure the source and destination instances
    Section Parameter Description
    N/A Synchronization Task Name DTS automatically generates a task name. We recommend that you specify an informative name for easy identification. You do not need to use a unique task name.
    Source Instance Details Instance Type Select RDS Instance.
    Instance Region The region of the source instance. The region is the same as the source region that you selected when you purchased the data synchronization instance. You cannot change the value of this parameter.
    Instance ID Select the ID of the source RDS instance.
    Database Account Enter the database account of the source RDS instance.
    Note If the database engine of the source RDS instance is MySQL 5.5 or MySQL 5.6, you do not need to configure the database account or database password.
    Database Password Enter the password for the source database account.
    Encryption Select Non-encrypted or SSL-encrypted. If you want to select SSL-encrypted, you must enable SSL encryption for the RDS instance before you configure the data synchronization task. For more information, see Configure SSL encryption for an RDS MySQL instance.
    Notice The Encryption parameter is available only for regions in mainland China and the Hong Kong (China) region.
    Destination Instance Details Instance Type The value of this parameter is set to MaxCompute and cannot be changed.
    Instance Region The region of the destination instance. The region is the same as the destination region that you selected when you purchased the data synchronization instance. You cannot change the value of this parameter.
    Project Enter the name of the MaxCompute project. You can search for a project on the Workspaces page in the DataWorks console.
  7. In the lower-right corner of the page, click Set Whitelist and Next.
    Note The CIDR blocks of DTS servers are automatically added to the whitelist of the source RDS instance and the MaxCompute project. This ensures that DTS servers can connect to the source and destination instances.
  8. In the lower-right corner of the page, click Next. In this step, the permissions on the MaxCompute project are granted to the synchronization account.
    Grant permissions to the synchronization account
  9. Configure the synchronization policy and objects.
    Configure the synchronization policy and objects
    Parameter Description
    Partition Definition of Incremental Data Table Select the partition name based on your business requirements. For more information about partitions, see Partition.
    Initial Synchronization

    Initial synchronization includes initial schema synchronization and initial full data synchronization.

    Select both Initial Schema Synchronization and Initial Full Data Synchronization. In this case, DTS synchronizes the schemas and historical data of the required objects from the source database to the destination database before synchronizing incremental data.

    Processing Mode In Existed Target Table
    • Pre-check and Intercept: checks whether the destination database contains tables that have the same names as tables in the source database. If the source and destination databases do not contain identical table names, the precheck is passed. Otherwise, an error is returned during precheck and the data synchronization task cannot be started.
      Note You can change the names of the tables to be synchronized by using the object name mapping feature. You can use this feature if the source and destination databases contain identical table names and tables in the destination database cannot be deleted or renamed. For more information, see Specify the name of an object in the destination instance.
    • Ignore: skips the precheck for identical table names in the source and destination databases.
      Warning If you select Ignore, data consistency is not guaranteed and your business may be exposed to potential risks.
      • DTS does not synchronize data records that have the same primary keys as data records in the destination database during initial data synchronization. This occurs if the source and destination databases have the same schema. However, DTS synchronizes these data records during incremental data synchronization.
      • If the source and destination databases have different schemas, initial data synchronization may fail. In this case, only some columns are synchronized or the data synchronization task fails.
    Objects to be synchronized

    Select tables from the Available section and click the Right arrow icon to move the tables to the Selected section.

    Note
    • You can select tables from multiple databases as the objects to be synchronized.
    • After an object is synchronized to the destination database, the name of the object remains unchanged. You can change the names of the objects that are synchronized to the destination database by using the object name mapping feature. For more information about how to use this feature, see Specify the name of an object in the destination instance.
  10. In the lower-right corner of the page, click Precheck.
    Note
    • Before you can start the data synchronization task, a precheck is performed. You can start the data synchronization task only after the task passes the precheck.
    • If the task fails to pass the precheck, click the Info icon icon next to each failed item to view details. Troubleshoot the issues based on the causes and run the precheck again.
  11. Close the Precheck dialog box after the following message is displayed: The precheck is passed.
  12. Wait until the initial synchronization is complete and the data synchronization task is in the Synchronizing state.

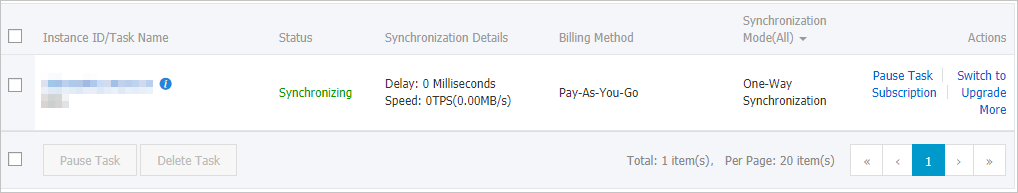

    On the Synchronization Tasks page, view the status of the data synchronization task.View the status of a data synchronization task.

Schema of an incremental data table

DTS synchronizes incremental data that is generated in the source MySQL database to the incremental data table in MaxCompute. The incremental data table stores incremental data and specific metadata. The following figure shows the schema of an incremental data table.

Schema of an incremental data table
Note In the example, the modifytime_year, modifytime_month, modifytime_day, modifytime_hour, and modifytime_minute fields form the partition key. These fields are specified in the Configure the synchronization policy and objects step.

Schema of an incremental data table

Field Description
record_id The ID of the incremental log entry.
Note
  • The ID auto-increments for each new log entry.
  • If an UPDATE operation is performed, DTS generates two incremental log entries for the operation. The two incremental log entries have the same record ID.
operation_flag The operation type. Valid values:
  • I: an INSERT operation.
  • D: a DELETE operation.
  • U: an UPDATE operation.
utc_timestamp The operation timestamp. It is also the timestamp of the binary log file. The timestamp is in the UTC format.
before_flag Indicates whether the column values are pre-update values. Valid values: Y and N.
after_flag Indicates whether the column values are post-update values. Valid values: Y and N.

Additional information about the before_flag and after_flag fields

For different operation types, the before_flag and after_flag fields of an incremental log entry are defined as follows:

  • INSERT

    For an INSERT operation, the column values are the newly inserted record values (post-update values). The value of the before_flag field is N and the value of the after_flag field is Y.

    Example: INSERT operation
  • UPDATE

    DTS generates two incremental log entries for an UPDATE operation. The two incremental log entries have the same values for the record_id, operation_flag, and dts_utc_timestamp fields.

    The second log entry records the pre-update values, so the value of the before_flag field is Y and the value of the after_flag field is N. The second log entry records the post-update values, so the value of the before_flag field is N and the value of the after_flag field is Y.

    Example: UPDATE operation
  • DELETE

    For a DELETE operation, the column values are the deleted record values (pre-update values). The value of the before_flag field is Y and the value of the after_flag field is N.

    Example: DELETE operation

Merge a full baseline table and incremental data table

After a data synchronization task is started, DTS creates a full baseline table and an incremental data table in MaxCompute. You can use SQL statements to merge the two tables. This allows you to obtain the full data at a specific time point.

This section describes how to merge data for the customer table. The following figure shows the schema of the customer table.

Schema of the customer table
  1. Create a table in MaxCompute based on the schema of the source table. The table is used to store the merged data.

    For example, you can obtain full data of the customer table at the 1565944878 time point. Run the following SQL statements to create the required table:

    CREATE TABLE `customer_1565944878` (
        `id` bigint NULL,
        `register_time` datetime NULL,
        `address` string);
    Note
  2. Run the following SQL statements in MaxCompute to merge the full baseline table and incremental data table and obtain full data at a specific time point:
    set odps.sql.allow.fullscan=true;
    insert overwrite table <result_storage_table>
    select <col1>,
           <col2>,
           <colN>
      from(
    select row_number() over(partition by t.<primary_key_column>
     order by record_id desc, after_flag desc) as row_number, record_id, operation_flag, after_flag, <col1>, <col2>, <colN>
      from(
    select incr.record_id, incr.operation_flag, incr.after_flag, incr.<col1>, incr.<col2>,incr.<colN>
      from <table_log> incr
     where utc_timestamp< <timestamp>
     union all
    select 0 as record_id, 'I' as operation_flag, 'Y' as after_flag, base.<col1>, base.<col2>,base.<colN>
      from <table_base> base) t) gt
    where record_num=1
      and after_flag='Y'
    Note
    • <result_storage_table>: the name of the table that stores the merged data.
    • <col1>/<col2>/<colN>: the names of the columns in the table to be merged.
    • <primary_key_column>: the name of the primary key column in the table to be merged.
    • <table_log>: the name of the incremental data table.
    • <table_base>: the name of the full baseline table.
    • <timestamp>: the timestamp that is generated when full data is obtained.

    Run the following SQL statements to obtain full data of the customer table at the 1565944878 time point:

    set odps.sql.allow.fullscan=true;
    insert overwrite table customer_1565944878
    select id,
           register_time,
           address
      from(
    select row_number() over(partition by t.id
     order by record_id desc, after_flag desc) as row_number, record_id, operation_flag, after_flag, id, register_time, address
      from(
    select incr.record_id, incr.operation_flag, incr.after_flag, incr.id, incr.register_time, incr.address
      from customer_log incr
     where utc_timestamp< 1565944878
     union all
    select 0 as record_id, 'I' as operation_flag, 'Y' as after_flag, base.id, base.register_time, base.address
      from customer_base base) t) gt
     where gt.row_number= 1
       and gt.after_flag= 'Y';
  3. Query the merged data from the customer_1565944878 table.
    Query the merged data
