If you need to update a stack but the resource properties cannot be modified, you can update the stack by replacing its resource properties.

Background information

If you need to modify only the resource properties of a stack but keep the physical ID unchanged, you can modify the parameter settings of the specified stack in the template.

If you need to update a stack but the resource properties cannot be modified, you can replace the stack. To replace a stack, you must recreate the stack by using a new ID after you delete the stack. This topic describes how to update a stack by replacing it. The CidrBlock property of the ALIYUN::ECS::VSwitch resource is replaced in the example.

Replace a stack in the console

  1. Log on to the ROS console.
  2. Create a stack.
    Use the following template to create a stack that contains the ALIYUN::ECS::VSwitch resource. Set the CidrBlock property to 172.16.100.0/24.

    For more information about how to create a stack, see Create a stack.

    {
        "ROSTemplateFormatVersion": "2015-09-01",
        "Parameters": {
            "ZoneId": {
                "Type": "String",
                "Default": "cn-hangzhou-i"
            },
            "VSwitchCidrBlock": {
                "Type": "String",
                "Default": "172.16.100.0/24"
            }
        },
        "Resources": {
            "EcsVpc": {
                "Type": "ALIYUN::ECS::VPC",
                "Properties": {
                    "CidrBlock": "172.16.0.0/12",
                    "VpcName": "MyTestVpc"
                }
            },
            "VSwitch": {
                "Type": "ALIYUN::ECS::VSwitch",
                "Properties": {
                    "ZoneId": {
                        "Ref": "ZoneId"
                    },
                    "CidrBlock": {
                        "Ref": "VSwitchCidrBlock"
                    },
                    "VpcId": {
                        "Fn::GetAtt": [
                            "EcsVpc",
                            "VpcId"
                        ]
                    },
                    "VSwitchName": "VSwitch"
                }
            }
        },
        "Outputs": {
        }
    }
  3. Replace the stack.
    1. In the left-side navigation pane, click Stacks.
    2. In the upper-left corner, select the region where the target stack resides from the drop-down list.
    3. On the Stacks page, find the stack that you want to update and click Update in the Actions column.
    4. In the Configure Template Parameters step of the Edit Stack wizard, update the VSwitchCidrBlock value from 172.16.100.0/24 to 172.16.200.0/24 in the Parameters section.
      replace
    5. Click Next.
    6. In the Configure Stack step of the Edit Stack wizard, select Enable to enable replacement update.
      replace2
    7. Click Confirm.
      After the replacement update is complete, the physical ID of the VSwitch resource changes. The CidrBlock value is changed from 172.16.100.0/24 to 172.16.200.0/24. If you want to view the resource information, click the Resources tab on the stack details page, and then click the new ID of the VSwitch resource to go to the VSwitch Details page.

Replace a stack by using an API operation

  1. Log on to OpenAPI Explorer.
  2. Call the CreateStack operation to create a stack.
    1. On the left side of the page, enter CreateStack in the search box to search for the CreateStack operation.
    2. Set RegionId, StackName, and TemplateBody, and then click Submit Request.
      replace-1Enter the following code in the TemplateBody field:
      {
          "ROSTemplateFormatVersion": "2015-09-01",
          "Parameters": {
              "ZoneId": {
                  "Type": "String",
                  "Default": "cn-hangzhou-i"
              },
              "VSwitchCidrBlock": {
                  "Type": "String",
                  "Default": "172.16.100.0/24"
              }
          },
          "Resources": {
              "EcsVpc": {
                  "Type": "ALIYUN::ECS::VPC",
                  "Properties": {
                      "CidrBlock": "172.16.0.0/12",
                      "VpcName": "MyTestVpc"
                  }
              },
              "VSwitch": {
                  "Type": "ALIYUN::ECS::VSwitch",
                  "Properties": {
                      "ZoneId": {
                          "Ref": "ZoneId"
                      },
                      "CidrBlock": {
                          "Ref": "VSwitchCidrBlock"
                      },
                      "VpcId": {
                          "Fn::GetAtt": [
                              "EcsVpc",
                              "VpcId"
                          ]
                      },
                      "VSwitchName": "VSwitch"
                  }
              }
          },
          "Outputs": {
          }
      }
  3. Call the UpdateStack operation to update a stack by replacing resource properties.
    1. On the left side of the page, enter UpdateStack in the search box to search for the UpdateStack operation.
    2. Set RegionId, StackId, TemplateBody, and ReplacementOption, and then click Submit Request.

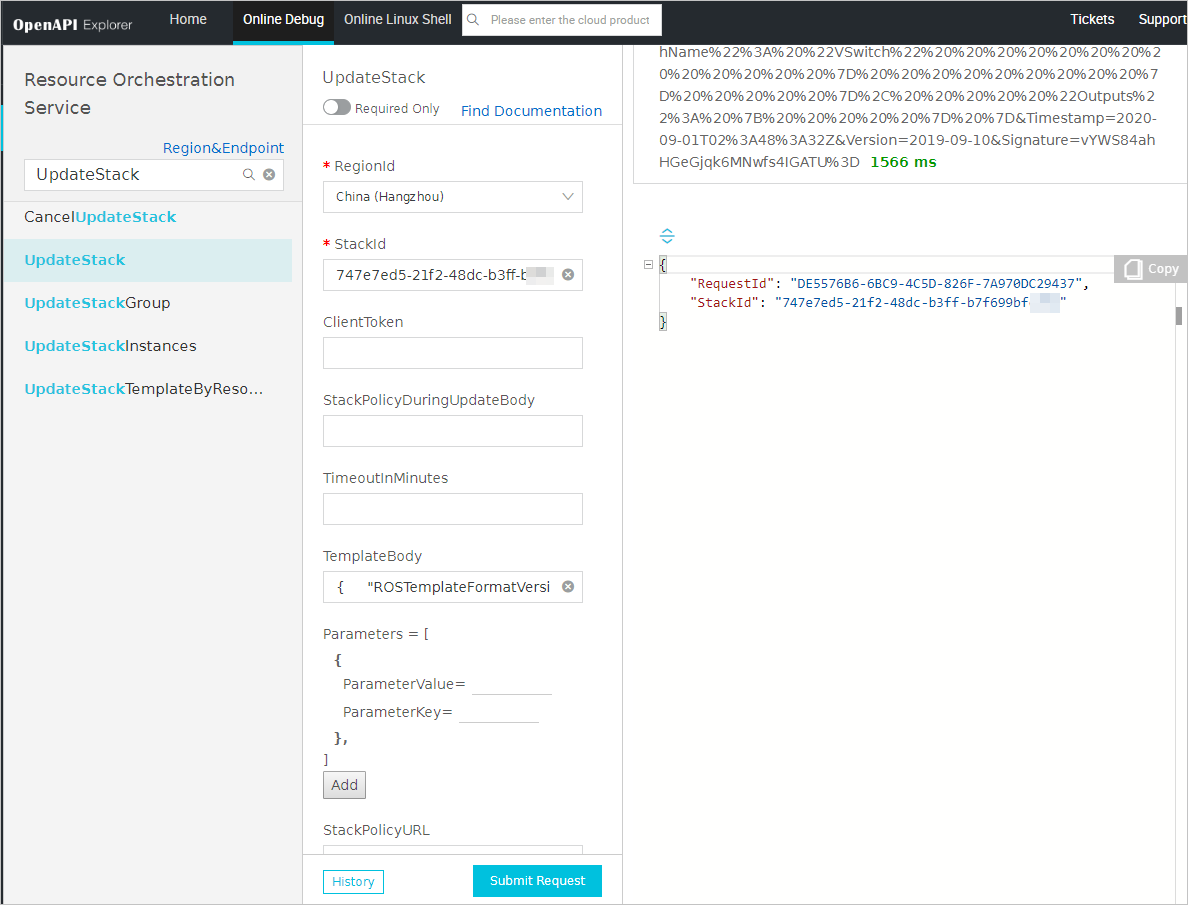

      replace-2Configure the following parameters:
      • RegionId: Select the same region specified when the stack was created.
      • StackId: Enter the ID of the stack.
      • TemplateBody: Update the CidrBlock value of the VSwitch from 172.16.100.0/24 to 172.16.200.0/24. Enter the following code in the TemplateBody field:
        {
            "ROSTemplateFormatVersion": "2015-09-01",
            "Parameters": {
                "ZoneId": {
                    "Type": "String",
                    "Default": "cn-hangzhou-i"
                },
                "VSwitchCidrBlock": {
                    "Type": "String",
                    "Default": "172.16.200.0/24"
                }
            },
            "Resources": {
                "EcsVpc": {
                    "Type": "ALIYUN::ECS::VPC",
                    "Properties": {
                        "CidrBlock": "172.16.0.0/12",
                        "VpcName": "MyTestVpc"
                    }
                },
                "VSwitch": {
                    "Type": "ALIYUN::ECS::VSwitch",
                    "Properties": {
                        "ZoneId": {
                            "Ref": "ZoneId"
                        },
                        "CidrBlock": {
                            "Ref": "VSwitchCidrBlock"
                        },
                        "VpcId": {
                            "Fn::GetAtt": [
                                "EcsVpc",
                                "VpcId"
                            ]
                        },
                        "VSwitchName": "VSwitch"
                    }
                }
            },
            "Outputs": {
            }
        }
      • ReplacementOption: Set this parameter to Enabled. This value indicates that replacement update of resources is allowed.

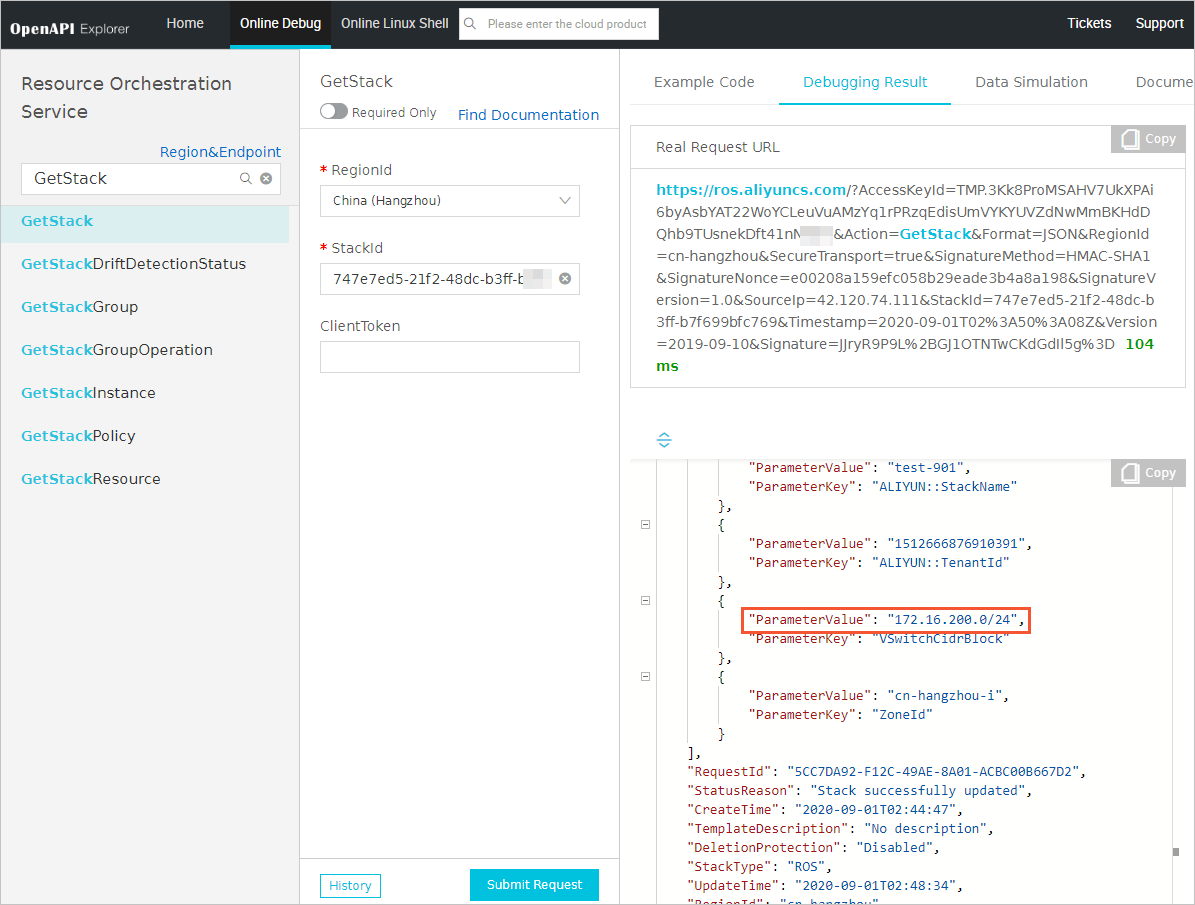

After the replacement update is complete, the physical ID of the VSwitch resource changes. The CidrBlock value is changed from 172.16.100.0/24 to 172.16.200.0/24. You can call the GetStack operation to view stack information.replace-3
