Blink 3.6.0 and later allow you to use Blink connectors to write data to an AnalyticDB for PostgreSQL instance. This topic describes the related prerequisites, procedures, data type mappings, and parameters.

Prerequisites

The Realtime Compute for Apache Flink cluster and the AnalyticDB for PostgreSQL instance reside within the same virtual private cloud (VPC). The CIDR block of the cluster is added to the IP address whitelist of the AnalyticDB for PostgreSQL instance.

Create a Realtime Compute for Apache Flink cluster

To create a Realtime Compute for Apache Flink cluster in Blink 3.6.0 or later, perform the following steps:

  1. Activate Realtime Compute for Apache Flink and create a project. For more information, see Activate Realtime Compute for Apache Flink and create a project.
    Note The created Realtime Compute for Apache Flink cluster and the destination AnalyticDB for PostgreSQL instance must reside within the same VPC.
  2. Install Blink 3.6.0 or later for the Realtime Compute for Apache Flink cluster. For more information, see Manage Blink versions of a Realtime Compute for Apache Flink cluster deployed in exclusive mode.

Configure an AnalyticDB for PostgreSQL 6.0 instance

  1. Create an instance.
    Note The created AnalyticDB for PostgreSQL instance and the Realtime Compute for Apache Flink cluster must reside within the same VPC.
  2. Configure an IP address whitelist for the AnalyticDB for PostgreSQL instance.
    1. In the VPC console, find the CIDR block of the cluster.
    2. In the AnalyticDB for PostgreSQL console, find the destination AnalyticDB for PostgreSQL instance and click its ID. In the left-side navigation pane, click Security Controls. On the page that appears, click Create Whitelist.
    3. Enter the CIDR block of the cluster in the IP address whitelist of the AnalyticDB for PostgreSQL instance. Click OK.
  3. Create a destination table in the AnalyticDB for PostgreSQL instance.
    create table test15(
    b1 bigint,
    b2 smallint,
    b3 smallint,
    b4 int,
    b5 boolean,
    b6 real,
    b7 double precision,
    b8 double precision,
    b9 date,
    b10 time with time zone,
    b11 timestamp with time zone,
    b12 text,
    b15 json
    );

Create a file in which to write data

Random data sources are used in this section. You can create your data sources in actual scenarios.

  1. Log on to the Realtime Compute Development Platform. In the left-side navigation pane, choose Project Management > Projects. Find a project and click its name.
  2. In the left-side navigation pane, click Development. In the top navigation bar, click Create File to create a Flink SQL file in which to write data.
The following sample SQL statements show how to write data to the AnalyticDB for PostgreSQL instance:
--SQL
--********************************************************************--
--Author: sqream_test
--CreateTime: 2020-04-27 19:13:44
--********************************************************************--

CREATE TABLE s_member_cart
(
a1 bigint   ,
a2 tinyint      ,
a3 smallint  ,
a4 int       ,
a5 boolean   ,
a6 FLOAT     ,
a7 DECIMAL   ,
a8 double    ,
a9 date      ,
a10 time      ,
a11 timestamp    ,
a12 tinyint


) WITH (
    type='random'
);

-- ads sink.
CREATE TABLE adsSink (
    `B1` bigint   ,
    `B2` tinyint  ,
    `B3` smallint  ,
    `B4` int       ,
    `B5` boolean,
    `B6` FLOAT     ,
    `B7` FLOAT   ,
    `B8` double    ,
    `B9` date      ,
    `B10` time      ,
    `B11` timestamp    ,
    `B12` varchar,
    `B15` varchar
    --PRIMARY KEY(b1)
) with (
    --type='print'
    type='adbpg',
    version='1.1',
    url='jdbc:postgresql://gp-xxxx:3432/testblink',
    tableName='test',
    userName='xxxx',
    password='xxxxxx',
    timeZone='Asia/Shanghai',
    useCopy='0'
);



INSERT INTO adsSink
SELECT a1,a2,a3,a4,a5,a6,a6,a8,a9,a10,a11, case when a12 >0 then 'value1' else 'value2' end as b12,'{ "customer": "value", "items": {"product": "Beer","qty": 6}}'
     from s_member_cart;

--insert into adsSink2 select a2, sum(a4) from s_member_cart group by a2;

Parameters

Parameter Description Required Constraint
type The type of the dimension table. Yes Set the value to adbpg.
url The JDBC URL. Yes The JDBC URL is used to connect to the AnalyticDB for PostgreSQL instance. The URL must be in the following format: 'jdbc:postgresql://<yourNetworkAddress>:<PortId>/<yourDatabaseName>'. yourNetworkAddress indicates the internal URL of the database. PortId indicates the ID of the port that is used to connect to the database. yourDatabaseName indicates the name of the database. Example: url='jdbc:postgresql://gp-xxxxxx.gpdb.cn-chengdu.rds.aliyuncs.com:3432/postgres'.
tableName The name of the table. Yes None
username The username that is used to connect to the database. Yes None
password The password that is used to connect to the database. Yes None
maxRetryTimes The maximum number of retries for writing data to the table. No Default value: 3.
useCopy Specifies whether to copy the API to write data. No Valid values:
  • 1: copies the API to write data.
  • 0: does not copy the API to write data. Instead, execute an SQL statement such as BATCH INSERT or BATCH UPSERT.
In Blink 3.6.0, the default value is 0. In Blink 3.6.4 and later, the default value is 1. A value of 0 indicates that data is written based on the writeMode parameter.
batchSize The number of data records that can be written in one operation. No Default value: 5000.
exceptionMode The policy that is used to handle exceptions when data is written to the table. No Default value: ignore. Valid values:
  • ignore: The system ignores the data that is written during an exception.
  • strict: When exceptions occur, the system performs failovers.
conflictMode The policy that is used to handle primary key or unique index conflicts. No Default value: ignore. Valid values:
  • ignore: When primary key conflicts occur, the system ignores the primary key conflicts and retains the existing data.
  • strict: When primary key conflicts occur, the system performs failovers.
  • update: When primary key conflicts occur, the system updates data.
  • upsert: When primary key conflicts occur, the system uses the UPSERT statement to write data.
targetSchema The name of the schema. No Default value: public.
writeMode The fine-grained policy for data writing based on the useCopy parameter. No Blink versions later than 3.6.4 support this parameter. You can specify this parameter when you set the useCopy parameter. Default value: 1. Valid values:
  • 0: The BATCH INSERT statement is used to write data.
  • 1: The API is copied to write data.
  • 2: The BATCH UPSERT statement is used to write data. For more information about UPSERT, see Use INSERT ON CONFLICT to overwrite data.

Data type mappings

Realtime Compute for Apache Flink data type AnalyticDB for PostgreSQL data type
BOOLEAN BOOLEAN
TINYINT SAMLLINT
SAMLLINT SAMLLINT
INT INT
BIGINT BIGINT
DOUBLE DOUBLE PRECISION
VARCHAR TEXT
DATETIME TIMESTAMP
DATE DATE
FLOAT REAL
DECIMAL DOUBLE PRECISION
TIME TIME
TIMESTAMP TIMESTAMP

Start a job

  1. In the lower-right corner of the Development tab, check whether Blink 3.6.0 or later is used. If not, change the version.
  2. After you create a file, click Save and Publish in sequence to publish the job.
  3. Click the Administration tab. Click Start in the Actions column corresponding to the job to write data.

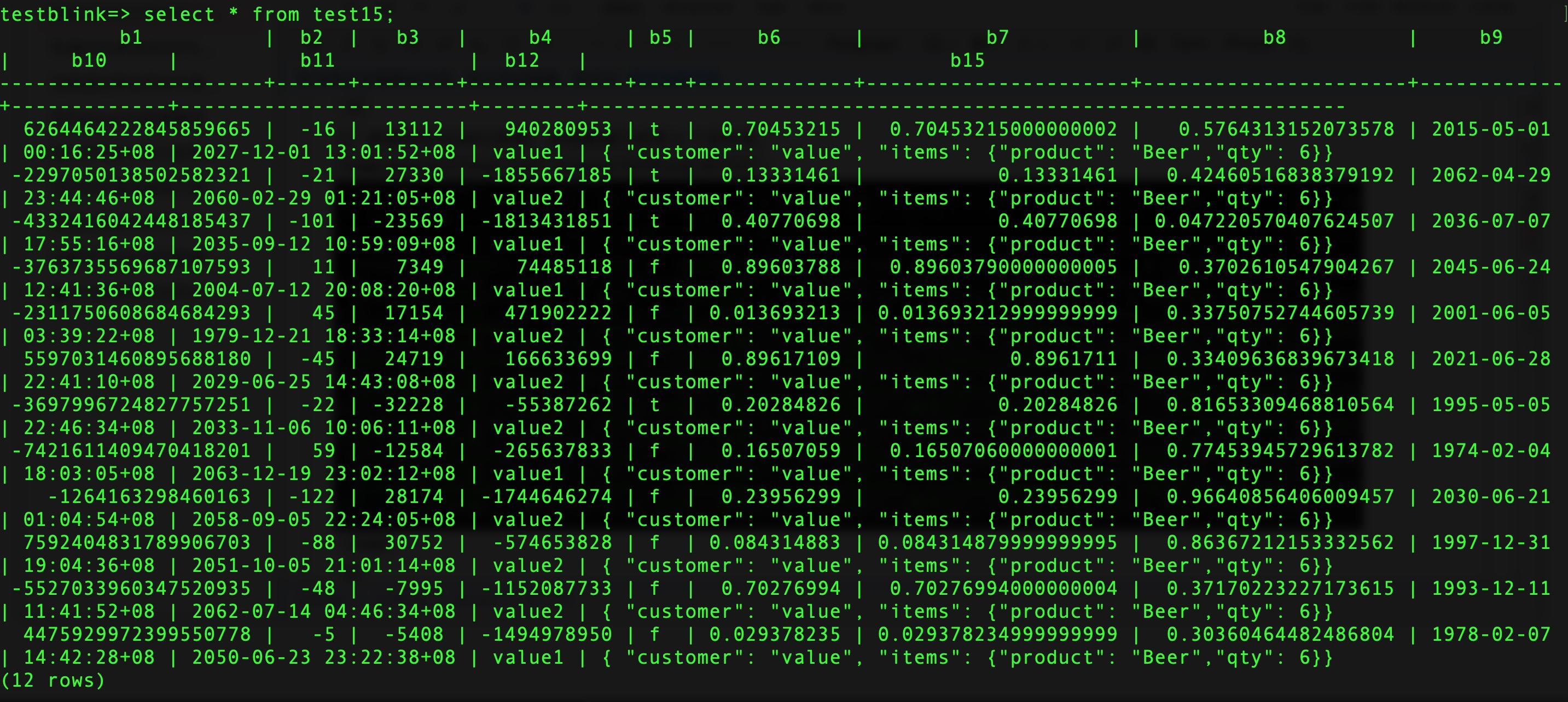

Connect to the AnalyticDB for PostgreSQL instance and check whether the data is written to the destination table.

Data writing policies in different Blink versions

Blink 3.6.4:

  • By default, the BATCH COPY statement is used to write data. The BATCH COPY statement provides higher write performance than the BATCH INSERT statement.
  • The writeMode parameter is supported.
    • In Blink versions later than 3.6.4, if the useCopy parameter is not set to 1, the BATCH COPY statement is used to write data regardless of the writeMode value.
    • For example, if you want to use the BATCH INSERT statement to write data to the AnalyticDB for PostgreSQL instance, you must set the useCopy parameter to 0 and the writeMode parameter to 0. If you want to use the BATCH UPSERT statement to write data to the AnalyticDB for PostgreSQL instance, you must set the useCopy parameter to 0 and the writeMode parameter to 2.
    • In later updates, the useCopy parameter will be removed. We recommend that you use the writeMode parameter to configure the data writing policy.
  • You can set the conflictMode parameter to upsert. This handles primary key conflicts by using the INSERT ON CONFLICT statement.

Blink 3.6.0:

Blink 3.6.0 supports result tables of AnalyticDB for PostgreSQL V6.0.
