This topic describes how to configure a lifecycle chart to display query results. The topic also provides an example.

Overview

A lifecycle chart displays the load time of tasks. A rectangular block in a lifecycle chart indicates when the loading of a task is started and ended. The length of the rectangular block indicates the duration of the loading. The start position that is mapped to the X axis indicates the time when the loading of the task is started. The end position that is mapped to the X axis indicates the time when the loading of the task is ended. The value on the Y axis indicates the task name.

We recommend that you do not run more than 20 tasks. Otherwise, the rectangular blocks will be too narrow.

A lifecycle chart consists of the following basic elements:
  • X-axis start value
  • X-axis end value
  • Y axis
  • Rectangular block

Procedure

  1. Log on to the Log Service console.
  2. Click the target project in the Projects section.
  3. Choose Log Management > Logstores, click the management icon of the target Logstore, and then select Management icon > Search & Analysis.
  4. Enter a query statement in the search box, select a time range, and then click Search & Analyze.
  5. Click  Lifecycle chart to display the query results in a lifecycle chart.
  6. On the Properties tab, configure the properties of the table.
    Parameter Description
    X-axis Start Value Select the start time field.
    X-axis End Value Select the end time field.
    Y Axis Select the field in which task names are included.

Examples

View the time when each task starts and ends.

* | select min(__time__) startTime, max(__time__) as endTime , request_uri group by request_uri

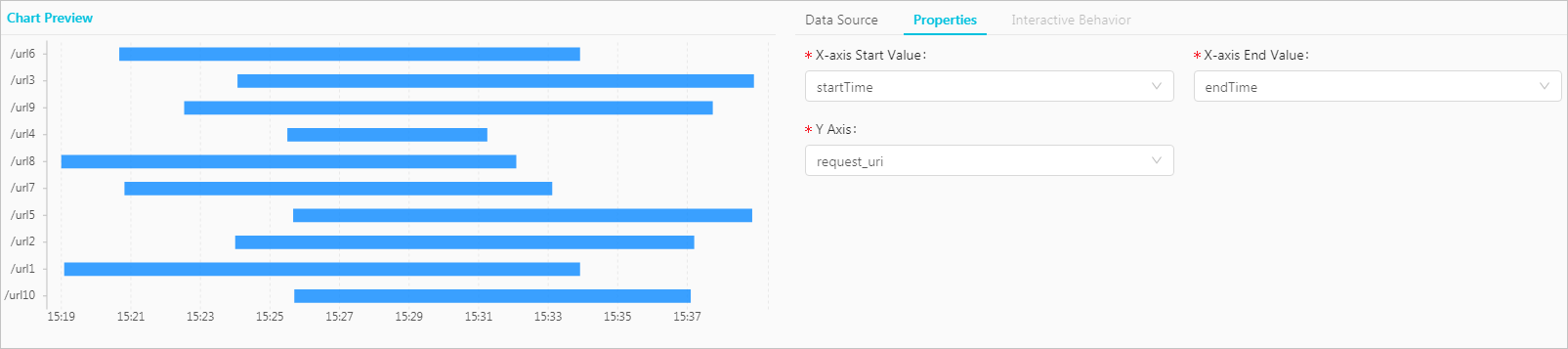

 Lifecycle Chart - 001
