After you install the Application Real-Time Monitoring Service (ARMS) agent for a PHP application that is deployed in Container Service for Kubernetes, ARMS starts to monitor the PHP application. You can view the monitoring data of application topology, API requests, abnormal transactions, slow transactions, and SQL analysis. This topic describes how to install the ARMS agent for a PHP application that is deployed in Container Service for Kubernetes.

Obtain the license key

  1. Log on to the ARMS console.
  2. In the left-side navigation pane, choose Application Monitoring > Applications. In the top navigation bar, select a region.
  3. On the Applications page, click Add Application in the upper-right corner.
  4. Copy the license key at the top of the Add Application page.
    Obtain the license key

Install the ARMS application monitoring agent

Install ARMS application monitoring components ack-arms-pilot.

  1. Log on to the Alibaba Cloud Container Service for Kubernetes console.
  2. In the left-side navigation pane, choose Market > Application catalog On the right of the page, click ack-arms-pilot .
  3. On the app catalog-ack-arms-pilot page, select the target cluster in the create pane, and click create .

Authorize Alibaba Cloud Container Service for Kubernetes

Use the following steps to authorize Alibaba Cloud Container Service for Kubernetes to access ARMS resources.

  1. Log on to the container service console.
  2. In the left-side navigation pane, choose clusters . On the clusters page, find the target cluster, and click actions in the details column.
    Manage Cluster
  3. On the cluster information page of the target cluster, click the cluster resources tab. Click the link on the right of the Worker RAM role .
    Worker RAM Link
  4. On the RAM roles page of the RAM console, click the policy name on the permissions tab.

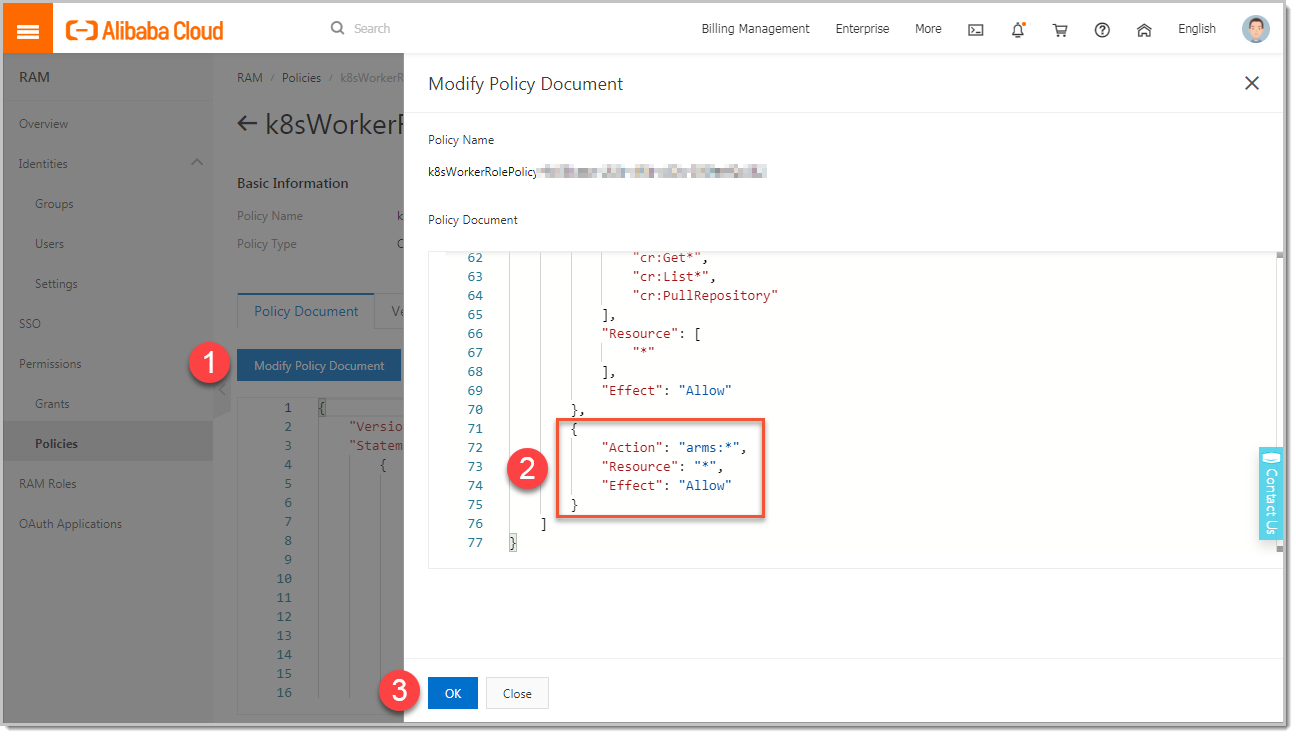

  5. On the policy document tab, click modify policy document , add the following content to the policy document section, and then click OK .

            { "Action": "arms:*", "Resource": "*", "Effect": "Allow" }

    Modify RAM Authorization

Install the Hercules Deploy component to transfer the data of the PHP application

  1. Create a local YAML file, name it hercules.yaml, and then copy the following content to the YAML file:

    You must replace the value of the image parameter with one of the following addresses based on the region.

    Region Download URL
    China (Hangzhou)
    registry.cn-hangzhou.aliyuncs.com/arms-docker-repo/arms-hercules:v1.1
    China (Shanghai)
    registry.cn-shanghai.aliyuncs.com/arms-docker-repo/arms-hercules:v1.1
    China (Qingdao)
    registry.cn-qingdao.aliyuncs.com/arms-docker-repo/arms-hercules:v1.1
    China (Beijing)
    registry.cn-beijing.aliyuncs.com/arms-docker-repo/arms-hercules:v1.1
    China (Zhangjiakou-Beijing Winter Olympics)
    registry.cn-zhangjiakou.aliyuncs.com/arms-docker-repo/arms-hercules:v1.1
    China (Shenzhen)
    registry.cn-shenzhen.aliyuncs.com/arms-docker-repo/arms-hercules:v1.1
    China (Hong Kong)
    registry.cn-hongkong.aliyuncs.com/arms-docker-repo/arms-hercules:v1.1
    Singapore (Singapore)
    registry.ap-southeast-1.aliyuncs.com/arms-docker-repo/arms-hercules:v1.1
  2. Run the following command to install the Hercules Deploy component:
    kubectl create -f hercules.yaml
    Note If a message indicating that the namespace already exists is displayed in the command output, ignore the message.

Enable ARMS to monitor a PHP application

  1. Log on to the Container Service for Kubernetes console. In the left-side navigation pane, click Clusters. On the Clusters page, click Applications in the Actions column of the cluster where your application is deployed.
  2. On the Deployments tab, click Create from Template in the upper-right corner.
  3. On the page that appears, select a template from the Sample Template drop-down list, and add the following annotations to the spec > template > metadata section.
    annotations:
      armsPilotAutoEnable: "on"
      armsPilotCreateAppName: "<your-deployment-name>"
      armsAppType: PHP
    Note Replace <your-deployment-name> with the name of your Deployment application.
  4. (This step is required only when you install the ARMS agent for the first time.) In the namespace of your application, create a ConfigMap file named arms-<yourAppName>.ini and copy the following content to the file:
    apiVersion: v1
    kind: ConfigMap
    metadata:
      name: arms-<yourAppName>.ini
      namespace: <yourAppNamespace>
    data:
      arms.ini: |
        extension=/usr/local/arms/arms-php-agent/arms-[x.y].so
        [ARMS]
        arms.enable=1
        arms.app_name=<yourAppName>
        arms.license_key=<yourLicenseKey>
        arms.agent_env=PHPK8S
        arms.network_type=tcp
        arms.tcp_host=arms-hercules-service.arms-pilot
        arms.tcp_port=11234
    Note
    • Replace <yourAppName> with the name of your application.
    • Replace <yourAppNamespace> with the namespace of your application.
    • Replace <yourLicenseKey> with the license key that you obtained on the Add Application page in the ARMS console.
    • In the extension=/usr/local/arms/arms-php-agent/arms-[x.y].so configuration, [x.y] in arms-[x.y].so is the version of the PHP application. The supported versions are 5.4, 5.5, 5.6, 7.0, 7.1, 7.2, and 7.3.
    • If your container image is an Alpine Linux system, change arms-[x.y].so to arms-[x.y]-alpine.so. [x.y] can be 5.5, 5.6, 7.0, 7.1, 7.2, or 7.3.
    • A ConfigMap file has a one-to-one mapping with an application. To connect to another application, create another ConfigMap file and delete the file when the application is no longer needed.
  5. Add ConfigMap of arms-<yourAppName>.ini to the spec > template > spec > containers section of the Deployment application. Set mountPath to the path of the PHP configuration file.
    volumeMounts:
    - mountPath: /etc/php/7.2/fpm/conf.d/arms.ini
      name: arms-ini
      subPath: arms.ini

    In the preceding information, /etc/php/7.2/fpm/conf.d/ is the configuration loading directory of the PHP application. Add the following content to the spec > template > spec > volumes section:

    volumes:
    - name: arms-ini
      configMap:
        name: arms-<yourAppName>.ini
    Note If the PHP application does not have a configuration file path, add the content of arms-<yourAppName>.ini to the php.ini configuration file of the application.
    Log on to the Container Service for Kubernetes console. On the Deployments or StatefulSets tab, if ARMS Console appears in the Actions column of the application, the ARMS agent is installed.ARMS Console Button
    Note If you cannot find ARMS Console in the Actions column, check whether you have authorized Container Service to access ARMS.

Uninstall the ARMS agent

  1. Optional:If you need to pause the ARMS agent, delete the ConfigMap file that you added in Step 5 and deploy the application again.
  2. If you need to uninstall the ARMS agent, delete the Hercules Deploy component that you added in Step 2 and the ConfigMap file that you added in Step 5.
