Symptoms

No data is displayed in Application Monitoring after the Application Real-Time Monitoring Service (ARMS) agent is installed on a Java application in an ACK cluster.

Causes

The pod of the application is not injected to arms-init-container, the YAML file of the application contains no annotations, or Security Token Service (STS) is not authorized.

Solutions

  1. Log on to the Alibaba Cloud Container Service for Kubernetes console.
  2. In the left-side navigation pane, click Clusters. On the Clusters page, find the required cluster, and click Applications in the Actions column.
  3. In the upper part of the Pods tab, select the namespace in which your application resides. Click Edit next to the application.

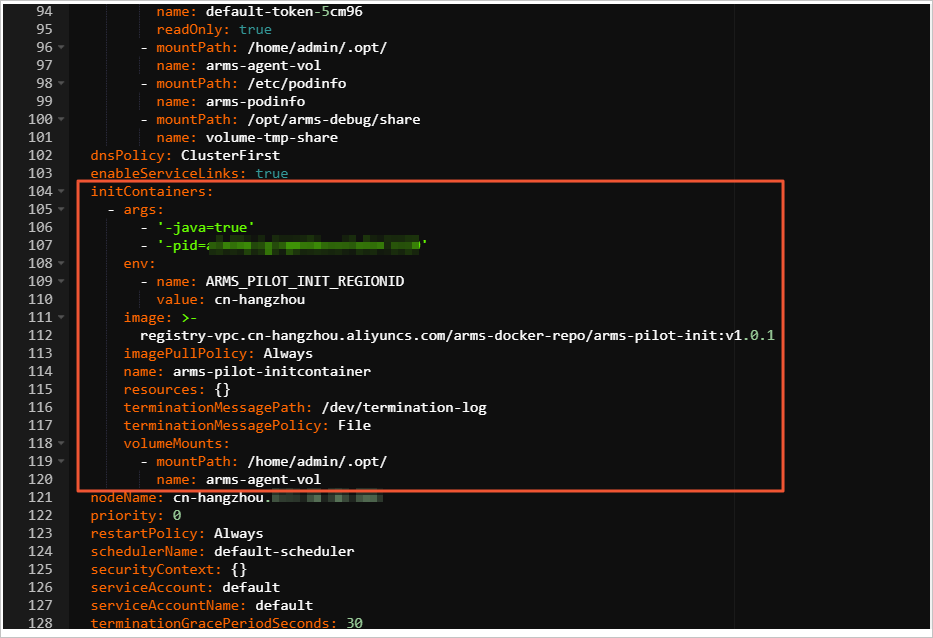

  4. In the Edit YAML dialog box, check whether the YAML file contains initContainers.
    • If the YAML file does not contain initContainers, the pod has not been injected to arms-init-container. Perform 5.
    • If the YAML file contains initContainers, the pod has been injected to arms-init-container. Perform 8.
  5. In the upper part of the Pods tab, set Namespace to arms-pilot. Check whether any pods that have the arms-pilot prefix exist in the Pod list.
  6. On the Deployments or StatefulSets tab, choose More > View in YAML in the Actions column. In the Edit YAML dialog box, check whether the YAML file contains the following annotations:
    annotations:
      armsPilotAutoEnable: 'on'
      armsPilotCreateAppName: <your-deployment-name>
    • If the YAML file contains these annotations, perform 7.
    • If the YAML file does not contain these annotations, add the preceding annotations to the spec > template > metadata section in the Edit YAML dialog box, replace <your-deployment-name> with your application name, and then click Update.
  7. On the Pods tab, click Logs, next to the required pod to check whether the pod logs of arms-pilot report an STS error in the "Message":"STS error"format.
  8. On the Pods tab, click Edit next to the required pod. In the Edit YAML dialog box, check whether the YAML file contains the following javaagent parameter:
    -javaagent:/home/admin/.opt/ArmsAgent/arms-bootstrap-1.7.0-SNAPSHOT.jar
    • If the YAML file contains the javaagent parameter, find the pod of the application on the Pods tab, and click Terminal next to the required pod to go to the Shell page. Run the following command to check whether any log file name is suffixed with .log, and then contact the ARMS DingTalk accoun arms160804.
      cd /home/admin/.opt/ArmsAgent/logs
    • If the YAML file does not contain the javaagent parameter, contact the ARMS DingTalk account arms160804.
