This topic describes how to migrate incremental data from a self-managed TiDB database to an ApsaraDB RDS for MySQL instance by using Data Transmission Service (DTS). Incremental data migration allows you to ensure service continuity when you migrate data to Alibaba Cloud. In this example, Pump, Drainer, and a Kafka cluster are deployed.

Prerequisites

An ApsaraDB RDS for MySQL instance is created. For more information, see Create an ApsaraDB RDS for MySQL instance.
Notice
  • The destination ApsaraDB RDS for MySQL instance must reside in the China (Hangzhou), China (Shanghai), China (Qingdao), China (Beijing), China (Shenzhen), China (Zhangjiakou), China (Hong Kong), Singapore (Singapore), US (Silicon Valley), or US (Virginia) region.
  • The available storage space of the destination ApsaraDB RDS for MySQL instance must be larger than the total size of the data in the self-managed TiDB database.

Background information

Migrate incremental data from TiDB

The binary log format and implementation mechanism of a TiDB database are different from those of a MySQL database. To migrate incremental data and minimize modifications to the source TiDB database, you must deploy Pump, Drainer, and a Kafka cluster.

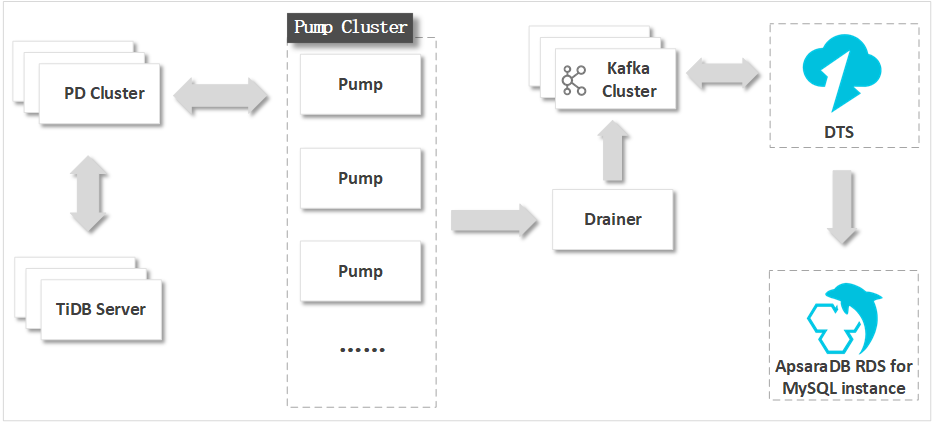

Pump records the binary log files that are generated in TiDB in real time, and sends the binary log files to Drainer. Drainer writes the binary log files to the downstream Kafka cluster. During incremental data migration, DTS retrieves data from the Kafka cluster and migrates the data to the destination database in real time. For example, DTS can migrate incremental data to an ApsaraDB RDS for MySQL instance.

Precautions

  • DTS uses read and write resources of the source and destination databases during full data migration. This may increase the loads of the database servers. If the database performance is unfavorable, the specification is low, or the data volume is large, database services may become unavailable. For example, DTS occupies a large amount of read and write resources in the following cases: a large number of slow SQL queries are performed on the source database, the tables have no primary keys, or a deadlock occurs in the destination database. Before you migrate data, evaluate the impact of data migration on the performance of the source and destination databases. We recommend that you migrate data during off-peak hours. For example, you can migrate data when the CPU utilization of the source and destination databases is less than 30%.
  • The tables to be migrated in the source database must have PRIMARY KEY or UNIQUE constraints and all fields must be unique. Otherwise, the destination database may contain duplicate data records.
  • DTS uses the ROUND(COLUMN,PRECISION) function to retrieve values from columns of the FLOAT or DOUBLE data type. If you do not specify a precision, DTS sets the precision for the FLOAT data type to 38 digits and the precision for the DOUBLE data type to 308 digits. You must check whether the precision settings meet your business requirements.
  • DTS automatically creates a destination database in the ApsaraDB RDS for MySQL instance. However, if the name of the source database is invalid, you must manually create a database in the ApsaraDB RDS for MySQL instance before you configure the data migration task.
    Note For more information about the naming conventions of ApsaraDB RDS for MySQL databases and how to create a database, see Create a database on an ApsaraDB RDS for MySQL instance.
  • If a data migration task fails, DTS automatically resumes the task. Before you switch your workloads to the destination instance, stop or release the data migration task. Otherwise, the data in the source database will overwrite the data in the destination instance after the task is resumed.

Billing

Migration type Task configuration fee Internet traffic fee
Schema migration and full data migration Free of charge. Charged only when data is migrated from Alibaba Cloud over the Internet. For more information, see Pricing.
Incremental data migration Charged. For more information, see Pricing.

Migration types

Migration type Description
Schema migration DTS migrates the schemas of the required objects to the destination database. DTS supports schema migration for views, tables, and databases.
Warning TiDB and MySQL are heterogeneous databases. DTS does not ensure that the schemas of the source and destination databases are consistent after schema migration. We recommend that you evaluate the impact of data type conversion on your business. For more information, see Data type mappings between heterogeneous databases.
Full data migration DTS migrates historical data of the required objects to the destination database.
Note During full data migration, concurrent INSERT operations cause fragmentation in the tables of the destination database. After full data migration is complete, the tablespace of the destination database is larger than that of the source database.
Incremental data migration DTS retrieves binary log files that are generated in TiDB from the Kafka cluster, and migrates incremental data to the destination database in real time. During incremental data migration, the following SQL operations can be synchronized:
  • Data manipulation language (DML) operations: INSERT, UPDATE, and DELETE
  • Data definition language (DDL) operations: CREATE TABLE, DROP TABLE, ALTER TABLE, RENAME TABLE, TRUNCATE TABLE, CREATE VIEW, DROP VIEW, and ALTER VIEW

Incremental data migration allows you to ensure service continuity when you migrate data from a self-managed TiDB database to Alibaba Cloud.

Before you begin

Note The server on which the source database is deployed must be in the same internal network as the servers on which Pump, Drainer, and the Kafka cluster are deployed. This minimizes the impact of network latency on incremental data migration.
  1. Deploy Pump and Drainer. For more information, see TiDB Binlog Cluster Deployment.
  2. Modify the configuration file of Drainer and specify a Kafka cluster to receive data from Drainer. For more information, see Binlog Slave Client User Guide.
  3. Deploy a Kafka cluster by using one of the following methods:
    • Deploy a self-managed Kafka cluster. For more information, visit Apache Kafka official website.
      Warning We recommend that you set the message.max.bytes and replica.fetch.max.bytes parameters for the Kafka broker to greater values. We also recommend that you set the fetch.message.max.bytes parameter for the Kafka consumer to a greater value. These settings ensure that the Kafka cluster can receive the binary log files that are generated in TiDB. For more information, see Kafka 2.5 Documentation.
    • Purchase and deploy a Message Queue for Apache Kafka instance. For more information, see Quick start of Message Queue for Apache Kafka.
      Note The Message Queue for Apache Kafka instance must be deployed in the same virtual private cloud (VPC) as the source database server. This ensures reliable data transmission and minimizes the impact of network latency on incremental data migration.
  4. Create a topic in the self-managed Kafka cluster or the Message Queue for Apache Kafka instance.
  5. Add the CIDR blocks of DTS servers to the whitelist of the TiDB database. For more information, see Add the CIDR blocks of DTS servers to the security settings of on-premises databases.

Procedure

  1. Log on to the DTS console.
  2. In the left-side navigation pane, click Data Migration.
  3. At the top of the Migration Tasks page, select the region where the destination cluster resides.
    Select a region
  4. In the upper-right corner of the page, click Create Migration Task.
  5. Configure the source and destination databases.
    1. Configure the task name and source database.
      Configure the task name and source database
      Parameter Description
      Task Name DTS automatically generates a task name. We recommend that you specify an informative name for easy identification. You do not need to use a unique task name.
      Instance Type Select an instance type based on the deployment of the source database. In this example, select User-Created Database in ECS Instance.
      Note If you select other instance types, you must deploy the network environment for the source database. For more information, see Preparation overview.
      Instance Region Select the region of the Elastic Compute Service (ECS) instance on which the source TiDB database is deployed.
      Database Type Select TiDB.
      Port Number Enter the service port number of the source TiDB database. The default port number is 4000.
      Database Account Enter the account of the source TiDB database. The account must have the SELECT permission on the objects to be migrated and the SHOW VIEW permission.
      Database Password Enter the password of the database account.
      Notice After you specify the source database parameters, click Test Connectivity next to Database Password to verify whether the specified parameters are valid. If the specified parameters are valid, the Passed message appears. If the Failed message appears, click Check next to Failed. Modify the source database parameters based on the check results.
      Incremental migration or not Specify whether to perform incremental data migration. In this example, select Yes. For information about how to perform only full data migration, see Migrate full data from a self-managed TiDB database to an ApsaraDB RDS for MySQL instance.
      Kafka Cluster Type Select an instance type based on the deployment of the Kafka cluster. In this example, select User-Created Database in ECS Instance. If you select other instance types, you must deploy the network environment for the Kafka cluster. For more information, see Preparation overview.
      Note You cannot select Message Queue for Apache Kafka as the instance type. If you deploy a Message Queue for Apache Kafka instance, you must select User-Created Database Connected over Express Connect, VPN Gateway, or Smart Access Gateway. Then, you must select the VPC to which the Message Queue for Apache Kafka instance belongs.
      Instance Region The value of this parameter is the same as the region of the source database and cannot be changed.
      ECS Instance ID Select the ID of the ECS instance that hosts the self-managed Kafka cluster.
      Kafka Port Number Enter the service port number of the self-managed Kafka cluster. The default port number is 9092.
      Kafka Cluster Account Enter the username that is used to log on to the self-managed Kafka cluster. If no authentication is enabled for the Kafka cluster, you do not need to enter the username.
      Kafka Cluster Password Enter the password of the cluster account. If no authentication is enabled for the Kafka cluster, you do not need to enter the password.
      Topic Click Get Topic List, and select a topic name from the drop-down list.
      Kafka Version Select the version of the self-managed Kafka cluster.
      Kafka Cluster Encryption Select Non-encrypted or SCRAM-SHA-256 based on your business and security requirements.
    2. Configure the destination database.
      Configure the destination database
      Parameter Description
      Instance Type Select RDS Instance.
      Instance Region Select the region where the destination RDS instance resides.
      Database Account Enter the database account of the destination RDS instance. The account must have the read and write permissions on the destination database. For more information about how to create and authorize a database account, see Create an account on an ApsaraDB RDS for MySQL instance and Modify the permissions of a standard account for an ApsaraDB RDS for MySQL instance.
      Database Password Enter the password of the database account.
      Notice After you specify the source database parameters, click Test Connectivity next to Database Password to verify whether the specified parameters are valid. If the specified parameters are valid, the Passed message appears. If the Failed message appears, click Check next to Failed. Modify the source database parameters based on the check results.
      Encryption Select Non-encrypted or SSL-encrypted. If you select SSL-encrypted, you must enable SSL encryption for the RDS instance before you configure the data migration task. For more information, see Configure SSL encryption on an ApsaraDB RDS for MySQL instance.
      Notice The Encryption parameter is available only for regions in mainland China and the China (Hong Kong) region.
  6. In the lower-right corner of the page, click Set Whitelist and Next.
    DTS adds the CIDR blocks of DTS servers to the whitelist of the destination ApsaraDB RDS for MySQL instance. This ensures that DTS servers can connect to the destination RDS instance.
  7. Select the migration types and the objects to be migrated.
    Select the migration types and the objects to be migrated
    Setting Description
    Select the migration types
    • To perform only full data migration, select Schema Migration and Full Data Migration.
    • To ensure service continuity during data migration, select Schema Migration, Full Data Migration, and Incremental Data Migration. In this example, select all of the three migration types.
    Select the objects to be migrated Select one or more objects from the Available section and click the Right arrow icon to move the objects to the Selected section.
    Note
    • You can select columns, tables, or databases as the objects to be migrated. If you select tables or columns as the objects to be migrated, DTS does not migrate other objects such as views, triggers, and stored procedures to the destination database.
    • By default, after an object is migrated to the destination database, the name of the object remains unchanged. You can use the object name mapping feature to change the names of the objects that are migrated to the destination database. For more information, see Object name mapping.
    • If you use the object name mapping feature on an object, other objects that are dependent on the object may fail to be migrated.
    Specify whether to rename object names You can use the object name mapping feature to change the names of the objects that are migrated to the destination instance. For more information, see Object name mapping.
    Specify the retry time for failed connections to the source or destination database By default, if DTS fails to connect to the source or destination database, DTS retries within the next 12 hours. You can specify the retry time based on your needs. If DTS reconnects to the source and destination databases within the specified time, DTS resumes the data migration task. Otherwise, the data migration task fails.
    Note When DTS retries a connection, you are charged for the DTS instance. We recommend that you specify the retry time based on your business needs. You can also release the DTS instance at your earliest opportunity after the source and destination instances are released.
  8. In the lower-right corner of the page, click Precheck.
    Notice
    • Before you can start the data migration task, a precheck is performed. DTS can migrate data only if the precheck is past.
    • If the precheck fails, click the Prompt icon next to each failed item to view details. Fix the issues as prompted and run the precheck again.
  9. After the precheck is past, click Next.
  10. In the Confirm Settings dialog box, specify the Channel Specification parameter and select Data Transmission Service (Pay-As-You-Go) Service Terms.
  11. Click Buy and Start to start the data migration task.
    • Schema migration and full data migration

      Do not manually stop the migration task. Otherwise, the data may be incomplete. You need only to wait until the migration task is complete. The migration task can automatically stop.

    • Schema migration, full data migration, and incremental data migration

      The migration task cannot automatically stop. You must manually stop the migration task.

      Notice Manually stop the migration task at an appropriate time. For example, you can stop the migration task during off-peak hours of your business or before you switch your business to the destination cluster.
      1. Wait until Incremental Data Migration and The migration task is not delayed appear in the progress bar of the migration task. Then, stop writing data to the source database for a few minutes. The delay time may appear in the status for incremental migration.
      2. Wait until the status of Incremental Data Migration for the migration task changes to The migration task is not delayed again. Then, manually stop the migration task.Stop an incremental migration task
