This topic describes how to develop an SQL job in fully managed Flink and also describes the limits on the job development.

Limits

  • SQL jobs that are published by using the SQL editor support only Flink 1.11 and Flink 1.12.
  • For more information about the upstream and downstream storage supported by SQL, see Upstream and downstream storage.

Procedure

To help you write and manage Flink SQL jobs and make job development more efficient, fully managed Flink offers you a set of Flink SQL features. You can use these features to manage metadata, register user-defined functions (UDFs), and use the SQL editor.

  1. Log on to the console of fully managed Flink to create a job.
    1. Log on to the Realtime Compute for Apache Flink console.
    2. On the Fully Managed Flink tab, find the workspace that you want to manage, and click Console in the Actions column.
    3. In the left-side navigation pane, click Draft Editor.
    4. Click New.
    5. In the New Draft dialog box, enter the job configuration information.
      Parameter Description
      Name The name of the job.
      Note The job name must be unique in the current project.
      Type Both streaming and batch jobs support the following file types:
      • SQL
      • JAR
      • PYTHON
      Note Ververica Platform (VVP) 2.4.1, Ververica Runtime (VVR) 3.0.1, and later support the batch processing feature.
      Deployment Target The cluster in which the job is deployed. You must select a cluster type before you can select a cluster. The following cluster types are supported:
      • Per-Job Clusters: is suitable for jobs that consume a large number of resources or jobs that run in a continuous and stable manner. This is the default value. Each job requires an independent JobManager to achieve resource isolation between jobs. Therefore, the resource utilization of JobManagers for jobs that involve a small amount of data is low.
      • Session Clusters: is suitable for jobs that consume few resources or jobs that start and stop frequently. Multiple jobs can reuse the same JobManager. This improves the resource utilization of JobManager.
      Note If you need to enable the SQL preview feature, you must select Session Clusters and turn on Use for SQL Editor previews. For more information, see Debug a job and Configure a session cluster.
      Locate The folder in which the code file of the job is saved.

      You can also click the Create Folder icon next to an existing folder to create a subfolder.

    6. Click OK.

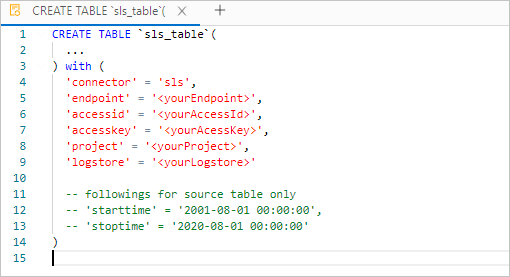

  2. On the Draft Editor page, write data definition language (DDL) and data manipulation language (DML) statements.
    Sample statements:
    -- Create the source table datagen_source.
    CREATE TEMPORARY TABLE datagen_source(
      name VARCHAR
    ) WITH (
      'connector' = 'datagen'
    );

    -- Create the result table blackhole_sink.
    CREATE TEMPORARY TABLE blackhole_sink(
      name  VARCHAR
    ) with (
      'connector' = 'blackhole'
    );

    -- Insert data from the source table datagen_source into the result table blackhole_sink.
    INSERT INTO blackhole_sink
    SELECT
      name
    from datagen_source;
  3. On the right side of the Draft Editor page, click Advanced and enter the configuration information.
    The following table describes the parameters.
    Section Parameter Description
    Basic Configuration Deployment Target You can change the cluster that you selected when you created the job.
    Parallelism The number of jobs that run in parallel.
    Additional Dependencies If you want to add more dependency files, select a file or enter a valid file address in this field.
    Configuration Flink Version Valid values: 1.10, 1.11, and 1.12.
    Flink Image Tag The Flink image tag.
    Kerberos Authentication Enter the address of a file or upload a file for ZooKeeper authentication.
    Behavior Restore Strategy The policy that restores the status of a job after the job enters the RUNNING state. Valid values:
    • Latest Savepoint: Restore the job from the latest savepoint.
    • Latest State: Restore the job from the latest savepoint or checkpoint.
    • None: Restore the job without the state. After the job is restored, the job is stateless and the calculation needs to be restarted.
    Allow Non-Restore State After you turn on Allow Non-Restore State, the job can continue to run even if the state data at the underlying layer does not match with the actual state. For example, three operators exist but only two of them have state data. In this case, no error is reported in the job and the stateless operator can still run.
    Max Job Creation Attempts The number of retries allowed after the instance fails to be created.
    Stop with Drain If you turn on Stop with Drain, the existing data results in the window are returned when you manually terminate a job or perform a stateful upgrade for a job, regardless of whether the conditions to close the window are met.
    Flink Configuration Checkpointing Interval The interval at which a checkpoint is scheduled to run. If you leave this parameter empty, the checkpointing feature is disabled.
    Min Time Between Checkpoints The minimum interval between two checkpoints. If the maximum parallelism of checkpoints is 1, this parameter specifies the minimum interval between two checkpoints.
    Retention Policy Specifies whether to retain the last checkpoint if the job cannot be restarted or the job is suspended. Valid values:
    • Always: The last checkpoint is retained if the job is stopped.
    • Only when FAILED: The last checkpoint is deleted if the job is stopped.
    • Never: The last checkpoint is not retained. This is the default value.
    Enabled Unaligned Checkpoints If you turn on Enabled Unaligned Checkpoints, the running time of a checkpoint is significantly reduced during backpressure. However, this increases the state size of a single checkpoint.
    Flink Restart Strategy Configuration If a task fails and checkpointing is disabled, JobManager cannot be restarted. If checkpointing is enabled, JobManager is restarted. Valid values:
    • Failure Rate: JobManager is restarted if the number of failures within the specified interval of time exceeds the upper limit.
    • Fixed Delay: JobManager is restarted at a fixed interval.
    • No Restarts: JobManager is not restarted. This is the default value.
    Flink Master Failover Configuration ('High Availability') Valid values:
    • None: The system does not save the metadata that is required when JobManager is restarted. This is the default value.
    • Kubernetes: The system saves metadata to the Kubernetes cluster for JobManager to restart.
    Additional Configuration Other Flink settings, such as taskmanager.numberOfTaskSlots: 1.
    Resources Number of Task Managers By default, the value of this parameter is the same as the value of Parallelism.
    Automatically allocate the number of Task Managers(Deploy on Native Kubernetes) After you turn on this switch, the system publishes jobs to native Kubernetes.
    Notice You can turn on Automatically allocate the number of Task Managers(Deploy on Native Kubernetes) only for the jobs in a project that is automatically generated after you purchase a fully managed Flink cluster. You cannot turn on this switch for the jobs in the projects that you created.
    Job Manager CPUs Default value: 1.
    Job Manager Memory Minimum value: 1 GiB. We recommend that you use GiB or MiB as the unit. For example, you can set this parameter to 1024 MiB or 1.5 GiB.
    Task Manager CPUs Default value: 1.
    Task Manager Memory Minimum value: 1 GiB. We recommend that you use GiB or MiB as the unit. For example, you can set this parameter to 1024 MiB or 1.5 GiB.
    Logging Root Log Level Valid values: TRACE, DEBUG, INFO, WARN, and ERROR.
    Log Levels Enter the log name and log level.
    Logging Profile The log template. You can use the system template or configure a custom template.
  4. Click Save.
  5. Click Validate.
  6. After verification succeeds, click Execute.
  7. Click Publish.
    After job development and syntax check are complete, you can publish the job to publish the data to the production environment.
