Container Service for Kubernetes:Control public access to the API server of a cluster

Last Updated:Nov 10, 2023

Container Service for Kubernetes (ACK) allows you to use an elastic IP address (EIP) to expose the API server of a cluster. After you use an EIP to expose the API server of a cluster, the API server can be accessed over the Internet. You can associate an EIP with the API server of a cluster when you create the cluster or after the cluster is created. This topic describes how to control public access to the API server of a cluster by associating an EIP with or disassociating an EIP from the API server.

Associate an EIP with the API server when you create a cluster

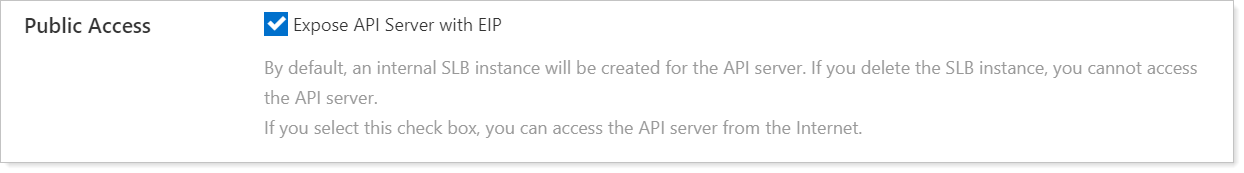

When you create a cluster, you can select Expose API Server with EIP to allow public access to the API server of the cluster. For more information about how to create a cluster, see Create an ACK managed cluster and Create an ACK Serverless cluster.

EIP

Associate an EIP with the API server after a cluster is created

If you do not select Expose API Server with EIP when you create a cluster, you can perform the following steps to associate an EIP with the API server after the cluster is created.

Important

You can associate an EIP with the API server of a cluster after the cluster is created only if the cluster is an ACK Basic cluster, ACK Pro cluster, or ACK Serverless cluster.

  1. Log on to the ACK console. In the left-side navigation pane, click Clusters.

  2. On the Clusters page, click the name of the cluster that you want to manage and click Cluster Information in the left-side navigation pane.

  3. On the cluster details page, click the Basic Information tab. In the Cluster Information section, click Associate EIP.

  4. In the Associate EIP dialog box, select an EIP and click OK.

    After the EIP is associated with the API server, a public IP address appears on the right side of the API Server Public Endpoint field.

    Important

    The API server restarts after you associate an EIP with the API server. We recommend that you do not perform operations on the cluster during the restart process.

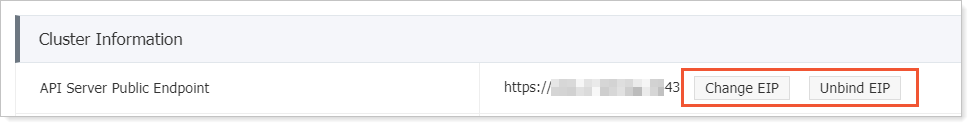

Disassociate or change an EIP

ACK allows you to disassociate an EIP from the API server or change the EIP. After you disassociate the EIP from the API server of a cluster, the API server cannot be accessed over the Internet.

Important

Only ACK Basic clusters, ACK Pro clusters, and ACK Serverless clusters support the Change EIP and Disassociate EIP features.
