In E-MapReduce (EMR) V3.27.0 and later, you can use Raft-RocksDB-Tablestore to store the metadata managed by Namespace Service of JindoFS. When you create an EMR JindoFS cluster, create three master nodes and deploy a Raft instance on the master nodes. Each peer node of the Raft instance uses the local Raft-RocksDB to store metadata.

Prerequisites

  • A Tablestore instance is created. We recommend that you use a high-performance instance. For more information, see Create instances.
    Note You must enable the transaction feature.

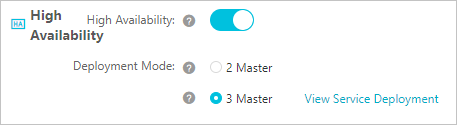

  • An EMR cluster that has three master nodes is created. For more information, see Create a cluster.3 Master
    Note If no deployment modes are available, .

Background information

RocksDB supports data replication among three nodes based on the Raft protocol. You can bind an EMR cluster to a Tablestore instance and use the Tablestore instance as an additional storage medium for Namespace Service of JindoFS. EMR asynchronously uploads metadata from the local RocksDB to the Tablestore instance in real time.

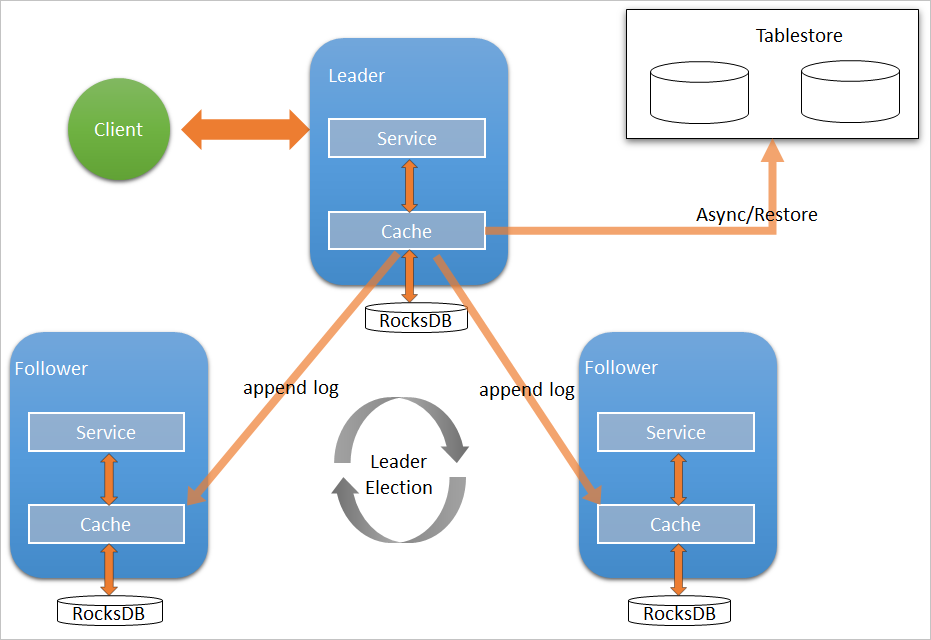

The following figure shows the architecture of high-availability Raft-RocksDB-Tablestore for Namespace Service.Raft + RocksDB + Tablestore

Configure a Raft instance as the local storage backend

  1. Suspend all the SmartData components of an EMR cluster.
    1. Log on to the EMR console.
    2. In the top navigation bar, select the region where your cluster resides and select a resource group based on your business requirements.
    3. Click the Cluster Management tab.
    4. On the Cluster Management page, find your cluster and click Details in the Actions column.
    5. In the left-side navigation pane, choose Cluster Service > SmartData.
    6. Select Stop All Components from the Actions drop-down list in the upper-right corner.
  2. Configure Namespace Service parameters based on your business requirements.
    For more information, see Use JindoFS in block storage mode.
  3. Go to the bigboot tab for the SmartData service.
    1. In the left-side navigation pane, choose Cluster Service > SmartData.
    2. Click the Configure tab.
    3. In the Service Configuration section, click the bigboot tab.
  4. Configure the parameters described in the following table on the bigboot tab.
    Parameter Description Example
    namespace.backend.type The backend storage type of Namespace Service.
    • rocksdb
    • ots
    • raft

    Default value: rocksdb. Set this parameter to raft.

    raft
    namespace.backend.raft.initial-conf The addresses of the three master nodes where the Raft instance is deployed. The value is fixed. emr-header-1:8103:0,emr-header-2:8103:0,emr-header-3:8103:0
    jfs.namespace.server.rpc-address The addresses of the three master nodes that are used for the client to access the Raft instance. The value is fixed. emr-header-1:8101,emr-header-2:8101,emr-header-3:8101
    Note If you do not need to use Tablestore for remote storage, skip Step 5.
  5. Optional:Configure a Tablestore instance as the remote asynchronous storage backend.
    On the bigboot tab for the SmartData service, configure the parameters described in the following table.
    Parameter Description Example
    namespace.ots.instance The name of the Tablestore instance. emr-jfs
    namespace.ots.accessKey The AccessKey ID that is used to access the Tablestore instance. kkkkkk
    namespace.ots.accessSecret The AccessKey secret that is used to access the Tablestore instance. XXXXXX
    namespace.ots.endpoint The endpoint of the Tablestore instance. We recommend that you use a VPC endpoint. http://emr-jfs.cn-hangzhou.vpc.tablestore.aliyuncs.com
    namespace.backend.raft.async.ots.enabled Specifies whether to enable asynchronous upload to Tablestore. Valid values:
    • true
    • false
    Set this parameter to true. Make sure that the initialization of the SmartData service is not completed.
    Note If the initialization is completed, the setting does not take effect because metadata has been generated in the local RocksDB.
    true
  6. Save the configurations.
    1. In the upper-right corner of the Service Configuration section, click Save.
    2. In the Confirm Changes dialog box, specify Description and turn on Auto-update Configuration.
    3. Click OK.
  7. Select Start All Components from the Actions drop-down list in the upper-right corner.

Recover metadata from a Tablestore instance

If you have configured a Tablestore instance as the remote asynchronous storage backend for your EMR cluster, a complete replica of JindoFS metadata is stored in the Tablestore instance. After you stop or release the EMR cluster, you can recover JindoFS metadata from the Tablestore instance to a new EMR cluster. This way, you can access the original files from the new EMR cluster.

  1. Optional:Prepare for the recovery.
    1. Optional:Collect the metadata statistics of the original EMR cluster. The metadata statistics indicate the numbers of files and folders.
      [hadoop@emr-header-1 ~]$ hadoop fs -count jfs://test/
              1596      1482809                 25 jfs://test/
          (Number of folders) (Number of files)
    2. Stop the jobs that are running on the original EMR cluster. You may need to wait for 30 to 120 seconds for EMR to synchronize all metadata of the cluster to the Tablestore instance. Run the following command to view the metadata status. If the command output contains _synced=1 for the LEADER node, the latest metadata is synchronized to the Tablestore instance.
      jindo jfs -metaStatus -detail

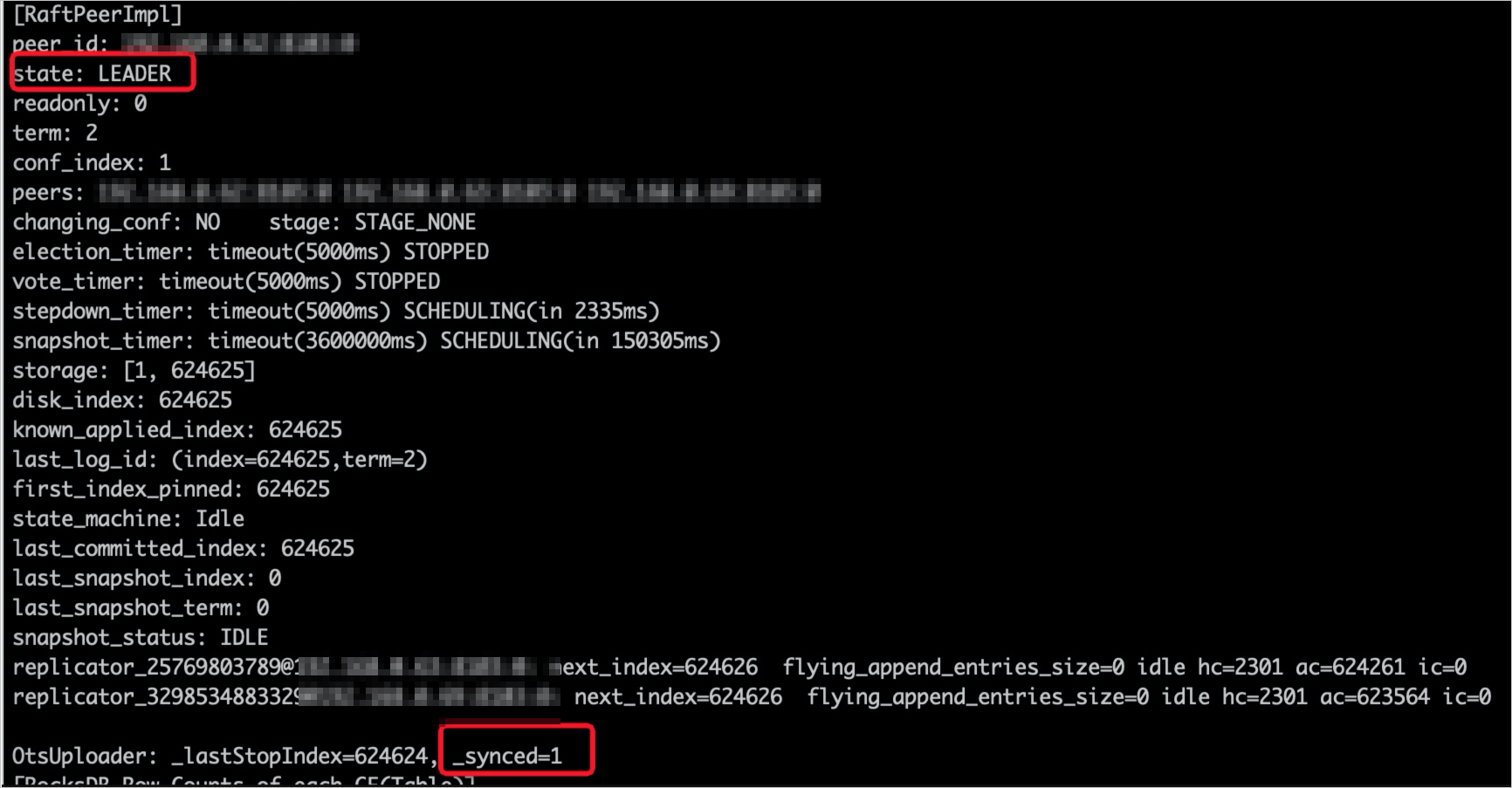

      View metadata status
    3. Stop or release the original EMR cluster and make sure that no clusters are accessing the Tablestore instance.
  2. Create an EMR cluster.
    Create an EMR cluster that resides in the same region as the Tablestore instance. Suspend all SmartData components. For more information, see Step 1 in Configure a Raft instance as the local storage backend.
  3. Configure parameters for metadata recovery.
    On the bigboot tab for the SmartData service, configure the parameters described in the following table.
    Parameter Description Required value
    namespace.backend.raft.async.ots.enabled Specifies whether to enable asynchronous upload to Tablestore. Valid values:
    • true
    • false
    false
    namespace.backend.raft.recovery.mode Specifies whether to enable metadata recovery from Tablestore. Valid values:
    • true
    • false
    true
  4. Save the configurations.
    1. In the upper-right corner of the Service Configuration section, click Save.
    2. In the Confirm Changes dialog box, specify Description and turn on Auto-update Configuration.
    3. Click OK.
  5. Select Start All Components from the Actions drop-down list in the upper-right corner.
  6. After the SmartData service of the new EMR cluster is activated, EMR automatically recovers metadata from the Tablestore instance to the local Raft-RocksDB. You can run the following command to view the recovery progress:
    jindo jfs -metaStatus -detail

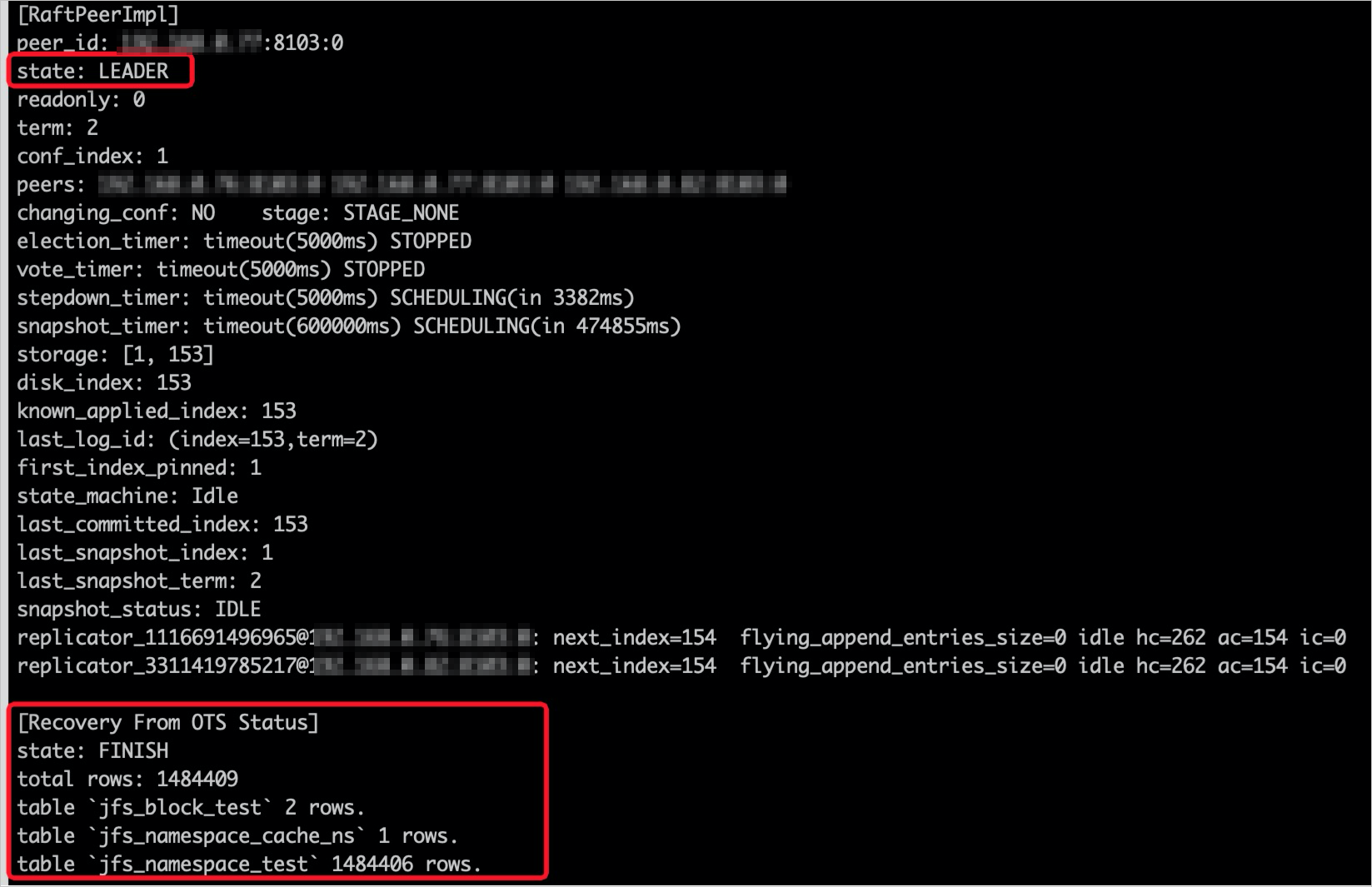

    If the state of the LEADER node is FINISH, the recovery is completed, as shown in the following figure.View recovery progress
  7. Optional:Check whether the numbers of files and folders of the new EMR cluster are consistent with those of the original EMR cluster.
    The new EMR cluster is in recovery mode and is read-only.
    # Count the numbers of files and folders for the new EMR cluster. The results are consistent with those of the original EMR cluster.
    [hadoop@emr-header-1 ~]$ hadoop fs -count jfs://test/
            1596      1482809                 25 jfs://test/

    # Use the CAT or GET command to read data from the files.
    [hadoop@emr-header-1 ~]$ hadoop fs -cat jfs://test/testfile
    this is a test file
    # View file directories.
    [hadoop@emr-header-1 ~]$ hadoop fs -ls jfs://test/
    Found 3 items
    drwxrwxr-x   - root   root            0 2020-03-25 14:54 jfs://test/emr-header-1.cluster-50087
    -rw-r-----   1 hadoop hadoop          5 2020-03-25 14:50 jfs://test/haha-12096RANDOM.txt
    -rw-r-----   1 hadoop hadoop         20 2020-03-25 15:07 jfs://test/testfile

    # Remove a file. A read-only error is returned.
    [hadoop@emr-header-1 ~]$ hadoop fs -rm jfs://test/testfile
    java.io.IOException: ErrorCode : 25021 , ErrorMsg: Namespace is under recovery mode, and is read-only.
  8. Enable asynchronous upload to Tablestore and disable recovery from Tablestore.
    On the bigboot tab for the SmartData service, configure the parameters described in the following table.
    Parameter Description Required value
    namespace.backend.raft.async.ots.enabled Specifies whether to enable asynchronous upload to Tablestore. Valid values:
    • true
    • false
    true
    namespace.backend.raft.recovery.mode Specifies whether to enable metadata recovery from Tablestore. Valid values:
    • true
    • false
    false
  9. Restart the new EMR cluster.
    1. Click the Cluster Management tab.
    2. On the Cluster Management page, find the cluster. In the Actions column of this cluster, click More and select Restart.
