This topic describes how to deploy a Smart Access Gateway (SAG) device to set up standby network connections between an on-premises network and Alibaba Cloud. In this scenario, a leased line provides the active connection. This helps you build a high availability (HA) hybrid cloud.

Prerequisites

Background information

The following figure shows the network topology used in this topic. For example, an enterprise has deployed services in the VPC in the China (Beijing) region and a leased line is connected to the on-premises network. To establish HA connections between the on-premises network and cloud resources, the enterprise plans to use an SAG device to provide standby connections, while a leased line provides active connections.

  • To avoid changes in network topology, an SAG-1000 device is deployed in one-arm mode to connect the on-premises network to Alibaba Cloud.
  • The on-premises network, SAG-1000 device, and VBR use BGP to learn routes. This facilitates network management and operations and maintenance (O&M).
  • The SAG instance is associated with a Cloud Connect Network (CCN) instance and the VBR. The VBR and CCN instance are associated with the same CEN instance. The SAG device is connected to the VPC through the CEN instance.
  • In this example, network traffic is transmitted in the following directions:

    When the SAG device is associated with the CCN instance and VBR, CEN chooses the leased line by default. By default, the CEN instance learns and advertises routes through the leased line. When the leased line is malfunctioning, the CCN instance takes over. Specifically, outbound and inbound traffic are transmitted through the leased line by default. When the leased line is malfunctioning, outbound and inbound traffic are transmitted through the CCN instance.

Best practices

Subnetting

The following table describes the subnetting in this example. We recommend that you plan the subnetting based on your business requirements and ensure that the CIDR blocks do not overlap with each other.

Item Subnetting
On-premises network Private CIDR block: 172.16.0.0/12
  • Port G11 of the Layer 3 switch: 192.168.100.2/30
  • Port G12 of the Layer 3 switch: 192.168.110.1/30
  • Port G2 of the Layer 3 switch: 192.168.80.2/30
  • BGP for the Layer 3 switch:
    • Autonomous system (AS) number: 65430
    • Router ID: 192.168.1.1
Port G1 of the Internet-facing router: 192.168.80.1/30.
SAG device WAN port (port 5): 192.168.100.1/30. IP address of the gateway: 192.168.100.2.
BGP:
  • AS number: 65435
  • Router ID: 192.168.2.2
  • Keep Alive: 60 seconds
  • Hold Time: 180 seconds
  • BGP-enabled port: WAN port
VBR
  • Alibaba Cloud-side IP address: 192.168.110.2/30
  • Client-side IP address (Layer 3 switch-side in this example): 192.168.110.1/30
  • VLAN: 0
VPC in the China (Beijing) region VPC CIDR block: 10.0.0.0/16

Configuration procedure

Procedure

Step 1: Purchase an SAG device

After you place an order in the SAG console, Alibaba Cloud delivers the SAG device to the specified address and creates an SAG instance to facilitate the management of the device.

Note If the area where the SAG device is used is outside mainland China, you must purchase the device from a third-party vendor that is authorized by Alibaba Cloud. For more information, see Purchase an SAG device.
  1. Log on to the SAG console.
  2. On the Smart Access Gateway page, click Purchase SAG.
  3. Select Create SAG (CPE).
  4. Set the following parameters and click Buy Now:
    • Area: Select the area where the SAG devices will be deployed. Mainland China is selected in this example.
    • Device Spec: Select the model of the SAG device. SAG-1000 is selected in this example.
    • Have SAG Devices Already: Select whether you already have an SAG device. No is selected in this example.
    • Edition: Select the edition of the SAG device. Standard is selected in this example by default.
    • Quantity: Select the number of SAG devices that you want to purchase. 1 is selected in this example.
    • Area: Select the area where the bandwidth will be used. The area is the same as that of the SAG device and cannot be changed.
    • Name: Specify a name for the SAG instance.

      The name must be 2 to 128 characters in length, and can contain digits, periods (.), hyphens (-), and underscores (_). It must start with a letter or a Chinese character.

    • Peak Bandwidth: Specify the maximum bandwidth value. 50 Mbps is specified in this example.
    • Subscription Duration: Specify the subscription duration of the bandwidth resources.
  5. Confirm the order information and click Confirm Purchase.
  6. In the Shipping Address dialog box, enter the recipient address and click Buy Now.
  7. On the Pay page, select a payment method and complete the payment.

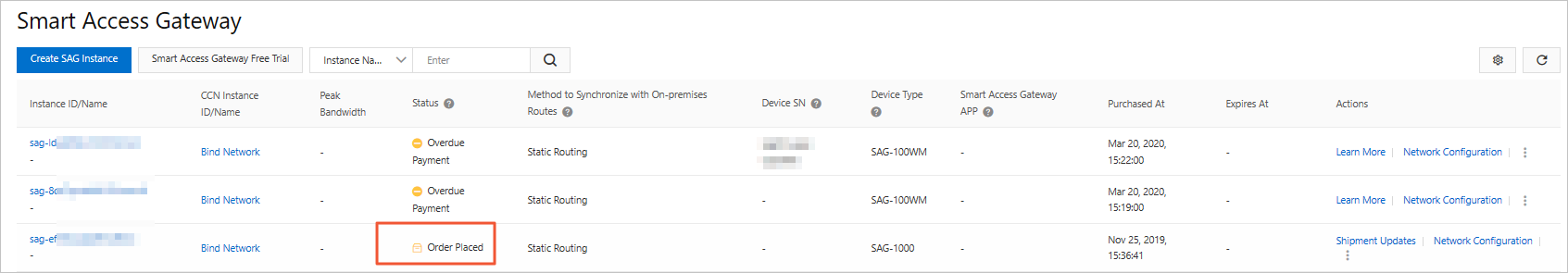

You can check whether the order has been placed on the Smart Access Gateway page. After the order is placed, it will be shipped within two business days. If your order is not shipped as expected, you can submit a ticket to query the shipping status.

The order status

Step 2: Activate the SAG devices

After you receive the SAG device, check whether you have received all the accessories. For more information, see Descriptions of an SAG-1000 device.

  1. Log on to the SAG console.
  2. In the top navigation bar, select the area of the SAG device.
  3. On the Smart Access Gateway page, find the SAG instance created for the SAG device.
  4. In the Actions column, click Activate.
  5. In the Activate dialog box, click OK.
  6. After the SAG device is activated, connect it to the private network based on the preceding network topology.
    Use a network cable to connect the WAN port (port 5) of the SAG device to port G11 of the Layer 3 switch.
  7. Optional:If the SAG device was purchased from a third-party vendor, you must manually associate the SAG device with the SAG instance. For more information, see Add a device.

Step 3: Configure the SAG device

After the SAG device is connected to the on-premises network, you must configure the device in the SAG console.

Before you begin, make sure that the SAG device is started, the 4G network works as expected, and the SAG device is connected to Alibaba Cloud.

  1. Log on to the SAG console.
  2. Configure the WAN port.
    1. Log on to the SAG console.
    2. In the top menu bar, select the region.
    3. On the Smart Access Gateway page, click the ID of the SAG instance.
    4. On the instance details page, click the Device Management tab.
    5. In the left-side navigation tree, click Manage WAN Ports.
    6. In the WAN (Port 5) section, click Edit.
    7. In the Configure WAN (Port 5) dialog box, set the following parameters and click OK.
      • Link Type: Select Static.
      • IP: Enter the IP address of the WAN port. 192.168.100.1 is used in this example.
      • Subnet Mask: Enter the subnet mask of the WAN port IP address. 255.255.255.252 is used in this example.
      • Gateway: Enter the IP address of the gateway. 192.168.100.2 is used in this example.
        Note After the parameter is set, a default route is added to the SAG device.
  3. Configure BGP.
    1. In the left-side navigation tree, click Manage Routes.
    2. In the BGP Protocol Settings section, click Edit.
    3. In the Configure BGP Route Protocol dialog box, set the following parameters and click OK.
      • Local AS: 65435 is used in this example.
      • Router ID: 192.168.2.2 is used in this example.
      • Hold Time: 180 is used in this example.
      • Keep Alive: 60 is used in this example.
  4. Enable BGP for the WAN port.
    1. In the Dynamic Routing Settings section, select Enable BGP Protocol.
    2. In the Change Routing Protocol message, click OK.
    3. Find Port5 (WAN) in the Dynamic Routing Settings section, and click Edit in the Actions column.
    4. In the Modify BGP Dynamic Routing Settings dialog box, select Enable BGP, set the Peer IP and Peer AS, and then click OK.
      Set the Peer IP and Peer AS to the IP address of port G11 and the BGP AS number of the peer switch.
      • Peer AS: 65430 is used in this example.
      • Peer IP: 192.168.100.2 is used in this example.
    Configure BGP
  5. Advertise routes to Alibaba Cloud.
    1. On the instance details page, click the Network Configuration tab.
    2. In the left-side navigation tree, click Methods to Synchronize with On-premises Routes.
    3. Select Static Routing, click Add Static Route, and then click OK.

      Enter the CIDR block used to route network traffic from Alibaba Cloud to the on-premises network. 172.16.0.0/12 is used in this example.

      On-premises route 2

Step 4: Configure the VBR

You must configure the VBR in the Express Connect console to establish the BGP peer relationship between the VBR and the Layer 3 switch.

  1. Create a BGP group.
    1. Log on to the Express Connect console.
    2. In the top menu bar, select the region.
    3. In the left-side navigation pane, choose Virtual Border Routers (VBRs) > Virtual Border Routers (VBRs).
    4. On the Virtual Border Routers (VBRs) page, click the ID of the VBR.
    5. On the details page, click the BGP Groups tab.
    6. On the BGP Groups tab, click Create BGP Group and set the following parameters:
      • Name: Enter a name for the BGP group. test is used in this example.
      • Peer ASN: Enter the AS number of the Layer 3 switch. 65430 is used in this example.
      • BGP Key: Enter the key of the BGP group. The parameter is not set in this example.
      • Description: Enter the description of the BGP group. SAGtest is used in this example.
    7. Click OK.
  2. Configure the BGP neighbor.
    1. On the VBR details page, click the BGP Peers tab.
    2. On the BGP Peers tab, click Create BGP Peer.
    3. In the Create BGP Peer dialog box, set the following parameters and click OK.
      • BGP Group: Specify the BGP group to which you want to add the VBR and Layer 3 switch. The newly created BGP group is used in this example.
      • BGP peer IP address: Enter the IP address of the BGP peer. 192.168.110.1 is used in this example, which is the IP address of port G12 of the Layer 3 switch.
    Create a BGP neighbor

Step 5: Configure the switch and router

You must configure the peer Layer 3 switch and Internet-facing router for the SAG device. The switch and router used in this example may be different from yours. For more information, see the manuals issued by your providers.

  1. Configure routes for the Layer 3 switch.

    interface GigabitEthernet 0/11
    no switchport
    ip address 192.168.100.2 255.255.255.252      #The IP address of the peer switch of the SAG device

    interface GigabitEthernet 0/12
    no switchport
    ip address 192.168.110.1 255.255.255.252     #The IP address of the peer switch of the VBR

    router bgp 65430
    bgp router-id 192.168.1.1
    network 172.16.0.0 mask 255.240.0.0          #Advertise the private CIDR block of the on-premises network
    neighbor 192.168.100.1 remote-as 65435       #Establish the neighbor relationship with the SAG device
    neighbor 192.168.100.1 timers 60 180         #Set the keepalive time interval and hold time for BGP
    neighbor 192.168.110.2 remote-as 45104       #Establish the neighbor relationship with the VBR
    exit

    Note In this example, the switch is configured as shown in the preceding content. Configure routes and advertise CIDR blocks based on your actual needs.

    For example, if you have multiple Layer 3 switches in your on-premises network and the switches learn the on-premises CIDR blocks through OSPF, you must redistribute the OSPF and BGP routes in the Layer 3 switch that is connected to the SAG device. This way, all the Layer 3 switches in your on-premises network can learn the CIDR block of the VPC through OSPF, and the VBR can learn the private CIDR block of your on-premises network. For more information about the commands, see the manuals issued by your provider.

  2. Configure routes for the Internet-facing router.

    ip route 192.168.100.0 255.255.255.252 192.168.80.2 #The route to the SAG device


Step 6: Set up network connections in the console

After you configure the SAG device, you must set up network connections to connect the private network to Alibaba Cloud.

  1. Create a Cloud Connect Network (CCN) instance.
    1. Log on to the SAG console.
    2. In the top navigation bar, select Mainland China.
      The CCN instance and SAG instance must be deployed in the same region.
    3. In the left-side navigation pane, click CCN.
    4. On the CCN page, click Create CCN Instance.
    5. In the Create CCN Instance pane, specify a name for the CCN instance and click OK.
      The name must be 2 to 100 characters in length and can contain digits, underscores (_), and hyphens (-). It must start with a letter.Create a CCN instance
  2. Associate the SAG instance with a CCN instance.
    1. In the left-side navigation pane, click Smart Access Gateway.
    2. On the Smart Access Gateway page, find the SAG instance and click Network Configuration in the Actions column.
    3. In the left-side navigation tree, click Network Instance Details.
    4. On the Network Instance Details tab, click Attach Network, select the CCN instance you created, and then click OK.
      The Attach Network tab
    5. Repeat the preceding steps to associate the VBR with the SAG instance. For more information, see Attach a network instance.
      If the SAG instance is associated with the CCN instance and the VBR, the on-premises network is connected to the Alibaba Cloud through the leased line by default. When the leased line is malfunctioning, the on-premises network is connected to Alibaba Cloud through CCN. In this case, the connection is established over the Internet.
  3. Attach the CCN instance and VBR to the CEN instance. For more information, see Attach networks.
    Then, the on-premises network can communicate with the VPC that is attached to the CEN instance.
    Note If the on-premises network, VBR, and VPC are not in the same region, you must purchase a bandwidth plan for the CEN instance and set cross-region bandwidth. This way, the on-premises network, VBR, and VPC can communicate with each other. For more information, see Purchase a bandwidth package and Configure a cross-region connection bandwidth.
  4. Create a security group rule.
    You must create a security group rule for the ECS instance in the VPC to allow the private CIDR block 172.16.0.0/12 to access resources deployed on the ECS instance. For more information, see Add security group rules.

Step 7: Test the connectivity

  1. After you complete the preceding steps, you can disable the leased line port on your Layer 3 switch and check whether the routes destined for the VPC from the switch are changed. When the leased line is malfunctioning, the destination of the next hop changes from the VPC to the SAG device. For more information about commands used to view routes, see the manuals issued by your provider.
  2. You can use the on-premises client to access the cloud resources in the connected VPC to test the connectivity.
