Container Service for Kubernetes:ECS instances in an ACK Edge cluster

Last Updated:Feb 29, 2024

A Container Service for Kubernetes (ACK) Edge cluster must contain at least one Elastic Compute Service (ECS) instance. The ECS instance is used to run cloud management applications. This topic describes how ECS instances work and how to add ECS instances.

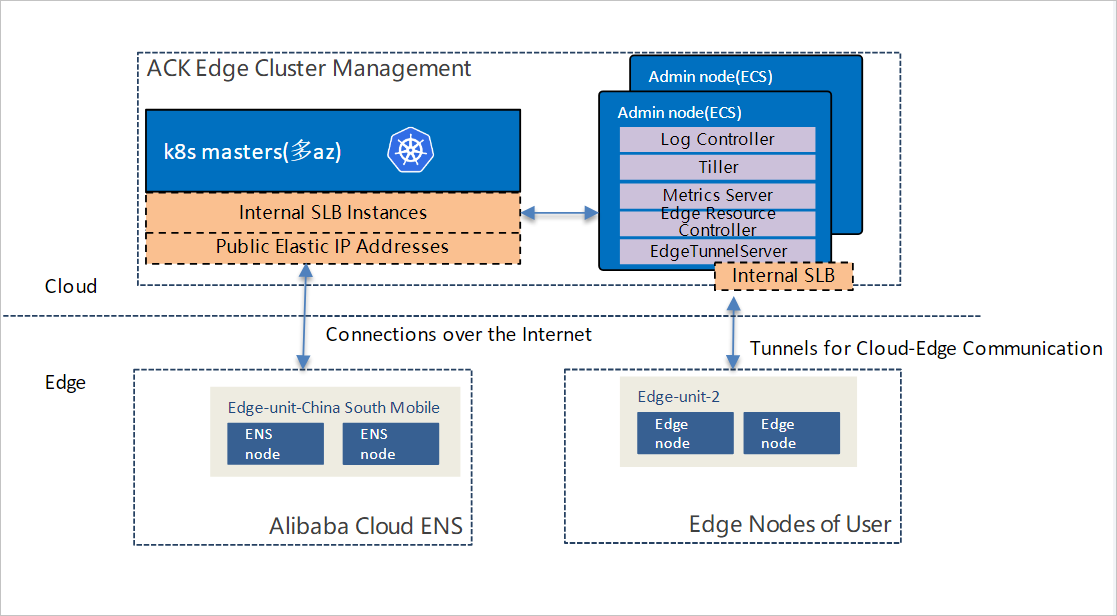

Cloud management nodes in edge computing

边缘管控节点

When you create an ACK Edge cluster, an ECS instance is automatically created as a cloud management node for the cluster. This ECS instance is used to run cloud management applications. You can deploy custom cloud management applications. The node-role.alibabacloud.com/addon: Effect: NoSchedule taint is automatically added to a cloud management node to prevent edge workloads from being scheduled to the node. By default, a management node of version 1.14.8-aliyunedge.1 or earlier has the following management applications:

  • alibaba-log-controller: the Simple Log Service controller.

  • alicloud-monitor-controller: the CloudMonitor controller.

  • metric-server: the server that is used to monitor the cluster.

  • edge-tunnel-server: the server for the reverse O&M tunnel. It allows you to use the native Kubernetes API to access edge nodes, monitor containers, and use SSH to remotely run commands.

Deploy applications on cloud management nodes

You can deploy custom management applications on cloud management nodes. For example, if you want to deploy different types of operators, you must specify a toleration that matches the preceding taint and configure node selectors. The following example describes how to configure the parameters.

     ...
      nodeSelector:
        alibabacloud.com/is-edge-worker: 'false'
        beta.kubernetes.io/arch: amd64
        beta.kubernetes.io/os: linux
      tolerations:
        - effect: NoSchedule
          key: node-role.alibabacloud.com/addon
          operator: Exists
      ...

Add a cloud management node

To add a cloud management node, perform the following steps. ACK Edge supports ECS-based auto scaling in later versions.

  1. Purchase an ECS instance in the virtual private cloud (VPC) where the cluster is deployed.

    For more information about how to purchase an ECS instance, see Create an ECS instance.

    Note

    Set the operating system to CentOS 7.6.

  2. Call AttachInstancesToNodePool in OpenAPI Explorer to add the ECS instance to the cluster.

    The following example shows a request body:

    {
      "password": "Helloxxxx!",
      "tags":[],
      "instances": [
        "i-uf65mbpn1x8xxxxxx"
      ]
    }

    Parameter

    Description

    password

    The password that is used to log on to the ECS instance. The password must be 8 to 30 characters in length, and must contain at least three of the following character types: uppercase letters, lowercase letters, digits, and special characters.

    tags

    The tags of the nodes.

    • key: the key of the tag

    • value: the value of the tag

    instances

    An array of the existing instances.
