This topic describes how to integrate an additional operations and maintenance (O&M) and monitoring component with an edge Kubernetes cluster by using the edge O&M tunnel. This allows you to enhance the monitoring and seamlessly implement your O&M and monitoring system on applications in an edge Kubernetes cluster.

Background information

  • In a managed edge Kubernetes cluster, metrics-server is automatically installed to collect the metrics of containers by using kubelet. The metrics include the CPU and memory usage of containers.
  • When you migrate services to the cloud, you must also migrate the O&M and monitoring system to ensure a seamless migration. If you want to collect more metrics, such as that of service applications, you must integrate self-developed or open source monitoring components with the cluster.
Notice

To integrate an additional O&M and monitoring component with an edge Kubernetes cluster by using the O&M tunnel, make sure that the following requirements are met (not applicable to other monitoring solutions):

  • The O&M and monitoring component and the O&M tunnel component edge-tunnel-server are deployed on the same node in the cloud.
  • The O&M and monitoring component obtains the metrics of edge services by using HTTP pull requests.

Deployment model

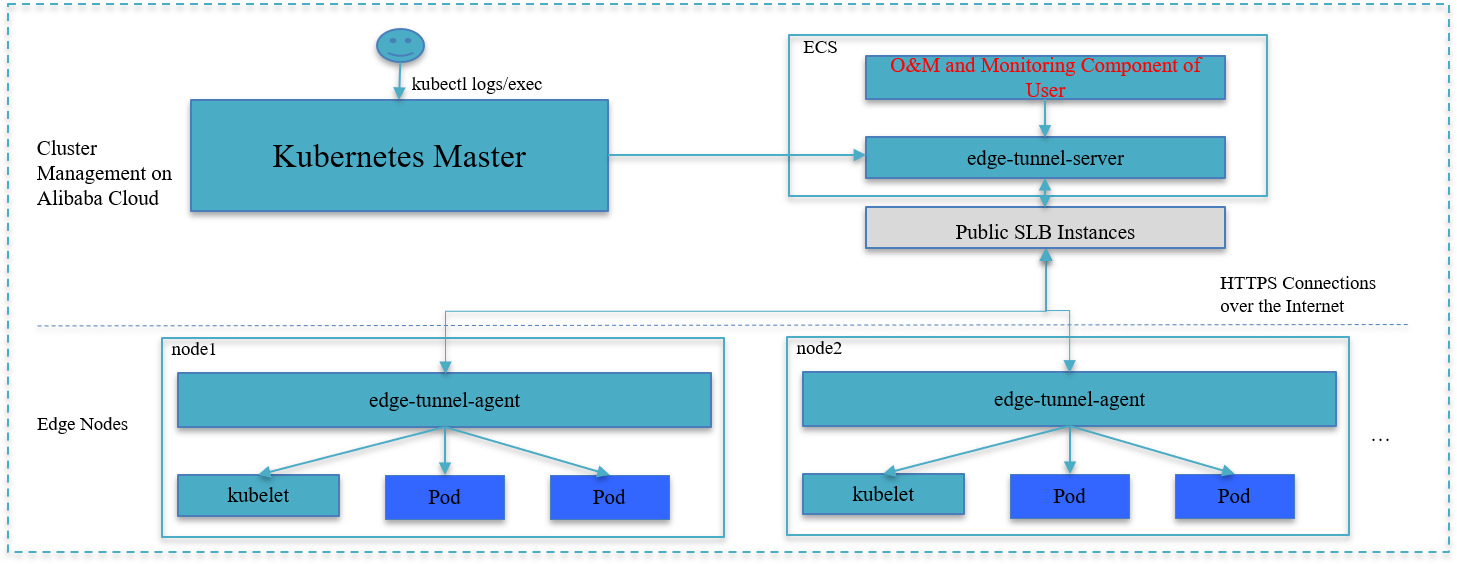

The following figure shows how to integrate an additional O&M and monitoring component with an edge Kubernetes cluster.Deployment model

Configure an additional O&M and monitoring component

You must first configure the additional O&M and monitoring component based on the access mode that the component uses to monitor objects. Configure the additional component based on the following description:
  • Use the node IP address:port mode to obtain metrics

    The monitoring component uses http://node IP address:port/{path} as the endpoint to obtain metrics.

    • Deploy applications in an edge Kubernetes cluster in the host network.
    • By default, ports 10250 and 10255 are supported.
    • For other ports, you must configure the edge-tunnel-server-cfg ConfigMap to integrate the additional O&M and monitoring component. The following example describes how to configure the ConfigMap.

      Assume that the monitoring component uses http://{node IP address}:8080/metrics as the endpoint to obtain the application metrics. Perform the following steps to configure the ConfigMap.

      Run the following command:
      cat <<EOF | kubectl apply -f
      The following output is returned:
      apiVersion: v1
      data:
        dnat-ports-pair: '8080=10264' #Access port 1: 10264. Access port 2: 10264.
      kind: ConfigMap
      metadata:
        name: edge-tunnel-server-cfg
        namespace: kube-system
      EOF
  • Use the pod IP address:port mode to obtain metrics

    The monitoring component uses http://pod IP address:port/{path} as the endpoint to obtain metrics.

    This mode is unavailable in current version.
