This topic describes how to use HoloStudio to import data from a client to Hologres.

Prerequisites

  • An Alibaba Cloud account is created.
  • Real-name verification is completed.
  • A Hologres instance is purchased and bound to a DataWorks workspace. For more information, see Quick start to HoloStudio.

Background information

The Data Analytics module of HoloStudio provides the Upload files locally with one click submodule. In this submodule, you can import data from a client in a visualized manner.

You can also execute the COPY statement to import data from a client. For more information, see Use the COPY statement to import data from a client to Hologres.

Procedure

  1. Log on to the Hologres console.
  2. In the top navigation bar of the console, move the pointer over the Triangle icon and select the region where your Hologres instance resides.
  3. In the left-side navigation pane, click Instances. On the Hologres Instances page, click Go to DataWorks - HoloStudio.
  4. Create a table.
    In the SQL console, execute SQL statements to create a table to which data in the local file is imported. For more information, see SQL Console. In this example, the following SQL statements are executed to create a table:
    BEGIN;
    CREATE TABLE if not EXISTS holo_bank (
     age int8,
     job text,
     marital text,
     education text,
     card text,
     housing text,
     loan text,
     contact text,
     month text,
     day_of_week text,
     duration text,
     campaign int8,
     pdays float8,
     previous float8,
     poutcome text,
     emp_var_rate float8,
     cons_price_idx float8,
     cons_conf_idx float8,
     euribor3m float8,
     nr_employed float8,
     y int8
    );
    COMMIT;
    Alternatively, you can create a table on the PG management page. For more information, see Create a table.
  5. Create a node for uploading the local file.
    1. On the HoloStudio page, click the Data Analytics icon in the left-side navigation pane.
    2. On the Data Analytics page, move the pointer over the Create icon.
    3. Click Upload files locally with one click.

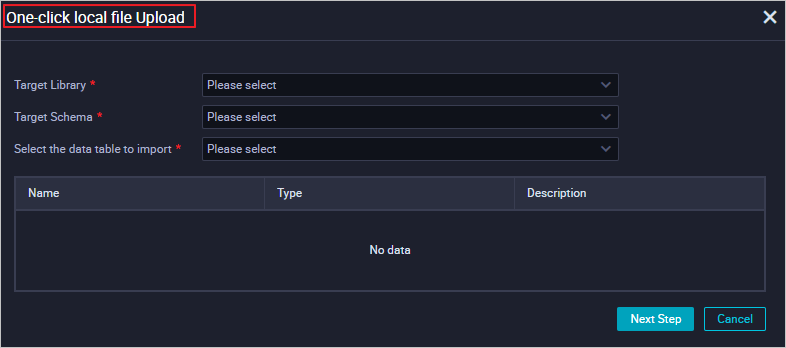

    4. In the One-click local file Upload dialog box, set the parameters as required.Upload
      Parameter Description
      Target Library The name of the Hologres database where the table to which data in the local file is imported resides.
      Target Schema The name of the schema where the table to which data in the local file is imported resides.

      If you have created no schema, select the default public schema. If you have created a schema, you can select the created schema.

      Select the data table to import The name of the table to which data in the local file is imported.
    5. Click Next Step.

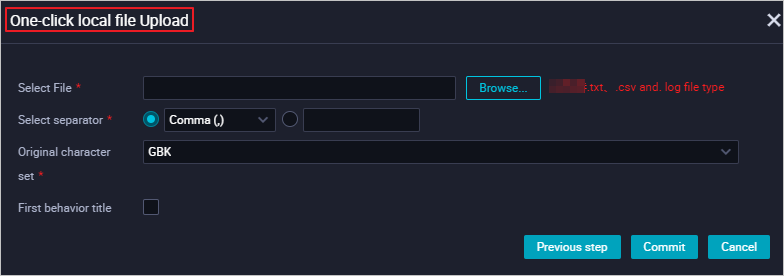

    6. In the One-click local file Upload dialog box, set the parameters as required.Select file
      Parameter Description
      Select File The local file to upload.

      You can upload only a file in the .txt, .csv, or .log format.

      Select separator
      • The delimiter of fields in the file. You can select one of the following delimiters: Comma
      • Tab
      • Semicolon
      • Space
      • |
      • #
      • &

      You can also use a custom delimiter.

      Original character set
      • GBK
      • UTF-8
      • CP936
      • ISO-8859
      First behavior title Specifies whether to use the first row as the table header.
    7. Click Commit.
  6. In the SQL console or on the PG management page, view the uploaded data. For more information, see SQL Console or Check a table.
