This topic describes how to subscribe to audit log reports of ApsaraDB for Redis by using emails or the DingTalk ChatBot. This allows you to periodically check the status of an ApsaraDB for Redis instance.


You activate the new version of Log Service. For more information, see Enable the new version of the audit log feature.


  1. Log on to the ApsaraDB for Redis console.
  2. In the top navigation bar, select the region where the target instance is located.
  3. On the Instances page, click the Instance ID of the target instance.
  4. In the left-side navigation pane of the Instance Information page, choose Logs > Audit Log.
  5. In the upper-right corner of the Audit Log page, click Subscribe.
    Click Subscribe
  6. On the Create Subscription page, complete the settings and click Next at the bottom of the page.
    The following table describes the parameters on the Create Subscription page.
    Parameter Description
    Subscription Name The description of the subscription. You can customize the description.
    Frequency Specify the frequency at which ApsaraDB for Redis delivers the reports.
    Add Watermark After you enable this feature, the images in the reports are watermarked with the email address or the WebHook URL.

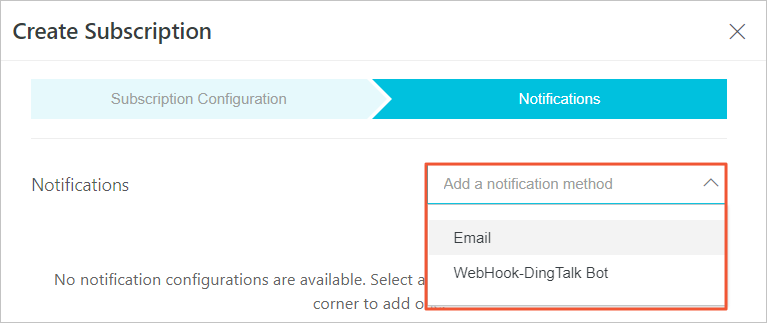

  7. On the Notifications page, click the drop-down list on the right and select a notification method.
    Add a notification methodThe available notification methods are Email and WebHook-DingTalk Bot. You can choose one or both of them.
    Note For more information about how to obtain the WebHook request URL, see WebHook-DingTalk Bot.
  8. Specify the Recipients of the Email or the Request URL of the WebHook-DingTalk Bot, and then click Submit.
