You can view dashboards and performance metrics preset for Container Service for Kubernetes (ACK) by using Application Real-Time Monitoring Service (ARMS) Prometheus. This topic describes how to enable ARMS Prometheus in ACK, how to configure alerts in ARMS Prometheus, and how to customize monitoring metrics and use Grafana to display monitoring metrics.

Background information

ARMS Prometheus is fully compatible with the open source Prometheus ecosystem. It monitors a wide array of components and provides multiple out-of-the-box dashboards. ARMS Prometheus also provides fully managed monitoring services. ARMS Prometheus saves you the efforts of managing the underlying services, such as data storage, data presentation, and system operations and maintenance (O&M).

Compared with the open source Prometheus, Alibaba Cloud Prometheus Service has the following advantages:

  • Lightweight, stable, and accurate retry mechanism
    • Compared with the open source Prometheus, the deployment of Alibaba Cloud Prometheus Service is more lightweight. Instead of building a Prometheus monitoring system, you can install the Prometheus agent (PromAgent) to monitor your business.dg_arms_prometheus_advantage
    • The open source Prometheus consumes 16 GB to 128 GB of memory. Alibaba Cloud Prometheus Service consumes only 200 MB to 1 GB of memory and 1 CPU core. Alibaba Cloud Prometheus Service provides higher system stability than the open source Prometheus.
    • The open source Prometheus retrieves data only once, and data may be discarded when it is written to the storage component. Alibaba Cloud Prometheus Service retries multiple times if it fails to retrieve data. It ensures high concurrency when it writes data to the storage component. No data is discarded.
  • Unlimited amount of data
    • The open source Prometheus can collect data based on up to one million metrics. Alibaba Cloud Prometheus Service can scale its data collection capability based on the number of Kubernetes replicas. Collection tasks can be distributed across replicas.
    • The maximum storage capacity of the open source Prometheus is limited by the size of the local disk. Alibaba Cloud Prometheus Service uses the central cloud storage service. The storage capacity is not limited.
  • Compatibility with open source systems
    • Alibaba Cloud Prometheus Service is compatible with the clients and query languages in the open source Prometheus ecosystem. Alibaba Cloud Prometheus Service provides optimized collection rules and usage values.dg_arms_prometheus_ecology
    • Alibaba Cloud Prometheus Service is compatible with three mainstream collection rules: the open source prometheus.yaml configuration file, ServiceMonitor, and the default collection rule named Annotation. ServiceMonitor is suitable for the monitoring of custom Kubernetes clusters. Compared with the open source Prometheus, Alibaba Cloud Prometheus Service allows you to update collection rules by using the prometheus.yaml configuration file. You do not need to write multiple lines of code in the Deployment file. You only need to add the following three Annotations.
      prometheus.io/scrape: "true"
      prometheus.io/port: "9090"
      prometheus.io/path: "/metrics"
    • Alibaba Cloud Prometheus Service allows you to visualize data by using Grafana. By configuring the Prometheus HTTP API URL, you can implement multi-tenant isolation for the data source in Grafana and multi-tenant isolation for the Grafana dashboard. Alibaba Cloud Prometheus Service is also compatible with the Explore data debugging module of Grafana.
    • Alibaba Cloud Prometheus Service is compatible with the HTTP API module of the open source Prometheus. It supports three standard API operations: query, query_range, and labelValues. In addition, you can add /userId/clusterId/regionId/ to the data URL to achieve multi-tenant isolation.
    • Alibaba Cloud Prometheus Service uses the built-in alerting system of Application Real-Time Monitoring Service (ARMS) and is compatible with the alert rules of the open source Prometheus.
  • Cost-effectiveness
    • Alibaba Cloud Prometheus Service supports the default Kubernetes monitoring. After you install the default Kubernetes monitoring, Alibaba Cloud Prometheus Service automatically creates exporters, collection rules, Grafana dashboards, and ARMS alerts. Compared with the open source Prometheus, Alibaba Cloud Prometheus Service reduces your time cost from about 3 days to about 10 minutes.Dashboard 1
    • Alibaba Cloud Prometheus Service supports the monitoring of open source components. You only need to enter the AccessKey ID and AccessKey secret of your Alibaba Cloud account, and the accounts and passwords of the RDS and Redis components. Alibaba Cloud Prometheus Service creates exporters and dashboards for these components. Compared with the open source Prometheus, Alibaba Cloud Prometheus Service reduces your time cost from about 7 days to about 3 minutes.Dashboard 2
    • Alibaba Cloud Prometheus Service supports easy installation and removal. You can debug the service by performing health checks. Compared with the open source Prometheus, Alibaba Cloud Prometheus Service reduces your time cost from about 1 day to about 3 minutes.

For more information about ARMS Prometheus, see What is Prometheus Service?.

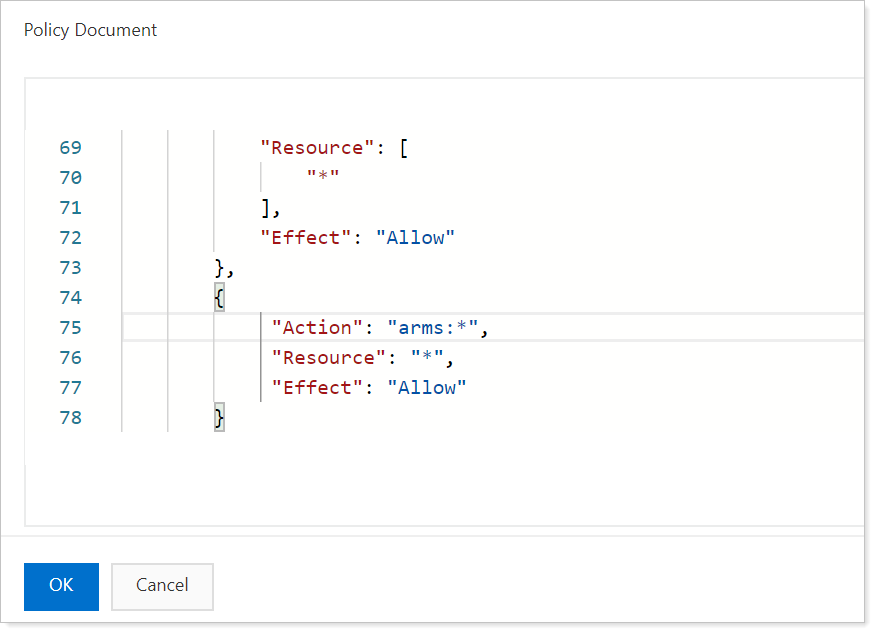

Enable ARMS Prometheus

You can use one of the following methods to enable ARMS Prometheus:

Enable ARMS Prometheus by setting cluster parameters

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. In the upper-right corner of the Clusters page, click Create Kubernetes Cluster.
  4. Select the cluster template that you want to use and set the cluster parameters. On the Component Configurations wizard page, select Enable Prometheus Monitoring.
    Component configurationsFor more information about how to create a cluster, see Create a managed Kubernetes cluster.
    Note By default, Enable Prometheus Monitoring is selected when you create a cluster.
    After the cluster is created, the system automatically configures ARMS Prometheus.

Enable ARMS Prometheus on the Prometheus Monitoring page in the ACK console

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the cluster details page, choose Operations > Prometheus Monitoring.
  5. In the middle of the Prometheus Monitoring page, click Install.

Enable ARMS Prometheus on the App Catalog page in the ACK console

  1. Log on to the ACK console.
  2. In the left-side navigation pane, choose Marketplace > App Catalog.
  3. On the App Catalog page, click the Alibaba Cloud Apps tab. Then, find and click ack-arms-prometheus.
  4. On the App Catalog - ack-arms-prometheus page, select the cluster for which you want to enable ARMS Prometheus in the Deploy section, and click Create.
    Note By default, Namespace and Release Name are set to arms-prom.

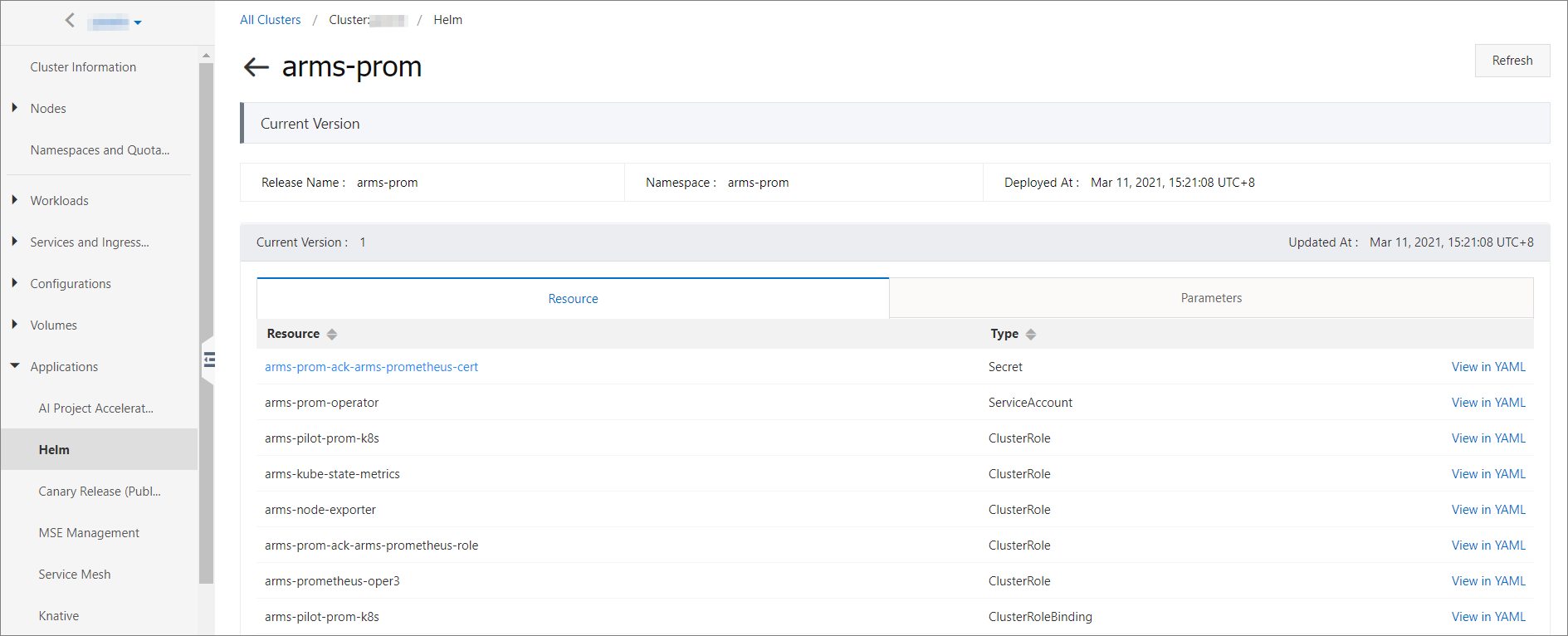

Execution result

After the installation is completed, the arms-prom page appears. You can view application information on this page. arm-prom

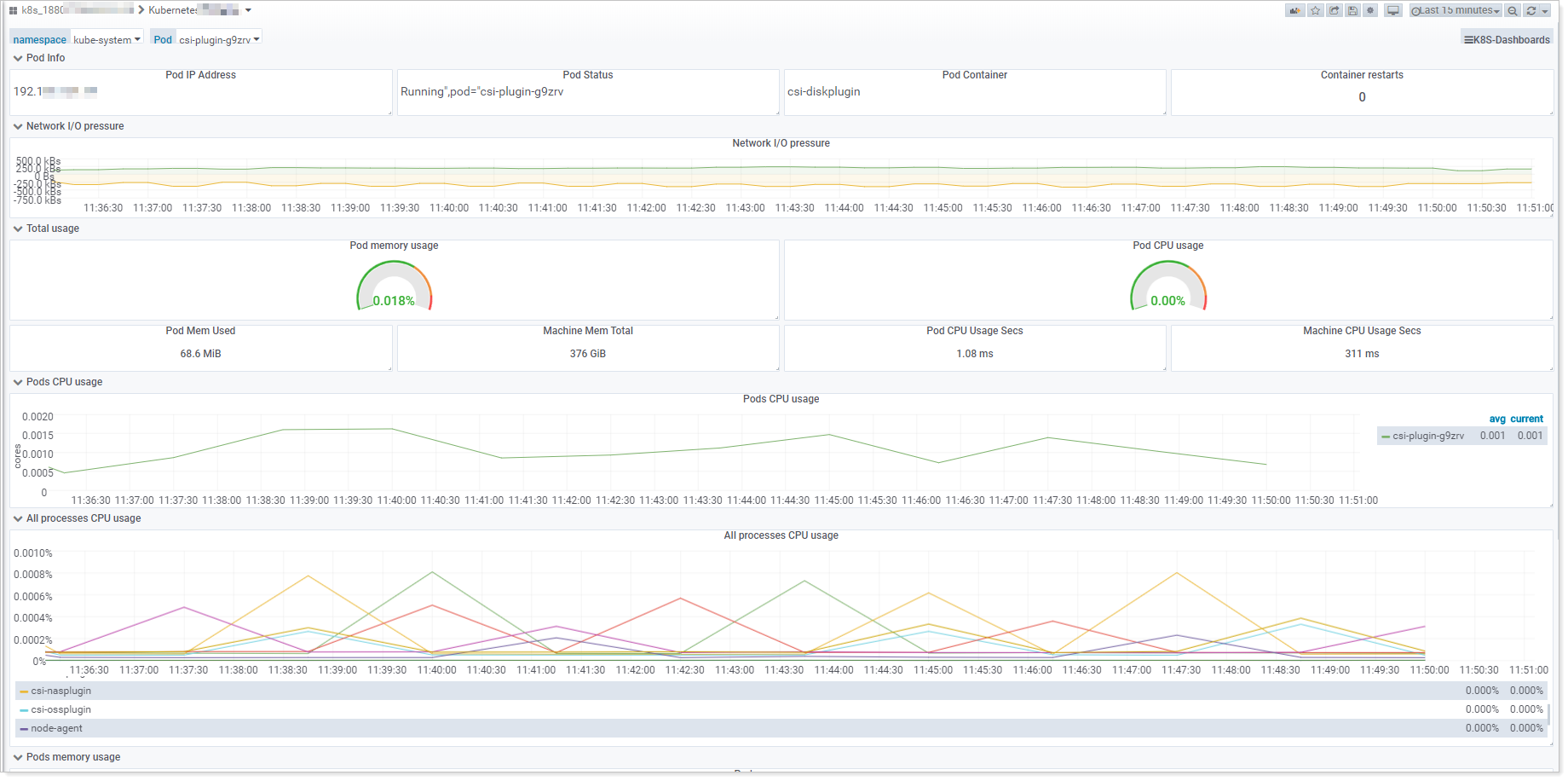

View Grafana dashboards provided by ARMS Prometheus

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Operations > Prometheus Monitoring.
  5. On the Prometheus Monitoring page, click the name of a Grafana dashboard to view the monitoring data.

Configure alerts in ARMS Prometheus

ARMS Prometheus allows you to create alerts for monitoring jobs. When alert conditions are met, you can receive alerts through emails, Short Message Service (SMS) messages, and DingTalk notifications in real time. This helps you detect errors in a proactive manner. When an alert rule is triggered, notifications are sent to the specified contact group. Before you can create a contact group, you must create a contact. When you create a contact, you can specify a mobile number and an email address which the contact can use to receive notifications. You can also provide the webhook URL of a DingTalk chatbot that can automatically send alert notifications.
Note To add a DingTalk chatbot as a contact, you must first obtain the webhook URL of the chatbot. For more information, see Configure a DingTalk chatbot to send alert notifications.
  1. Log on to the ARMS console.
  2. In the left-side navigation pane, choose Alerts > Contacts.
  3. In the upper-right corner of the Contact tab, click New contact Configure the contact and click OK.
    Create a contact
  4. Configure an alert rule.
    1. Log on to the ARMS console.
    2. In the left-side navigation pane, click Prometheus Monitoring.
    3. On the Prometheus Monitoring page, click the name of a Kubernetes cluster in the K8s column.
    4. In the left-side navigation pane, click Alarm configuration.
    5. Select the alert that you want to manage and click Editing in the Actions column. Modify the PromQL statement and click OK. You can also select a preset alert and click Enable to enable the alert.
      For more information about how to configure PromQL statements, see Create ARMS alerts.
    Note You can also choose Alerts > Alert Policies in the ARMS console to manage alerts.

    Verify the result

    Perform a manual test to trigger an alert in DingTalk. The following figure shows a sample alert.Alert monitoring

Customize monitoring metrics and use Grafana to display monitoring metrics

Method 1: Use annotations to customize monitoring metrics

You can add annotations to pod configuration templates to define custom monitoring metrics. The application monitoring component of ARMS uses ARMS Prometheus to automatically obtain these custom monitoring metrics.

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Workloads > Deployments.
  5. On the Deployments page, create an application.
    1. Click Create from Image.
    2. On the Basic Information wizard page, set basic parameters and click Next.
    3. Create a web application and open port 5000 for the application.
      In this example, the yejianhonghong/pindex image is used. Container configurations
    4. Click Next.
    5. Add annotations that are related to ARMS to the pod.
      The prometheus.io/port annotation is used to specify the endpoint port that ARMS Prometheus scrapes. The prometheus.io/path annotation is used to specify the endpoint path that ARMS Prometheus scrapes. Labels and annotations
    6. Click Create to create the application.
  6. On the Services page, create a Service.
    1. In the left-side navigation pane, choose Services and Ingresses > Services.
    2. In the upper-right corner of the Services page, click Create.
    3. Select Server Load Balancer and Public Access for Type.
    4. Select the application that is created in Step 4 for Backend.
    5. Click Create to create the Service.
    For more information, see Manage Services.
  7. Configure custom monitoring metrics.
    1. Log on to the ARMS console.
    2. In the left-side navigation pane, click Prometheus Monitoring.
    3. On the Prometheus Monitoring page, click the name of a Kubernetes cluster in the K8s column.
    4. In the left-side navigation pane, click Settings. Click the Targets (beta) tab and verify that the custom metrics are configured.
      Custom metrics
  8. Access the public IP address of the Service that is created in Step 5. This increases the value of the following custom metric.
    For more information about metrics, see Data model. Increase the value of a custom metric
  9. Go to the Dashboards page of the ARMS console and click a dashboard to go to the Grafana page. Click Add panel in the upper-right corner, select the Graph type, and then enter current_person_counts for Metrics.
  10. Save the settings to view the Grafana chart of the custom metric.
    Grafana

Method 2: Use ServiceMonitors to customize monitoring metrics

To use ServiceMonitors to customize monitoring metrics, you must add labels to Services. You do not need to add annotations.

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. On the Deployments page, create an application.
    1. In the left-side navigation pane of the details page, choose Workloads > Deployments.
    2. Click Create from Image.
    3. On the Basic Information wizard page, set basic parameters and click Next.
    4. Create a web application and open port 5000 for the application.
      In this example, the yejianhonghong/pindex image is used. Container configurations

      Click Next.

    5. Click Create to create the application.
  5. On the Services page, create a Service.
    1. In the left-side navigation pane of the details page, choose Network > Services.
    2. In the upper-right corner of the Services page, click Create.
    3. Select Server Load Balancer and Public Access for Type.
    4. Select the application that is created in Step 4 for Backend.
    5. Add the following label to the Service.
      This label is used by ServiceMonitor as a selector. Create a Service
    6. Click Create to create the Service.
    For more information, see Manage Services.
  6. Specify the endpoint that ARMS Prometheus scrapes.
    1. Log on to the Prometheus console.
    2. In the left-side navigation pane, click Prometheus Monitoring. Click the cluster that you want to manage in the K8s column.
    3. In the left-side navigation pane, click Settings. Then, click the Service Discovery tab.
    4. Click the ServiceMonitor tab. In the upper-right corner of the tab, click Add ServiceMonitor.
      In this example, the following template is used to create a ServiceMonitor.
      apiVersion: monitoring.coreos.com/v1
      kind: ServiceMonitor
      metadata:
        # Enter a unique name.
        name: custom-metrics-pindex
        # Specify a namespace.
        namespace: default
      spec:
        endpoints:
        - interval: 30s
          # Enter the name of the port specified in the Port Mapping section when you created the Service in Step 5.
          port: web
          # Enter the path of the Service.
          path: /access
        namespaceSelector:
          any: true
          # The namespace of the NGINX demo application.
        selector:
          matchLabels:
            # Enter the label that you added to the Service in Step 5.
            app: custom-metrics-pindex

      Click OK to create the ServiceMonitor.

    5. On the Targets (beta) tab, verify that the endpoints that ARMS Prometheus scrapes are displayed.
      Scape Endpioint
      Note The definition of a ServiceMonitor provides more information than an annotation, and includes the namespace and name of the Service.
  7. Access the public IP address of the Service that is created in Step 5. This increases the value of the following custom metric.
    For more information about metrics, see Data model. Increase the value of a custom metric
  8. Go to the Dashboards page of the ARMS console and click a dashboard to go to the Grafana page. Click Add panel in the upper-right corner, select the Graph type, and then enter current_person_counts for Metrics.
  9. Save the settings to view the Grafana chart of the custom metric.
    Grafana

FAQ

What can I do if I fail to reinstall ARMS Prometheus after I delete the namespace of ARMS Prometheus?

If you delete only the namespace of ARMS Prometheus, resource configurations may be retained. In this case, you may fail to reinstall ARMS Prometheus. You can perform the following operations to delete the resource configurations:
  1. Run the following commands to delete the related ClusterRoles:
    kubectl delete ClusterRole arms-kube-state-metrics
    kubectl delete ClusterRole arms-node-exporter
    kubectl delete ClusterRole arms-prom-ack-arms-prometheus-role
    kubectl delete ClusterRole arms-prometheus-oper3
    kubectl delete ClusterRole arms-prometheus-ack-arms-prometheus-role
    kubectl delete ClusterRole arms-pilot-prom-k8s
  2. Run the following commands to delete the related ClusterRoleBindings:
    kubectl delete ClusterRoleBinding arms-node-exporter
    kubectl delete ClusterRoleBinding arms-prom-ack-arms-prometheus-role-binding
    kubectl delete ClusterRoleBinding arms-prometheus-oper-bind2
    kubectl delete ClusterRoleBinding kube-state-metrics
    kubectl delete ClusterRoleBinding arms-pilot-prom-k8s
    kubectl delete ClusterRoleBinding arms-prometheus-ack-arms-prometheus-role-binding
  3. Run the following commands to delete the related Roles and RoleBindings:
    kubectl delete Role arms-pilot-prom-spec-ns-k8s
    kubectl delete Role arms-pilot-prom-spec-ns-k8s -n kube-system
    kubectl delete RoleBinding arms-pilot-prom-spec-ns-k8s
    kubectl delete RoleBinding arms-pilot-prom-spec-ns-k8s -n kube-system
