If you require more disk space, you can expand the storage capacity provisioned by Device Mapper. This topic describes how to expand the disk space provisioned by Device Mapper on a node that runs sandboxed containers.

Background information

Device Mapper is used to store the root file systems (RootFS) of sandboxed containers. When you configure a worker node that runs sandboxed containers, you may find it difficult to estimate the data disk size that you actually require. Insufficient disk space limits the number of pods that can be created on the node.

Device Mapper stores all RootFS of sandboxed containers on a node. The disk space provisioned by Device Mapper is the same as that of the node. Logical Volume Manager (LVM) is a tool for the management of disk space provisioned by Device Mapper. You can run LVM commands to expand the disk space provisioned by Device Mapper.
Notice This topic is applicable only to Sandboxed-Container V1 (V1.X.X). Sandboxed-Container V2 is not supported.

Procedure

  1. Log on to the ACK console.
  2. In the left-side navigation pane, click Clusters.
  3. On the Clusters page, click the name of the target cluster or click Details in the Actions column.
  4. In the left-side navigation pane, click Nodes.
  5. On the Nodes page, click the ID of the ECS instance that you want to expand. The details page of the ECS instance appears. In the left-side navigation pane, click Disks.
  6. On the Disks page, find the data disk and select Resize Disk from the More drop-down list in the Actions column.

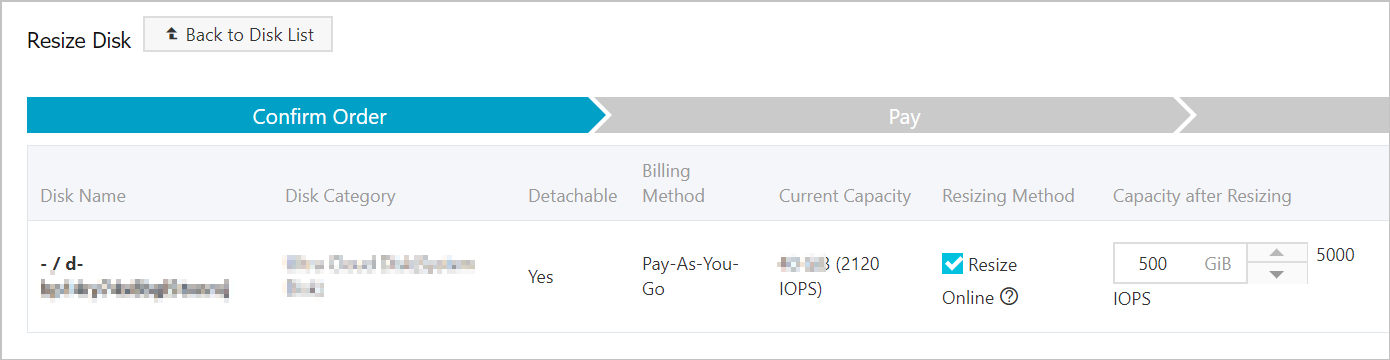

  7. On the Resize Disks page, select Online Resizing for Resizing Method, set Size after Resize, select ECS Service Terms, and then click Confirm.
    In this topic, the disk is expanded from 200 GiB to 500 GiB.
  8. After the expansion is complete, log on to the expanded node and run the lsblk command to check whether the disk is expanded.
    For more information about how to log on to an ECS instance, see ECS connection methods.

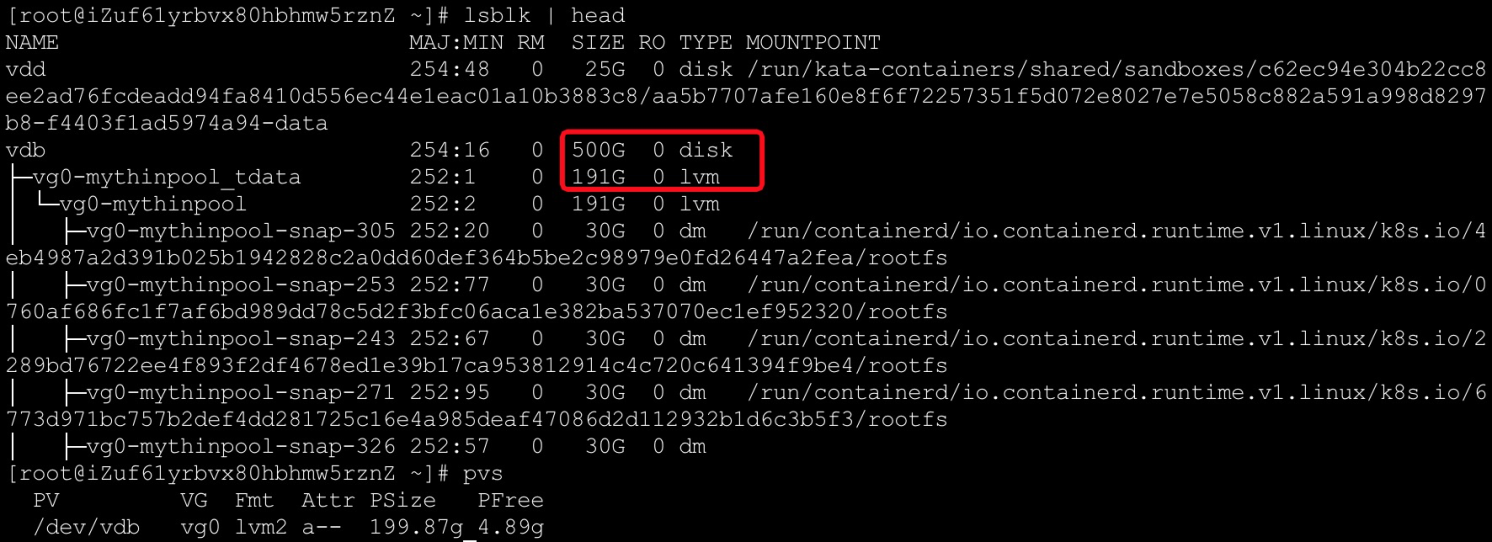

    The output shows that the vdb disk is now expanded from 200 GiB to 500 GiB, as shown in the following figure. The capacity of the logical volume (LV) is still 191 GiB, among which 9 GiB is reserved for the volume group (VG) and the rest for storing LVM metadata.result
  9. Expand the LV
    The VG is automatically expanded after the PV is expanded. Run the following command to expand the persistent volume (PV) that uses the LV.
    pvresize ${the mount path of the disk}
    The following output is returned:
    pvresize /dev/vdb
    Run the following command to expand the LV:
    lvextend
    The following output is returned:
    lvextend -l +100%FREE vg0/mythinpool

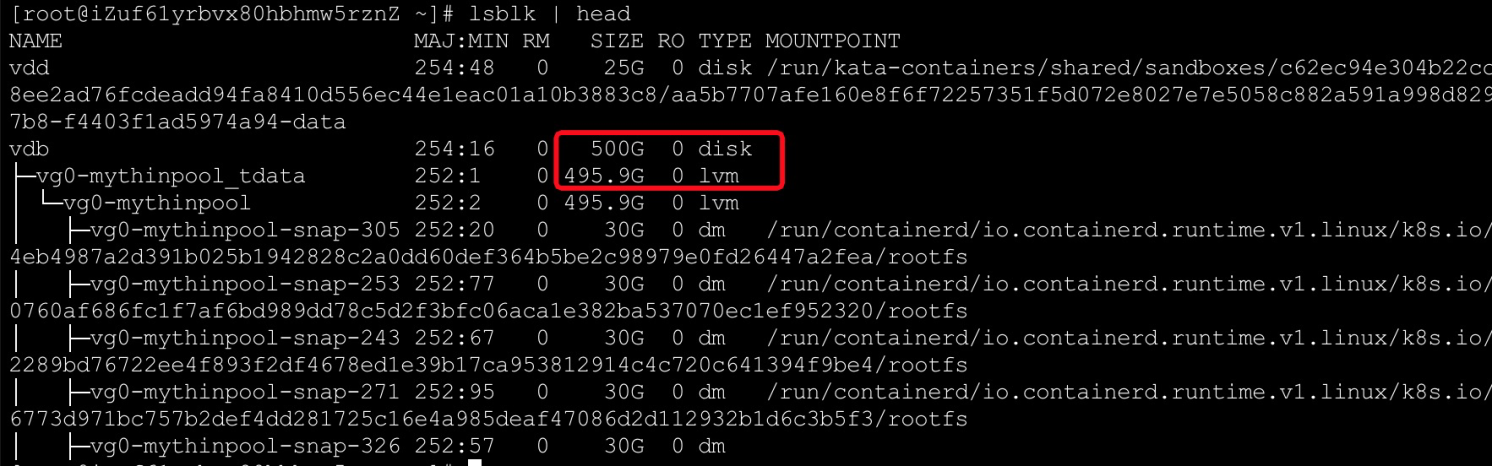

    The output shows that the LV is expanded to 500 GiB.resize
