This topic describes how to bind an elastic IP address (EIP) to a pod in a serverless
cluster or a pod on a virtual node.
Background information
Container Service for Kubernetes (ACK) provides serverless clusters and virtual nodes.
You can bind an EIP to a pod in a serverless cluster or a pod on a virtual node. In
this case, you can deploy applications to a serverless cluster and access application
services in a simplified manner. This feature has the following benefits:
- A pod that has an EIP can access the Internet. You do not have to configure a NAT
gateway for a virtual private cloud (VPC).
- Services on a pod that has an EIP can be accessed from the Internet. You do not have
to deploy services to the pod.
- You can bind an EIP to a pod in a flexible and dynamic manner.
Prerequisites
- A serverless cluster is created or a virtual node is deployed on your cluster. For
more information, see Create a serverless Kubernetes cluster and Virtual nodes.
- Required ports are enabled in the security group rules for the cluster. In the following
example, port 80 is enabled.
Procedure
You can use one of the following two methods to bind an EIP to a pod.
Method 1: Bind an EIP to a pod in automatic mode
- Log on to the Container Service for Kubernetes (ACK) console.
- In the left-side navigation pane, click Serverless Clusters.
- On the Clusters page, click the name of a cluster or click Details in the Actions column.
- In the left-side navigation pane, click Workload.
- Click the Deployments tab. On the tab that appears, click Create from Template, select a sample template or Custom, and then click Create.
You can use the following YAML template to create a pod. In this example,
k8s.aliyun.com/eci-with-eip is set to
true. This indicates that the cluster or a virtual node automatically assigns and binds
an EIP to the pod.
apiVersion: v1
kind: Pod
metadata:
name: nginx
annotations:
"k8s.aliyun.com/eci-with-eip": "true"
spec:
containers:
- image: registry-vpc.cn-hangzhou.aliyuncs.com/jovi/nginx:alpine
imagePullPolicy: Always
name: nginx
ports:
- containerPort: 80
name: http
protocol: TCP
restartPolicy: OnFailure
Note
- You can use the annotation k8s.aliyun.com/eip-bandwidth to specify the bandwidth for the EIP. Default value: 5. Unit: Mbit/s.
- You can also use the annotation k8s.aliyun.com/eip-common-bandwith-package-id to add an Elastic Compute Service (ECS) instance that has an EIP to an EIP bandwidth
plan instance.
- If you create a deployment, the system assigns an EIP to each pod in the deployment.
Exercise caution when you perform this operation.
- Click the Pods tab to view the pod status.
- Find the pod that you want to manage and click Edit. The Edit YAML dialog box appears.
Note The IP address of k8s.aliyun.com/allocated-eipAddress: 47.110.XX.XX
in the YAML file is the public IP address of the EIP.

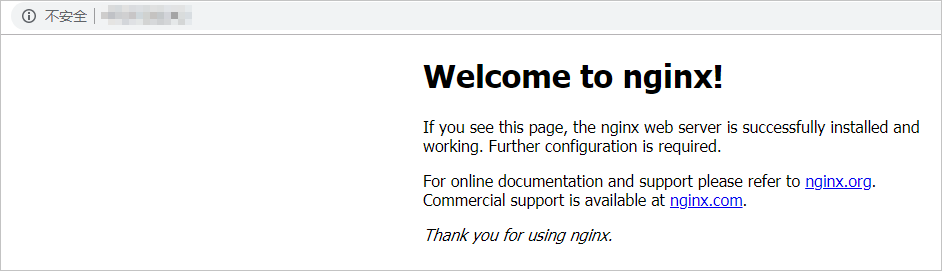

- Enter http://IP address in a browser to visit the NGINX welcome page.
In http://IP address, enter the IP address obtained from k8s.aliyun.com/allocated-eipAddress: 47.110.XX.XX
of the YAML file.

Note This method dynamically assigns an EIP to a pod, and the lifecycle of the EIP is the
same as that of the pod. If you delete a pod, the EIP assigned to the pod is automatically
deleted.
Method 2: Specify an EIP ID
- Log on to the VPC console and purchase an EIP. For more information, see Apply for new EIPs.
Note The EIP and the cluster must be deployed in the same region.
- Log on to the Container Service for Kubernetes (ACK) console.
- In the left-side navigation pane, click Serverless Clusters.
- On the Clusters page, click the name of a cluster or click Details in the Actions column.
- In the left-side navigation pane, click Workload.
- Click the Deployments tab. On the tab that appears, click Create from Template, select a sample template or Custom, and then click Create.
You can use the following YAML template to create a pod. In this example, you can
specify the annotation k8s.aliyun.com/eci-eip-instanceid as the ID of the EIP.
apiVersion: v1
kind: Pod
metadata:
name: nginx
annotations:
"k8s.aliyun.com/eci-eip-instanceid": "<youreipInstanceId>"
spec:
containers:
- image: registry-vpc.cn-hangzhou.aliyuncs.com/jovi/nginx:alpine
imagePullPolicy: Always
name: nginx
ports:
- containerPort: 80
name: http
protocol: TCP
restartPolicy: OnFailure
Note Replace <youreipInstanceId>
with the ID of the EIP obtained in Step 1.
- Click the Pods tab to view the pod status.
- Enter http://IP address in a browser to visit the NGINX welcome page.

Note In http://IP address, enter the IP address of the EIP obtained in Step 1.
