You can log on to the Enterprise Distributed Application Service (EDAS) console to query the service list and service details of High-Speed Service Framework (HSF) applications that are deployed in EDAS.

View the service list

  1. Log on to the EDAS console.
  2. In the left-side navigation pane, choose Traffic Management > Microservices Governance > HSF.
  3. In the navigation tree of the HSF page, click Service Query.
  4. In the top navigation bar, select a region. On the Service Query page, select a microservices namespace and view the HSF services within the current account.
    The following information of HSF services is displayed: Service Name, Version, Group, Application Name, and Instances.

    If a large number of services exist, you can search for and filter services by service name, IP address, or application name. Search keywords are case-insensitive. The value of IP varies between ECS and Kubernetes clusters.

    • ECS cluster: The value is the IP address of an ECS instance.
    • Kubernetes cluster: The value is the IP address of a pod.
    Note If you can query the services of your applications on the Service Query page in an earlier version but cannot query the services on the new Service Query page, troubleshoot the issue by performing the following steps:

    The new Service Query page was released at 00:00:00 on January 20, 2020. You must restart your applications after this point in time so that they can be automatically mounted with the latest EDAS Agent. Therefore, restart your applications before you query services on the new Service Query page.

View service details

  1. Log on to the EDAS console.
  2. In the left-side navigation pane, choose Traffic Management > Microservices Governance > HSF.
  3. In the left-side navigation pane of the HSF page, click Service Query.
  4. In the top navigation bar, select a region. On the Service Query page, select an option from the microservices namespace drop-down list. Then, click a specific service name.
  5. On the Service Details page, view the details of the service.

    The Service Details page contains the Basic Information and Service Call Relationship sections.

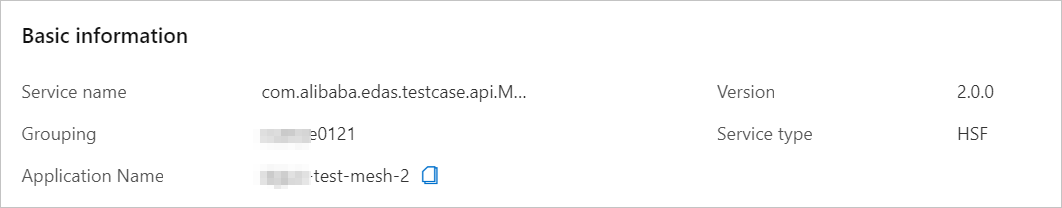

    • Basic InformationView the basic information of an HSF service
    • Service Call RelationshipView the service call relationship of a service

      The Service Call Relationship section contains the Service Provider and Service Consumer tabs. The following information is displayed on the tabs: IP, Port, Serialization method, and Timeout Period (Ms).
