EdgeRoutine (ER) is a serverless computing environment provided by Alibaba Cloud Content Delivery Network (CDN). It can run custom JavaScript code on CDN nodes. After you use the EdgeRoutine command-line interface (CLI) to deploy code to the production environment, the system automatically runs the code on all CDN nodes. The CDN nodes process requests in different regions worldwide by following the logical rules of the code.

Features of EdgeRoutine

Benefits

Traditional CDN services can only cache and distribute content, but cannot provide the computing feature to workloads. To process a large number of requests that are sent to CDN nodes, Alibaba Cloud CDN must redirect the requests to origin servers that support complex computing. This back-to-origin process consumes resources on origin servers and requires a complex origin architecture. ER provides the computing feature on CDN nodes. You can use ER to customize your Alibaba Cloud CDN service and process complex requests. This feature reduces the number of requests that are redirected to origin servers and accelerates content delivery. CDN nodes support high availability, high scalability, and global load balancing. These features allow CDN nodes to support computing in more scenarios. ER provides a computing environment on each CDN node and allows you to run custom JavaScript code on CDN nodes. You do not need to be concerned about the hardware configuration, region, scheduling, and auto scaling for code deployment.

How it works

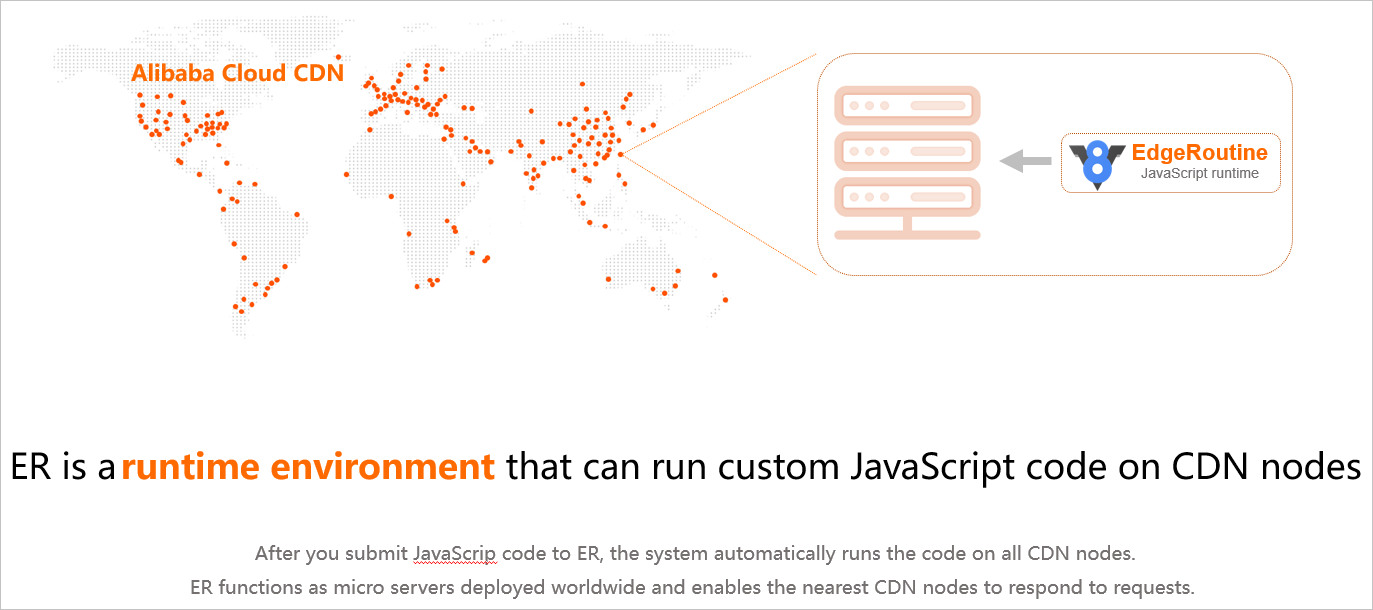

ER runs on CDN nodes and provides a serverless JavaScript runtime environment for you to deploy JavaScript code.

How it works
  • Scenarios where ER is not used

    Client requests are processed in the following steps: 1→8→9→4. After a client sends a request to the CDN gateway, Alibaba Cloud CDN searches for the requested resource in the CDN cache. If the requested resource is not cached on CDN nodes, the request is redirected to the origin server to retrieve the requested resource. If the requested resource is cached on CDN nodes, the requested resource is directly returned to the client.

  • Scenarios where ER is used
    • ER runs JavaScript code to compute and process requests and returns data to clients. Client requests are processed in the following steps: 1→2→3→4. This process is a typical scenario of Function as a Service (FaaS). ER functions as the server and directly processes and responds to requests. In this scenario, you do not need to deploy servers.
    • ER initiates subrequests to retrieve data from other cloud services and processes the data. Client requests are processed in the following steps: 1→2→5→3→4.
    • ER writes processed data to or reads processed data from CDN nodes. Client requests are processed in the following steps: 1→2→6→3→4.
    • ER can automatically use a proxy to redirect requests to the standard CDN back-to-origin process. Client requests are processed in the following steps: 1→2→7→8→9→10→3→4. In this process, ER applies computing logic before it follows the standard CDN process. You can use ER to perform relevant computing tasks such as remote asynchronous authentication before Alibaba Cloud CDN follows the standard process to search for requested resources in the CDN cache or redirect requests to origin servers.

Scenarios

ER provides a fully integrated JavaScript runtime environment that allows you to manage the comprehensive logic of request processing. You can also use ER to enable CDN nodes to asynchronously retrieve content from origin servers over HTTP or HTTPS. ER can be used in a wide array of scenarios. The following table lists the scenarios that are supported by ER.
Scenario Feature
Authentication Custom Alibaba Cloud CDN authentication and asynchronous authentication
Originless responses Static content delivery
Network security
  • Anti-bot protection
  • Web Application Firewall (WAF) deployed on edges
Log data
  • Automatic logging on CDN nodes
  • Recording of back-to-origin time
DevOps
  • A/B testing
  • Webhooks for GitLab, GitHub, and Jenkins
  • Programming of instant messaging robots, such as Slack robots
API Gateway
  • Edge GraphQL
  • Edge gateway:
    • Network traffic throttling
    • API parameter validation
CDN
  • Prefetching content to CDN nodes
  • Caching content on CDN nodes
  • Redirecting requests from CDN nodes to multiple origin servers:
    • Merging content returned from multiple origin servers
    • Optimized redirection with the lowest latency
Web applications and applets
  • Edge rendering
  • Edge server-side (SSR) rendering
  • Content prefetching and reduction of web page loading time
  • Diverse services on CDN nodes, such as QR code generation
Beacon Capturing and analytics of edge tracking data

Work with ER

The first private preview of ER is completed. If you have activated ER during the preview, you can continue to use ER free of charge. The next private preview of ER is expected to begin soon. If you want to participate in the next private preview, pay attention to the product updates of Alibaba Cloud CDN in the console.

After ER is activated, you can use the EdgeRoute CLI to submit JavaScript code to CDN nodes. If you have questions, submit a ticket.

Note ER is free of charge during private preview. When you write JavaScript code, take note of the following limits:
  • The code file must be smaller than 1 MB.
  • The CPU time that is consumed to process an individual request must be less than 50 milliseconds.
  • The response time for an individual request must be less than 120 seconds.
  • The total amount of memory consumed on an individual CDN node must be less than 128 MB.

Alibaba Cloud will release the pricing policy and limits on JavaScript code upon the official release of ER. For more information, see the product updates.
