To prevent back-to-origin failures caused by the mismatch between the request URI and origin URI, you can rewrite the request URI to match the origin URI. This improves the cache hit ratio of back-to-origin routing. This topic describes how to set a URI rewrite rule in the Alibaba Cloud CDN (CDN) console.

Description

  • Each domain name supports up to 50 URI rewrite rules.
  • The system runs the rewrite rules that are listed on the URI Rewrite tab in order from top to bottom. A change to this order may lead to a different rewrite result.
  • The URI rewrite feature is different from the rewrite feature on the Cache page. The rewrite feature functions on CDN edge nodes. It affects the internal services of Alibaba Cloud CDN, and rewrites cache keys. The URI rewrite feature functions on the CDN edge nodes that communicate with origin servers. It does not affect the internal services of Alibaba Cloud CDN or rewrite cache keys.
  • If you set the flag of a URI rewrite rule to enhance break, the parameter rewrite settings may conflict with the settings of the Filter parameters (retain specified parameters) or Filter parameters (delete specified parameters) feature. To retain or delete parameters, choose Domain Names > Optimization in the left-side navigation pane of the Alibaba Cloud CDN console. If you configure these three features for the same domain name, make sure that the features do not conflict with each other.

Configure the back-to-origin URI

  1. Log on to the Alibaba Cloud CDN console.
  2. In the left-side navigation pane, click Domain Names.
  3. On the Domain Names page, find the domain name that you want to manage and click Manage in the Actions column of the domain name.
  4. In the left-side management pane of the domain name, click Back-to-origin.
  5. Click the URI Rewrite tab.
  6. Click Add.

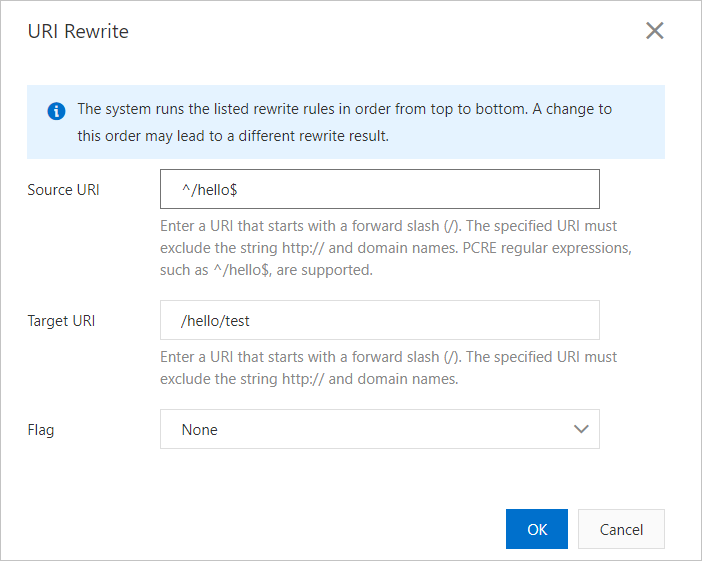

  7. In the URI Rewrite dialog box, set the Original URI and Final URI fields, and specify a flag.
    Rewrite URIs
    Parameter Example Description
    Original URI ^/hello$ Enter a URI that starts with a forward slash (/). The URI cannot contain the string http:// or domain names. Perl Compatible Regular Expressions (PCRE) such as ^/hello$ are supported.
    Final URI /hello/test Enter a URI that starts with a forward slash (/). The URI cannot contain http:// or domain names.
    Flag None If multiple rules are configured, and the current rule is matched, the system continues to match the request against the subsequent rules.
    break
    • If multiple rules are configured, and the current rule is matched, the other rules are skipped.
    • Rewrites only the URI part. The URL parameters are not modified. You can use the back-to-origin parameter rewrite feature to modify URL parameters.
    enhance break
    • If multiple rules are configured, and the current rule is matched, the other rules are skipped.
    • When you rewrite URI parameters, this feature may conflict with the back-to-origin parameter rewrite feature. Make sure that the configurations do not conflict with each other when you configure these features.
  8. Click OK to apply the rewrite rule.

    To modify or delete a rewrite rule, find the rule on the URI Rewrite tab and click Modify or Delete in the Actions column.

Examples

  • Example 1: Apply an empty rule.
    Original URI ^/hello$
    Final URI /index.html
    Flag None
    Description Original request: http://domain.com/hello

    Final request: http://domain.com/index.html

    The system continues to match this request against the subsequent URI rewrite rules that are listed on the URI Rewrite tab.

  • Example 2: Apply a break rule.
    Original URI ^/hello.jpg$
    Final URI /image/hello.jpg
    Flag break
    Description Original request: http://domain.com/hello.jpg

    Final request: http://domain.com/image/hello.jpg

    The system stops matching this request against the subsequent URI rewrite rules that are listed on the URI Rewrite tab.

  • Example 3: Apply an enhance break rule.
    Original URI ^/hello.jpg?code=123$
    Final URI /image/hello.jpg?code=321
    Flag enhance break
    Description Original request: http://domain.com/hello.jpg?code=123

    Final request: http://domain.com/image/hello.jpg?code=321

    The system stops matching this request against the subsequent URI rewrite rules that are listed on the URI Rewrite tab.
  • Example 4: Add a URI prefix to the root directory when the file name is a variable.

    Example: Add the /image path to the URI of all files in the root directory. For example, you can rewrite /xxx that is included in URIs to /image/xxx. xxx is a file name, such as /hello.jpg and /hello.html.

    Original URI ^(.*)$
    Note ^(.*)$ matches any characters, and a pair of parentheses () represents a group. You can use $1 in the final URI to call variables in the group.
    Final URI /image$1
    Note $1, the first special replacement pattern, represents the content that matches the expression in the first pair of parentheses () in a regular expression. $2, the second special replacement pattern, represents the content that matches the expression in the second pair of parentheses (). $n represents the nth special replacement pattern.
    Flag break
    Description
    • Original request: http://domain.com/hello.jpg

      Final request: http://domain.com/image/hello.jpg

    • Original request: http://domain.com/hello.html

      Final request: http://domain.com/image/hello.html

    The system stops matching this request against the subsequent URI rewrite rules that are listed on the URI Rewrite tab.
  • Example 5: Add a URI prefix to a specified directory when the file name is a variable.
    Example: Add the /image path to the URI of all files in the /live directory. For example, you can rewrite /live/xxx that is included in URIs to /image/live/xxx. xxx is a file name, such as /live/hello.jpg and /live/hello.html.
    Original URI ^/live/(.*)$
    Final URI /image/live/$1
    Flag break
    Description
    • Original request: http://domain.com/live/hello.jpg

      Final request: http://domain.com/image/live/hello.jpg

    • Original request: http://domain.com/live/hello.html

      Final request: http://domain.com/image/live/hello.html

    The system stops matching this request against the subsequent URI rewrite rules that are listed on the URI Rewrite tab.
