MaxCompute:Use DataHub to migrate log data to MaxCompute

Last Updated:Jun 05, 2023

This topic describes how to use DataHub to migrate log data to MaxCompute.

Prerequisites

The following permissions are granted to the account authorized to access MaxCompute:

  • CreateInstance permission on MaxCompute projects

  • Permissions to view, modify, and update MaxCompute tables

For more information, see MaxCompute permissions.

Background information

DataHub is a platform that is designed to process streaming data. After data is uploaded to DataHub, the data is stored in a table for real-time processing. DataHub executes scheduled tasks within five minutes to synchronize the data to a MaxCompute table for offline computing.

To periodically archive streaming data in DataHub to MaxCompute, you only need to create and configure a DataConnector.

Data type mappings

MaxCompute

DataHub

BIGINT

BIGINT

STRING

STRING

BOOLEAN

BOOLEAN

DOUBLE

DOUBLE

DATETIME

TIMESTAMP

DECIMAL

DECIMAL

TINYINT

TINIINT

SMALLINT

SMALLINT

INT

INTEGER

FLOAT

FLOAT

BLOB

STRING

MAP

Not supported

ARRAY

Not supported

Procedure

  1. On the odpscmd client, create a table that is used to store the data synchronized from DataHub. Example:

     CREATE TABLE test(f1 string, f2 string, f3 double) partitioned by (ds string);
  2. Create a project in the DataHub console.

    1. Log on to the DataHub console. In the upper-left corner, select a region.

    2. In the left-side navigation pane, click Project Manager.

    3. In the upper-right corner of the Project List page, click Create Project.

    4. In the Create Project dialog box, specify Name and Comment, and click Create.

  3. Create a topic.

    1. On the Project List page, find the project for which you want to create a topic and click View in the Operate column.

    2. In the upper-right corner of the project details page, click Create Topic. In the Create Topic dialog box, configure the parameters.

      Create Topic
    3. Click Next Step to complete topic configurations.

      Note
      • Schema corresponds to a MaxCompute table. The field names, data types, and field sequence specified by Schema must be consistent with those of the MaxCompute table. You can create a DataConnector only if the three conditions are met.

      • You are allowed to migrate the topics of the TUPLE and BLOB types to MaxCompute tables.

      • A maximum of 20 topics can be created by default. If you require more topics, submit a ticket.

      • The owner of a DataHub topic or the Creator account has the permissions to manage a DataConnector. For example, you can create or delete a DataConnector.

  4. Write data to the newly created topic.

    1. Click View in the Operate column of the newly created topic.

    2. On the topic details page, click Connector.

    3. In the Create connector dialog box, click MaxCompute, configure the parameters, and then click Create.

  5. View DataConnector details.

    1. In the left-side navigation pane, click Project Manager.

    2. On the Project List page, find the project that you want to view its DataConnector details and click View in the Operate column.

    3. On the Topic List tab, find the topic of the project and click View in the Operate column.

    4. On the topic details page, click the Connector tab to view the created DataConnector.

    5. Click View to view DataConnector details.

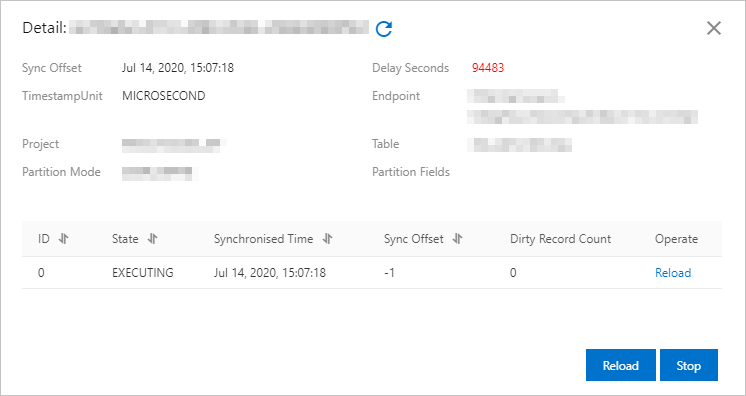

      By default, DataHub migrates data to MaxCompute tables at five-minute intervals or when the amount of data reaches 60 MB. Sync Offset indicates the number of migrated data entries.DataConnector details

  6. Execute the following statement to check whether the log data is migrated to MaxCompute:

    SELECT * FROM test;

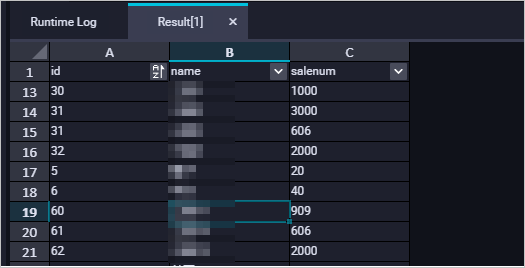

    If the result shown in the following figure is displayed, the log data is migrated to MaxCompute.Test results
