This topic describes how to create an exchange-to-exchange binding whose source is a specific exchange in the Message Queue for RabbitMQ console.

Procedure

  1. Log on to the Message Queue for RabbitMQ console.
  2. In the Resource Distribution section of the Overview page, select the region where your instance is located.
  3. On the Instances page, click the name of your instance.
  4. In the left-side navigation pane, click Exchanges.
  5. On the Exchanges page, click the drop-down arrow next to vhost. From the Change drop-down list, select the vhost of the exchange for which you want to create an exchange-to-exchange binding. Find the exchange, click More in the Actions column, and then select Bound as Source.
  6. On the Bound as Source tab of the Exchange Details page, click Add Binding.
  7. In the Add Binding panel, select Exchange for Type of Destination to Bind, select an exchange from the Destination to Bind drop-down list, set Binding Key, and then click OK.
    Create an exchange-to-exchange binding whose source is a specific exchange

Result

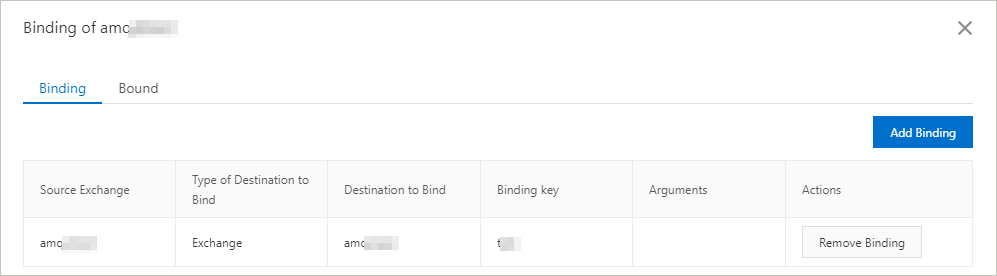

On the Bound as Source tab, you can view the bound exchange. Results
