Prometheus Monitoring of Application Real-Time Monitoring Service (ARMS) allows you to monitor Redis by capturing Redis data and displaying the captured data on the ARMS Prometheus Grafana dashboard.

Background information

The following figure shows the workflow.

How it works

Step 1: Capture Redis data through an external application

Deploy the redis-exporter application to the Container Service Kubernetes cluster to capture Redis data.

  1. In the left-side navigation pane, choose Clusters > Clusters. On the Clusters page, find the target cluster, and click Dashboard in the Actions column.
    Kubernetes cluster console button
  2. In the left-side navigation pane, choose Workloads > Deployments. In the upper-right corner, click CREATE, and enter the following information in the CREATE FROM TEXT INPUT section:
    Note Change <Address> and <Password> to the corresponding values of Redis. You can also use the sample values provided by ARMS to experience the service:
    • Redis address: redis://r-bp167pgqkqh7h25coypd.redis.rds.aliyuncs.com:6379
    • Redis password: Arms1234
    apiVersion: extensions/v1beta1
    kind: Deployment
    metadata:
      name: redis-exporter
    spec:
      replicas: 1
      template:
        metadata:
          labels:
            app: redis-exporter
        spec:
          containers:
          - name: redis-exporter
            imagePullPolicy: Always
            env:
            - name: REDIS_ADDR
              value: "<Address>"
            - name: REDIS_PASSWORD
              value: "<Password>"
            - name: REDIS_EXPORTER_DEBUG
              value: "1"
            image: oliver006/redis_exporter
            ports:
            - containerPort: 9121
              name: redis-exporter
    In this step, the redis-exporter application is deployed to the Container Service Kubernetes cluster.
  3. In the left-side navigation pane, choose Discovery and Load Balancing > Services. In the upper-right corner, click CREATE, and enter the following information in the CREATE FROM TEXT INPUT section:
    apiVersion: v1
    kind: Service
    metadata:
      labels:
        app: redis-exporter
      name: redis-exporter
    spec:
      ports:
      - name: redis-exporter
        port: 9121
        protocol: TCP
        targetPort: 9121
      type: NodePort
      selector:
        app: redis-exporter

Step 2: Configure ARMS Prometheus Monitoring to receive Redis data

Configure ARMS Prometheus Monitoring in the ARMS console to receive Redis data captured by the external application.

  1. In the left-side navigation pane, click Prometheus Monitoring.
  2. On the top of the Prometheus monitoring page, select the region where the Container Service Kubernetes cluster is located. Find the target cluster, and click Installation in the Actions column.
  3. After the ARMS Prometheus agent is installed, find the target cluster, and click Settings in the Actions column.
  4. On the Details tab, click Add ServiceMonitor. In the Add ServiceMonitor dialog box, enter the following information:
    apiVersion: monitoring.coreos.com/v1
    kind: ServiceMonitor
    metadata:
      # Enter a unique name.
      name: redis-exporter
      # Enter the target namespace.
      namespace: default
    spec:
      endpoints:
      - interval: 30s
        # The Redis Grafana template ID is 763.
        # Enter the value of the Name field for Port of Prometheus Exporter in the service.yaml file.
        port: redis-exporter
        # Enter the path exposed in Prometheus Exporter code.
        path: /metrics
      namespaceSelector:
        any: true
        # The namespace of the NGINX Demo
      selector:
        matchLabels:
          # Enter the label field of service.yaml to locate the target service.yaml file.
          app: redis-exporter

Step 3: Display the Redis data on the Grafana dashboard

Import the Grafana dashboard template in the ARMS console and specify the Container Service Kubernetes cluster where the Prometheus data source is located.

  1. Go to Host Dashboard.
  2. In the left-side navigation pane, choose + > Import, enter 763 in the Grafana.com Dashboard field, and click Load.
    Import Grafana dashboard
  3. On the Import page, set the following information and click Import.
    Import Grafana dashboard with options
    1. Enter a custom dashboard name in the Name field.
    2. Select your Container Service Kubernetes cluster from the Folder drop-down list.
    3. Select your Container Service Kubernetes cluster from the prom drop-down list.

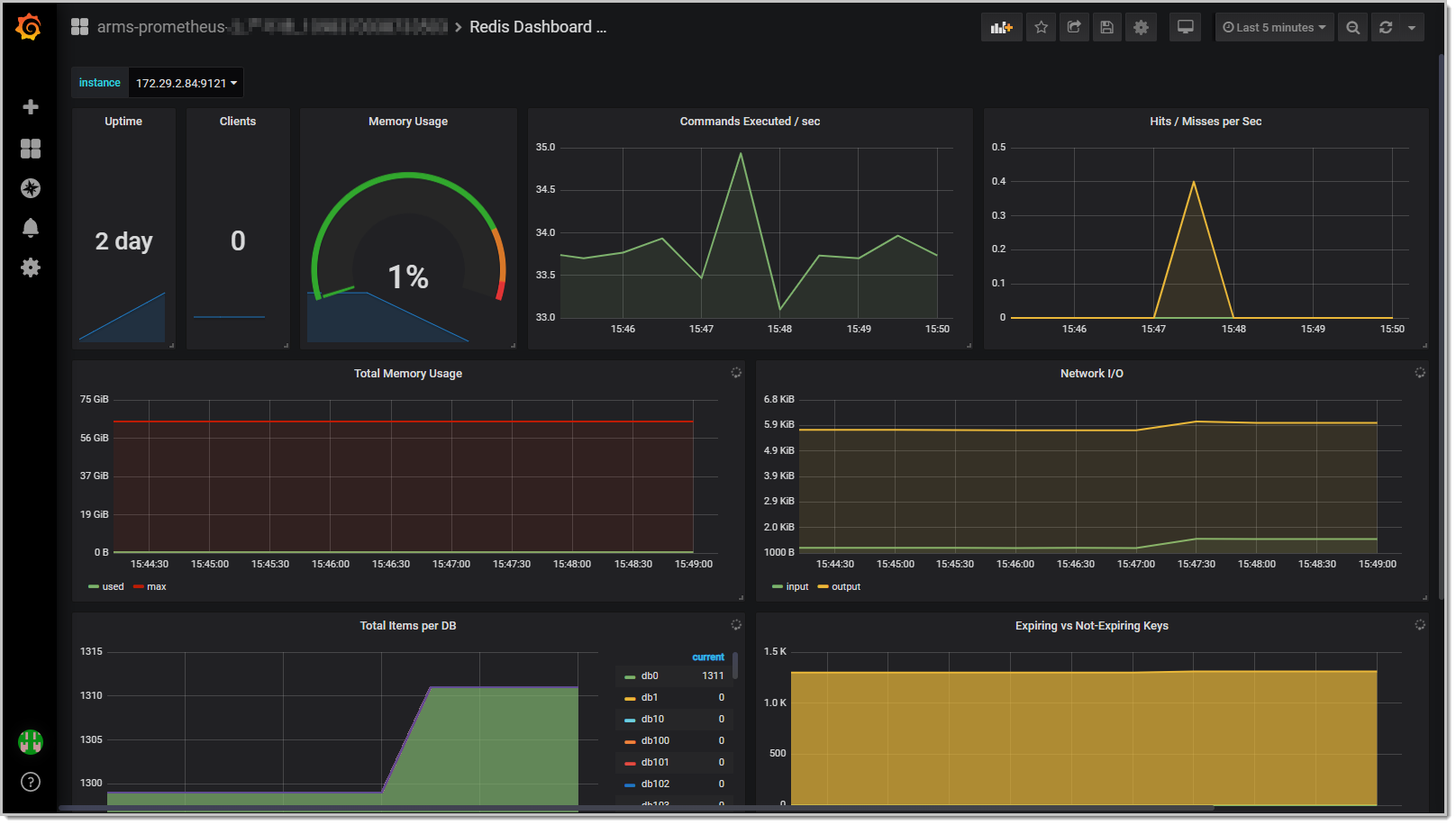

    After the configuration is complete, the ARMS Prometheus Grafana Redis dashboard is shown in the following figure.ARMS Prometheus Grafana Redis
