DataWorks:View auto triggered node instances

Last Updated:Sep 28, 2023

An auto triggered node instance is a snapshot that is taken for an auto triggered node at the time when the node is scheduled to run. You can view the details of and perform the related operations on an auto triggered node instance in the list of auto triggered node instances or in the directed acyclic graph (DAG) of the instance.

Terms

Normal node or instance: A normal node or instance is a node or instance that actually runs code. Normal nodes or instances do not include dry-run nodes or instances and frozen nodes or instances. The dry-run nodes or instances include nodes whose scheduling mode is set to dry-run, instances that are not generated during the period of time in which nodes are scheduled, branch nodes that are not selected, and expired instances that are generated when the scheduled time for running nodes is less than 10 minutes from the point in time when the nodes are committed and deployed.

Limits

  • Editions:

    • Only users of DataWorks Professional Edition or a more advanced edition can use the intelligent diagnosis feature. If you use another edition, you can use the feature free of charge on a trial basis. However, we recommend that you upgrade the DataWorks service to DataWorks Professional Edition to use more features. For more information, see Intelligent diagnosis.

    • Only users of DataWorks Professional Edition or a more advanced edition can use the aggregation, upstream analysis, and downstream analysis features provided by DAGs. For more information, see Billing of DataWorks advanced editions.

  • Permissions:

    Some features can be used only by users who are granted O&M permissions. If the entry point of a feature is dimmed or is not displayed, you can check whether you are granted the required O&M permissions on the Workspace Members tab of the Workspace page in SettingCenter. For more information, see Go to the SettingCenter page and Manage permissions on workspace-level services.

  • Features:

    • You cannot manually delete an auto triggered node instance. DataWorks deletes an auto triggered node instance approximately 30 days after the instance expires. If you no longer need to run an auto triggered node instance, you can freeze the instance.

    • Node instances that are run on the shared resource group for scheduling are retained for one month (30 days), and the run logs for the node instances are retained for one week (7 days).

    • Node instances that are run on an exclusive resource group for scheduling are retained for one month (30 days), and the run logs for the node instances are also retained for one month (30 days).

    • The system clears excess run logs every day when the size of run logs generated for the auto triggered node instances that finish running exceeds 3 MB.

Precautions

  • Instances are generated for auto triggered nodes as scheduled. Each generated instance runs the most recent code. If you modify and recommit the code of a node after instances are generated for the node, the instances that are not run will run the most recent code.

  • If you want to monitor a node for which instances are generated, you must configure monitoring rules for the node first. For more information, see Overview. If a node for which monitoring rules are configured fails to run and you do not receive an alert notification, check whether your mobile phone number and email address are configured on the Alert Contacts page. For more information, see View alert details.

  • The time at which instances are generated for an auto triggered node varies based on the value of the Instance Generation Mode parameter. The valid values of the Instance Generation Mode parameter include Next Day and Immediately After Deployment. For more information, see Modes in which instances take effect.

    Note

    Nodes that are manually rerun do not trigger alerts generated based on custom rules.

Node instance running and issue troubleshooting

An auto triggered node instance can be scheduled to run only when the following conditions are met: Ancestor nodes of the node for which the auto triggered node instance is generated are successfully run, the scheduling time of the auto triggered node instance has arrived, scheduling resources are sufficient, and the auto triggered node instance is not frozen. For more information, see What are the conditions that are required for a node to successfully run?

If an auto triggered node instance fails to run, you can use the ancestor node analysis feature on the Upstream Analysis tab of the DAG page to quickly identify ancestor node instances that block the running of the current node instance. Then, you can use the intelligent diagnosis feature to diagnose failure causes or related issues of the ancestor node instances. The intelligent diagnosis feature can also be used to quickly troubleshoot issues when dependencies between the current node instance and ancestor node instances are complex. This improves O&M efficiency.

View and manage auto triggered node instances from the instance perspective

On the Cycle Instance page, click Instance Perspective to go to the Instance Perspective tab.

View auto triggered node instances

周期实例

Item

Description

Filter

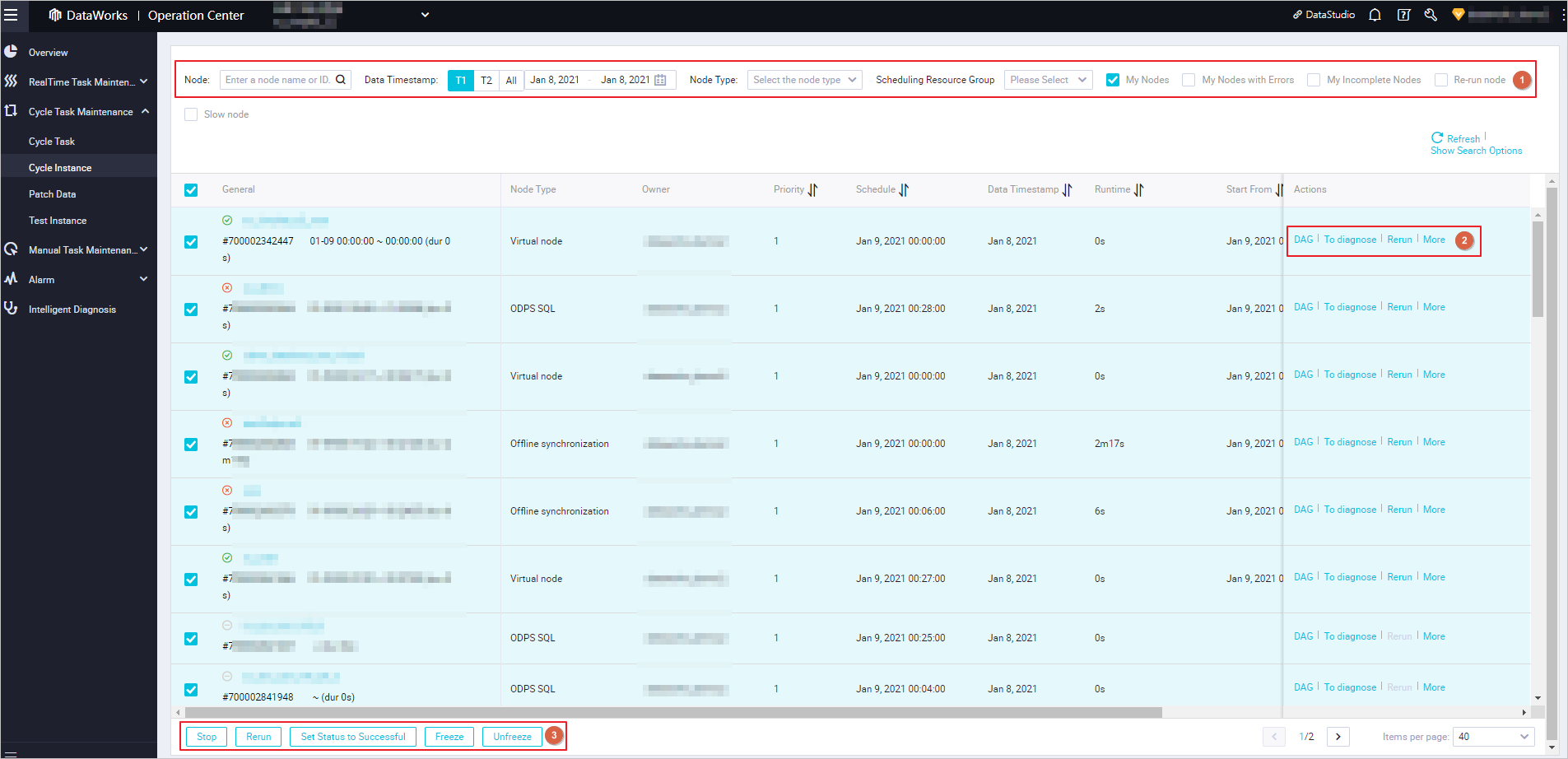

Allows you to specify conditions to search for auto triggered node instances in the area marked with 1 in the preceding figure.

Note
  • By default, the data timestamp is set to the day before the current day.

  • You can search for your desired instance by instance ID. You can determine whether to use a node ID or an instance ID to search for your desired instance based on your business requirements.

    • If you want to search for all the auto triggered node instances that are generated on the current day by an auto triggered node scheduled by hour or minute, you can enter the ID of the node.

    • If you want to search for a specific auto triggered node instance that is generated on the current day by an auto triggered node scheduled by hour or minute, you can enter the ID of the auto triggered node instance.

  • For instances for which monitoring rules are configured, you can select the Nodes for Which Alerts are Reported Within Last 24 Hours check box to search for the instances for which alerts are triggered within 24 hours from the current point in time. You can click the Alert icon in the DAG of an instance for which alerts are reported within last 24 hours from the current point in time to view the alert details about the instance. For more information about how to view the alert details about an instance in the DAG of the instance, see Overview.

List of instances

Allows you to view the auto triggered node instances that meet the specified conditions in the area marked with 2 in the preceding figure.

Actions

Allows you to perform operations on an auto triggered node instance in the area marked with 3 in the preceding figure.

  • DAG: You can perform this operation to view the dependencies of an auto triggered node instance in the DAG of the instance. On the DAG page, you can right-click the instance in the DAG to perform related operations. For more information, see Appendix: Use the features provided in a DAG.

  • Perform Diagnostics: You can perform this operation to carry out end-to-end analysis on an auto triggered node instance. If the auto triggered node instance is not run as expected, you can click Perform Diagnostics to troubleshoot issues. For more information, see Intelligent diagnosis.

  • Rerun: You can perform this operation to rerun an auto triggered node instance that is in the Successful or Failed state. After the auto triggered node instance is successfully run, its descendant instances that are in the Not Run state can be scheduled to run. This operation is used to process an auto triggered node instance that fails to be run or an auto triggered node instance that is not run as scheduled.

    Note

    Only the auto triggered node instances that are in the Successful or Failed state can be rerun.

  • More:

    • Rerun Descendant Nodes: You can perform this operation to rerun the descendant instances of an auto triggered node instance that is in the Successful or Failed state. You can select the descendant instance that you want to rerun. After the selected instance is successfully run, its descendant instances that are in the Not Run state can be scheduled to run. This operation is used to recover data.

      Note

      Only descendant instances in the Successful or Failed state can be selected. The value No appears in the Meet Rerun Condition column of instances in other states, and you cannot select the instances.

    • Set Status to Successful: You can perform this operation to set the status of an auto triggered node instance that fails to be run to Successful. You can perform this operation if you do not want an auto triggered node instance that fails to be run to block the running of its descendant instances. This operation is used to process an auto triggered node instance that fails to be run.

    • Stop: You can perform this operation to stop an auto triggered node instance that does not need to be run. After you perform this operation on an auto triggered node instance, the auto triggered node instance fails to be run and exits.

      Note

      Only auto triggered node instances in the Pending (Schedule), Pending (Resources), or Running state can be stopped.

    • Freeze: You can perform this operation if you do not need to run an auto triggered node instance and its descendant instances. The freeze operation takes effect only on the current auto triggered node instance that is in the Running state. A frozen auto triggered node instance cannot be scheduled as expected and does not generate data. After an auto triggered node instance is frozen, its descendant instances cannot be scheduled and run as expected.

      Note
      • Do not perform this operation on the projectname_root node, which is the root node of your workspace. All the instances of auto triggered nodes depend on this node. If this node is frozen, the instances of auto triggered nodes cannot be run.

      • You cannot freeze an auto triggered node that is in one of the following states: Pending (Resources), Pending (Schedule), and Running. If the code of the node is being executed or data quality of the node is being checked, the status of the node can be considered running.

    • Unfreeze: You can perform this operation to unfreeze an auto triggered node instance that is frozen.

      • If the auto triggered node instance is not run, it is automatically run after its ancestor instances are successfully run.

      • If all the ancestor instances of the auto triggered node instance are successfully run, the state of the auto triggered node instance is directly set to Failed. You must manually rerun the auto triggered node instance.

      Note

      The unfreeze operation takes effect only on the current auto triggered node instance. If the auto triggered node for which the instance is generated is frozen, instances that are scheduled to run on the next day are also frozen.

    • View Lineage: You can perform this operation to view the lineage of an auto triggered node instance.

    • View Node Details: You can perform this operation to view the basic information about an auto triggered node instance.

    • View Runtime Log: You can perform this operation to view the run logs of an auto triggered node instance.

    • Change Resource Group: You can perform this operation to change the resource group for scheduling that is used to run an auto triggered node instance. This operation does not cause the change to the resource group for scheduling that is used to run the auto triggered node for which the auto triggered node instance is generated.

Manage auto triggered node instances in a DAG

周期实例
Note

In a DAG, same-cycle scheduling dependencies are presented as solid lines, and cross-cycle scheduling dependencies are presented as dashed lines. For more information, see Scheduling dependencies.

Functionality

Description

Operations that you can perform on the DAG page

You can click DAG in the Actions column of an auto triggered node instance to open the DAG of the instance. You can perform operations such as node aggregation, upstream analysis, and downstream analysis in the areas marked with 1, 2 and 3 in the preceding figure. For more information, see Appendix: Use the features provided in a DAG.

Operations on a single instance

You can right-click your desired auto triggered node instance in a DAG and perform operations on the instance.

  • Show Ancestor Nodes: You can perform this operation to view ancestor node instances of the current auto triggered node instance. You can select this option to have a command of the instances that affect data output of the current node instance. You can view ancestor node instances of an auto triggered node instance by level. A maximum of six levels of ancestor node instances can be displayed at the same time.

  • Show Descendant Nodes: You can perform this operation to view descendant instances of the current auto triggered node instance. You can select this option to have a command of the instances whose data output is affected by the current node instance. You can view descendant instances of an auto triggered node instance by level. A maximum of six levels of descendant instances can be displayed at the same time.

  • View Code: You can perform this operation to view the code of the node for which the current auto triggered node instance is generated in the production environment. If the code of the node does not meet your expectations, you must check whether the latest code of the node is successfully deployed to the production environment.

  • Edit Node: You can perform this operation to go to the configuration tab of the node for which the current auto triggered node instance is generated on the DataStudio page.

  • Resume: You can perform this operation to allow the current auto triggered node instance to resume running from the position where it is stopped. For example, if an instance is run by executing multiple SQL statement segments, the instance resumes running from the SQL statement segment in which the SQL statements fail to be executed.

    Note
    • Only SQL nodes that are run based on a MaxCompute compute engine instance support this operation.

    • If you want to upgrade an exclusive resource group for scheduling that you purchased after January 2021, you can refer to the following instructions: You can click the link for application or join the DataWorks DingTalk group for pre-sales or after-sales services. If you join the DingTalk group, you can directly contact the DingTalk chatbot or contact on-duty technical personnel. The following figure shows the QR code of the DataWorks DingTalk group.技术支持二维码

  • Emergency Operations: You can perform emergency operations on the current auto triggered node instance. The emergency operations take effect only on the current node instance once.

    • Delete Dependencies: You can perform this operation to urgently delete dependencies for the current auto triggered node instance. In most cases, you can delete dependencies for an auto triggered node instance by clicking Delete Dependencies if the ancestor node instances of the instance fail to be run and the ancestor node instances do not affect data output of the instance.

      Note

      You must check whether this operation affects data output based on the code of the node for which the instance is generated and lineage of the instance.

    • Change Priority: You can perform this operation to change the priority of the auto triggered node for which the current auto triggered node instance is generated based on your business requirements. A larger value indicates a higher priority. The priority of a node depends on the priority of the baseline with which the node is associated.

    • Force Rerun: You can perform this operation to forcefully rerun the current auto triggered node instance. You can perform this operation on an auto triggered node instance that is in the Successful, Failed, or Not Run state. This operation is often performed to recover data.

    • Force Heavy Run Downstream: You can perform this operation to forcefully rerun the descendant instances of an auto triggered node instance whose data timestamp is the previous day or the day before the previous day. You can perform this operation on an auto triggered node instance that is in the Successful or Failed state. This operation is often performed to recover data. For more information, see Appendix: Forcefully rerun the descendant instances of an auto triggered node instance.

      Note

      You can use only a RAM user to which a workspace administrator or tenant administrator role is assigned, or an Alibaba Cloud account to forcefully rerun the descendant instances of an auto triggered node instance.

Details about a single instance

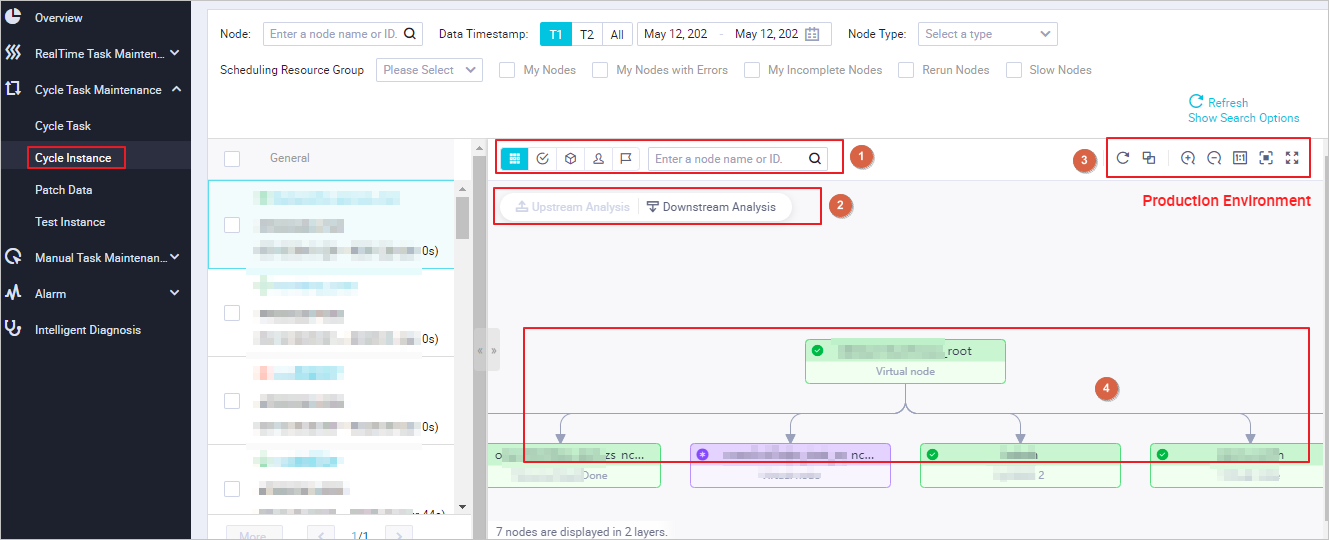

In the area marked with 4 in the preceding figure, you can perform the following operations:

  • View Logs: You can perform this operation to view the execution details of an auto triggered node instance.

  • Show Details: You can perform this operation to view detailed information about an auto triggered node instance on the following tabs: General, Context, Runtime Log, Operation Log, and Code. For more information, see View the details of an auto triggered node instance.

View and manage auto triggered node instances from the workflow perspective

On the Cycle Instance page, click Workflow Perspective to go to the Workflow Perspective tab.

Note

From the workflow perspective, a DAG displays only ancestor and descendant instances that belong to the current workflow for an auto triggered node instance. If the auto triggered node has ancestor and descendant instances that belong to other workspaces or workflows, you can view the dependencies only on the Instance Perspective tab.

View workflows

业务流程视角

Functionality

Description

Status overview of instances in a workflow

The Workflow column displays the status of normal instances (excluding dry-run instances and frozen instances) in the current workflow and the number of instances in each state by using the following icons:

  • 运行中: the number of running instances in the current workflow

  • 成功: the number of successful instances in the current workflow

  • 失败: the number of failed instances in the current workflow

  • 其他: the number of instances that are not in the preceding states in the current workflow

O&M operations on a workflow

You can perform the following operations on a workflow:

  • DAG: You can perform this operation to view the DAG of the workflow. From the workflow perspective, auto triggered node instances that are scheduled by hour or minute in a workflow are displayed in groups by default. The method used to perform operations on an auto triggered node instance in a DAG from the workflow perspective is the same as the method used to perform operations on an auto triggered node instance in a DAG from the instance perspective. For more information, see Manage auto triggered node instances in a DAG.小时分钟

  • Rerun: You can perform this operation to rerun all instances or a specified instance in the workflow.

  • Terminate: You can perform this operation to terminate the instances that are running in the workflow.

  • Freeze: You can perform this operation to freeze the workflow. Instances in the workflow will not be run after the operation is performed.

  • Unfreeze: You can perform this operation to unfreeze a workflow that is frozen. The workflow that is unfreezed is in the Failed state by default, and you can rerun the failed workflow.

  • Set to Successful: You can perform this operation to set the status of the workflow to successful. After the operation is performed, the instances in the workflow are also in the successful state.

View the details of an auto triggered node instance

查看实例详情

Tab

Description

General

On this tab, you can view the scheduling properties of an auto triggered node instance in the production environment. For more information about the basic parameters, see Configure basic properties.

  • Relationship between a node ID and an instance ID:

    If you want to search for all the auto triggered node instances that are generated on the current day for an auto triggered node scheduled by hour or minute, you can enter the ID of the node. If you want to search for a specific auto triggered node instance that is generated on the current day for an auto triggered node scheduled by hour or minute, you can enter the ID of the auto triggered node instance.

  • Instance status interpretation: If the instance is in the Not Run, Pending (Schedule), Pending (Resources), or Freeze state, you can use the intelligent diagnosis feature to quickly troubleshoot issues.

  • Time spent for waiting for resources: If an auto triggered node instance is in the Pending (Resources) state for a long period of time, you can use the intelligent diagnosis feature to identify the node instances that occupy resources at the time when the current node instance is waiting for resources. Then, you can quickly identify the instances on which exceptions occur and troubleshoot issues.

  • Long running duration: If the running duration of an auto triggered node instance is much longer than the average running duration over a historical period of time, you can troubleshoot the issue based on node types:

    • Non-synchronization node: You can consult the owner of the compute engine instance on which the auto triggered node instance generated for a non-synchronization node is run.

    • Batch synchronization node: The running speed of an auto triggered node instance that is generated for a batch synchronization node may be slow in a specific phase or the instance is in the Pending (Resources) state for a long period of time. For more information, see What do I do if a batch synchronization node runs for an extended period of time?

  • Rule-based monitoring: You can view information about the alert rule that is associated with the node for which the current instance is generated. If no alert rule is associated with the node, you can click Create on the right of the Rule Monitoring parameter to quickly create an alert rule to monitor the status of the node. For more information, see Create a custom alert rule.

    Note

    You can view only the information about the alert rule that is used to monitor the status of the node. You cannot view the monitoring rule that is used to monitor the data quality of the node.

  • Baseline monitoring: You can view information about the baseline with which the node that generates the current instance is associated. If the node is not associated with baselines, you can click Create on the right of the Baseline monitoring parameter to quickly create a baseline. For more information, see Manage baselines.

Context

On this tab, you can view all input and output parameters of the node for which an auto triggered node instance is generated. For more information, see Configure input and output parameters.

Runtime Log

On this tab, you can view the running details about an auto triggered node instance.

Operation Log

On this tab, you can view the operation records of a node or an instance, including the operation time, operator, and specific operations.

Code

On this tab, you can view the latest code of the node for which the current auto triggered node instance is generated in the production environment. If the code of the node does not meet your expectations, you must check whether the latest code of the node is successfully deployed to the production environment. For more information, see Deploy nodes.

FAQ
