The Real Time DI page of the DataWorks console displays all real-time synchronization nodes that are committed to and run by the scheduling system.

Go to the Real Time DI page

  1. Log on to the DataWorks console.
  2. In the left-side navigation pane, click Workspaces.
  3. After you select the region in which the workspace that you want to manage resides, find the workspace and click Data Analytics in the Actions column.
  4. On the DataStudio page, click the Icon icon in the upper-left corner and choose All Products > Task Operation > Operation Center.
  5. On the Operation Center page, click the Icon icon next to RealTime Task Maintenance in the left-side navigation pane.
  6. Select Real Time DI from the drop-down list. The Real Time DI page appears.

View real-time synchronization nodes in the node list

The node list displays real-time synchronization nodes that are run by the scheduling system. You can manage these nodes and perform O&M operations on these nodes. For example, you can view the basic information, properties, and running information of a real-time synchronization node. You can also start or undeploy a real-time synchronization node. 11
Section Description
1 In this section, you can specify filter conditions to search for real-time synchronization nodes.

You can specify the following filter conditions to search for nodes: Task node name, Status, Responsible Person, Source Type, Source Name, Operated By, Destination Type, Destination Name, and Data Integration Resource Group.

Note When you search for nodes by node name, the search result is affected by other filter conditions that you specified. Only the nodes that meet all filter conditions are displayed.
2 In this section, you can view the following information about the real-time synchronization node that you want to query:
  • ID: the ID of the node.
  • Task name: the name of the node. You can click the node name to go to the details page of the node.
  • Status: the status of the node. The node can be in one of the following states: Running, Not Running, Waiting for Resources, Exception, and Stop or Stopping.
  • Description: the description of the node.
  • Business delay: the period of time between the current time and the offset from which incremental data starts to be synchronized.
  • Current synchronization site: the offset at which incremental data is being synchronized.
  • Recent operation time: the time when the node was last modified.
  • Recent operator: the user who last modified the node.
  • Source Type: the type of the source.
  • Source data source: the name of the source.
  • Destination Type: the type of the destination.
  • Destination: the name of the destination.
  • Responsible Person: the owner of the workspace to which the node belongs.
  • Current Start Site: the offset from which incremental data starts to be synchronized.
  • Data Read Speed (Bytes per Second): the speed at which the data is read.
  • Recording Speed: the speed at which the read data is written to logs.
  • Data Integration Resource Group: the resource group that is used to run the node.
3 In this section, you can perform the following operations on multiple nodes at a time:
  • Start: Start the nodes.
  • Stop: Stop the running nodes.
  • Undeploy: Undeploy the nodes that are not running, abnormal, or stopped.
  • Configure Alert Rule: Configure alert rules for the nodes.
  • Operation alarm: Delete, enable, or disable alert rules and modify alert rules based on alert metric types.

View the details about a real-time synchronization node

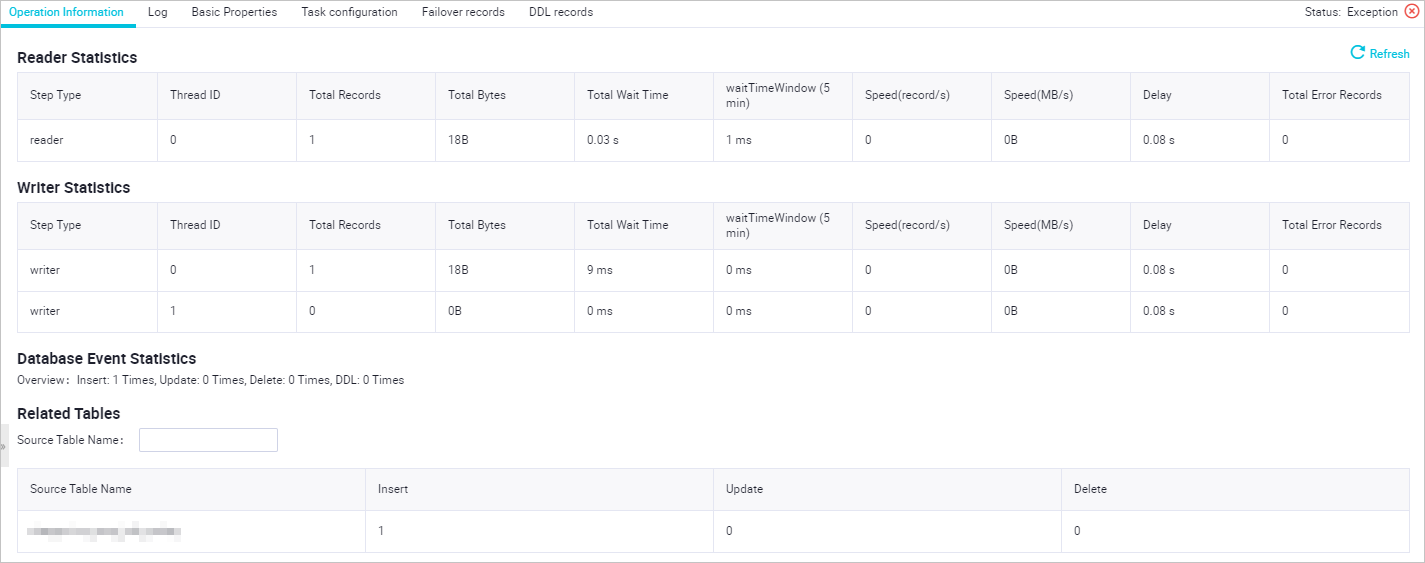

Find the real-time synchronization node that you want to query and click the node name to go to the details panel of the node. In the details panel of the node, you can view the details about the node on the Operation Information, Log, Basic properties, Task configuration, Failover records, and DDL records tabs. 333

Perform operations on a real-time synchronization node

  • Start a real-time synchronization node
    Find the node that you want to start and click Start in the Operation column. Then, the Start dialog box appears. After you configure the parameters in the dialog box, click Confirm. Then, the system starts to run the node. Time range

    If you select Reset site, you must configure the Start time point and Time zone parameters.

  • Stop a real-time synchronization node

    Find the real-time synchronization node that you want to stop and click Stop in the Operation column. Then, click Stop in the message that appears to stop the node.

  • Undeploy a real-time synchronization node

    Find the node that you want to undeploy and click Undeploy in the Operation column. Then, click Undeploy in the message that appears to undeploy the node.

  • View the alert rule settings of a real-time synchronization node
    • Find the node whose alert rule settings you want to view and click Alarm settings in the Operation column. Then, the Alarm event tab appears. On this tab, you can specify Occurrence time, Alarm Level, and Rules to view the alarm events of the node.
    • Click Alarm rules to go to the Alarm rules tab. On this tab, you can view all the alert rules that are created for the node. You can view the metrics and status of an alert rule. You can also modify, pause, delete or test an alert rule. If you want to create an alert rule, click New rule and configure the following parameters.
      22
      Parameter Description Required
      Name The name of the alert rule. Yes
      Description The description of the alert rule. No
      Indicators The type of metric that triggers an alert. The Indicators parameter and the Threshold parameter must be used in pairs. The value of the Threshold parameter varies based on that of the Indicators parameter. Valid values of Indicators: Status, Business delay, Failover, Dirty Data, and DDL statements are not supported. Yes
      Threshold The thresholds for the metrics that are specified by the Indicators parameter.
      • If you set the Indicators parameter to Status, you must specify the interval at which alerts are triggered.
      • If you set the Indicators parameter to Business delay, you must specify a duration for business delay and another duration during which an alert can last after the duration for business delay elapses.
      • If you set the Indicators parameter to Failover, you must specify a duration and the maximum number of failovers that can be performed within the duration before an alert is triggered.
      • If you set the Indicators parameter to Dirty Data, you must specify a duration and the maximum number of dirty data records that are allowed within the duration before an alert is triggered.
      • If you set the Indicators parameter to DDL statements are not supported, you need only to select an alert level.
      Yes
      Alarm interval The minimum interval at which alerts are reported. Default value: 5. Minimum value: 1. Unit: minutes. Yes
      WARNING The method used to receive a notification for a WARNING-level alert. Valid values: Mail, SMS, Telephone, and DingTalk.
      Note
      • Mail: If you want to use a RAM user to receive the notification, you must use an Alibaba Cloud account to add the email address of the RAM user in user information.
      • SMS: If you want to use a RAM user to receive the notification, you must use an Alibaba Cloud account to add the mobile phone number of the RAM user in user information.
      • Telephone: If you want to use a RAM user to receive the notification, you must use an Alibaba Cloud account to add the mobile phone number of the RAM user in user information.
      • DingTalk: If you want to receive the notification by using a DingTalk chatbot, you must configure a DingTalk chatbot for your DingTalk group and add the keyword DataWorks for the DingTalk chatbot.
      No
      CRITICAL The method used to receive a notification for a CRITICAL-level alert. Valid values: Mail, SMS, Telephone, and DingTalk. No
      Receiver (Non-DingTalk) The alert contact to which alert notifications are sent. Yes
