You can convert time and date to improve the efficiency of log query and analysis. This topic describes how to convert and offset the datetime by using functions.

Terms

Domain-specific language (DSL) supports three data types: datetime string, datetime object, and UNIX timestamp.
  • Datetime string
    Datetime strings are used to convert time and date data into readable strings. Datetime strings are divided into two types in DSL syntax:
    • Datetime strings with a time zone, for example, 2019-06-02 18:41:26+08:00.
    • Datetime strings without a time zone, for example, 2019-06-02 10:41:26.
    In a datetime string with a time zone, the time difference is appended to the datetime to indicate the time zone. Examples:
    • 2019-06-02 18:41:26+08:00 indicates that the datetime 2019-06-02 18:41:26 is in the UTC+8 time zone.
    • 2019-06-02 18:41:26-07:00 indicates that the datetime 2019-06-02 18:41:26 is in the UTC-7 time zone.
  • Datetime object

    Datetime objects are instantiated to show data and time. Datetime objects are used to convert time and date data into readable strings.

  • UNIX timestamp
    A UNIX timestamp indicates the number of seconds that have elapsed since 00:00:00 Thursday, 1 January 1970. UNIX timestamps can be used in the following scenarios:
    • Show system time.
      In event logs, the metadata field __time__ indicates the time when logs are generated and the field __receive_time__ indicates the time when Log Service receives logs. The values of these fields use UNIX timestamps to indicate the system time.
      __source__:  1.2.3.4
      __tag__:__receive_time__:  1562741899
      __topic__:
      __time__: 1562731122
    • Perform time-related calculations.
      A UNIX timestamp indicates the number of seconds that have elapsed since 00:00:00 Thursday, 1 January 1970. You can use UNIX timestamps to perform time-related calculations in multiple scenarios. For example:
      • Raw log entries
        time1: 1562741899
        time2: 1562731122
      • DSL orchestration
        e_set("time_diff", op_sub(v("time1"), v("time2")))
      • Result
        time1: 1562741899
        time2: 1562731122
        time_diff: 10777

Use functions to convert data types

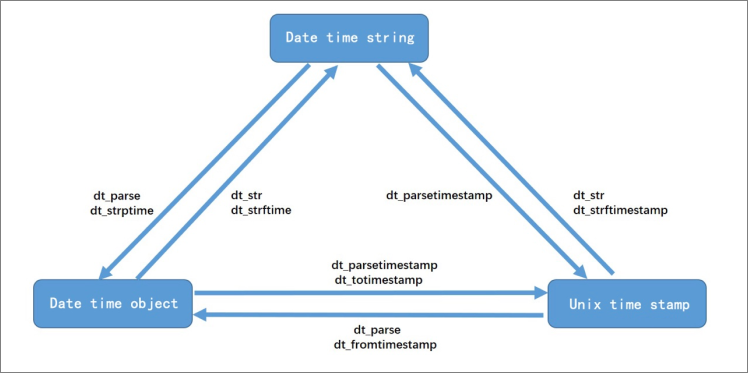

The following figure shows how to use functions to convert the three data types: datetime string, datetime object, and UNIX timestamp.Convert data types The following table describes the conversion scenarios and conversion functions.
Conversion scenario Conversion function
Perform conversions between a datetime object and a UNIX timestamp. Convert a datetime object to a UNIX timestamp.
  • dt_parsetimestamp: converts a datetime object or a datetime string to a UNIX timestamp.
  • dt_totimestamp: converts a datetime object to a UNIX timestamp.
Convert a UNIX timestamp to a datetime object.
  • dt_parse: converts a UNIX timestamp or a datetime string to a datetime object.
  • dt_fromtimestamp: converts a UNIX timestamp to a datetime object.
Perform conversions between a datetime object and a datetime string. Convert a datetime object to a datetime string.
  • dt_str: converts a datetime object, a UNIX timestamp, or a datetime string to a datetime string in a specified format.
  • dt_strftime: converts a datetime object to a datetime string.
Convert a datetime string to a datetime object.
  • dt_parse: converts a datetime string or a UNIX timestamp to a datetime object.
  • dt_strptime: converts a datetime string to a datetime object.
Perform conversions between a datetime string and a UNIX timestamp. Convert a datetime string to a UNIX timestamp.

dt_parsetimestamp: converts a datetime string or a datetime object to a UNIX timestamp.

Convert a UNIX timestamp to a datetime string.
  • dt_str: converts a UNIX timestamp, a datetime object, or a datetime string to a datetime string in a specified format.
  • dt_strftimestamp: converts a UNIX timestamp to a datetime string.
Three conversion scenarios and six conversion functions are described in the preceding table. These conversion functions are divided into the following two types:
  • Automatic conversion functions

    Automatic conversion functions such as dt_parse automatically convert different data types, such as UNIX timestamps, datetime objects, and datetime strings.

  • Dedicated functions

    Automatic conversion functions cannot meet your requirements in some scenarios. For example, automatic conversion functions such as dt_parse cannot parse date types in some custom formats. In this case, you must use the dt_strptime function.

Note For more information, see Date and time functions and Conversion functions.

Perform conversions between a datetime object and a UNIX timestamp

  • Conversion functions
    • dt_parsetimestamp: Recommended. This automatic conversion function converts a datetime object or a datetime string to a UNIX timestamp.
    • e_set: You can set the tz parameter in this function to add a time zone to a datetime object. You can also set the tz parameter to convert a source time zone to a destination time zone.
  • Convert a UNIX timestamp to a datetime string with a time zone.
    • Raw log entries
      time: 1562741899
    • DSL orchestration
      e_set("new_time", dt_parse(v("time"), tz="Asia/Shanghai"))
    • Result
      time: 1562741899
      new_time: 2019-07-10 06:58:19+08:00

Perform conversions between a datetime string and a UNIX timestamp

  • Conversion functions
    • dt_str: converts a UNIX timestamp, a datetime object, or a datetime string to a datetime string in a specified format.
    • dt_strftimestamp: converts a UNIX timestamp to a datetime string.
    • dt_parsetimestamp: converts a datetime string or a datetime object to a UNIX timestamp.
  • Scenario 1: Convert a datetime string without a time zone to a UNIX timestamp.

    For example, to convert 2019-06-02 18:41:26 to a UNIX timestamp, you must specify a time zone for the datetime string. The converted UNIX timestamp varies with time zones.

    • Raw log entries
      time: 2019-06-02 18:41:26
    • DSL orchestration
      e_set("Shanghai_timestamp", dt_parsetimestamp(v("time"), tz="Asia/Shanghai"))
      e_set("Los_Angeles_timestamp", dt_parsetimestamp(v("time"), tz="America/Los_Angeles"))
      e_set("UTC_timestamp", dt_parsetimestamp(v("time")))
    • Result
      Shanghai_timestamp: 1559472086
      Los_Angeles_timestamp: 1559526086
      UTC_timestamp: 1559500886
    Note
    • tz="Asia/Shanghai" indicates that the time indicated by the time field is in the time zone of Shanghai.
    • If no time zone is specified, the UTC+0 time zone is used as the default time zone.
    • For more information about the values of the tz=time zone string parameter, see Time zone list.
  • Scenario 2: Convert a datetime string with a time zone to a UNIX timestamp.

    You do not need to specify the time zone parameter if a datetime string contains a time zone, for example 2019-06-02 18:41:26+08:00.

    • Raw log entries
      China_time : 2019-06-02 18:41:26+08:00
      America_time: 2019-06-02 3:41:26-07:00
      UTC_time : 2019-06-02 10:41:26+00:00
    • DSL orchestration
      e_set("timestamp1", dt_parsetimestamp(v("China_time")))
      e_set("timestamp2", dt_parsetimestamp(v("America_time")))
      e_set("timestamp3", dt_parsetimestamp(v("UTC_time")))
    • Result
      America_time:  2019-06-02 3:41:26-07:00
      China_time:  2019-06-02 18:41:26+08:00
      UTC_time:  2019-06-02 10:41:26+00:00
      timestamp1: 1559472086
      timestamp2: 1559472086
      timestamp3: 1559472086
  • Scenario 3: Convert a custom datetime without a time zone to a UNIX timestamp.
    • Raw log entries
      time1: 2019-07-10 06:58:19
      time2: 2019/07/10 06-58-19
    • DSL orchestration
      e_set("time3", dt_parsetimestamp(v("time1")))
      e_set("time4", dt_parsetimestamp(dt_strptime(v("time2"), "%Y/%m/%d %H-%M-%S")))
    • Result
      time1: 2019-07-10 06:58:19
      time2: 2019/07/10 06-58-19
      time3: 1562741899
      time4: 1562741899

Perform conversions between a datetime object and a datetime string.

  • Conversion functions
    • dt_parse: converts a datetime string or a UNIX timestamp to a datetime object.
    • dt_astimezone: returns a datetime object that contains a time zone.
  • Scenario 1: Convert a datetime string without a time zone to a datetime object in a specified time zone.

    For example, you can convert the 2019-06-02 18:41:26 datetime string to a UNIX timestamp and then convert the UNIX timestamp to a datetime string in another time zone. The following example shows how to convert the datetime in the time zone of Los Angeles to the datetime in the time zone of Shanghai.

    • Raw log entries
      # Assume that the datetime in the time field is the time zone of Los Angeles.
      time : 2019-06-04 2:41:26
    • DSL orchestration
      e_set("timestamp", dt_parsetimestamp(v("time"), tz="America/Los_Angeles"))
      e_set("Shanghai_time", dt_parse(v("timestamp"), tz="Asia/Shanghai"))
    • Result
      Shanghai_time : 2019-06-04 17:41:26+08:00
      time : 2019-06-04 2:41:26
      timestamp:  1559641286
  • Scenario 2: Convert a datetime string without a time zone to a datetime object with a time zone.
    • Raw log entries
      time : 2019-07-10 06:58:19
    • DSL orchestration
      e_set("new_time", dt_parse(v("time"), tz="Asia/Shanghai"))
    • Result
      time: 2019-07-10 06:58:19
      new_time: 2019-07-10 06:58:19+08:00
  • Scenario 3: Convert a datetime string with a time zone to a datetime object in the destination time zone.
    • Raw log entries
      time : 2019-06-04 2:41:26+08:00
    • DSL orchestration
      e_set("new_time", dt_astimezone(v("time"), tz="America/Los_Angeles"))
    • Result
      new_time : 2019-06-03 11:41:26-07:00
      time : 2019-06-04 2:41:26+08:00

Offset datetimes

  • Conversion functions
    • dt_add function: The following syntax shows the parameters of this function.
      dt_add (field name, dt1 = None, dt2 = None, year (s) = None, month (s) = None, day (s) = None, hour (s) = None, minute (s) = None, second (s) = None, microsecond (s) = None, weeks (s) = None, weekday = None)
      The parameters that end with (s), such as year (s), month (s), and day (s), have two patterns. For example, year (s) can be year and years, and month (s) can be month and months. Take year and years as examples. If year is used in the syntax, the value of year replaces the value of year in raw log entries. If years is used in the syntax, the value of years is added to the value of year in raw log entries. You must use the dt_add function at the same time. This function allows you to add a value, subtract a value, or overwrite the value of a datetime.
    • The weekday parameter in the dt_add function is used together with the dt_MO and dt_TU parameters to offset a specified weekday. For more information, see dt_MO.
  • Scenario 1: Offset a datetime by year and month.

    The following example shows how to offset a datetime by year and month.

    • Raw log entries
      time1 : 2019-06-04 2:41:26
    • DSL orchestration 1
      e_set("time2", dt_add(v("time1"), year=2018))
    • Result 1
      time1 : 2019-06-04 2:41:26
      time2 : 2018-06-04 02:41:26
    • DSL orchestration 2
      e_set("time2", dt_add(v("time1"), years=2018))
    • Result 2
      time1 : 2019-06-04 2:41:26
      time2 : 4037-06-04 02:41:26
  • Scenario 2: Offset a datetime by week
    The following example shows how to offset a datetime by week.
    • Raw log entries
      # June 4, 2019 is a Tuesday.
       time1 : 2019-06-04 2:41:26
    • DSL orchestration
      # Return the datetime of the next Monday after time1.
      e_set("nex_Monday", dt_add(v("time1"), weekday=dt_MO(1)))

      # Return the datetime of the last Tuesday before time1.
      e_set("previous_Tuesday", dt_add(v("time1"), weekday=dt_TU(op_neg(1))))

      # Return the datetime of the second Saturday after time1.
      e_set("nex_next_Saturday", dt_add(v("time1"), weekday=dt_SA(2)))

      # Return the datetime of the second to last Sunday before time1.
      e_set("previous_previous_Sunday", dt_add(v("time1"), weekday=dt_SU(op_neg(2))))
    • Result
      next_Monday : 2019-06-10 02:41:26
      next_next_Saturday : 2019-06-15 02:41:26
      previous_Tuesday : 2019-06-04 2:41:26
      previous_previous_Sunday : 2019-05-26 02:41:26
      time1 : 2019-06-04 2:41:26
    Note If time 1 is a Tuesday, the last Tuesday and the next Tuesday are the days that are one week before or after time 1.
