This topic provides an overview of the Dashboard function in RDS for MySQL, including how to view and compare performance trends, customize monitoring dashboards, detect exceptions, and view the instance topology.

Prerequisites

The MySQL version and RDS edition are as follows:

  • MySQL 8.0 High-availability Edition
  • MySQL 5.7 High-availability Edition/Enterprise Edition
  • MySQL 5.6
  • MySQL 5.5

View the Performance Trend page

  1. Log on to the RDS console.
  2. Select the target region.Select a region
  3. Find the target RDS instance and click the instance ID.
  4. In the left-side navigation pane, choose CloudDBA > Dashboard.

View performance trends

The Performance Trend page displays changes in the performance monitoring data of the selected RDS instance.

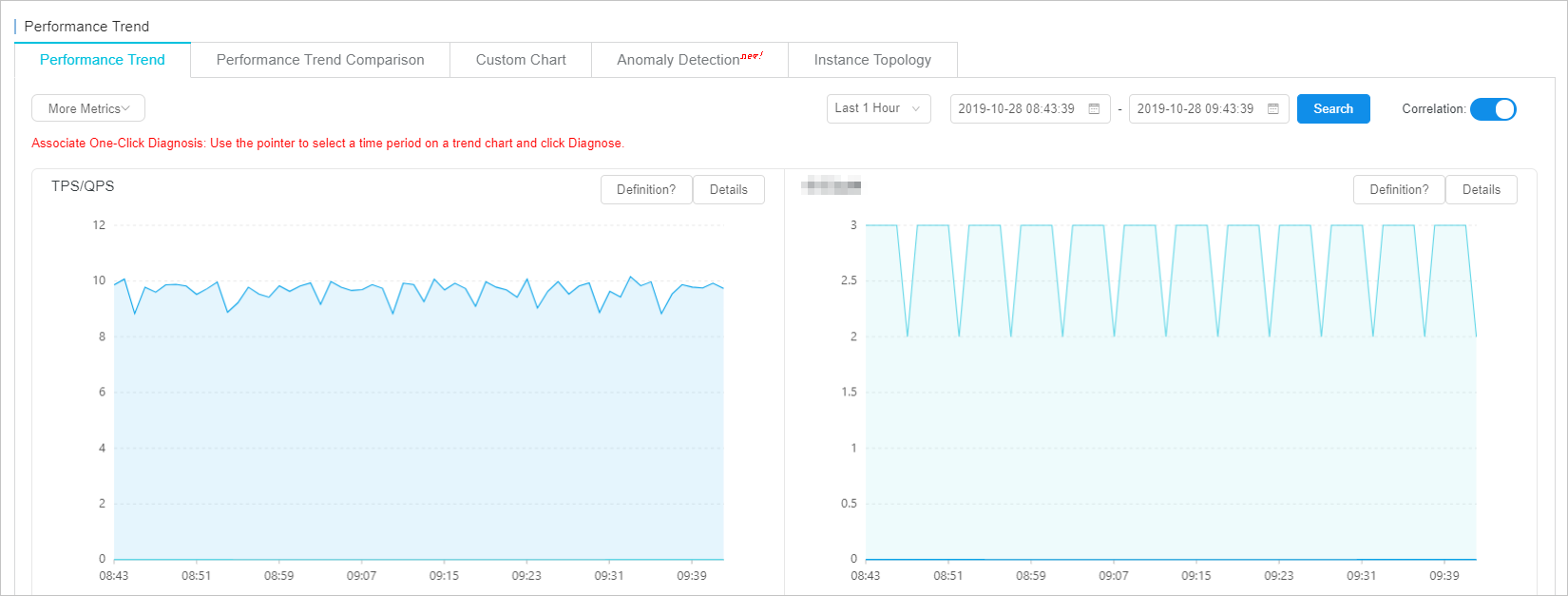

Performance trends
  • You can click Definition? to view the definition of a specific performance metric.
  • You can click Details to view detailed changes in a specific performance metric.
  • You can turn on the Correlation switch to view all associated performance metrics within the same time period when you view a performance metric.
  • You can click More Metrics in the upper-left corner to select the performance metrics to be associated with the current performance metric.

Compare performance trends

You can compare the trends of a performance metric between any two time periods.

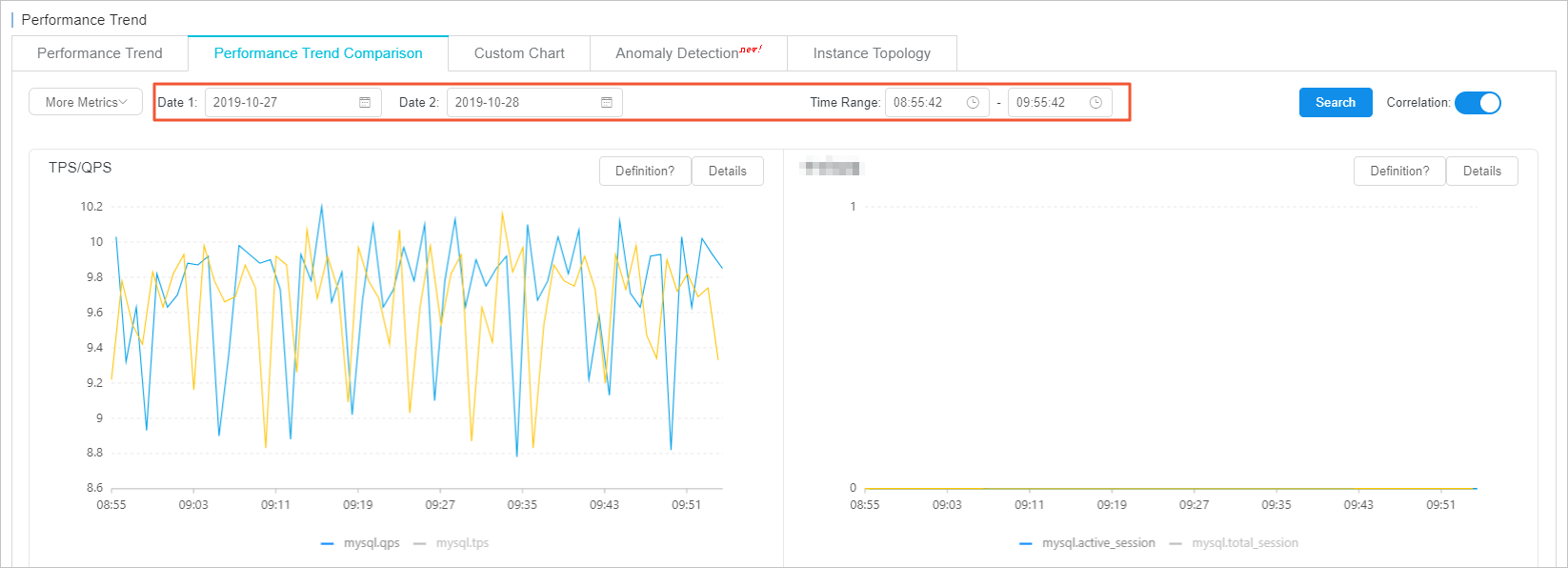

Compare performance trends between two time periods

Customize charts

You can customize more than one monitoring dashboard to place more than one performance metric in one chart. This helps to better locate problems.

If this is the first time that you use this function, follow these steps to create a monitoring dashboard:

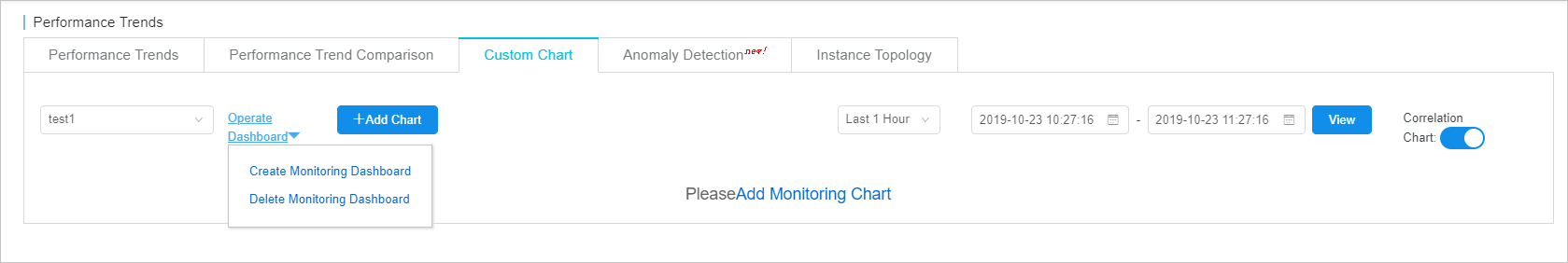

  1. On the Custom Chart tab, click Add Monitoring Dashboard. In the displayed dialog box, enter the dashboard name and click OK.Add a dashboard
  2. Click Add Monitoring Chart, enter the chart name, select performance metrics (after you do so, the Charts section displays the selected performance metrics in line charts), and then click OK.Add a monitoring chart

After the creation is complete, you can view the monitoring dashboard, switch to another monitoring dashboard, and manage the monitoring dashboards through the menu provided in the upper-left corner.

Manage dashboards

Detect exceptions

On the Anomaly Detection tab, the system automatically detects exceptions and predicts performance changes. The system marks each exception by using a red dot. All exceptions are listed in the lower section. You can click the diagnosis button to view the exception information.Exception diagnosis

View the instance topology

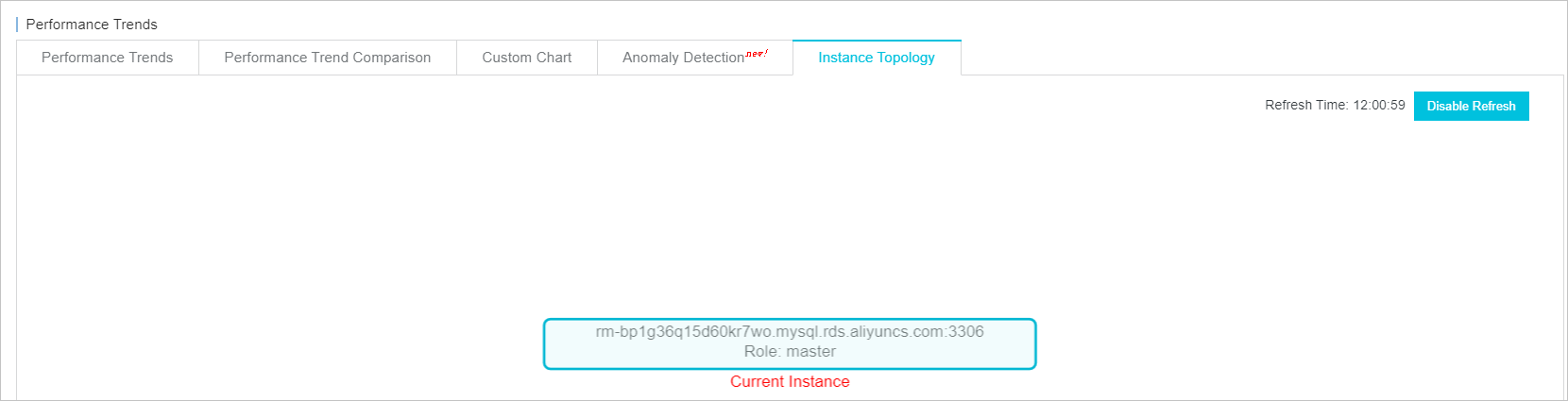

The Instance Topology tab displays the topology and endpoint of the selected RDS instance.Instance topology
