You can upgrade a Knative Service by adding a revision to Knative. This topic describes how to create a revision for a Knative Service. If you want to roll back from a newly released application version to an earlier version, you only need to switch inbound traffic to the application of the specified version.

Background information

When you deploy a Knative Service, the system creates a revision named stock-service-example-v1 and forwards all inbound traffic to stock-service-example-v1.

Procedure

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Applications > Knative.
  5. On the Services tab, select the namespace, find the Service, and then click Details in the Actions column.
  6. In the upper-corner of the details page, click Create Revision.
  7. On the Create Revision page, set the required parameters.
    1. Configure the parameters on the Basic Information wizard page.
      For more information about how to configure the basic settings of a revision, see Set revision parameters.
    2. Configure the parameters on the Traffic Splitting Settings wizard page.
      • Revisions: A revision is created each time a Knative Service is released.
      • Percent %: The percentage of traffic that is forwarded to a revision. The total sum of the traffic percentage values specified for all revisions must be 100%.
  8. Click Create.

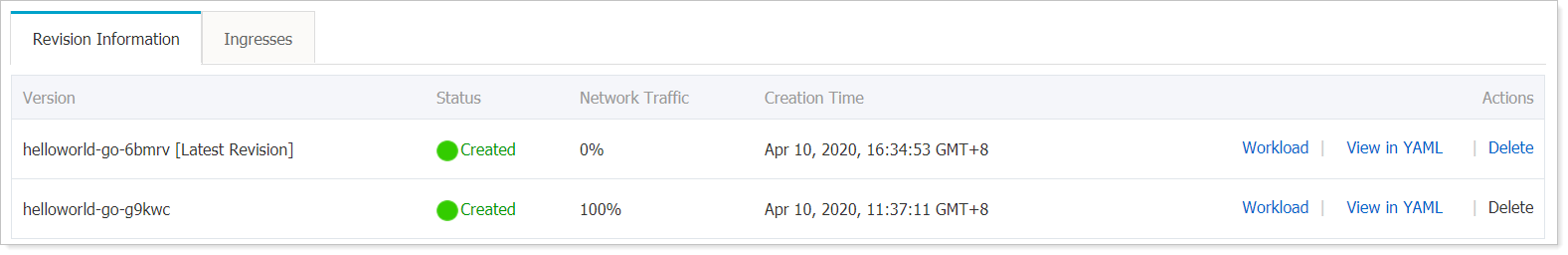

    On the details page of the Knative Service, you can view information about the newly created revision on the Revision Information tab.

Additional information

After a revision is created, you can delete the revision.

  1. Log on to the ACK console.
  2. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  3. In the left-side navigation pane of the details page, choose Applications > Knative.
  4. On the Services tab, select the namespace to which the Service belongs and click the name of the Service.
  5. In the Revision Information section, find the revision that you want to delete and click Delete in the Actions column.
  6. In the Delele Revision message, click OK.
