If you need to access the PrivateZone service through local branches of a Cloud Connect Network (CCN) in a Cloud Enterprise Network (CEN) instance, you must grant permissions to the CCN.

Same CEN, VPC, and CCN account

If the CCN, the VPC that is configured with PrivateZone, and the CEN instance all belong to the same account, you need to click Authorization on the PrivateZone tab, and grant permissions to CCN by following the prompts. The following table provides example information of this scenario.

Resource User ID
CEN 111111
VPC 111111
CCN 111111

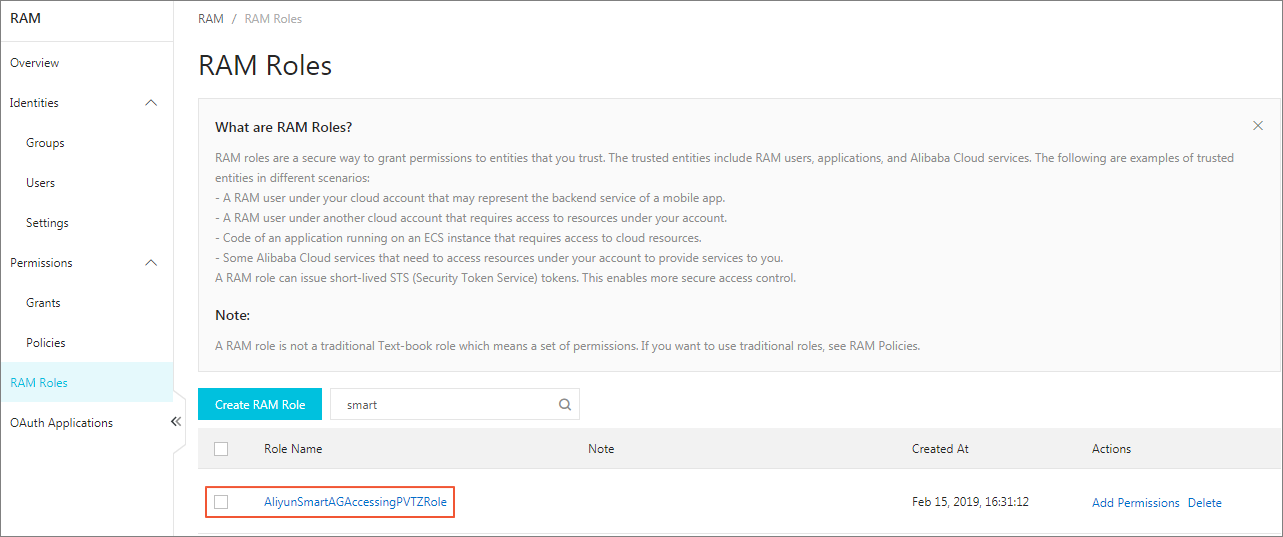

After you grant permissions to the CCN, the system automatically creates a RAM role named AliyunSmartAGAccessingPVTZRole. You can view the RAM role on the RAM Roles page of the RAM console.

Same CEN and VPC account, but different CCN account

If the CEN instance and the VPC that is configured with PrivateZone belong to the same account, but the CCN belongs to a different account, you need to modify the authorization policy. The following table provides example information of this scenario.

Resource User ID
CEN 111111
VPC 111111
CCN 333333
To grant permissions to the CCN, follow these steps:
Notice You need to use the account to which the VPC belongs.
  1. Log on to the CEN console.
  2. Click the ID of the target CEN instance.
  3. Click the PrivateZone tab, and then click Authorization. Grant permissions to the CCN by following the prompts.
  4. Go to the RAM console.
  5. In the left-side navigation pane, click RAM Roles.
  6. In the search box, enter AliyunSmartAGAccessingPVTZRole and click the displayed role name.
  7. Click the Trust Policy Management tab and then click Edit Trust Policy.

  8. In Service, add a record of account ID of the CCN@smartag.aliyuncs.com and click OK.

Same CCN and VPC account, but different CEN account

If the CCN and the VPC that is configured with PrivateZone belong to the same account, but the CEN instance belongs to a different account, you need to create a RAM role and grant it permissions by using the account of the VPC. The following table provides example information of this scenario.

Resource User ID
CEN 333333
VPC 111111
CCN 111111

To grant permissions to the CCN, follow these steps:

  1. Log on to the RAM console by using the credentials of the account to which the VPC belongs.
  2. In the left-side navigation pane, click RAM Roles.
  3. Click Create RAM Role, configure it by referring to the following description, and then click OK.
    • Select type of trusted entity: Select Alibaba Cloud Service.
    • Select Trusted Service: Select smartag Smart Access Gateway.
    • RAM Role Name: Enter AliyunSmartAGAccessingPVTZRole.

  4. Click the created RAM role name.
  5. On the Permissions tab, click Add Permissions.
  6. In the search box, enter pvtz and click the displayed AliyunPvtzReadOnlyAccess policy.

  7. Go back to the RAM role details page, and click the Trust Policy Management tab to view the permission information.

Three different accounts

If the CCN, the VPC that is configured with PrivateZone, and the CEN instance belong to three different accounts, you need to complete the following tasks:
Resource User ID
CEN 111111
VPC 222222
CCN 333333
  1. Use the account of the VPC to create a RAM role and grant it permissions. For more information, see Same CCN and VPC account, but different CEN account.

  2. Use the account of the VPC to modify the policy associated with the corresponding RAM role by adding the CCN service in the format of CCN account ID@aliyuncs.com. For more information, see Same CEN and VPC account, but different CCN account.

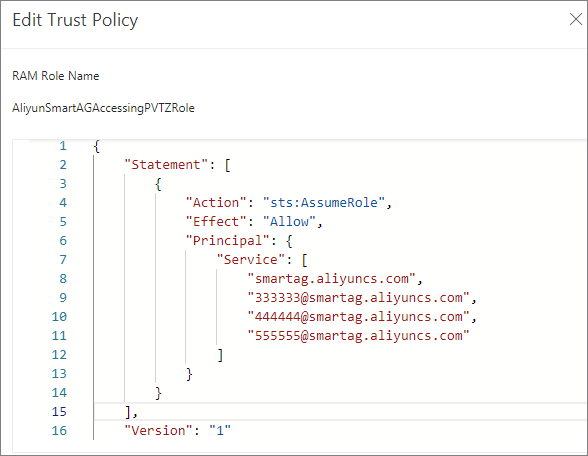

To allow multiple CCNs to access the PrivateZone service, add all the CCNs to the trust policy, as shown in the following figure.
Resource User ID
CEN 111111
VPC 222222
CCN 333333
CCN 444444
CCN 555555
