IoT Platform:Alert notifications

Last Updated:Oct 27, 2023

If the resource usage of IoT Platform reaches the specified threshold value in an alert rule, an alert is triggered. Then, Alibaba Cloud sends an alert notification to the specified alert group.

Notifications for threshold-triggered alerts

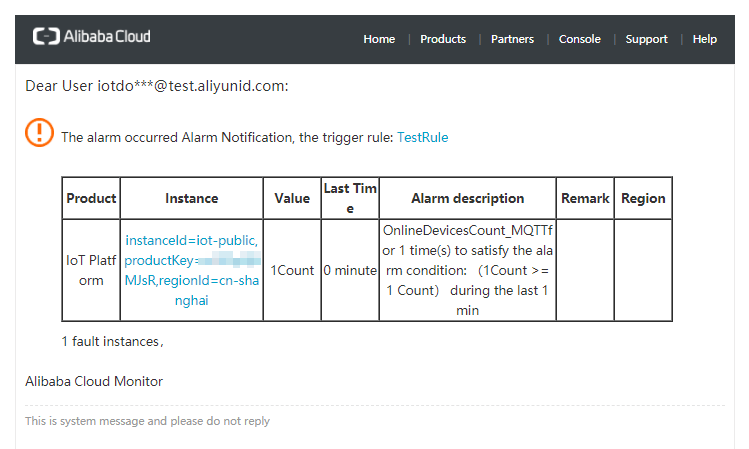

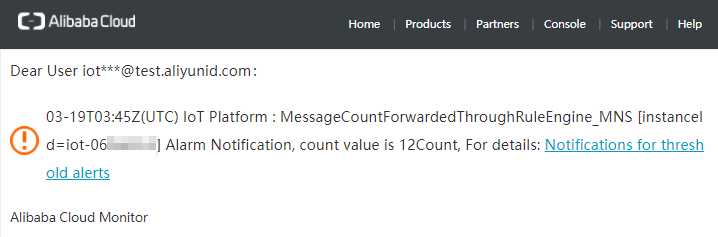

If an alert is triggered based on a threshold-triggered alert rule, an alert notification email whose content is similar to the following information is sent to the specified alert contacts.

报警邮件

Fields of an alert notification email

Field

Description

IoT Platform instance

The information about the instance for which the alert is triggered. The information contains the ProductKey (productKey), instance ID (instanceId), and region ID (regionId).

Metric

The code of the metric that you selected when you configured the Rule Description parameter.

In this example, MessageCountForwardedThroughRuleEngine_MNS indicates the number of messages that are forwarded by the rules engine. If the number of messages exceeds the specified threshold value in a specified period of time, an alert is triggered.

For more information about metric codes, see the following table: Metric codes.

Alert time

The time when the alert was triggered.

Count

The total number of messages, the number of forwarded messages, or the number of connected devices that are counted for the specified metric.

Duration

The period of time for which the alert exists.

Rule details

The details of the alert rule that you configured in the CloudMonitor console.

Metric codes

IoT Platform: basic metrics

Code

Description

MessageCountForwardedThroughRuleEngine_DATAHUB

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to DataHub.

MessageCountForwardedThroughRuleEngine_FC

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to Function Compute.

MessageCountForwardedThroughRuleEngine_KAFKA

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to ApsaraMQ for Kafka.

MessageCountForwardedThroughRuleEngine_LINDORM

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to Lindorm.

MessageCountForwardedThroughRuleEngine_MNS

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to Message Service (MNS).

MessageCountForwardedThroughRuleEngine_MQ

The number of messages forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to ApsaraMQ for RocketMQ.

MessageCountForwardedThroughRuleEngine_OTS

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to Tablestore (OTS).

MessageCountForwardedThroughRuleEngine_RDS

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to ApsaraDB RDS.

MessageCountForwardedThroughRuleEngine_REPUBLISH

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data from the current topic to other topics.

MessageCountForwardedThroughRuleEngine_TSDB

The number of messages that are forwarded by the rules engine. The value equals the number of times that the rules engine forwards data to Lindorm.

MessageCountSentFromIoT_HTTP_2

The number of messages that are sent from IoT Platform over HTTP/2.

MessageCountSentFromIoT_MQTT

The number of messages that are sent from IoT Platform over Message Queuing Telemetry Transport (MQTT).

MessageCountSentToIoT_CoAP

The number of messages that are sent to IoT Platform over Constrained Application Protocol (CoAP).

MessageCountSentToIoT_HTTP

The number of messages that are sent to IoT Platform over HTTP.

MessageCountSentToIoT_HTTP/2

The number of messages that are sent to IoT Platform over HTTP/2.

MessageCountSentToIoT_MQTT

The number of messages that are sent to IoT Platform over MQTT.

OnlineDevicesCount_MQTT

The number of devices that are connected to IoT Platform over MQTT in real time.

OnlineDevicesCount_HTTP/2

The number of online devices that are connected to IoT Platform over HTTP/2 in real time.

OnlineDeviceInstanceWatermark

The threshold percentage of online devices that are connected to an IoT Platform instance. The value is calculated by using the following formula: Number of online devices that are connected to the instance/Number of online devices that can be connected to the instance × 100%.

DeviceEventReportError

The number of event submission failures.

DevicePropertyReportError

The number of property submission failures.

DevicePropertySettingError

The number of property configuration failures.

DeviceServiceCallError

The number of service call failures.

DeviceCount_Product

The number of products that are created for the product.

MessageCountPerMinute

The number of upstream and downstream messages that the instance sends and receives per minute.

RuleEngineTransmitCountPerMinute

The number of messages that the rules engine forwards for the instance per minute.

IoT Platform: Enterprise Edition instances

Code

Description

DeviceNum_instance

The number of online devices. The percentage of devices that are created in IoT Platform. The value is calculated by using the following formula: Number of devices that are created in IoT Platform/Number of devices that can be created for the instance × 100%.

LinkAnalyticsCU

The data processing unit.

LinkAnalyticsStorage

The offline storage space.

MessageWatermarkTps_instance

The transactions per second (TPS) of upstream and downstream messages. The value of the metric is a percentage. The value is calculated by using the following formula: Current TPS at which upstream and downstream messages are consumed/Specified TPS at which upstream and downstream messages can be consumed when you purchased the Enterprise Edition instance × 100%.

OtaCommercialUpgradeCount

The number of valid device updates.

RuleEngineWatermarkTps_instance

The message forwarding TPS. The value of the metric is a percentage. The value is calculated by using the following formula: Current TPS at which the rules engine forwards messages/TPS at which the rules engine can forward messages for the instance × 100%.

HotStorageReadIops

The read IOPS of the time series storage.

HotStorageWriteIops

The write IOPS of the time series storage.

HotStorageCapacity

The time series storage space.

message_elastic_tps_instance

The number of elastic upstream and downstream messages.

message_elastic_transmit_instance

The number of elastic messages that are forwarded.

IoT Platform: AMQP consumer groups

Code

Description

AMQP_Msg_Accumulate

The number of accumulated messages.

AMQP_Msg_Consume_rate

The message consumption rate.

Notifications for event-triggered alerts

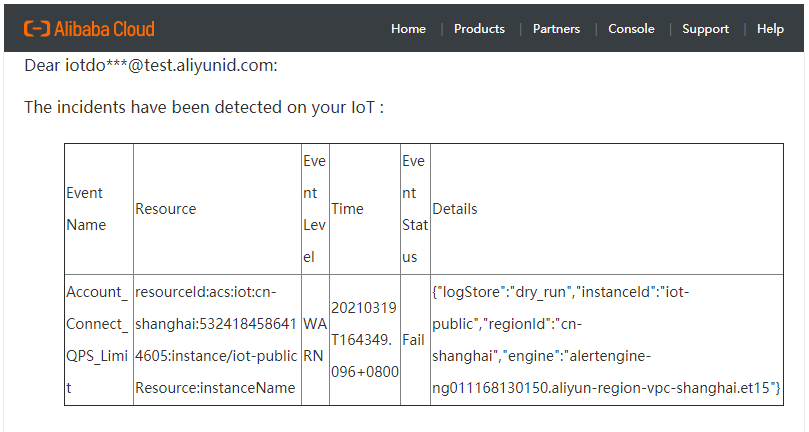

If an event-triggered alert rule is triggered, an alert notification email whose content is similar to the following information is sent to the specified alert contacts.

报警邮件

Fields of an alert notification email

Field

Description

Event Name

The code of the event for which the alert is triggered. In this example, the code Device_Connect_QPM_Limit indicates that the number of connection requests that can be sent per minute by a device has reached the upper limit.

For more information about event codes, see the following table: Event codes.

Resource

The resource for which the alert is triggered.

  • resourceId: the ID of the resource.

    Format:

    acs:iot:${regionId}::instance/${instanceId}/product/${productKey}/device/${deviceName}
  • Resource name: the ID of the instance. iot-public indicates a public instance.

  • Group ID: the ID of the group to which the device belongs. If the device does not belong to a group, the value of the field is an empty string.

Level

All events trigger WARN-level alerts.

Time

The time when the event occurred

Event Status

All events are in the Fail state. This state indicates that the subsequent request failed because the number of connection requests that are sent per minute or the number of messages that are sent per second reaches the upper limit.

Details

The information about the resource that triggers the alert. The information is in the JSON format. The information contains the region ID (regionId), instance ID (instanceId), ProductKey (productKey), and DeviceName (deviceName). The productKey and deviceName parameters are included in the notification only if the number of connection requests that can be sent per minute, the number of messages that can be sent per second, or the number of messages that can be received per second by a device reaches the upper limit.

Event codes

Code

Description

Device_Connect_QPM_Limit

The number of connection requests that can be sent per minute by a device reaches the upper limit.

Device_Uplink_QPS_Limit

The number of messages that can be sent per second by a device reaches the upper limit.

Device_Downlink_QPS_Limit

The number of messages that can be received per second by a device reaches the upper limit.

Account_Connect_QPS_Limit

The number of connection requests that the current account can send to IoT Platform per second reaches the upper limit.

Account_Uplink_QPS_Limit

The number of requests that the current account sends per second reaches the upper limit.

Account_Downlink_QPS_Limit

The number of requests that the current account sends to devices per second reaches the upper limit.

Account_RuleEngine_DataForward_QPS_Limit

The number of requests that the current account sends to the rules engine per second reaches the upper limit.
