This topic describes how to install the SAG-1000 device on an office desk or in a server rack.

Preparations

To install the SAG-1000 device in a server rack, you must prepare the following tools:
  • A cross screwdriver.
  • Anti-static wrist straps.
  • Screws that match the SAG-1000 device and the server rack.

Install the SAG-1000 device on an office desk

If you do not have a standard server rack, you can install the SAG-1000 device on an office desk. During the installation, pay attention to these issues:
  • Make sure that the desk is stable and grounded well.
  • Make sure that the SAG-1000 device has enough space to dispel heat.
  • Do not place heavy objects on the SAG-1000 device.

Install the SAG-1000 device in a server rack

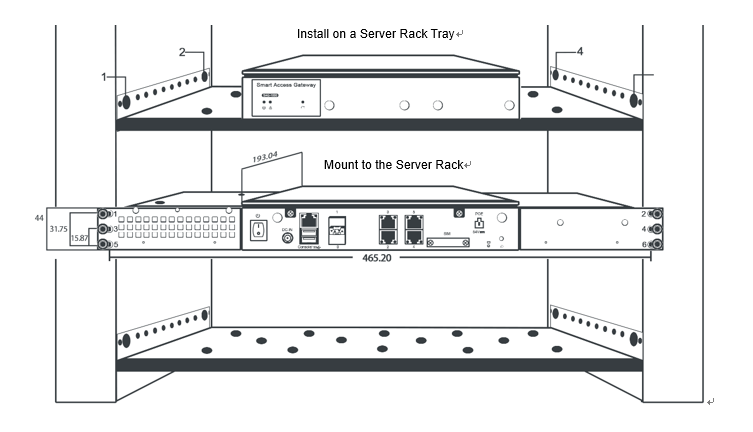

You can install the SAG-1000 device on a server rack tray in the server rack. Alternatively, you can mount it to the server rack.
  • Install the SAG-1000 device on a server rack tray
    1. Screw the server rack tray to the server rack.
    2. Place the SAG-1000 device on the server rack tray.
  • Mount the SAG-1000 device to the server rack
    Note Before installation, you must purchase an adapter and cover from specified manufacturers.
    1. Screw one side of the adapter to the SAG-1000 device, as shown in the following figure:
    2. Screw the cover to the adapter, as shown in the following figure:
    3. Screw the other side of the adapter to the SAG-1000 device. The SAG-1000 device has the front panel and I/O panel. Each panel is shown in the following figure after you complete the installation.
    4. Screw the SAG-1000 device to the server rack through the mounting bracket to make sure that the SAG-1000 device is horizontal and firmly installed.
