ApsaraDB for MongoDB:Use MongoShake to perform one-way synchronization between ApsaraDB for MongoDB instances

Last Updated:Feb 06, 2024

You can use the open source MongoShake tool developed by Alibaba Cloud to synchronize data between MongoDB databases. This tool can be used in scenarios such as data analysis, disaster recovery, and active-active replication. This topic describes how to configure MongoShake to synchronize data between ApsaraDB for MongoDB replica set instances in real time.

MongoShake overview

MongoShake is a general-purpose Platform as a Service (PaaS) tool, which is written in the Go language by Alibaba Cloud. MongoShake reads the oplogs of a MongoDB database and replicates data based on the oplogs to meet specific requirements.

MongoShake also allows you to subscribe to and consume MongoDB logs. You can connect to MongoShake by using multiple methods such as SDKs, Kafka, and MetaQ. MongoShake is suitable for scenarios such as log subscription, data synchronization across data centers, and asynchronous cache eviction.

Note

For more information about MongoShake, visit MongoShake homepage on GitHub.

Supported databases

Source database

Destination database

Self-managed MongoDB database hosted on Elastic Compute Service (ECS)

Self-managed MongoDB database hosted on ECS

Self-managed MongoDB database hosted on an on-premises machine

Self-managed MongoDB database hosted on an on-premises machine

ApsaraDB for MongoDB instance

ApsaraDB for MongoDB instance

MongoDB database on a third-party cloud

MongoDB database on a third-party cloud

Precautions

  • Do not perform data definition language (DDL) operations on the source database before full data synchronization is complete. Otherwise, data inconsistency may occur.

  • You cannot use MongoShake to synchronize data in the admin and local databases.

Required permissions on databases

Database

Required permissions

Source ApsaraDB for MongoDB instance

readAnyDatabase permissions, read permissions on the local database, and read/write permissions on the mongoshake database

Note

The mongoshake database is created by MongoShake at the source when the incremental synchronization task starts.

Destination ApsaraDB for MongoDB instance

readWriteAnyDatabase permission or readWrite permission on the destination database

Note

For more information about how to create and authorize MongoDB users, see Manage user permissions on MongoDB databases or visit db.createUser().

Preparations

  1. For best synchronization performance, make sure that the source ApsaraDB for MongoDB replica set instance resides in a VPC. If the source instance resides in the classic network, switch the network type to VPC. For more information, see Switch the network type from classic network to VPC.

  2. Create an ApsaraDB for MongoDB replica set instance as the synchronization destination. Select the same VPC as the one used by the source ApsaraDB for MongoDB replica set instance to minimize network latency. For more information, see Create a replica set instance.

  3. Create an ECS instance to run MongoShake. Select the same VPC as the one used by the source ApsaraDB for MongoDB instance to minimize network latency. For more information, see Create an ECS instance.

  4. Add the private IP address of the ECS instance to the whitelists of the source and destination ApsaraDB for MongoDB instances. Make sure that the ECS instance can connect to the source and destination ApsaraDB for MongoDB instances. For more information, see Modify the IP address whitelist of an ApsaraDB for MongoDB instance.

Note

If the network type does not meet the preceding requirements, you can apply for public endpoints for the source and destination ApsaraDB for MongoDB instances. Then, add the public IP address of the ECS instance to the whitelists of the source and destination ApsaraDB for MongoDB instances. This way, you can synchronize data by using the Internet. For more information, see Apply for a public endpoint and Modify the IP address whitelist of an ApsaraDB for MongoDB instance.

Procedure

By default, the /test/mongoshake directory is used as the installation directory for MongoShake in this example.

  1. Log on to an Elastic Compute Service (ECS) instance.

    Note

    You can select a connection method based on your business scenario. For more information, see Connection methods.

  2. Run the following command to download the MongoShake package and rename the package as mongoshake.tar.gz:

    wget "http://docs-aliyun.cn-hangzhou.oss.aliyun-inc.com/assets/attach/196977/jp_ja/1608863913991/mongo-shake-v2.4.16.tar.gz" -O mongoshake.tar.gz
    Note

    The download URL for MongoShake V2.4.16 is used in this example. To download the latest version of MongoShake, visit Releases.

  3. Run the following command to decompress the MongoShake package to the /test/mongoshake directory:

    tar zxvf mongoshake.tar.gz && mv mongo-shake-v2.4.16 /test/mongoshake && cd /test/mongoshake/mongo-shake-v2.4.16
  4. Run the vi collector.conf command to modify the collector.conf configuration file of MongoShake. The following table describes the parameters that you must configure to synchronize data between ApsaraDB for MongoDB instances.

    Parameter

    Description

    Example

    mongo_urls

    The connection string URI of the source ApsaraDB for MongoDB instance. The database account is test and the database is admin.

    Note
    • We recommend that you use a VPC endpoint to minimize network latency.

    • For more information about the format of a connection string URI, see Connect to a replica set instance.

    mongo_urls = mongodb://test:****@dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717,dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717

    Note

    The password cannot contain at signs (@). Otherwise, the connection may fail.

    tunnel.address

    The connection string URI of the destination ApsaraDB for MongoDB instance. The database account is test and the database is admin.

    Note
    • We recommend that you use a VPC endpoint to minimize network latency.

    • For more information about the format of a connection string URI, see Connect to a replica set instance.

    tunnel.address = mongodb://test:****@dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717,dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717

    Note

    The password cannot contain at signs (@). Otherwise, the connection may fail.

    sync_mode

    The data synchronization method. Valid values:

    • all: performs both full data synchronization and incremental data synchronization.

    • full: performs only full data synchronization.

    • incr: performs only incremental data synchronization.

    Note

    The default value is incr.

    sync_mode = all

    Note

    For more information about all parameters in the collector.conf file, see the Appendix section of this topic.

  5. Run the following command to start the data synchronization task and generate the log information:

    ./collector.linux -conf=collector.conf -verbose
  6. Check the log information. If the following log is displayed, it indicates that the full data synchronization is complete and the incremental data synchronization starts.

    [09:38:57 CST 2019/06/20] [INFO] (mongoshake/collector.(*ReplicationCoordinator).Run:80) finish full sync, start incr sync with timestamp: fullBeginTs[1560994443], fullFinishTs[1560994737]

Monitor the MongoShake status

When the incremental data synchronization starts, you can open a command line window to monitor MongoShake.

cd /test/mongoshake && ./mongoshake-stat --port=9100
Note

mongoshake-stat is a Python script. Before you run the script, make sure that Python 2.7 is installed. For more information, visit Python official website.

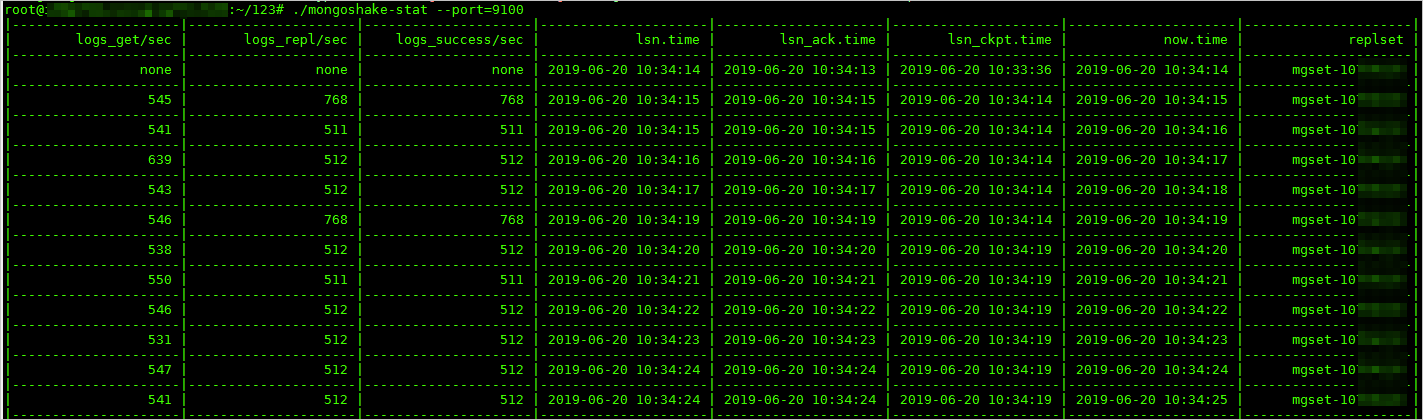

The following figure shows sample monitoring information about MongoShake. Sample monitoring information about MongoShake

The following table describes the parameters.

Parameter

Description

logs_get/sec

The number of oplogs obtained per second.

logs_repl/sec

The number of oplogs for replay operations performed per second.

logs_success/sec

The number of oplogs for successful replay operations per second.

lsn.time

The time when the last oplog was sent.

lsn_ack.time

The time when the destination database acknowledges the write operation.

lsn_ckpt.time

The time when the last checkpoint was generated.

now.time

The current time.

replset

The name of the replica set instance where the source database resides.

Appendix

Table 1. All parameters in the collector.conf file

Category

Parameter

Description

Example

N/A

conf.version

The version of the configuration file. Do not change the value.

conf.version = 4

Global configuration options

id

The ID of the synchronization task. This value is customizable. The global configuration includes the log file name, the name of the database that stores the checkpoint information, and the name of the destination database.

id = mongoshake

master_quorum

Specifies whether the MongoShake node is the active node in high availability scenarios. If you use the active MongoShake node and standby MongoShake node to synchronize data from the same database, you must set this parameter to true for the active MongoShake node.

Valid values:

  • true: The domain name list contains only domain names with HTTPS enabled.

  • false

Note

Default value: false.

master_quorum = false

full_sync.http_port

The HTTP port used to view the status of full data synchronization in MongoShake over the Internet.

Note

Default value: 9101.

full_sync.http_port = 9101

incr_sync.http_port

The HTTP port used to view the status of incremental data synchronization in MongoShake over the Internet.

Note

The default value is 9100.

incr_sync.http_port = 9100

system_profile_port

The profiling port used to view internal stack information.

system_profile_port = 9200

log.level

The level of the logs to be generated. Valid values:

  • error: generates logs that contain error messages.

  • warning: generates logs that contain warnings.

  • info: generates logs that indicate system status.

  • debug: generates logs that contain debugging information.

Default value: info.

log.level = info

log.dir

The directory where the log file and PID file are stored. If you do not specify a value, the log file and PID file are stored in the logs directory in the working directory.

Note

This parameter must be set to an absolute path.

log.dir = ./logs/

log.file

The name of the log file. This value is customizable.

Note

The default value is collector.log.

log.file = collector.log

log.flush

Specifies whether to display every log entry on the screen. Valid values:

  • true: Every log entry is displayed on the screen. This ensures that no log entry is missing on the screen but compromises the performance.

  • false: Not every log entry is displayed on the screen. This ensures the performance but some log entries may be missing on the screen.

Note

Default value: false.

log.flush = false

sync_mode

The data synchronization method. Valid values:

  • all: performs both full data synchronization and incremental data synchronization.

  • full: performs only full data synchronization.

  • incr: performs only incremental data synchronization.

Note

The default value is incr.

sync_mode = all

mongo_urls

The connection string URI of the source ApsaraDB for MongoDB instance. The database account is test and the database is admin.

Note

mongo_urls = mongodb://test:****@dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717,dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717

mongo_cs_url

The endpoint of the Configserver node. If the source ApsaraDB for MongoDB instance is a sharded cluster instance, you must specify this parameter. For more information about how to apply for an endpoint for a Configserver node, see Apply for an endpoint for a shard or Configserver node.

The database account is test and the database is admin.

mongo_cs_url = mongodb://test:****@dds-bp19f409d7512****-csxxx.mongodb.rds.aliyuncs.com:3717,dds-bp19f409d7512****-csxxx.mongodb.rds.aliyuncs.com:3717/admin

mongo_s_url

The endpoint of the Mongos node. If the source ApsaraDB for MongoDB instance is a sharded cluster instance, you must specify this parameter. You must specify the endpoint of at least one Mongos node. Separate the endpoints of multiple Mongos nodes with commas (,). For more information about how to apply for an endpoint for a Mongos node, see Apply for an endpoint for a shard or Configserver node.

The database account is test and the database is admin.

mongos_s_url = mongodb://test:****@s-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717,s-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717/admin

tunnel

The type of the tunnel used for synchronization. Valid values:

  • direct: directly synchronizes data to the destination ApsaraDB for MongoDB instance.

  • rpc: synchronizes data by using NET/RPC.

  • tcp: synchronizes data by using TCP.

  • file: synchronizes data by transferring files.

  • kafka: synchronizes data by using Kafka.

  • mock: only used for testing without writing data to the tunnel.

Note

Th default value is direct.

tunnel = direct

tunnel.address

The address used to connect to the destination ApsaraDB for MongoDB instance through the tunnel.

  • If the tunnel parameter is set to direct, set the value to the connection string URI of the destination ApsaraDB for MongoDB instance.

  • If the tunnel parameter is set to rpc, set the value to the receiver socket address used in the RPC connection to the destination ApsaraDB for MongoDB instance.

  • If the tunnel parameter is set to tcp, set the value to the receiver socket address used in the TCP connection to the destination ApsaraDB for MongoDB instance.

  • If the tunnel parameter is set to file, set the value to the file path in the destination ApsaraDB for MongoDB instance.

  • If the tunnel parameter is set to kafka, set the value to the broker server addresses of Kafka. Example: topic@brokers1,brokers2.

  • If the tunnel parameter is set to mock, you do not need to set this parameter.

The database account is test and the database is admin.

tunnel.address = mongodb://test:****@dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717,dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717

tunnel.message

The type of the data to be written to the tunnel . This parameter takes effect only when the tunnel parameter is set to kafka or file. Valid values:

  • raw: writes data in the original format. The data is aggregated in batches to be written or read at a time.

  • json: writes data to Kafka in the JSON format. This way, the data can be directly read.

  • bson: writes data to Kafka in the Binary JSON (BSON) format.

Note

Default value: raw.

tunnel.message = raw

mongo_connect_mode

The type of the node from which MongoShake pulls data. This parameter takes effect only when the tunnel parameter is set to direct. Valid values:

  • primary: pulls data from the primary node.

  • secondaryPreferred: pulls data from a secondary node.

  • standalone: pulls data from the single node that is specified.

Note

The default value is secondaryPreferred.

mongo_connect_mode = secondaryPreferred

filter.namespace.black

The namespace blacklist for data synchronization. The specified namespaces are not synchronized to the destination database. Separate multiple namespaces with semicolons (;).

Note

A namespace is the standard name of a collection or index in ApsaraDB for MongoDB. It is the combination of a database name and a collection or index name. Example: mongodbtest.customer.

filter.namespace.black = mongodbtest.customer;testdata.test123

filter.namespace.white

The whitelist for data synchronization. Only the specified namespaces are synchronized to the destination database. Separate multiple namespaces with semicolons (;).

filter.namespace.white = mongodbtest.customer;test123

filter.pass.special.db

The special database from which you want to synchronize data to the destination database. You can specify multiple special databases. By default, the data in special databases such as admin, local, mongoshake, config, and system.views is not synchronized. You can set this parameter to synchronize data from special databases. Separate multiple database names with semicolons (;).

filter.pass.special.db = admin;mongoshake

filter.ddl_enable

Specifies whether to synchronize DDL operations. Valid values:

  • true

  • false

Note

If the source ApsaraDB for MongoDB instance is a sharded cluster instance, you cannot set this parameter to true.

filter.ddl_enable = false

checkpoint.storage.url

The storage location of checkpoints, which are used for resumable upload. If you do not set this parameter, MongoShake writes checkpoints to the following databases based on the type of the source ApsaraDB for MongoDB instance:

  • Replica set instance: MongoShake writes checkpoints to the mongoshake database.

  • Sharded cluster instance: MongoShake writes checkpoints to the admin database on the Configserver node.

The database account is test and the database is admin.

checkpoint.storage.url = mongodb://test:****@dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717,dds-bp19f409d7512****.mongodb.rds.aliyuncs.com:3717

checkpoint.storage.db

The name of the database that stores checkpoints.

Note

The default value is mongoshake.

checkpoint.storage.db = mongoshake

checkpoint.storage.collection

The name of the collection that stores checkpoints. If you use the active MongoShake node and standby MongoShake node to synchronize data from the same database, you can change this collection name to avoid the conflict caused by duplicate collection names.

Note

The default value is ckpt_default.

checkpoint.storage.collection = ckpt_default

checkpoint.start_position

The start position for resumable upload. If a checkpoint exists, this parameter is invalid. Set the value in the following format: YYYY-MM-DDTHH:MM:SSZ.

Note

The default value is 1970-01-01T00:00:00Z.

checkpoint.start_position = 1970-01-01T00:00:00Z

transform.namespace

The rule for renaming the source database or collection in the destination database. For example, you change the database name and collection name from Database A.Collection B to Database C.Collection D in the destination database.

transform.namespace = fromA.fromB:toC.toD

Full data synchronization options

full_sync.reader.collection_parallel

The maximum number of collections that can be concurrently pulled by MongoShake at a time.

full_sync.reader.collection_parallel = 6

full_sync.reader.write_document_parallel

The number of concurrent threads used by MongoShake to write a collection.

full_sync.reader.write_document_parallel = 8

full_sync.reader.document_batch_size

The number of documents to be written to the destination ApsaraDB for MongoDB instance at a time. For example, a value of 128 indicates that 128 documents are written to the destination ApsaraDB for MongoDB instance at a time.

full_sync.reader.document_batch_size = 128

full_sync.collection_exist_drop

Specifies whether to delete the collections in the destination database that have the same names as the source collections before synchronization. Valid values:

  • true: deletes the collections in the destination database that have the same names as the source collections before synchronization.

    Warning

    This option deletes collections in the destination database. Therefore, back up data in the destination database in advance.

  • false: returns an error message and exits if a collection in the destination database has the same name as a source collection.

full_sync.collection_exist_drop = true

full_sync.create_index

Specifies whether to create indexes after the synchronization is complete. Valid values:

  • foreground: Indexes are created in the foreground.

  • background: Indexes are created in the background.

  • none: No indexes are created.

full_sync.create_index = none

full_sync.executor.insert_on_dup_update

Specifies whether to change an INSERT statement to an UPDATE statement if a document in the destination database has the same _id value as the source document. Valid values:

  • true

  • false

full_sync.executor.insert_on_dup_update = false

full_sync.executor.filter.orphan_document

Specifies whether to filter out orphaned documents if the source ApsaraDB for MongoDB instance is a sharded cluster instance. Valid values:

  • true

  • false

full_sync.executor.filter.orphan_document = false

full_sync.executor.majority_enable

Specifies whether to enable the majority write feature in the destination ApsaraDB for MongoDB instance. Valid values:

  • true

  • false

full_sync.executor.majority_enable = false

Incremental data synchronization options

incr_sync.mongo_fetch_method

The method used to pull incremental data. Valid values:

  • oplog: pulls oplogs from the source database.

  • change_stream: pulls change events from the source database. Only MongoDB 4.0 or later supports this method.

Default value: oplog

incr_sync.mongo_fetch_method = oplog

incr_sync.oplog.gids

The global ID used to implement two-way replication for ApsaraDB for MongoDB clusters.

incr_sync.oplog.gids = xxxxxxxxxxxx

incr_sync.shard_key

The method used to distribute concurrent requests to internal worker threads. Do not modify this parameter value.

incr_sync.shard_key = collection

incr_sync.worker

The number of concurrent threads that transmit oplogs. If the performance of your ECS instance is sufficient, you can increase the number of concurrent threads.

Note

If the source ApsaraDB for MongoDB instance is a sharded cluster instance, the number of concurrent threads must be equal to the number of shard nodes.

incr_sync.worker = 8

incr_sync.worker.oplog_compressor

Specifies whether to decompress data to reduce network bandwidth usage. Valid values:

  • none: No data is compressed.

  • gzip: Data is compressed in the GZIP format.

  • zlib: Data is compressed in the ZLIB format.

  • deflate: Data is compressed in the DEFLATE format.

Note

This parameter takes effect only when the tunnel parameter is not set to direct. If the tunnel parameter is set to direct, set the value to none.

incr_sync.worker.oplog_compressor = none

incr_sync.target_delay

The time delayed for synchronizing data between the source and destination ApsaraDB for MongoDB instances. By default, changes in the source database are synchronized to the destination database in real time. To avoid invalid operations, you can set this parameter to delay the synchronization. For example, if you set incr_sync.target_delay to 1800, the synchronization is delayed for 30 minutes. Unit: seconds.

Note

A value of 0 indicates that data is synchronized in real time.

incr_sync.target_delay = 1800

incr_sync.worker.batch_queue_size

The parameters for configuring internal queues in MongoShake. Do not modify these parameters unless otherwise required.

incr_sync.worker.batch_queue_size = 64

incr_sync.adaptive.batching_max_size

incr_sync.adaptive.batching_max_size = 1024

incr_sync.fetcher.buffer_capacity

incr_sync.fetcher.buffer_capacity = 256

Direct tunnel options (This section takes effect only when the tunnel parameter is set to direct.)

incr_sync.executor.upsert

Specifies whether to change an UPDATE statement to an INSERT statement if no document in the destination database has the same _id value or unique index as the source document. Valid values:

  • true

  • false

incr_sync.executor.upsert = false

incr_sync.executor.insert_on_dup_update

Specifies whether to change an INSERT statement to an UPDATE statement if a document in the destination database has the same _id value or unique index as the source document. Valid values:

  • true

  • false

incr_sync.executor.insert_on_dup_update = false

incr_sync.conflict_write_to

Specifies whether to record conflicting documents if data write conflicts occur during the synchronization. Valid values:

  • none: Conflict documents are not recorded.

  • db: Conflict logs are written to the mongoshake_conflict database.

  • sdk: Conflict logs are written to an SDK.

incr_sync.conflict_write_to = none

incr_sync.executor.majority_enable

Specifies whether to enable the majority write feature in the destination ApsaraDB for MongoDB instance. Valid values:

  • true

  • false

Note

The majority write feature may compromise the performance.

incr_sync.executor.majority_enable = false

FAQ

For more information, see FAQ.
