You can configure event notification rules in the Object Storage Service (OSS) console for objects that you want to monitor. If the events that you specified in the rules occur on these objects, you can be immediately notified.

Limits

  • The event notification feature is available in all regions except the China (Heyuan), China (Guangzhou), China (Hohhot), China (Ulanqab), UAE (Dubai), and Malaysia (Kuala Lumpur) regions.
  • You can configure up to 10 event notification rules in a region.
  • Notifications are not sent for TS and M3U8 objects that are generated by ingesting streams over Real-Time Messaging Protocol (RTMP). For more information about stream ingest over RTMP, see Overview.

Usage notes

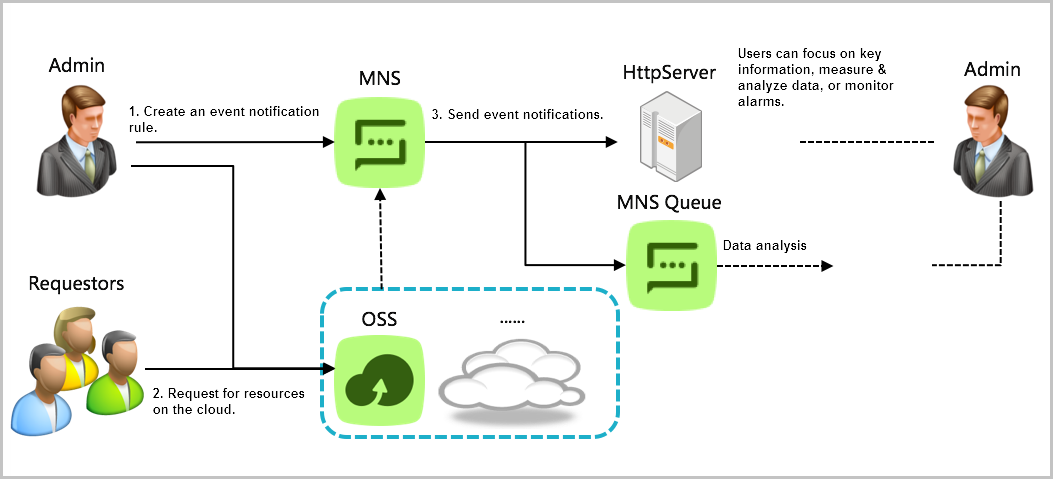

If an operation performed on your OSS resources triggers an event notification rule that you configure, Message Service (MNS) sends the notification about the operation to the specified HTTP server or MNS queue. The following figure shows the event notification process in detail.

Events

Event Description
PutObject An object is created or overwritten by using simple upload.
PostObject An object is created or overwritten by using form upload.
CopyObject An object is created or overwritten by copying an object.
InitiateMultipartUpload A multipart upload task is initiated.
UploadPart An object is created or overwritten by uploading parts.
UploadPartCopy An object is created or overwritten by using multipart upload.
CompleteMultipartUpload A multipart upload task is completed.
AppendObject An object is created or appended by using append upload.
GetObject An object is obtained by using simple download.
DeleteObject A single object is deleted.
DeleteObjects Multiple objects are deleted.
ObjectReplication:ObjectCreated An object is created by using cross-region replication (CRR).
ObjectReplication:ObjectRemoved An object is deleted by using CRR.
ObjectReplication:ObjectModified An object is overwritten by using CRR.
ObjectCreatedGroup An object is created or overwritten.
ObjectDownloadedGroup An object is downloaded.
ObjectRemovedGroup An object is deleted.
Notice The ObjectCreatedGroup, ObjectDownloadedGroup, and ObjectRemovedGroup events are available only in the China (Hong Kong), US (Silicon Valley), US (Virginia), Germany (Frankfurt), Australia (Sydney), Singapore, and UK (London) regions.

Notifications

The content of OSS-based event notifications is Base64-encoded. After the content is decoded, the content is in the JSON format. The following code provides an example on the decoded content:
{"events": [
      {
        "eventName": "",  // The event name.
        "eventSource": "", // The resources that trigger the event notification rule. Valid value: "acs:oss".
        "eventTime": "", // The time when the event occurred. The returned data is a timestamp that follows the ISO 8601 standard.
        "eventVersion": "", // The version of event notification. The current version is 1.0.
        "oss": {
            "bucket": {
                "arn": "", // The Alibaba Cloud Resource Name (ARN) of the bucket, which is in the following format: "acs:oss:region:uid:bucketname".
                "name": "", // The name of the bucket for which the event notification rule is configured.
                "ownerIdentity": "" // The owner of the bucket.
            },
            "object": {
                "deltaSize": "", // The size difference between the new object and the original object. If you create an object, the value of this parameter is the same as the size of the object. If you overwrite an object, the value is the difference between the sizes of the new object and the original object. If the size of the original object is smaller than the size of the new object, the value is negative.
                "eTag": "", // The ETag value of the object.
                "key": "", // The name of the object.
                "position": "", // This parameter applies only to the ObjectCreated:AppendObject event and indicates the position from which the AppendObject operation starts. The first AppendObject operation on an object starts from byte 0 of the object.
                "readFrom": "", // This parameter applies only to the ObjectDownloaded:GetObject event and indicates the position from which the GetObject operation starts. If the GetObject operation is not performed by range, the value of this parameter is 0. Otherwise, the value refers to the position of the byte from which the GetObject operation starts.
                "readTo": "", // This parameter applies only to the ObjectDownloaded:GetObject event and indicates the position at which the last GetObject operation ends. If the GetObject operation is not performed by range, the value of this parameter is the object size. Otherwise, the value refers to the position of the first byte after the byte at which the GetObject operation ends.
                "size": "" // The size of the object.
                },
        "ossSchemaVersion": "", // The version of the schema. The current value is 1.0.
        "ruleId": "GetObject", // The ID of the rule that matches the event.
        "region": "", // The region in which the bucket is located.
        "requestParameters": {
            "sourceIPAddress": "" // The source IP address from which the request is sent.
            },
        "responseElements": {
            "requestId": "" // The ID of the request.
            },
        "userIdentity": {
            "principalId": "" // The UID of the requester.
            },
        "xVars": {  // Custom parameters for OSS callback.
            "x:callback-var1":"value1",
            "x:vallback-var2":"value2"
            }
        }
     }
  ]
}
The following code provides an example on the content of a notification:
{"events": [
      {
        "eventName": "ObjectDownloaded:GetObject",
        "eventSource": "acs:oss",
        "eventTime": "2016-07-01T11:17:30.000Z",
        "eventVersion": "1.0",
        "oss": {
            "bucket": {
                "arn": "acs:oss:cn-shenzhen:114895646818****:event-notification-test-shenzhen",
                "name": "event-notification-test-shenzhen",
                "ownerIdentity": "114895646818****"},
            "object": {
                "deltaSize": 0,
                "eTag": "0CC175B9C0F1B6468E1199E269772661",
                "key": "test",
                "readFrom": 0,
                "readTo": 1,
                "size": 1
            },
        "ossSchemaVersion": "1.0",
        "ruleId": "GetObjectRule",
        "region": "cn-shenzhen",
        "requestParameters": {
            "sourceIPAddress": "198.51.100.1"
            },
        "responseElements": {
            "requestId": "5FF16B65F05BC932307A3C3C"
            },
        "userIdentity": {
            "principalId": "114895646818****"
            },
        "xVars": {
            "x:callback-var1":"value1",
            "x:vallback-var2":"value2"
            }
        }
     }
  ]
}

References

  • Enable event notification

    You can enable event notification in the OSS console. For more information, see Configure event notification rules.

  • Use MNS to send notifications for OSS events

    You can configure event notification rules for objects that you want to monitor. If the events that you specified in the rules occur on these objects, you can be immediately notified from the HTTP servers or MNS queues that you specify in the rules. For more information, see Tutorial: Use MNS to send notifications for OSS events.
