This topic describes how to set up Kubernetes Cluster Federation (KubeFed) in the Container Service for Kubernetes (ACK) console.

Prerequisites

Procedure

  1. Deploy kubefed-operator.
    1. Log on to the ACK console.
    2. In the left-side navigation pane, choose Marketplace > App Catalog.
    3. On the App Catalog page, click the Alibaba Cloud Apps tab. On the Alibaba Cloud Apps tab, find and click ack-kubefed-init.
      In the upper-right corner of the App Catalog page, you can enter ack-kubefed-init into the Name search bar and click the search icon. You can also enter a keyword to perform a fuzzy match.
    4. On the App Catalog - ack-kubefed-init page, select a cluster as the host cluster in the Deploy section.
    5. On the App Catalog - ack-kubefed-init page, click the Parameters tab. On the Parameters tab, keep the default settings. Click Create in the Deploy section.

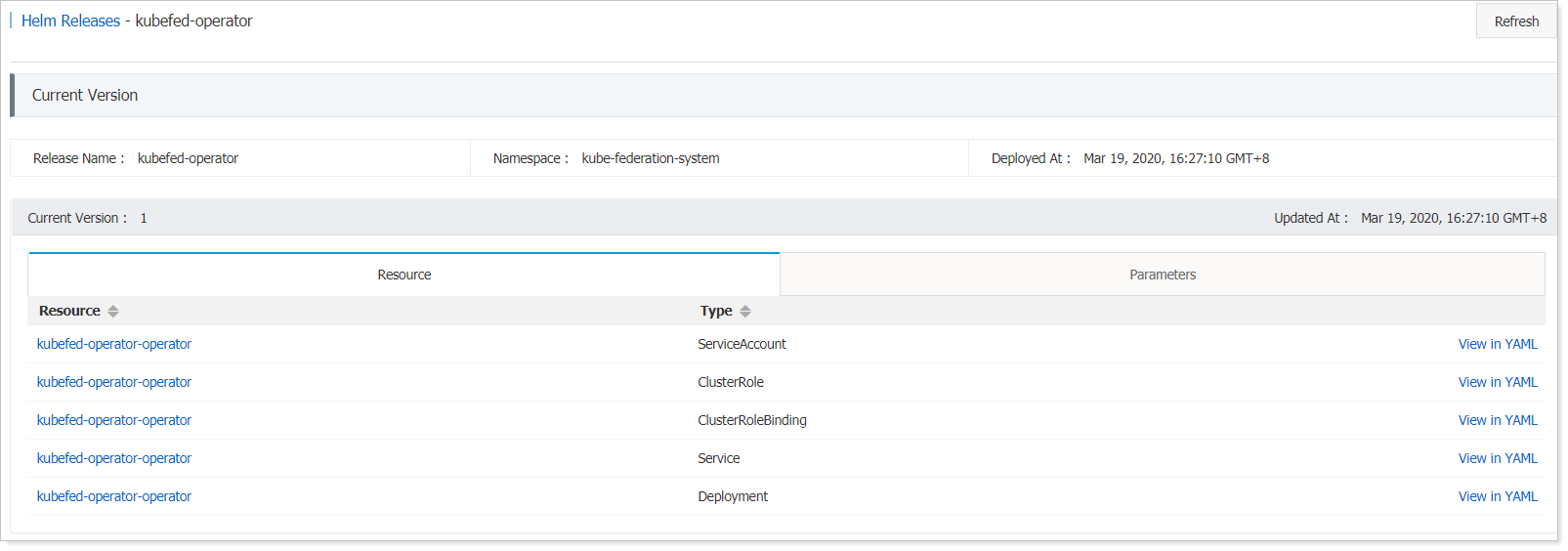

      In this example, cluster1 is selected as the host cluster. Namespace is automatically set to kube-federation-system. Release Name is automatically set to kubefed-operator. On the page that appears after the application is deployed, you can find the related resource objects that are deployed.

      Release
  2. Deploy the KubeFed environment.
    After ack-kubefed-init is deployed, you can use kubefed-operator to manage the cluster federation.
    1. Prepare the required resources to deploy the KubeFed environment.
      apiVersion: kubefed.alibabacloud.com/v1beta1
      kind: Kubefed
      metadata:
        finalizers:
        - kubefed-operator.finializer.alibabacloud.com
        labels:
          controller-tools.k8s.io: "1.0"
        name: kubefed-config
        namespace: kube-federation-system
      spec:
        hub: registry.cn-hangzhou.aliyuncs.com/aliacs-app-catalog
        imagePullPolicy: IfNotPresent
        kubefed:
          replicaCount: 2
        logging:
          level: default:info
        scope: Cluster
        version: v0.1.0-rc6
      Note
      • Scope: specifies the scope of the KubeFed control plane.
      • Version: specifies the version of KubeFed.
    2. Create the required resources to delpoy the KubeFed environment.
      kubectl create -f kubefed-config.yaml
    3. Check whether the KubeFed environment is deployed.
      Run the following command to check the status of the deployment:
      kubectl describe  kubefeds kubefed-config -n kube-federation-system
      The following output is returned:
      Name:         kubefed-config
      Namespace:    kube-federation-system
      Labels:       controller-tools.k8s.io=1.0
      Annotations:  <none>
      API Version:  kubefed.alibabacloud.com/v1beta1
      Kind:         Kubefed
      Metadata:
        Creation Timestamp:  2019-09-04T08:56:06Z
        Finalizers:
          kubefed-operator.finializer.alibabacloud.com
        Generation:        1
        Resource Version:  48747611
        Self Link:         /apis/kubefed.alibabacloud.com/v1beta1/namespaces/kube-federation-system/kubefeds/kubefed-config
        UID:               d4f26fff-cef1-11e9-b9f4-bec634a5****
      Spec:
        Hub:                registry.cn-hangzhou.aliyuncs.com/aliacs-app-catalog
        Image Pull Policy:  IfNotPresent
        Kubefed:
          Replica Count:  2
        Logging:
          Level:  default:info
        Scope:    Cluster
        Version:  v0.1.0-rc6
      Status:
        Error Message:
        Status:         Available
      Events:           <none>
      If the value of the Status field is Available, it indicates that the KubeFed environment is deployed and you can add clusters to the cluster federation. The following table describes different states of the deployment.
      State Description
      Create The deployment is being initialized.
      Reconciling The deployment is in progress.
      ReconcileFailed The deployment fails.
      Available The deployment succeeds.
