This topic describes how to use Bamboo to deploy a remote agent in a cluster of Container Service for Kubernetes (ACK) and run a build plan for an application. In this topic, a sample application compiled in Java is created and deployed in an ACK cluster.

Prerequisites

Source code

In this example, the address of the GitHub project is:
https://github.com/AliyunContainerService/jenkins-demo.git

The source code under the bamboo branch is used.

Step 1: Deploy a remote agent in an ACK cluster

  1. Create a Secret named kaniko-docker-cfg.

    The kaniko-docker-cfg Secret is used to authenticate access to an image registry when you run a build plan and push an image to the image registry.

    1. Log on to your Linux server as a root user and run the following command to generate the /root/.docker/config.json file:
      docker login registry.cn-hangzhou.aliyuncs.com
    2. Use Cloud Shell to connect to the created ACK cluster. Run the following command to create the kaniko-docker-cfg Secret:
      kubectl -n bamboo create secret generic kaniko-docker-cfg  --from-file=/root/.docker/config.json
  2. Deploy the Bamboo agent.
    Create a service account and ClusterRoleBinding to configure permissions of the application in the ACK cluster.
    1. Create a YAML file named bamboo-agent.yaml and paste the following content to the file. Run the kubectl -n bamboo apply -f bamboo-agent.yaml command to deploy the Bamboo agent.
      apiVersion: v1
      kind: ServiceAccount
      metadata:
        namespace: bamboo
        name: bamboo

      ---
      apiVersion: rbac.authorization.k8s.io/v1
      kind: ClusterRoleBinding
      metadata:
        name: bamboo-cluster-admin
      subjects:
        - kind: ServiceAccount
          name: bamboo
          namespace: bamboo
      roleRef:
        kind: ClusterRole
        name: cluster-admin
        apiGroup: rbac.authorization.k8s.io

      ---
      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: bamboo-agent
      spec:
        replicas: 1
        selector:
          matchLabels:
            app: bamboo-agent
        template:
          metadata:
            labels:
              app: bamboo-agent
          spec:
            serviceAccountName: bamboo
            containers:
            - name: bamboo-agent
              env:
              - name: BAMBOO_SERVER_URL
                value: http://xx.xx.xx.xx:8085
              image: registry.cn-hangzhou.aliyuncs.com/haoshuwei/docker-bamboo-agent:v1
              imagePullPolicy: Always
              volumeMounts:
                - mountPath: /root/.docker/
                  name: kaniko-docker-cfg
            volumes:
              - name: kaniko-docker-cfg
                secret:
                  secretName: kaniko-docker-cfg
    2. After the Bamboo agent is deployed, run the following command to query log data of the application:
      kubectl -n bamboo logs -f <bamboo agent pod name>
      Note You must replace bamboo agent pod name with the actual pod name.
    3. After the remote agent is registered, log on to the Bamboo console. In the upper-right corner of the console, click Settings and select Agent from the drop-down list.

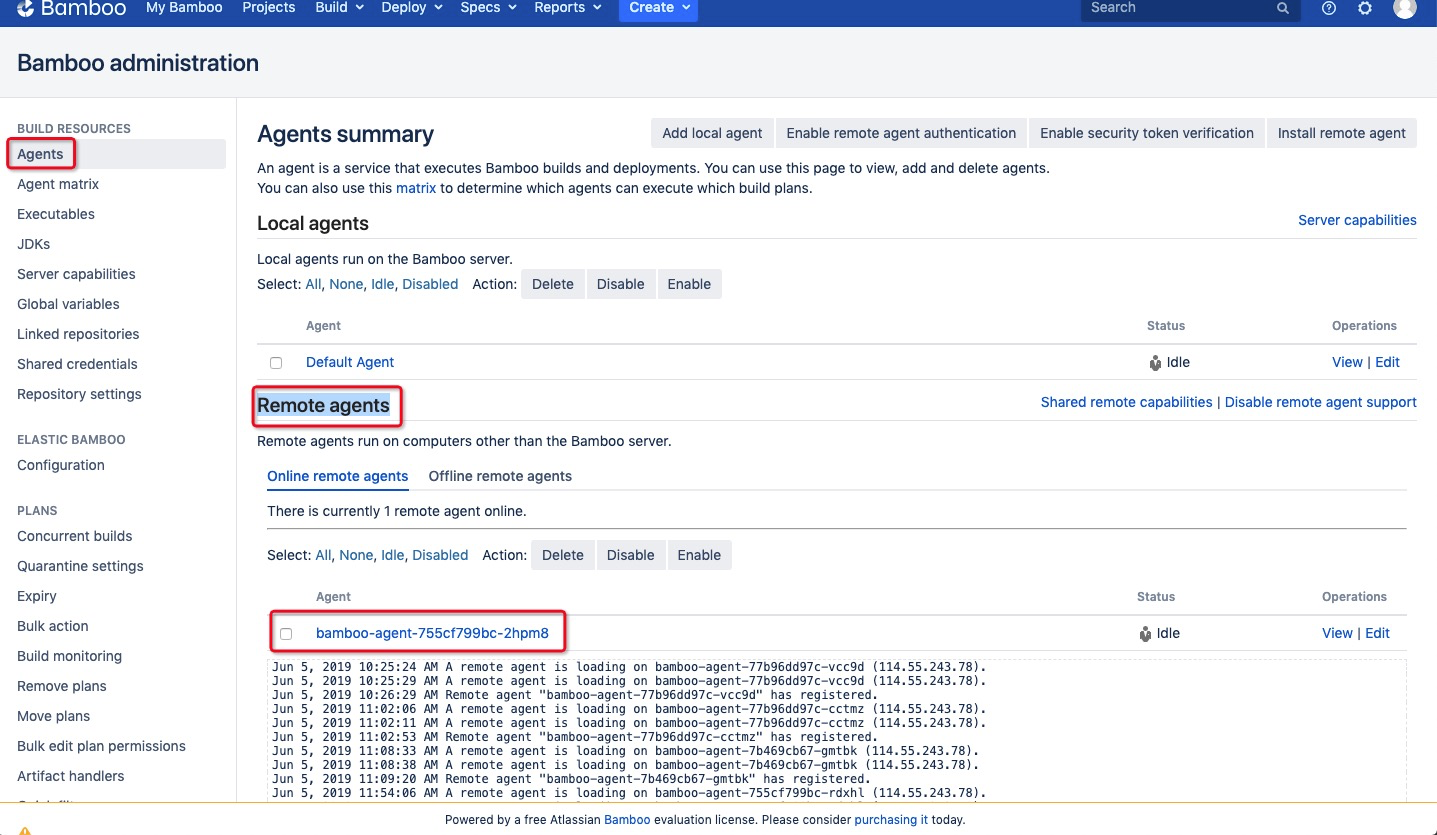

      On the Bamboo administration page, you can find the deployed agent.

      Bamboo administration

Step 2: Configure a build plan

You can configure a build plan to pull the source code, compile and package the source code, package and push the container image, and deploy the application.

  1. Create a build plan.
    1. Log on to the Bamboo console, choose Create > Create plan. The Configure plan page appears.
    2. Select bamboo-ack-demo from the Project drop-down list. Set Plan name, Plan key, and Plan description. Select java-demo from the Repository host drop-down list. Then, click Configure plan.
      Configure plan
  2. The Configure Job page appears. On the Configure Job page, configure the stages and add jobs.
    1. Pull the source code.

      When you create the build plan, you have selected java-demo from the Repository host drop-down list. This means that you have configured where to pull the source code. If you want to change the code repository, perform the following steps.

      1. In the Create tasks section, click Source Code Checkout.Source Code Checkout
      2. On the Source Code Checkout configuration panel, modify Repository host based on your requirements and click Save.
    2. Use Maven to package the source code.
      1. In the Create tasks section, click Add task. In the Task types dialog box, select Command.Task types
      2. On the Command configuration panel, set Task description, Executable, and Argument. Click Save.Task description
    3. Use kaniko to package and push the container image to the image registry.
      1. In the Create tasks section, click Add task. In the Task types dialog box, select Script.Script

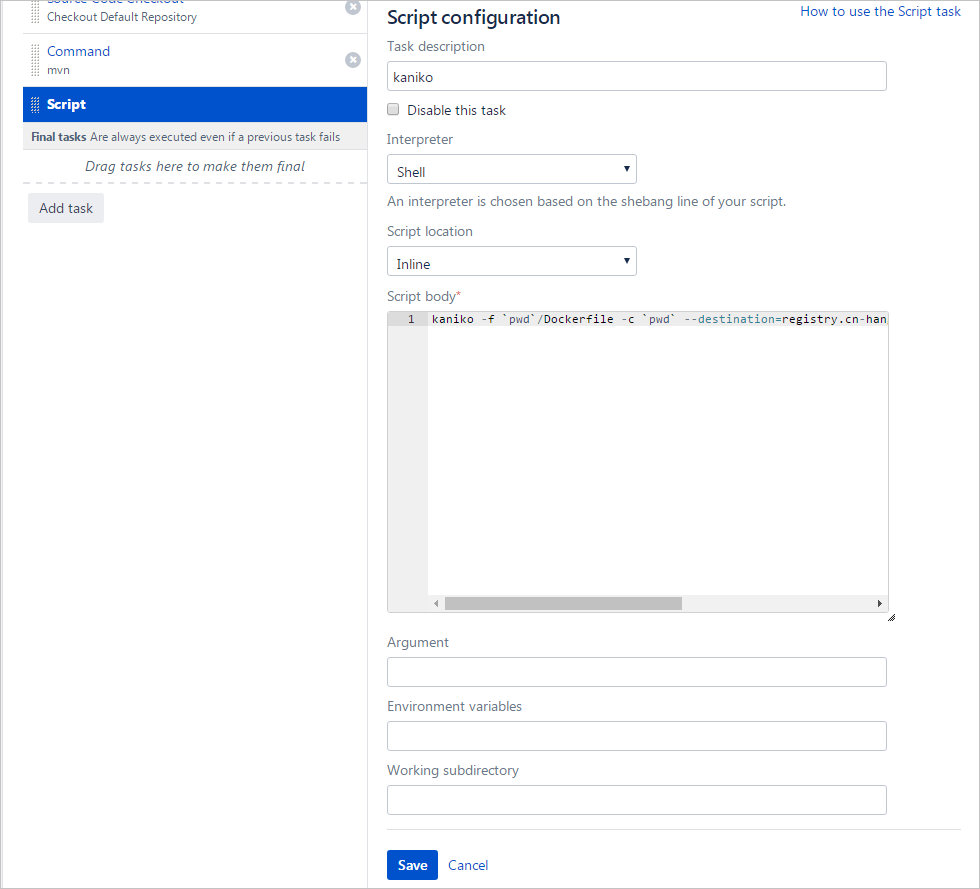

      2. On the Script configuration panel, specify Task description and Script location. You can keep the default settings for the other parameters. Click Save.Script configuration
        In this example, Script location is specified as:
        kaniko -f `pwd`/Dockerfile -c `pwd` --destination=registry.cn-hangzhou.aliyuncs.com/haoshuwei/bamboo-java-demo:latest
    4. Use kubectl to deploy the application in the ACK cluster.
      1. In the Create tasks section, click Add task. In the Task types dialog box, select Script.Script

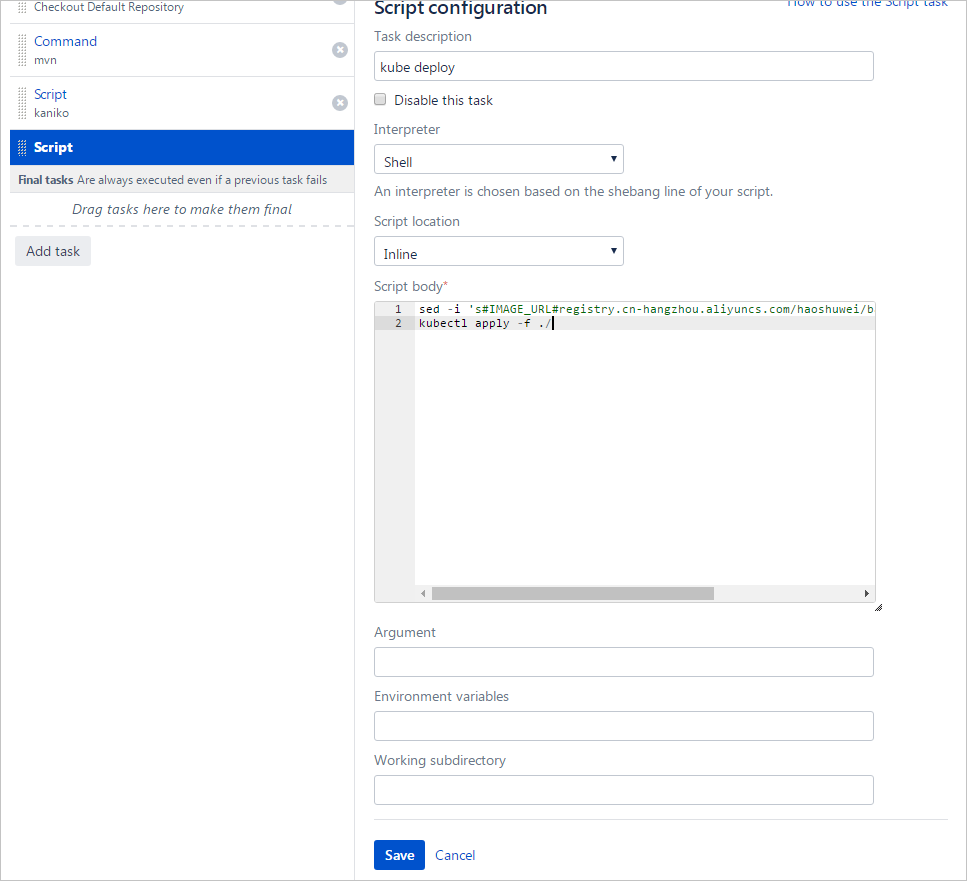

      2. On the Script configuration panel, set Task description and Script location. You can keep the default settings for the other parameters. Click Save.Script configuration
        In this example, Script location is specified as:
        sed -i 's#IMAGE_URL#registry.cn-hangzhou.aliyuncs.com/haoshuwei/bamboo-java-demo:latest#' . /*.yaml
        kubectl apply -f . /
  3. Run the build plan.
    1. After you have completed the preceding steps, click Create. The bamboo-ack-demo page appears.
      bamboo-ack-demo

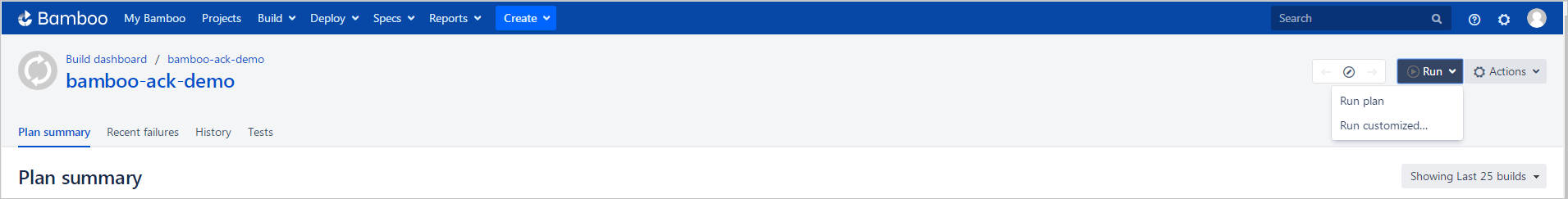

    2. In the upper-right corner of the bamboo-ack-demo page, choose Run > Run plan to run the newly created build plan.
      Run plan

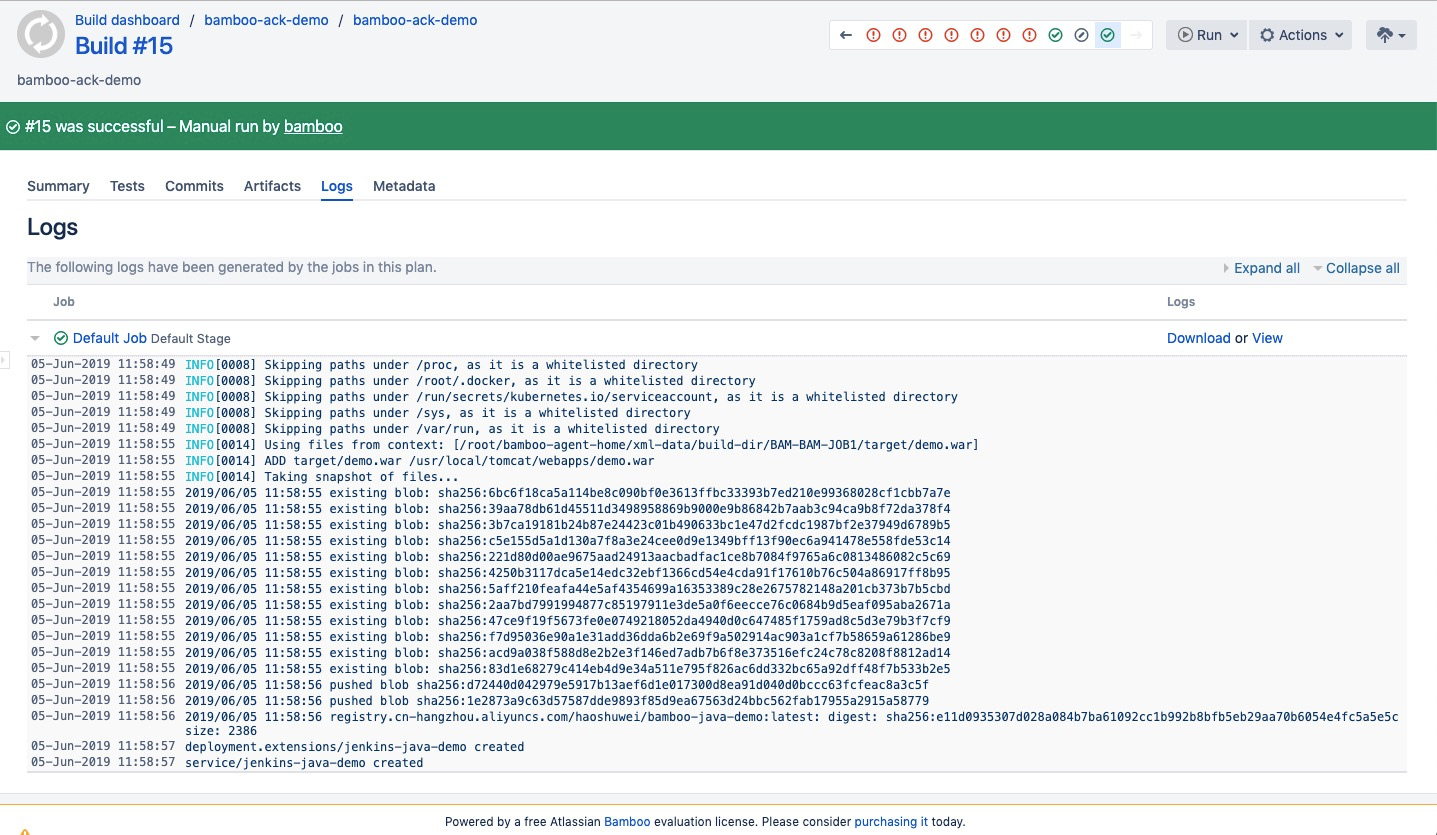

      You can also click the Logs tab to view the log of the build plan.Logs
  4. Access the deployed application.
    1. Run the kubectl -n bamboo get svc command to query information about the Service for the deployed application.
      [root@iZbp12i73koztp1cz75skaZ bamboo]# kubectl -n bamboo get svc
      NAME                TYPE           CLUSTER-IP      EXTERNAL-IP       PORT(S)        AGE
      jenkins-java-demo   LoadBalancer   xx.xx.xx.xx     xx.xx.xx.xx       80:32668/TCP   39m
    2. You can enter http://EXTERNAL-IP into the address bar of your browser and press Enter to access the deployed application.
      URL

Related topic

For more information about how to build registry.cn-hangzhou.aliyuncs.com/haoshuwei/docker-bamboo-agent:v1, see docker-bamboo-agent.

For more information about Bamboo, see Bamboo.
