This topic describes how to use the demo of a Kafka client to consume tracked data. The change tracking feature of the new version allows you to consume tracked data by using a Kafka client of V0.11 to V2.7.

Usage notes

  • If you enable auto commit when you use the change tracking feature, some data may be committed before it is consumed. This results in data loss. We recommend that you manually commit data.
    Note If data fails to be committed, you can restart the client to continue consuming data from the last recorded consumption checkpoint. However, duplicate data may be generated during this period. You must manually filter out the duplicate data.
  • Data is serialized and stored in the Avro format. For more information, see Record.avsc.
    Warning If you are not using the Kafka client that is described in this topic, you must parse the tracked data based on the Avro schema.
  • The search unit is second when Data Transmission Service (DTS) calls the offsetForTimes operation. The search unit is millisecond when a native Kafka client calls this operation.
  • Transient connections may occur between a Kafka client and the change tracking server due to several reasons, such as disaster recovery. If you are not using the Kafka client that is described in this topic, your Kafka client must have network reconnection capabilities.

Run the Kafka client

Download the Kafka client demo. For more information about how to use the demo, see Readme.

Note
  • Click the code icon and select Download ZIP to download the package.

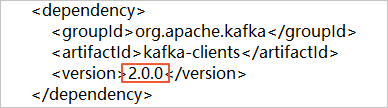

  • If you use a Kafka client of version 2.0, you must change the version number in the subscribe_example-master/javaimpl/pom.xml file to 2.0.0.
kafka2.0
Table 1. The following table describes the steps to run the Kafka client.
StepFile or directory
1. Use the native Kafka consumer to obtain incremental data from the change tracking instance. subscribe_example-master/javaimpl/src/main/java/recordgenerator/
2. Deserialize the image of the incremental data, and obtain the pre-image, the post-image , and other attributes.
Warning
  • If the source instance is a self-managed Oracle database, you must enable supplemental logging for all columns. This ensures that the client can successfully consume the tracked data and ensures the integrity of the pre-image and post-image.
  • If the source instance is not a self-managed Oracle database, DTS does not ensure the integrity of the pre-image. We recommend that you verify the obtained pre-image.
subscribe_example-master/javaimpl/src/main/java/boot/RecordPrinter.java
3. Convert the dataTypeNumber values in the deserialized data into the data types of the corresponding database. subscribe_example-master/javaimpl/src/main/java/recordprocessor/mysql/

Procedure

The following steps show how to run the Kafka client to consume tracked data. In this example, IntelliJ IDEA Community Edition 2018.1.4 for Windows is used.

  1. Create a change tracking task. For more information, see Track data changes from an ApsaraDB RDS for MySQL instance, Track data changes from a PolarDB for MySQL cluster, or Track data changes from a self-managed Oracle database.
  2. Create one or more consumer groups. For more information, see Create consumer groups.
  3. Download the Kafka client demo and decompress the package.
    Note Click the code icon and select Download ZIP to download the package.
  4. Open IntelliJ IDEA. In the window that appears, click Open.
    Open a project
  5. In the dialog box that appears, go to the directory in which the downloaded demo resides. Find the pom.xml file.
    Open the pom.xml file
  6. In the dialog box that appears, select Open as Project.
  7. In the Project tool window of IntelliJ IDEA, click folders to find the demo file of the Kafka client, and double-click the file. The file name is NotifyDemoDB.java.
  8. Configure the parameters in the NotifyDemoDB.java file.
    Configure the parameters
    ParameterDescriptionMethod to obtain the parameter value
    USER_NAMEThe account of the consumer group.
    Warning If you are not using the Kafka client that is described in this topic, you must specify the account in the following format: <Username>-<Consumer group ID>. Example: dtstest-dtsae******bpv. Otherwise, the connection fails.
    In the DTS console, find the change tracking instance that you want to manage and click the instance ID. In the left-side navigation pane, click Consume Data. On the page that appears, you can obtain the consumer group ID and the corresponding username.
    Note The password of the consumer group account is automatically specified when you create the consumer group.
    View the consumer group ID and username
    PASSWORD_NAMEThe password of the account.
    SID_NAMEThe ID of the consumer group.
    GROUP_NAMEThe name of the consumer group. Set this parameter to the consumer group ID.
    KAFKA_TOPICThe topic of the change tracking instance. In the DTS console, find the change tracking instance that you want to manage and click the instance ID. On the Task Management page, you can obtain the topic and network information. Obtain the topic and network information
    KAFKA_BROKER_URL_NAMEThe endpoint of the change tracking instance.
    Note If you track data changes over internal networks, the network latency is minimal. This is applicable if the Elastic Compute Service (ECS) instance on which you deploy the Kafka client resides on the classic network or in the same virtual private cloud (VPC) as the change tracking instance.
    INITIAL_CHECKPOINT_NAMEThe consumption checkpoint of consumed data. The value is a UNIX timestamp. Example: 1592269238.
    Note
    • You must save the consumption checkpoint for the following reasons:
      • If the consumption process is interrupted, you can specify the consumption checkpoint on the Kafka client to resume data consumption. This prevents data loss.
      • When you start the Kafka client, you can specify the consumption checkpoint to consume data on demand.
    • If the SUBSCRIBE_MODE_NAME parameter is set to subscribe, the INITIAL_CHECKPOINT_NAME parameter that you specified takes effect only when you start the Kafka client for the first time.
    The consumption checkpoint of consumed data must be within the data range of the change tracking instance, as shown in the following figure. The consumption checkpoint must be converted into a UNIX timestamp. Data range
    Note You can use a search engine to obtain a UNIX timestamp converter.
    USE_CONFIG_CHECKPOINT_NAMESpecifies whether to force the client to consume data from the specified consumption checkpoint. Default value: true. You can set this parameter to true to prevent the data that is received but not processed from being lost. N/A
    SUBSCRIBE_MODE_NAMESpecifies whether to run two or more Kafka clients for a consumer group. If you want to use this feature, set this parameter to subscribe for these Kafka clients.

    The default value is assign, which indicates that the feature is not used. We recommend that you deploy only one Kafka client for a consumer group.

    N/A
  9. In the top menu bar of IntelliJ IDEA, choose Run > Run to run the client.
    Note If you run IntelliJ IDEA for the first time, a specific time period is required to load and install relevant dependencies.

Results on the Kafka client

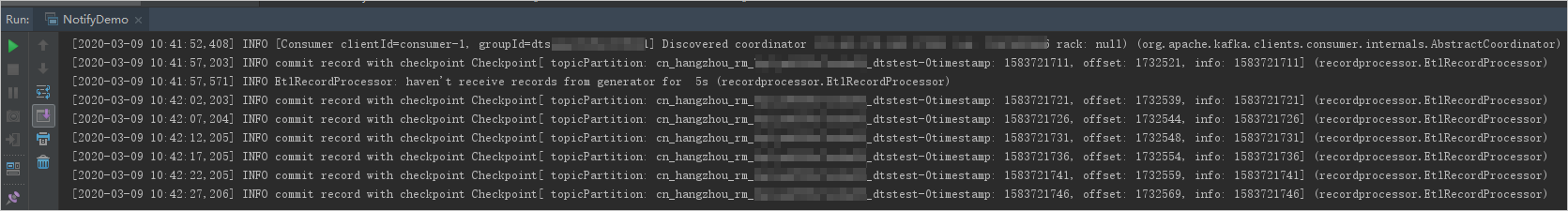

The following figure shows that the Kafka client can track data changes from the source database.

Results on the Kafka client

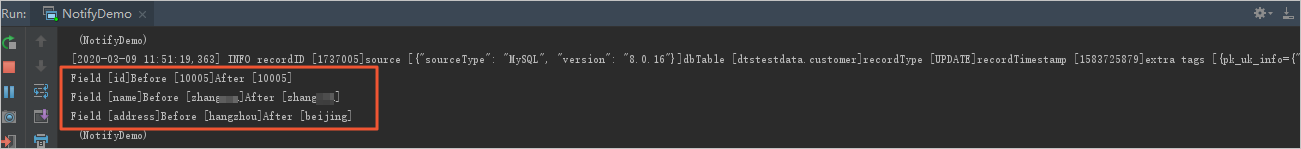

You can delete the double forward slashes (//) from the //log.info(ret); string in line 25 of the NotifyDemoDB.java file. Then, run the client again to view the data change information.

FAQ

  • Q: Why do I need to record the consumption checkpoint of the Kafka client?

    A: The consumption checkpoint recorded by DTS is the point in time when DTS receives a commit operation from the Kafka client. The recorded consumption checkpoint may be different from the actual consumption time. If a business application or the Kafka client is unexpectedly interrupted, you can specify an accurate consumption checkpoint to continue data consumption. This prevents data loss or duplicate data consumption.

Mappings between MySQL data types and dataTypeNumber values

MySQL data typeValue of dataTypeNumber
MYSQL_TYPE_DECIMAL0
MYSQL_TYPE_INT81
MYSQL_TYPE_INT162
MYSQL_TYPE_INT323
MYSQL_TYPE_FLOAT4
MYSQL_TYPE_DOUBLE5
MYSQL_TYPE_NULL6
MYSQL_TYPE_TIMESTAMP7
MYSQL_TYPE_INT648
MYSQL_TYPE_INT249
MYSQL_TYPE_DATE10
MYSQL_TYPE_TIME11
MYSQL_TYPE_DATETIME12
MYSQL_TYPE_YEAR13
MYSQL_TYPE_DATE_NEW14
MYSQL_TYPE_VARCHAR15
MYSQL_TYPE_BIT16
MYSQL_TYPE_TIMESTAMP_NEW17
MYSQL_TYPE_DATETIME_NEW18
MYSQL_TYPE_TIME_NEW19
MYSQL_TYPE_JSON245
MYSQL_TYPE_DECIMAL_NEW246
MYSQL_TYPE_ENUM247
MYSQL_TYPE_SET248
MYSQL_TYPE_TINY_BLOB249
MYSQL_TYPE_MEDIUM_BLOB250
MYSQL_TYPE_LONG_BLOB251
MYSQL_TYPE_BLOB252
MYSQL_TYPE_VAR_STRING253
MYSQL_TYPE_STRING254
MYSQL_TYPE_GEOMETRY255

Mappings between Oracle data types and dataTypeNumber values

Oracle data typeValue of dataTypeNumber
VARCHAR2 and NVARCHAR21
NUMBER and FLOAT2
LONG8
DATE12
RAW23
LONG_RAW24
UNDEFINED29
XMLTYPE58
ROWID69
CHAR and NCHAR96
BINARY_FLOAT100
BINARY_DOUBLE101
CLOB and NCLOB112
BLOB113
BFILE114
TIMESTAMP180
TIMESTAMP_WITH_TIME_ZONE181
INTERVAL_YEAR_TO_MONTH182
INTERVAL_DAY_TO_SECOND183
UROWID208
TIMESTAMP_WITH_LOCAL_TIME_ZONE231

Mappings between PostgreSQL data types and dataTypeNumber values

PostgreSQL data typeValue of dataTypeNumber
INT2 and SMALLINT 21
INT4, INTEGER, and SERIAL 23
INT8 and BIGINT 20
CHARACTER 18
CHARACTER VARYING 1043
REAL 700
DOUBLE PRECISION 701
NUMERIC 1700
MONEY 790
DATE 1082
TIME and TIME WITHOUT TIME ZONE 1083
TIME WITH TIME ZONE 1266
TIMESTAMP and TIMESTAMP WITHOUT TIME ZONE1114
TIMESTAMP WITH TIME ZONE 1184
BYTEA 17
TEXT 25
JSON 114
JSONB 3082
XML 142
UUID 2950
POINT 600
LSEG 601
PATH 602
BOX 603
POLYGON 604
LINE 628
CIDR 650
CIRCLE 718
MACADDR 829
INET 869
INTERVAL 1186
TXID_SNAPSHOT 2970
PG_LSN 3220
TSVECTOR 3614
TSQUERY 3615
