Container settings and label settings used for creating an application through an image

Edit in Github

Last Updated: Sep 03, 2019 Edit in Github

This topic compares the container and label settings used in a Swarm cluster with those used in a Kubernetes cluster for creating an application through an image.

Create an application by using an image

When you create an application in the Container Service console by using an image, you will see that the Web interfaces are different in a Swarm cluster and a Kubernetes cluster.

For more information about the Web interface of a Swarm cluster, see Create an application.
For more information about the Web interface of a Kubernetes cluster, see Create a deployment application by using an image.

Container settings

Container Service Swarm clusters

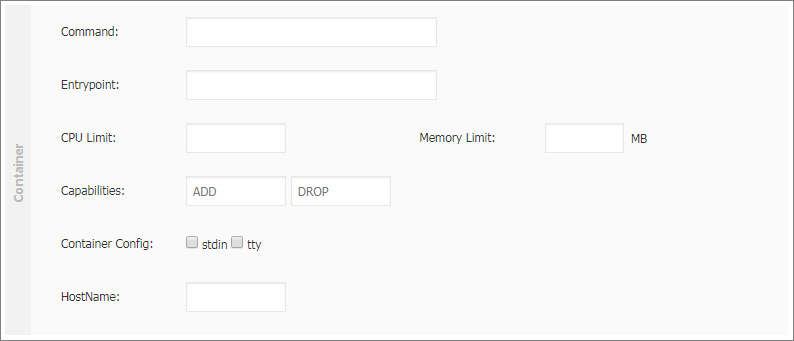

You can set container startup commands (through the Command parameter and the Entrypoint parameter), resource limits (including CPU Limit and Memory Limit), Container Config, and other parameters.

Container Service Kubernetes clusters

The Container settings of the Swarm cluster are similar to the life cycle settings and some general settings of the Kubernetes cluster.

Life Cycle settings include the following parameters. For more information about the parameter description, see Create a deployment application by using an image.
- Start
- Post Start
- Pre Stop
General settings include the following parameters. For more information about the parameter description, see Create a deployment application by using an image. For more information about setting parameters, see Recommended Kubernetes cluster configurations to run highly reliable applications.
- Resource Limit
- Resource Request

Label

Container Service Swarm clusters

With labels, you can set health checks, access domain names, logs, and other functions.

Container Service Kubernetes clusters

A label can only mark an application in a Kubernetes cluster. Different methods are used in a Kubernetes cluster to implement the functions that are implemented through labels in a Swarm cluster, such as health checks and access domain names.

When you create an application in a Kubernetes cluster by using an image, a label of the same name as the application is created. The label is not displayed on the application configuration page. You can use labels in YAML files.
