This topic describes the differences in network configurations when you deploy an application from an image in a Container Service for Swarm cluster and in a Container Service for Kubernetes (ACK) cluster.

Deploy an application from an image

The user interfaces for deploying an application from an image in a Container Service for Swarm cluster and in an ACK cluster are quite different.

Network configurations

In Container Service for Swarm clusters, network configurations are used to expose applications to external access.

Port mapping

Container Service for Swarm cluster

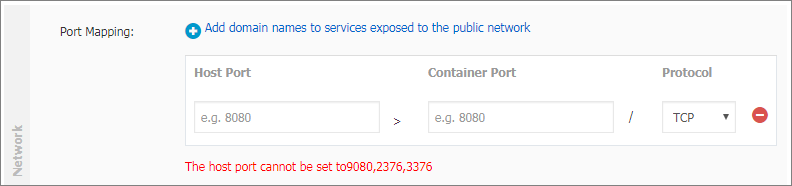

You can configure port mapping to map the application port to a port on the host. After you specify a host port number, the application port is mapped to this port on each host. You can access the application by sending requests to <HostIP>:<Port>.

Container Service for Swarm cluster

ACK cluster

You can create a NodePort Service to expose your application to external access. You can use one of the following methods to create a Service:

Method 1: Create a NodePort Service when you deploy an application

  1. After you complete the settings on the Container wizard page, proceed to the Advanced wizard page. In the Access Control section, click Create on the right side of Services.
    Advanced
  2. Select Node Port from the Type drop-down list. For more information, see Create a stateless application by using a Deployment.
    Node Port

Method 2: Directly create a NodePort Service

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Network > Services.
  5. Select the namespace to which the Service belongs. In the upper-right corner of the Services page, click Create. In the Create Service dialog box, select Node Port from the Type drop-down list. For more information, see Manage Services.
    Create a Service

Simple routing

Container Service for Swarm cluster

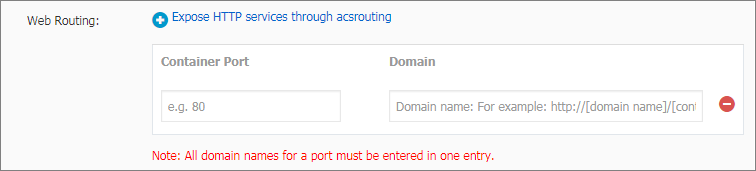

You can configure simple routing to expose your application through a domain name. You can specify a custom domain name or use the default domain name that is provided by Container Service for Swarm. Simple routing

ACK cluster

You can create an Ingress to implement simple routing and other related features. You can also use Ingresses to implement blue-green releases and canary releases for applications in ACK clusters. For more information, see Use Ingresses to implement canary releases.

Method 1: Create an Ingress when you deploy an application

You can use one of the following methods to create an Ingress:

  1. After you complete the settings on the Container wizard page, proceed to the Advanced wizard page. In the Access Control section, click Create on the right side of Ingresses.
    Advanced
  2. Deploy a stateless application from an image. For more information, see Create a stateless application by using a Deployment.
    Container configurations

Method 2: Directly create an Ingress

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Network > Ingresses.
  5. Select the namespace to which the Ingress belongs and click Create in the upper-right corner of the Ingresses page. For more information, see How to perform basic operations on an Ingress in the ACK console.
    Ingresses and Load Balancing

Load balancing

Container Service for Swarm cluster

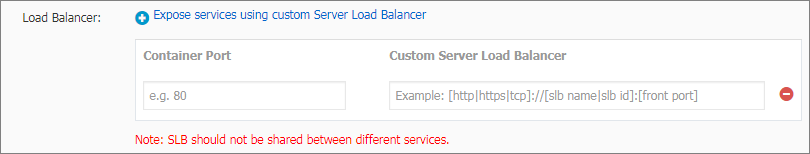

You can configure load balancing to expose your application by using Server Load Balancer (SLB). You must create an SLB instance and associate the instance IP and port with your application. Then, you can access the application by sending requests to <SLB_IP>:<Port>. Load balancing

ACK cluster

You can also use an SLB instance to expose your application that is deployed in an ACK cluster. You do not need to manually create and configure an SLB instance. A LoadBalancer Service automatically creates an SLB instance for you. You can specify whether the SLB instance is used to enable access over the Internet or a private network. If you create a LoadBalancer Service by using a YAML template, you can specify to use an existing SLB instance and enable the session persistence feature. For more information, see Manage Services.

Method 1: Create a LoadBalancer Service when you deploy an application

You can use one of the following methods to create a LoadBalancer Service:

  1. After you complete the settings on the Container wizard page, proceed to the Advanced wizard page. In the Access Control section, click Create on the right side of Services.
    Advanced
  2. Select Server Load Balancer from the Type drop-down list. For more information, see Create a stateless application by using a Deployment.
    Server Load Balancer

Method 2: Directly create a LoadBalancer Service

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Network > Services.
  5. Select the namespace to which the Service belongs. In the upper-right corner of the Services page, click Create. In the Create Service dialog box, select Server Load Balancer from the Type drop-down-list. For more information, see Manage Services.
    Server Load Balancer
